Professional CCTV Tester Monitor
IPCX-ATC-H-S-N-R-VO: support Basic function + AHD TVI CVI + HDMI-IN + SDI + cable tracer + TDR Breakpoint test + visual feult locater + optical power meter .
IPCX-ATC-S-N: support Basic function + AHD TVI CVI + SDI + cable tracer .
IPCX-ATC: support Basic function + AHD TVI CVI
The instrument adopts a open-source Android operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring equipment, the instrument adopts a 7-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. It is built in a variety of network tools and PoE power output, DC12V/3A power output, cable tracking (optional)and cable testing (optional), etc. It is an essential tool for security monitoring projects and integrated wiring projects.
This is full function , The options mentioned in the ad are included. If you doesnot need these features, please contact me.
This CCTV tester not supported Digital Multimeter (NO SUPPORT)
Detail

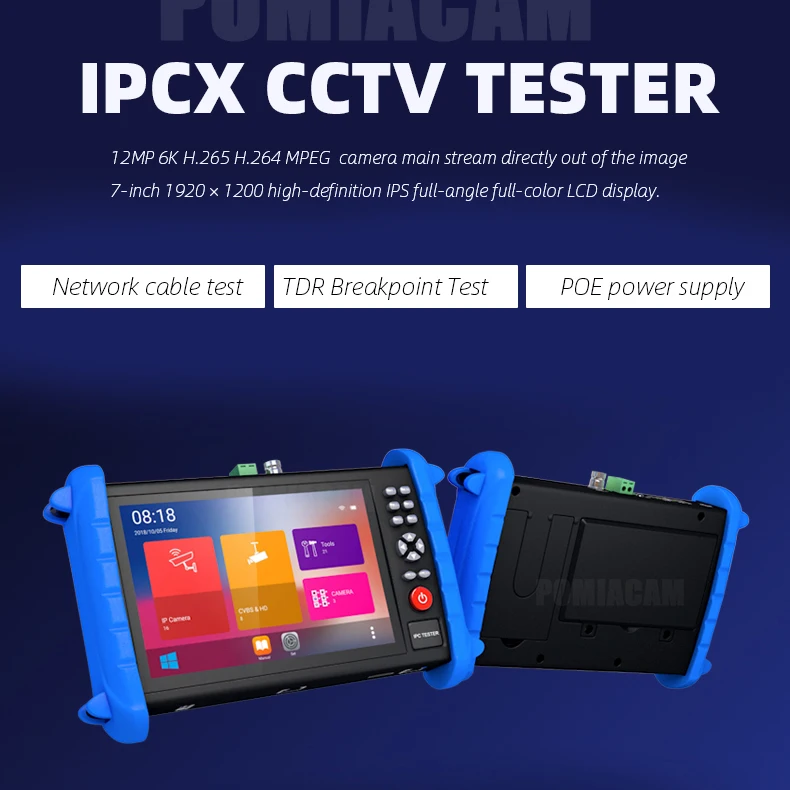

Product Model: IPCX Video Monitor Tester
Touch Screen: 7 inch G + G structure capacitance screen
LCD Screen: 7 inch resolution 1920 × 1200 IPS HD full view
Ethernet Port: 10/100/1000M adaptive
WIFI: Built-in wireless WIFI, speed 150M

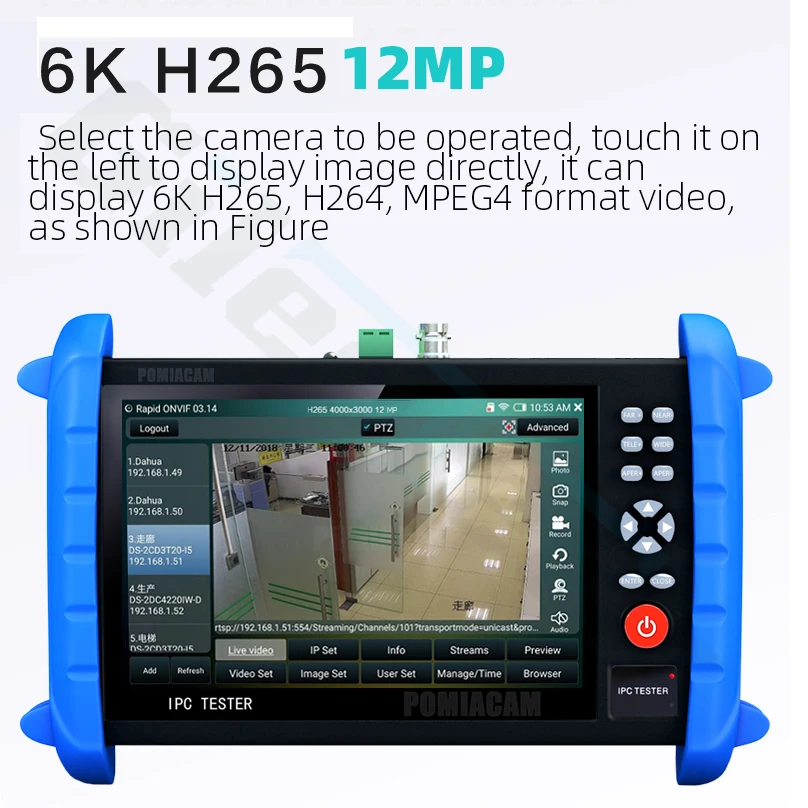

IP Camera Test: 4K 12MP camera resolution, video image real-time display without delay, support video snapshot, video recording and playback

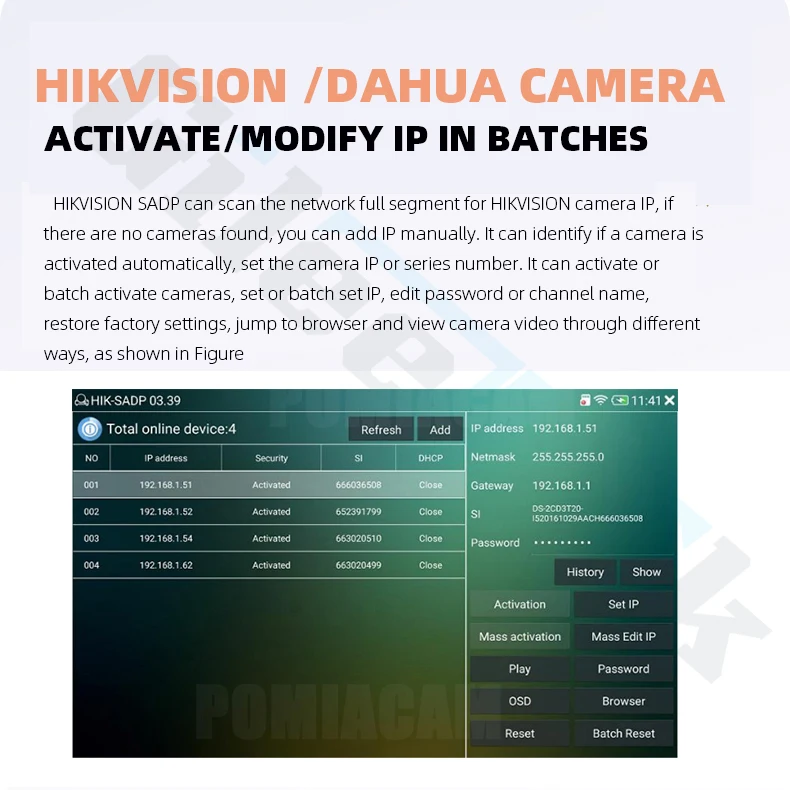

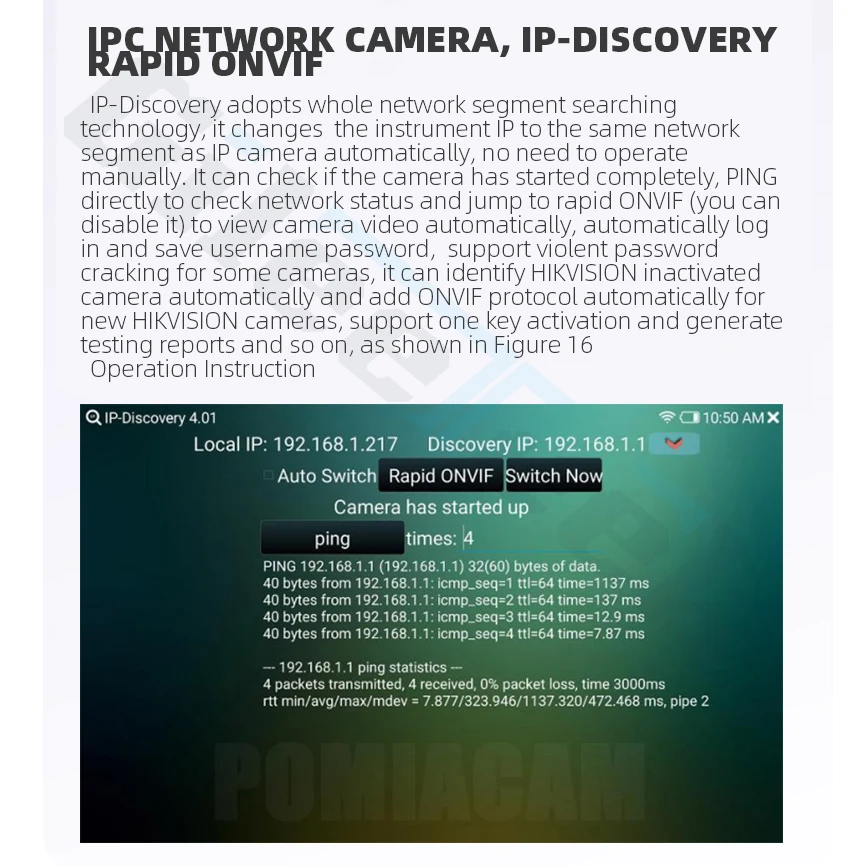

ONVIF: ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and
other more than 30 manufacturer private protocols and customizable, support camera mobile client installation
PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
CVBS Analog Camera Test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation

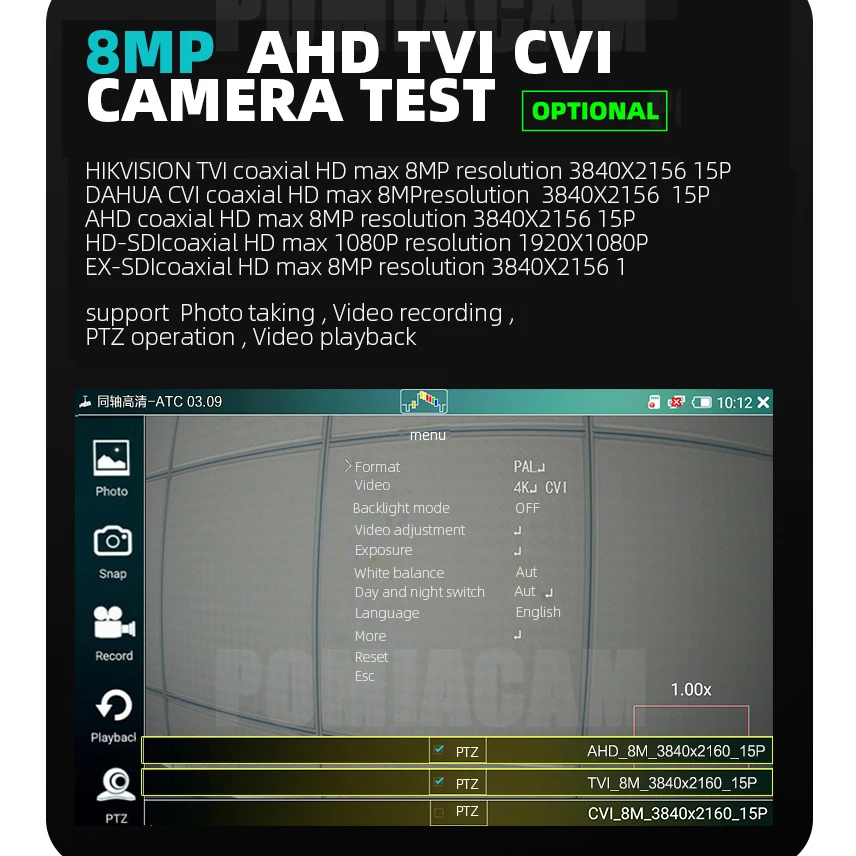

(optional) HD Camera Test: Support HD TVI 8MP, CVI 8MP, AHD 8MP
Video Image Zoom: Real-time enlarge moving HD video image, max enlarge 8 times

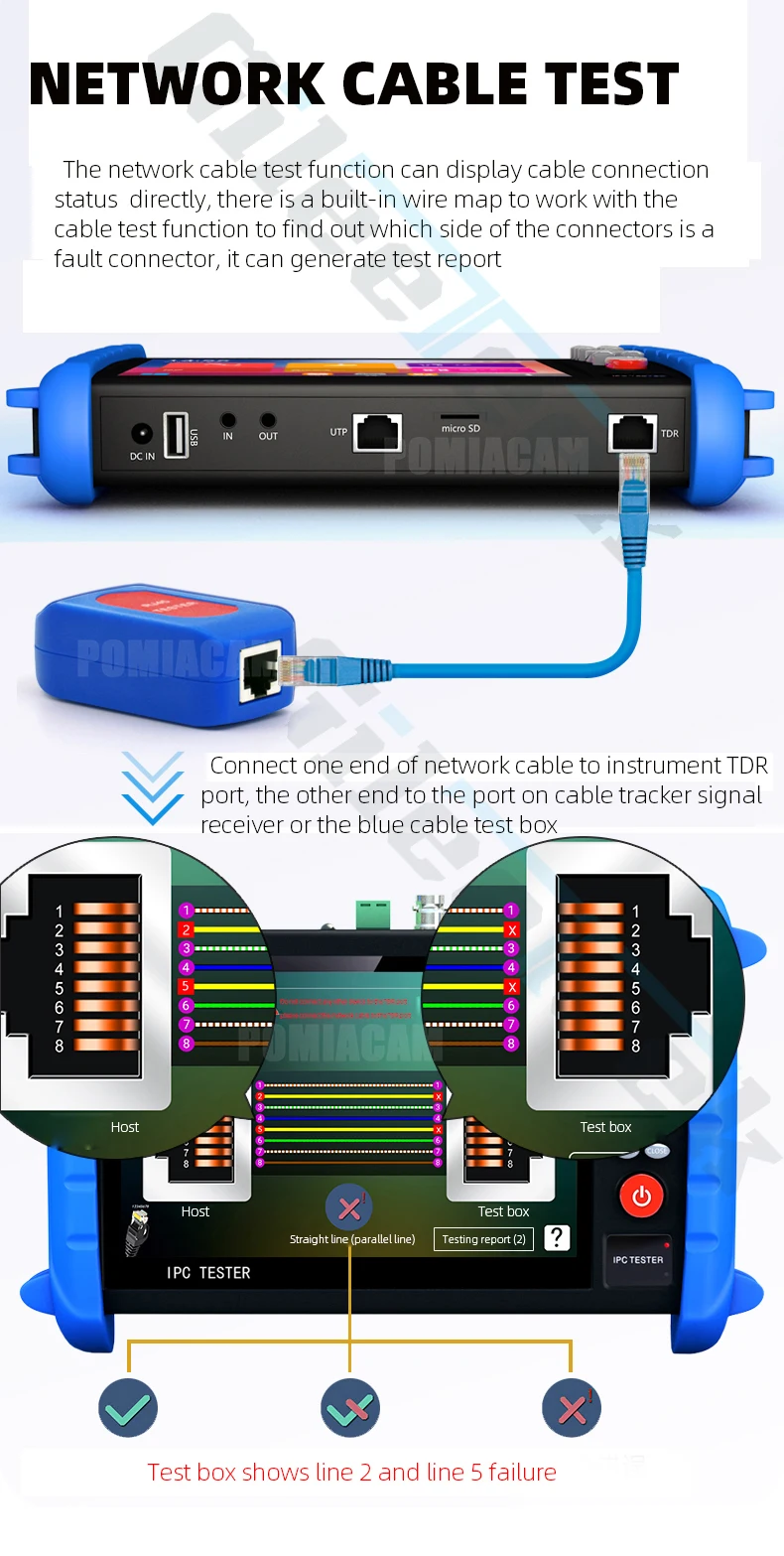

Cable Test: Built-in cable testing tool, check cable sequence and breakpoint, etc
Audio Test: One channel audio signal input for testing, can be recorded and saved, one channel audio output for connecting earphones

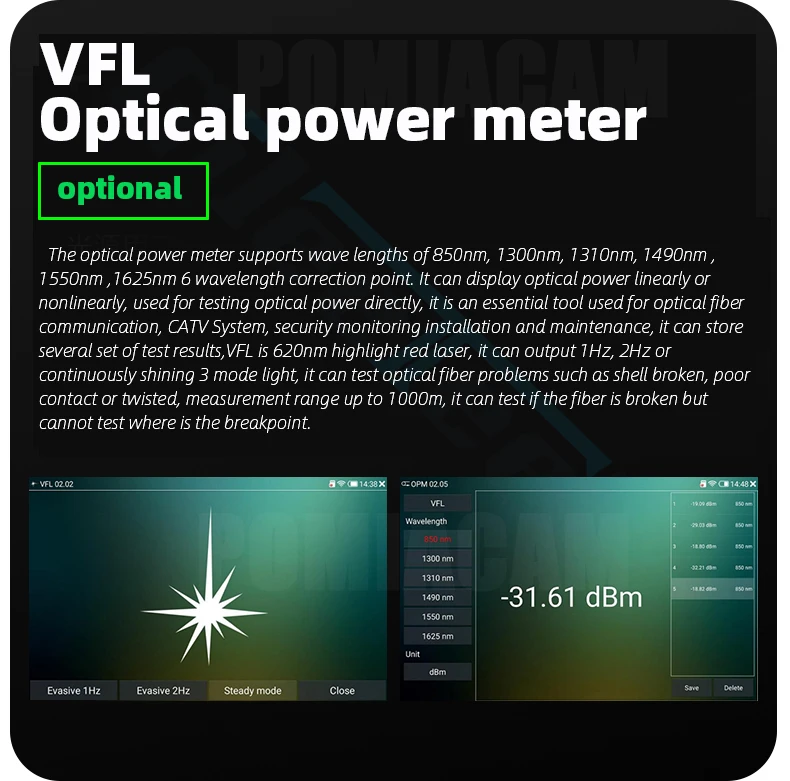

(optional)Optical Power Meter: Test optical fiber parameters

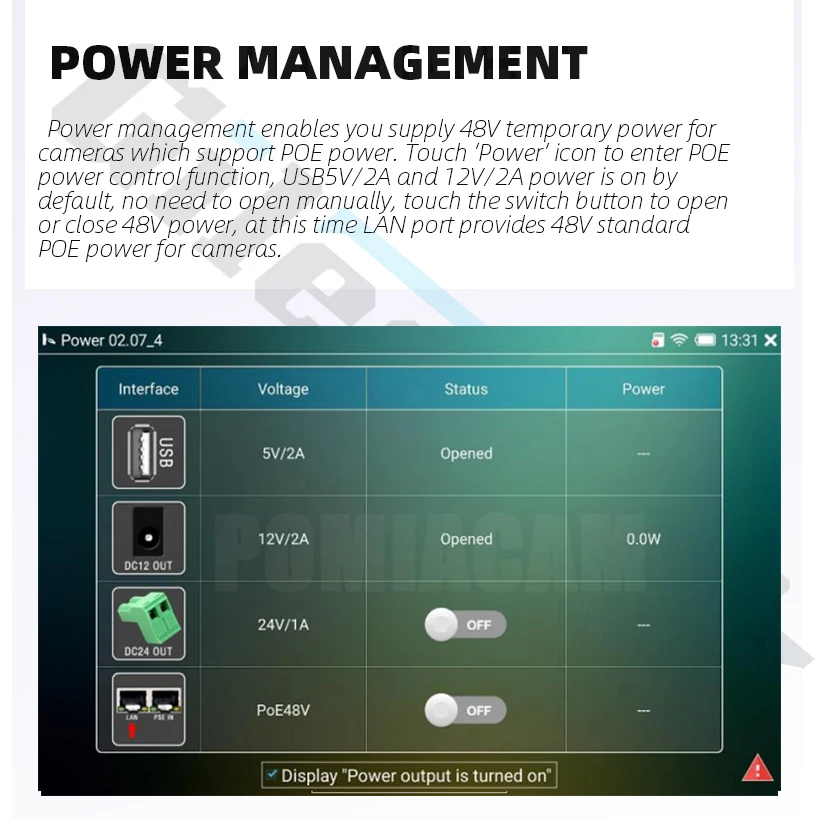

DC12V Power Output: DC12V power output, max current 3A, provide temporary power for cameras
DC24V Power Output : DC24V power output, max current 1A, provide temporary power for cameras
PoE Power Output: 48V standard PoE output, provide PoE power for cameras
DC5V Power : Output Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
(optional)PSE Voltage Test: Display PoE power supply device voltage and circuit condition
(optional)HDMI Video Input Test: Input HD video image into instrument to test video recorder
RS485 Serial Port tool : Can send or receive any data or hex data
Power Charger: DC 12V/2A

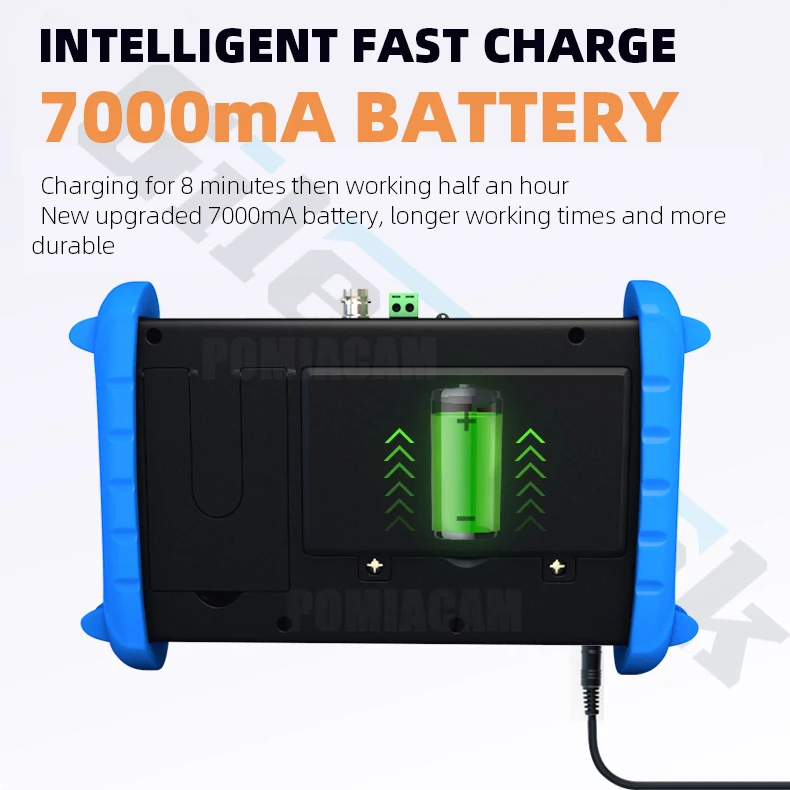

Battery : Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-16 hours
Language: Chinese Simplified, Chinese Traditional, English, etc. more than 10 languages
Internal SD Storage: 8G
Working Temperature: -10℃--+50℃
Working Humidity:30%--90%
External Size:23cm×14cm×4.5cm
This model has all of the following features

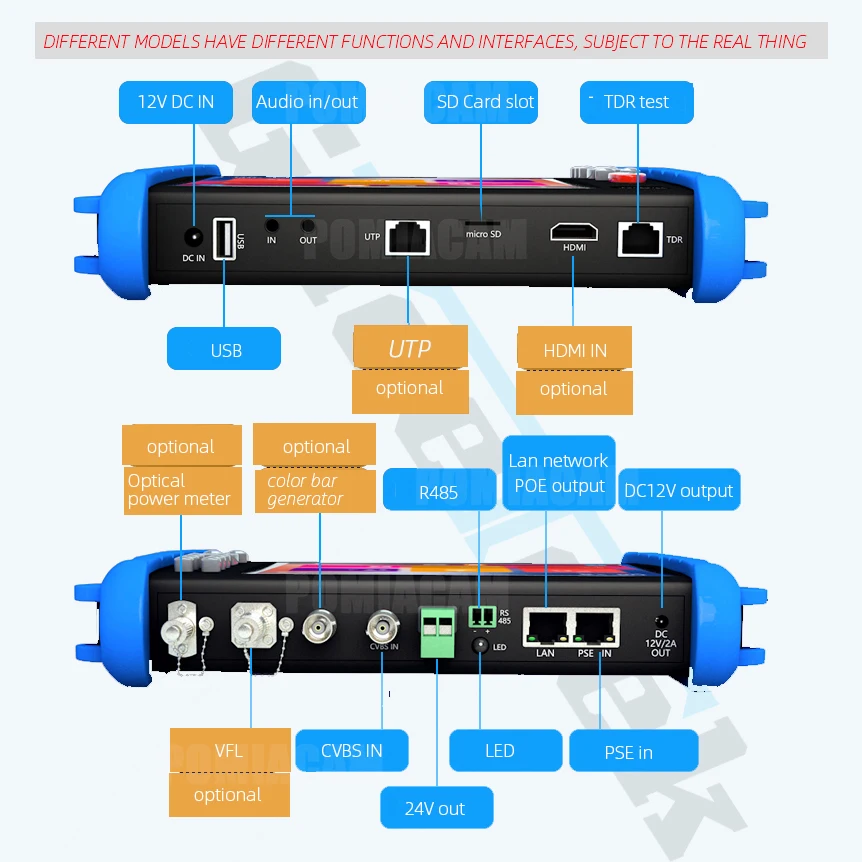

Port description
1.CVBS / Coax HD Input Port: Analog / HD camera connection port (HD is optional).
2.Color Bar Output Port: Output PAL format signal to test CVBS cable (optional).
3.VFI Port: Optical fiber test port (optional).
4.OPM Port: Optical fiber test port (optional).
5.Protective Rubber Sleeves.
6.Physical button area.
7.Power Indicator: Power on status indicator.
8.Charging Indicator: When charging this light is on, when battery is full this light is off.
9.DC 24V / 1A Power Output Port: Output 24V / 1A temporary power for camera use.
10.RS485Serial Port: Receive, send and analyze data, used for PTZ protocol analysis, etc.
11.LAN Port / IPC Connection Port / POE Power Output Port: Used to connect Ethernet, connect IP camera and output PoE power.
12.PSE POE Voltage Test Port: Test PSE voltage or electrified cable sequence.
13.DC12V / 3A Power Output: Output 12V / 3A temporary power for camera use.
14.LED Lamp: Used as flashlight in dark area.
15.Speaker: Sound output.
16.Charging Port DC12V / 2A: Battery charging.
17.USB 5V/2A Input / Output port: Output power for mobile phone use or connect U disk, mouse, etc.
18.Audio In / Out Port (In: Audio signal input test, Out: Audio output to connect earphones).

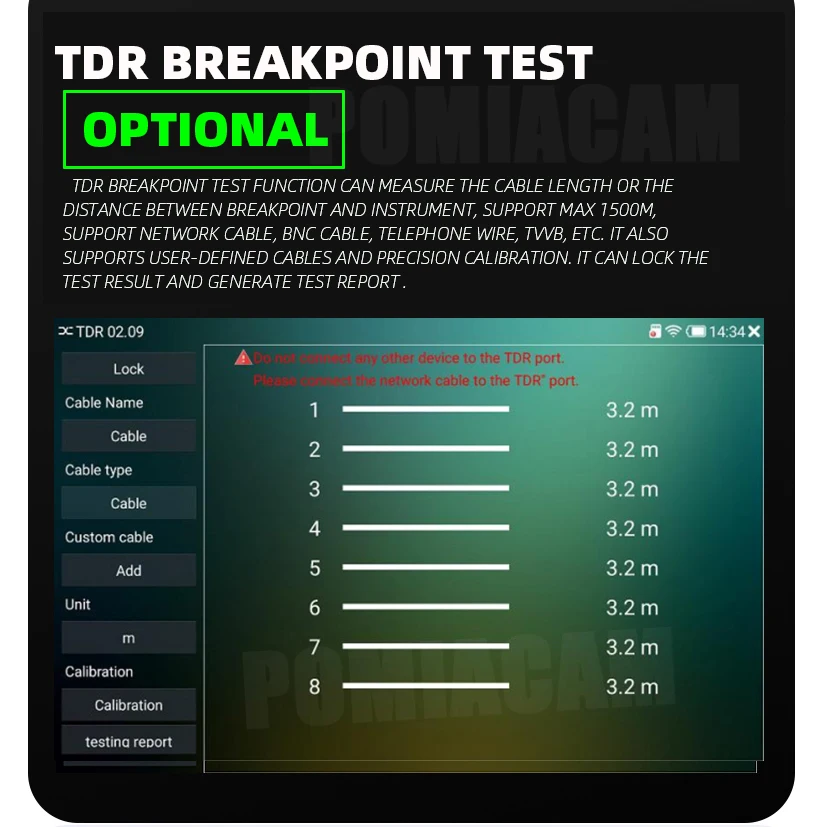

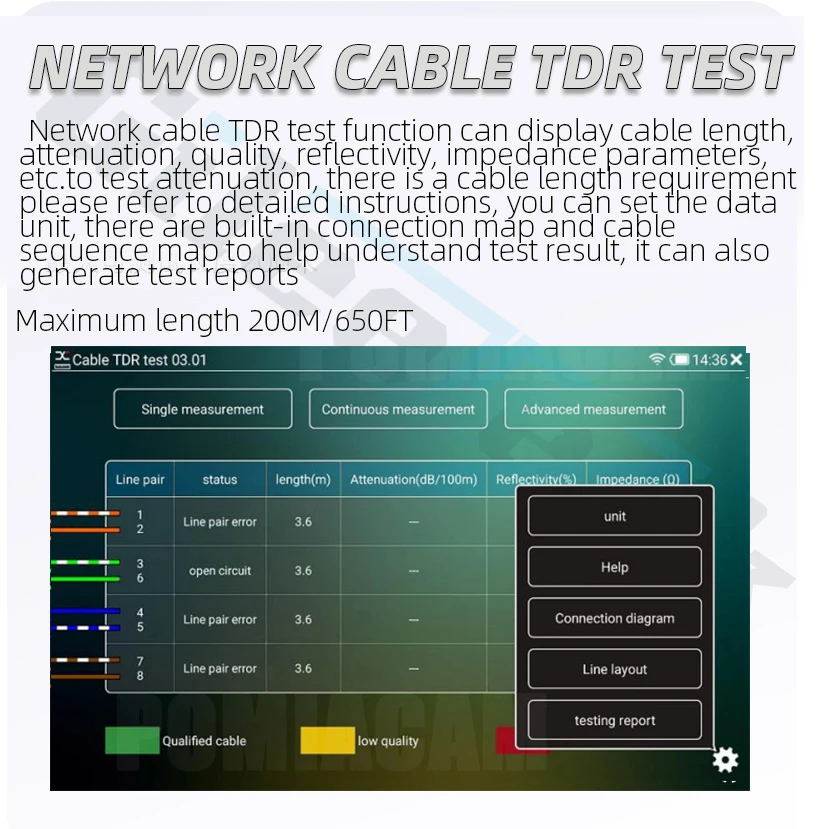

19.TDR Breakpoint Test Port: Cable length measurement or cable .breakpoint locating (optional).
20.HDMI HD Input Port: HDMI HD video input test (optional).
21.External Micro SD card Slot: Place SD card.

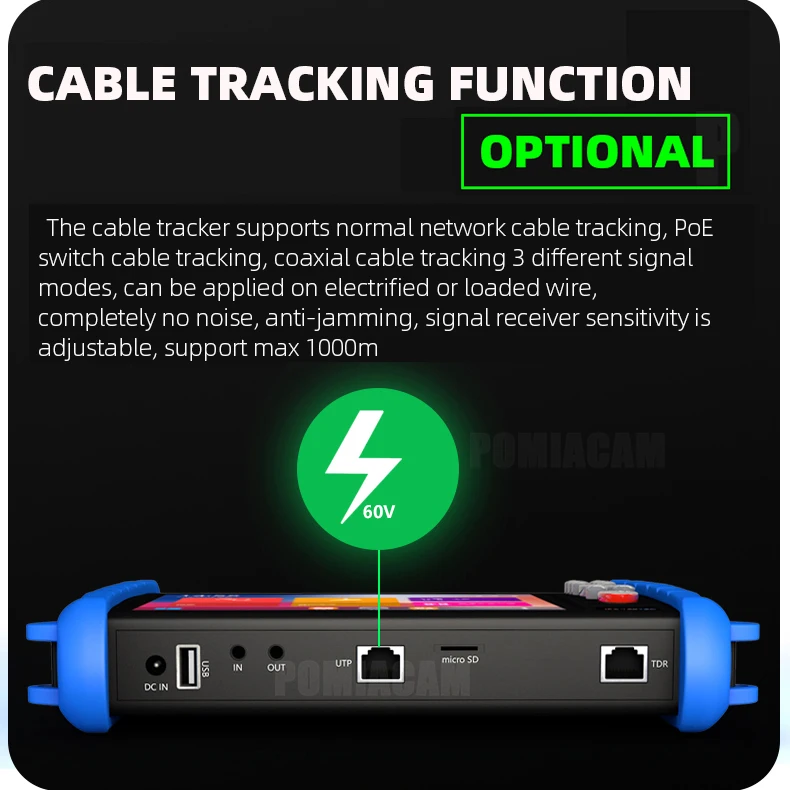

22.UTP Cable Tracking Port: Connect one end of cable for tracking.
