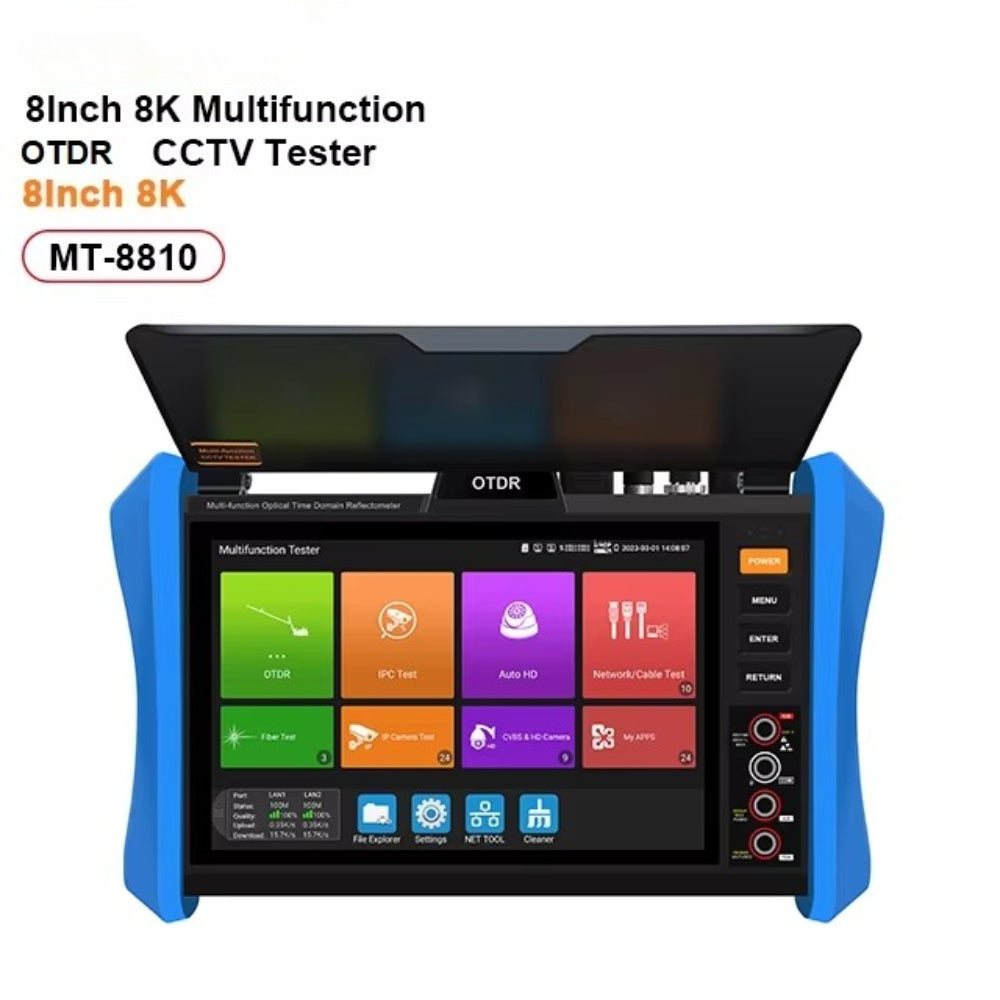

MT8810 Series 8Inch OTDR, 8K IPC TESTER Wavelength & Dynamic Range1310/1550 30/28 VGA Input& HDMI Input/Output
Impossible de charger la disponibilité de la réception
Use this text to encourage communication or promote sharing on social networks.

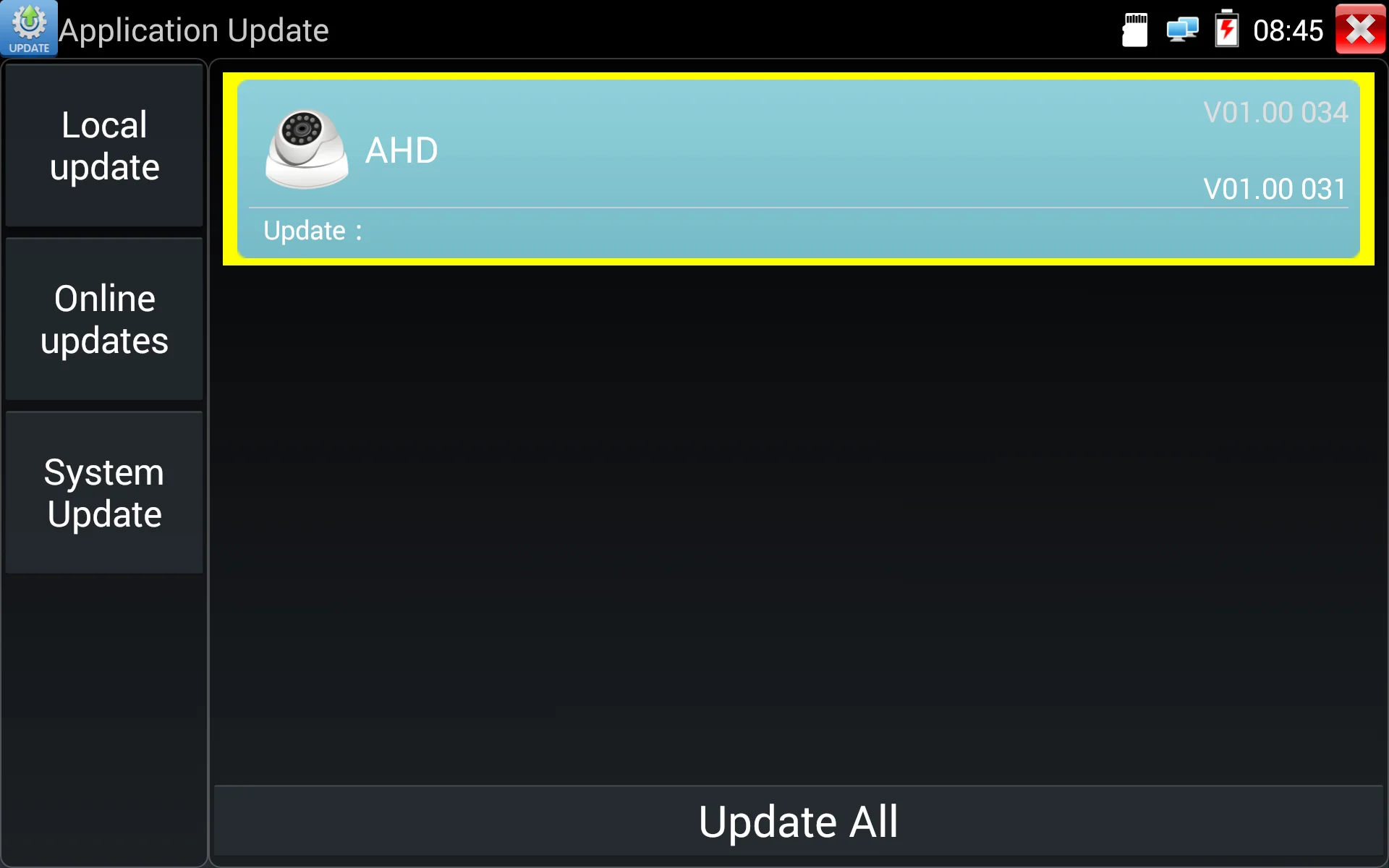

Application Updates

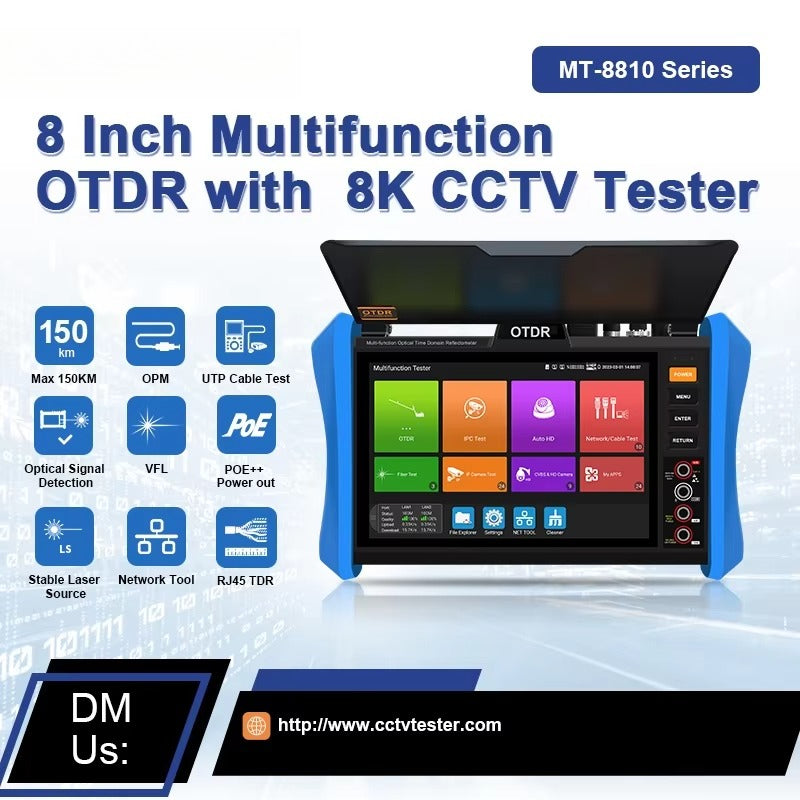

Multi-function MT-8810 OTDR is an essential tool for fiber length, network and camera testing.
OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It can be used for testing fiber length, loss and fault location. OTDR is an essential tool for fiber troubleshooting and maintenance.
OTDR:
1. 8 inch IPS touch screen, 1920*1200 resolutions
2. 1310/1550/1610 wavelength optional, 26/28/30/32/34dB Dynamic range optional, max test 150KM*
3. Stable laser source,
4. Test fiber’s length, loss, attenuation parameters and event map, locate connection point/ fusion point
5. Automatic analysis of various linkers/fusion points, easy analyze of various events
6. Save and view the testing curves, support zoom and move curves, view details
7. Support create testing report, curve trajectory graphs, parameter settings, fiber event information, and fiber link information

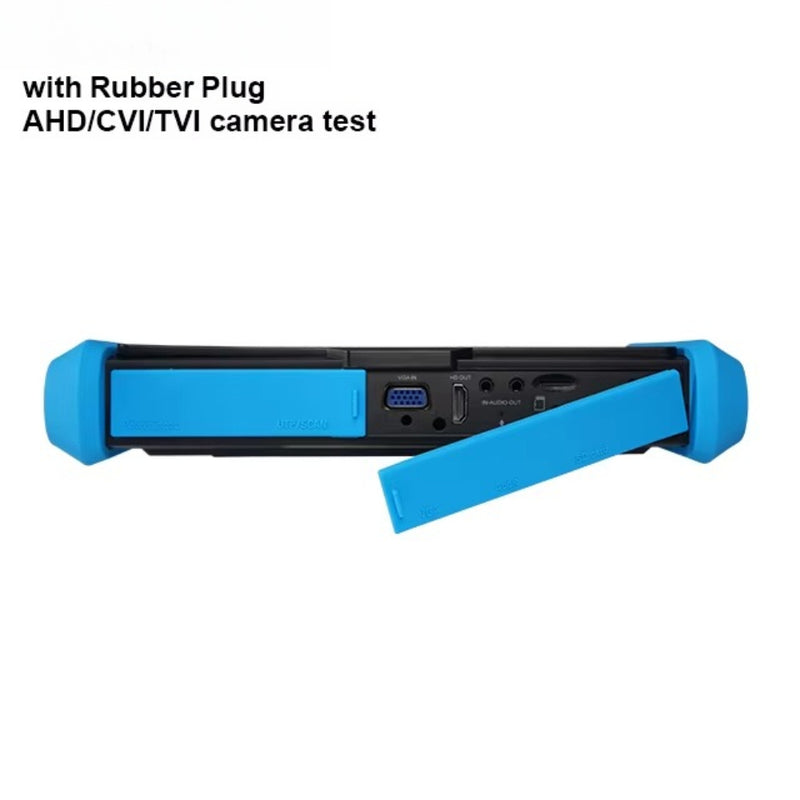

8. TVI 4.0/ CVI 5.0/ AHD 4.0 camera test, UTC control & call OSD menu(Only for Model 8810)*
9.
|
Specification |
||
|
Network Port |
Dual 1000M LAN port, 10/100/1000M auto adapt |
|
|
WIFI |
Built in 2.4G/5G WIFI, speeds 150M, display wireless camera image |
|
|
H.265 mainstream test |
H.265 & H .264 IP, 8K video display via mainstream |
|
|
IP camera test |
Support 500 brands IP camera test |
|
|
IP discovery |
Auto-scan the whole network segment IP address |
|
|
HD coaxial camera test |
TVI 4.0/ CVI 5.0/ AHD 4.0 camera test, UTC control & call OSD menu (Only for model MT-8810) * |
|
|
CVBS camera test |
1 channel BNC input & 1 channel BNC loop output, NTSC/PAL (Auto adapt) (Only for model MT-8810) * |
|
|
Zoom Image |
4x zoom, enlarge image, screen snapshot, save, view and record and playback |
|
|
RJ45 cable TDR test |
Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. Max range 180M |
|
|

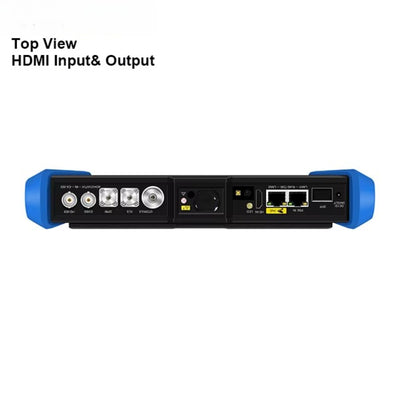

HDMI input & output |
4K HDMI input & output (Only for model MT-8810) * |
|
|

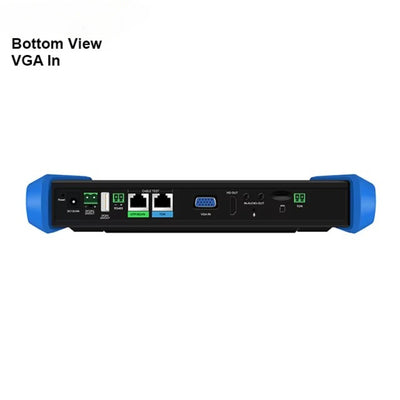

VGA input |
Support 1280x1024/960/800/768/720P 60FPS, 1152x870P 60FPS, 1024x768P 60FPS, 800x600P 60FPS, 640x480P 60FPS resolution (Only for model MT-8810) * |
|
|
TDR cable test * (Optional) |
For BNC cable, network cable, telephone cable, RVV cable and cat 5/6 cable’s length and short circuit, Max 1.2KM |
|
|
Built in Camera * (Optional) |
Built in Camera function |
|
|
Laser distance meter* (Optional) |
Measurement range 100m, accuracy±3mm, Laser class 2, Laser type 635nm,Power output <1mW |
|
|
Power output |
24V2A/ 12V 3A / 5V 2A power output |
|
|
PoE power output |
55V PoE++ power output, max power 90W |
|
|
UTP cable test |
Test UTP cable connection status and display on the screen. Read the number on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable connector, can test shield cable |
|
|
RJ45 TDR cable test |
Support cable’s open and short testing, max 180m |
|
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
|
|
SFP optical fiber module |
ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing |
|
|
Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test |
|
|
Digital Cable tracer |
Search BNC cable, network cable and telephone cable from the mess cables. Cable tracer and UTP cable test app in the same interface, also can search shield cable |
|
|
Electroscope |
Voltage range |
AC12-1000V |
|
Frequency |
50/60Hz |
|
|
Level |
CAT.III 1000V / CAT.IV 600V;CE |
|
|
PoE Voltage test |
Measurement POE switch or PSE power supply voltage and cable connection status |
|
|
Visual fault locator |
10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM |
|
|
Digital Multimeter |
DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement |
|
|
Optical power meter |
Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~ +10 dBm, for optical power testing and Fiber link loss relative measurement |
|
|
Power |
||
|
External power supply |
DC 15V 1.6A |
|
|
Battery |
Built-in 11.1V Li-ion battery, 5200mAh |
|
|
Rechargeable |
After charging 3.5 hours, normal working time 11 hours |
|
|
Operation setting |
OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc |
|
|
Auto off |
5-30 (mins) |
|
|
Working Temperature |
-10℃---+50℃ |
|
|
Working Humidity |
30%-90% |
|
|
Dimension/Weight |
274mmX171mmX50mm / 1.2Kg |
|
|
Feature/Model |
MT-8500 |
MT-8510 |
MT-8800 |
MT-8810 |
|
8MP EX-SDI, HD-SDI, 3G-SDI * |
Optional |
Optional |
Optional |
Optional |
|
Built-in camera |
Optional |
Optional |
Optional |
Optional |
|
Laser distance meter* |
Optional |
Optional |
Optional |
Optional |
|
TDR cable test, max 1.2KM* |
Optional |
Optional |
Optional |
Optional |
