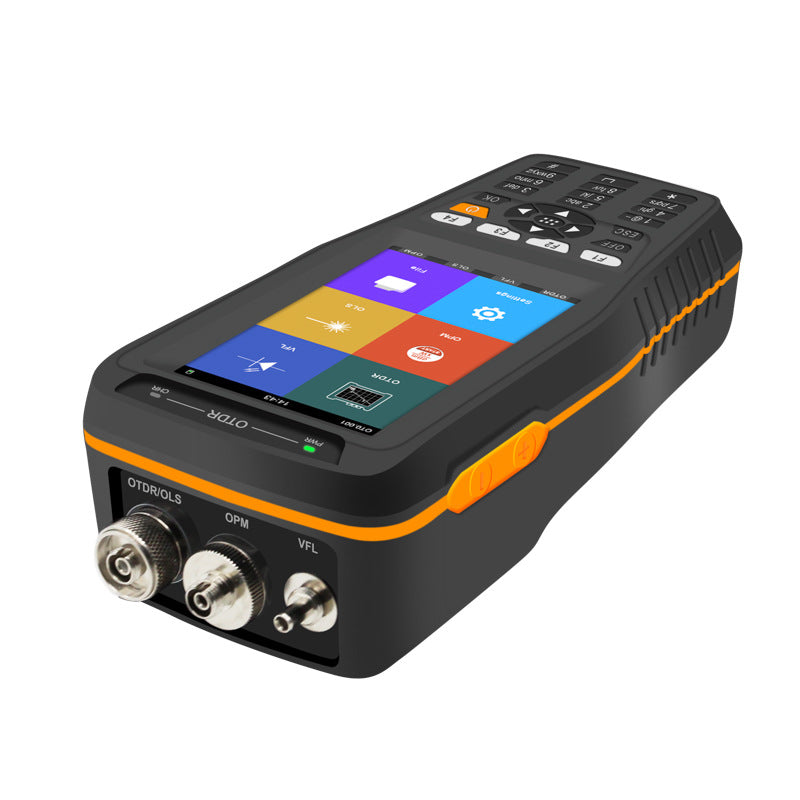

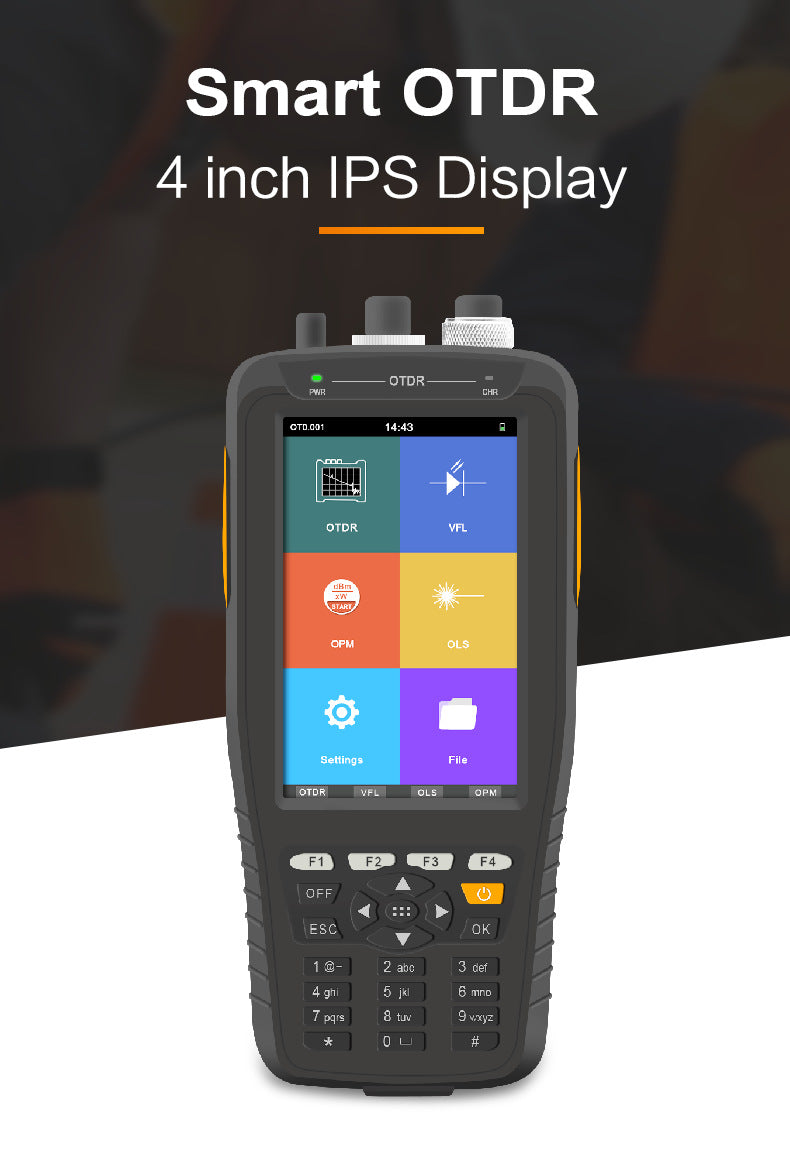

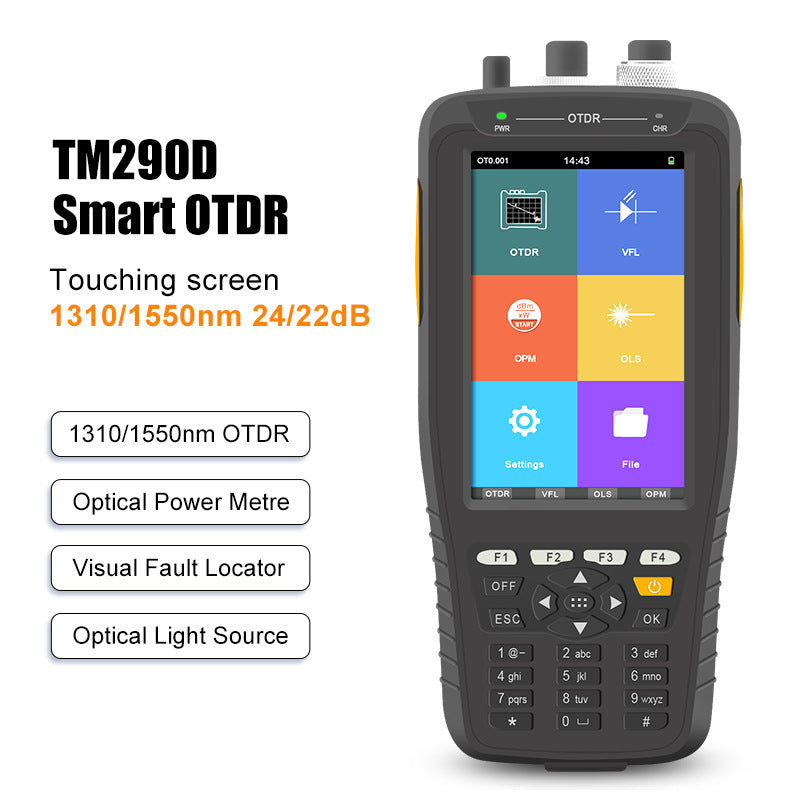

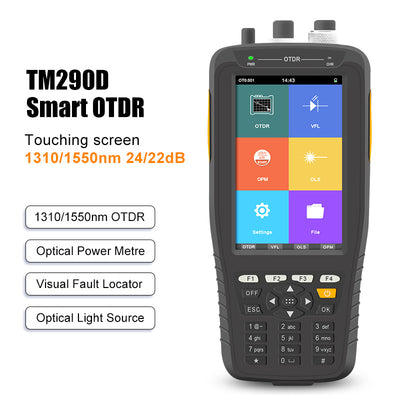

Smart OTDR 24/22dB 1310/1550nm OTDR TM290D Optical Time Domain Reflectometer English Machine Fiber Tester with 4inch IPS Display
Impossible de charger la disponibilité de la réception
Use this text to encourage communication or promote sharing on social networks.
Ordering Details
TM290D-1 |
1310/1550nm, 24/22dB |
Touching screen |
TM290D-2 |
1310/1550nm, 26/24dB |
Touching screen, |
TM290SF-15(with filter) |
1550nm, 20dB |
Touching screen, support active test |
TM290SF-16(with filter) |
1610nm, 20dB |
Touching screen, support active test |
Specification
OTDR
Type |
TM290D-1 |
TM290D-2 |
TM290SF-15 |
TM290SF-16 |
Wavelength |
1310/1550nm |
1310/1550nm |
1550nm |
1610nm |
Dynamic Range |
24/22dB |
26/24dB |
20dB |
20dB |
Active Test |
no |
no |
yes |
yes |
Measure distances |
0-60km |
|||
Fiber type |
SM |
|||
Type of Fiber |
9/125um Single-mode optical fiber |
|||

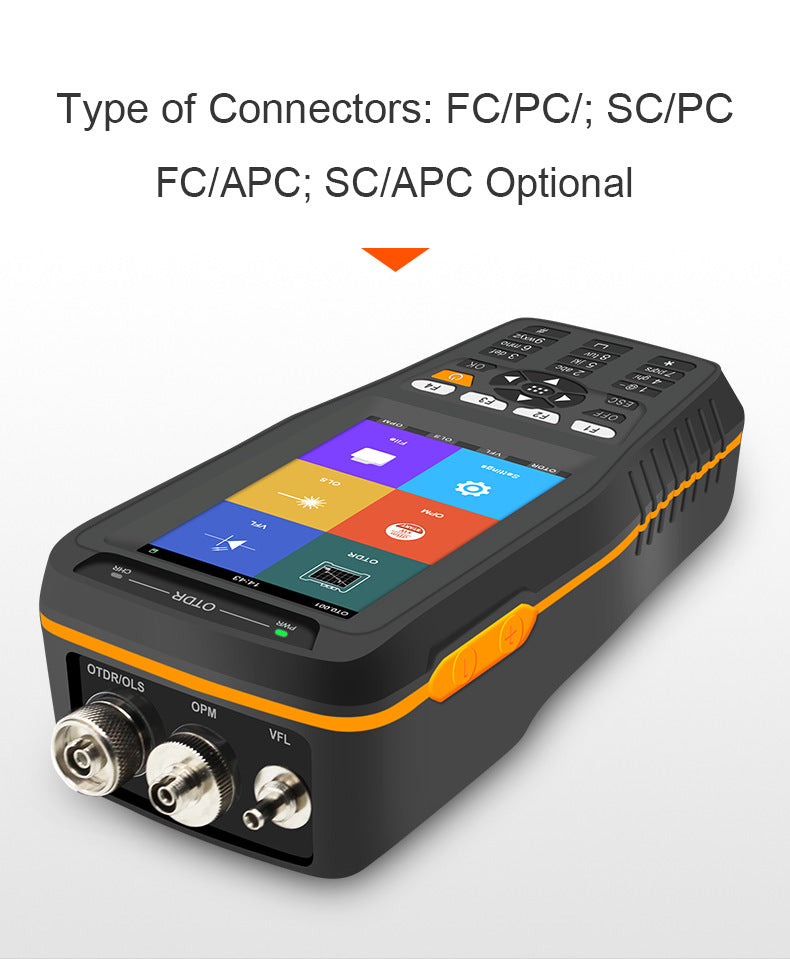

Type of Connectors |
FC/PC/; SC/PC |
|||
Peak Value of laser |
>=30mW |
|||
UOM of Measurement |
Meter,Feet,Mile |
|||
Dead Zone of Reflection Event |
2m |
|||
Dead Zone of attenuation Event |
12m |
|||
Accuracy Distance (Reflection Event) |
About +_(1m+2 *10(-4)* distance) |
|||
Number of test records saved |
100 |
|||
Power Supply |
8.4V Li-ion Battery 4400mAH |
|||
Battery working time |
>=5,000 times of measurements |
|||
Temperature |
Operate :-5~50 ,Store:-10~60 |
|||
Humidity |
0~85%(Non-condensing) |
|||
Weight(g) |
300 |
Visual Fault Locator
Wavelength |
650nm |
VFL OutputPower |
>=10mW |
Mode |
0Hz,1Hz,2Hz |
Fiber type |
SM/MM |
Optical Power Meter
Measurement range dBm |
-70~+10 dBm |
-50~+26 dBm |
Wavelength range(nm) |
800~1650 |
|
Calibrated wavelength |
850nm,1300nm,1310nm,1490nm,1550nm,1625nm(other wavelength will be on request) |
|
Detector |
InGaAs |
|
Accuracy |
<±3%(-10dBm,22℃) |
|
Resolution |
Linearity:0.1%,Non-linearity:0.01dBm |
|
connector |
Movable FC/PC SC/PC,( ST as Optional) |
Optical Light Source
Emitter |
FP-LD |
wavelength (nm) |
1310/1550nm |
Connector |
FC/PC(SC/ST as optional) |
Output power |
≥-5dBm |
Output stability(dBm) |
±0.04@20℃@15min |
Modulation |
CW/270Hz/1KHz/2KHz |
Fiber type |
SM |
