Professional OTDR Tester MOT-30, 1310/1550nm, 26/24dB, 4" IPS Screen, Visual fault locator, Optical power meter, UTP Test
Impossible de charger la disponibilité de la réception
Use this text to encourage communication or promote sharing on social networks.
-
Dual Wavelength & High Dynamic Range-
Supports 1310/1550nm wavelengths with 26/24dB dynamic range for precise fiber optic testing.
-
-
4-inch IPS Touch Screen & Auto Testing
-
Features a 4-inch IPS touch screen (800x480 resolution) and auto testing for easy operation and quick results.
-
-
Integrated VFL & Optical Power Meter
-
Combines a visual fault locator (VFL) and optical power meter (OPM) for comprehensive fiber testing.
-
-
UTP Cable Test & 3KM Length Measurement
-
Tests UTP cable sequence and continuity, and measures network cable length up to 3KM.
-
-
Report Saving & Stable Laser Source
-
Saves test reports in SOR and PDF formats, and includes a stable laser source for reliable performance.
-

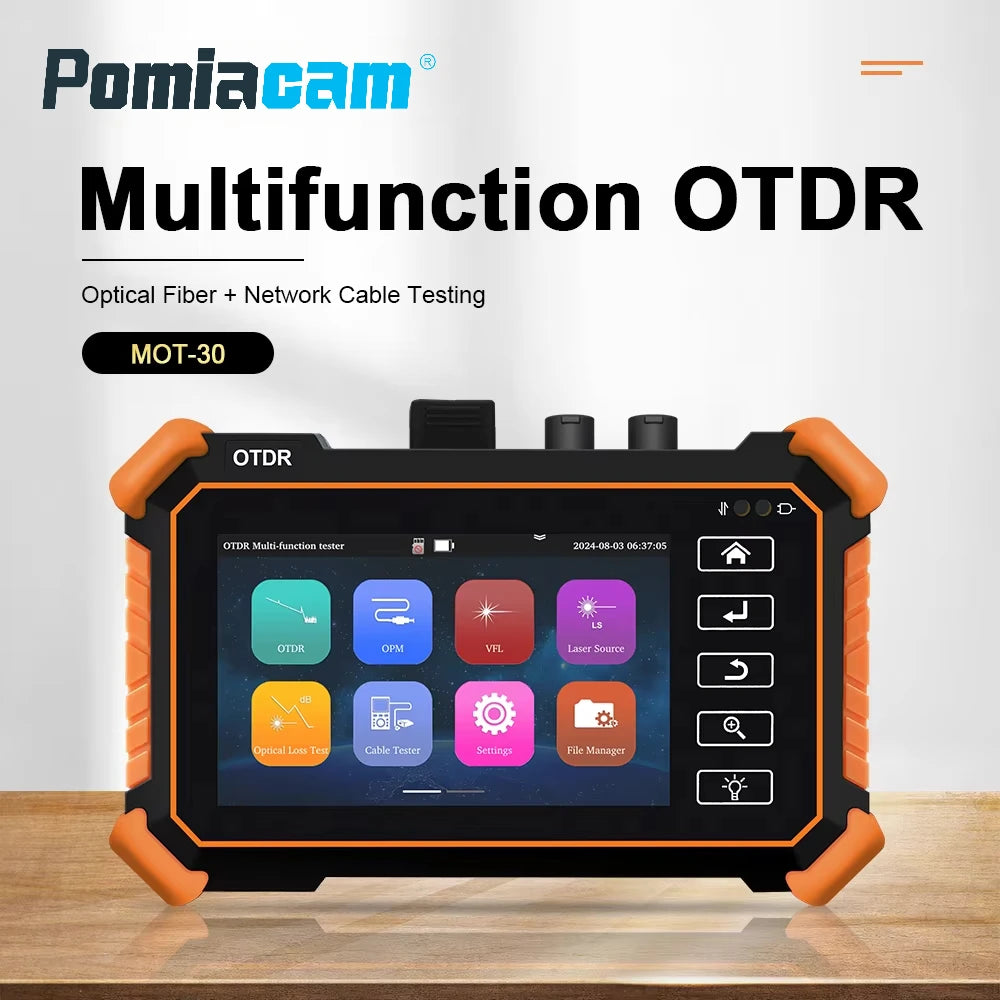

OTDR Optical Time-Domain Reflectometer Optical Fiber Tester
Model: MOT-30(Dual Wavelength 1310/1550nm, dynamic 26/24dB)
4 inch IPS touch screen, 800x480 resolution
OTDR Auto testing, event map, easy to use
Stable laser source, optical power meter and visual fault locator
Report saved as SOR, PDF format etc,
Network cable length measurement, up to 3km
UTP cable test, for network cable's sequence and continuity
|
Model |
MOT-30 |
|
Size & Display |
4 inch IPS touch screen, 800 x 480 resolution |
|
Power output |
5V 1A power output, as power bank. |
|
UTP cable test |
Test UTP cable connection status and display on the screen. Read the number on the screen. Detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable |
|
length measurement |
Network cable length measurement, up to 3km |
|
Optical power meter |
Wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm,measurement range ,-70 ~+6dBm, for optical power testing and Fiber link loss relative measurement |
|
Visual fault locator |
10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 8KM |
|
Stable laser source |
|
|
Output wavelength |
1310/1550 |
|
Output power |
-5dBm~0dBm adjustable |
|
Frequency |
270Hz/330Hz/1kHz/2kHz |
|
Stability |
CW,±0.2dB/15min (Test after boot for 15min) |
|
Power |
|
|
External power supply |
Type-C 5V(2A) |
|
Battery |
Built-in 3.7V Lithium ion battery, 4000mAh |
|
Rechargeable |
After charging 3 hours, normal working time 6 hours |
|
Parameter |
|
|
Operation setting |
Supported language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc |
|
Auto off |
5-30 (mins) |
|
Working environment |
|
|
Working Temperature |
-10鈩�---+50鈩� |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
183mm x 110mm x 36.5mm /0.45kg |
-
