IPC Tester Portable Network Camera Tester 4K/H.265 IP CVBS CVI TVI AHD Analog Camera Tester POE Output,CCTV Test, PTZ 5-in-1 Multi-Function Monitoring Tester 1800CADH PLUS
Impossible de charger la disponibilité de la réception
Use this text to encourage communication or promote sharing on social networks.
- ♠ cctv tester Support coaxial HD 4.0, 8MP TVI, CVI, AHD camera image test, coaxial video control and menu call, support camera, video, zoom, playback;
- ♠ Wrist-style wearing, small and portable 48V PoE power supply output Large-capacity polymer battery power supply, charging 4-5 hours, can work normally for about 7 hours

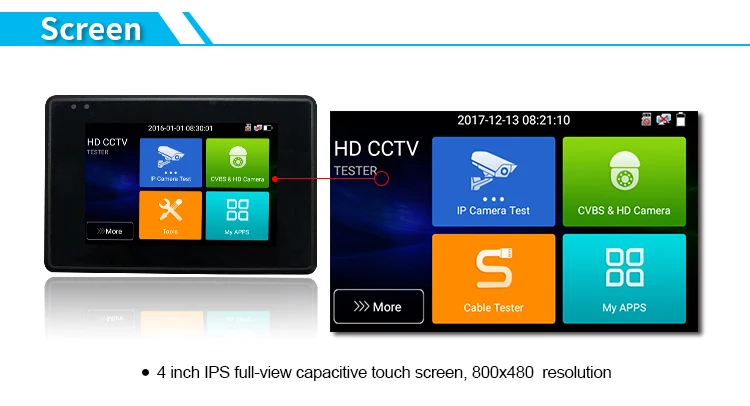

- ♠ Security CCTV Tester 4-inch 800x480 full-view capacitive touch screen + new interface, clearer and smoother. Support H.265/H264, 4K main stream test.
- ♠ Very fast camera test report with one click, supports cross-network test; supports audio and video synchronization test; one-click activates Haikang camera and changes IP and other functions;
- ♠ Camera Tester One screen dual display, network camera and analog camera are tested at the same time.
Model: IPC-1800ADH Plus
● 8MP TVI/8MP CVI/8MP AHD/4K H.265 IP /CVBS
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc ONVIF camera test
● Rapid ONVIF, auto view video and create testing report
● DC12V 3A, DC48V PoE power output
● Built in WIFI, create WIFI hotspot

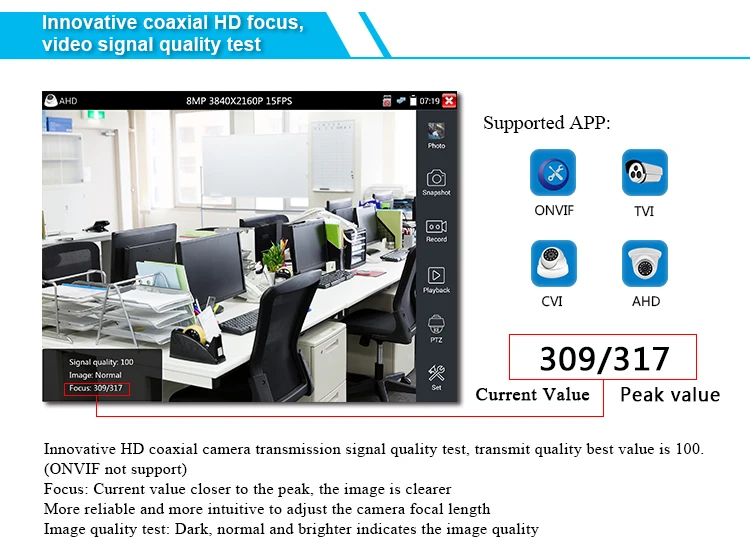

● Innovative coaxial HD focus, video signal quality test
● Wrist design, portable and easier to carry
● 10/100/100M Ethernet, network state and traffic display
Camera test
● 4 inch IPS touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● 8MP TVI/8MP CVI/8MP AHD camera test
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● IP discovery, just by one key to detect all network cameras IP address
● Rapid video, just by one key to detect all network cameras and auto display
● DC 12V 3A power output

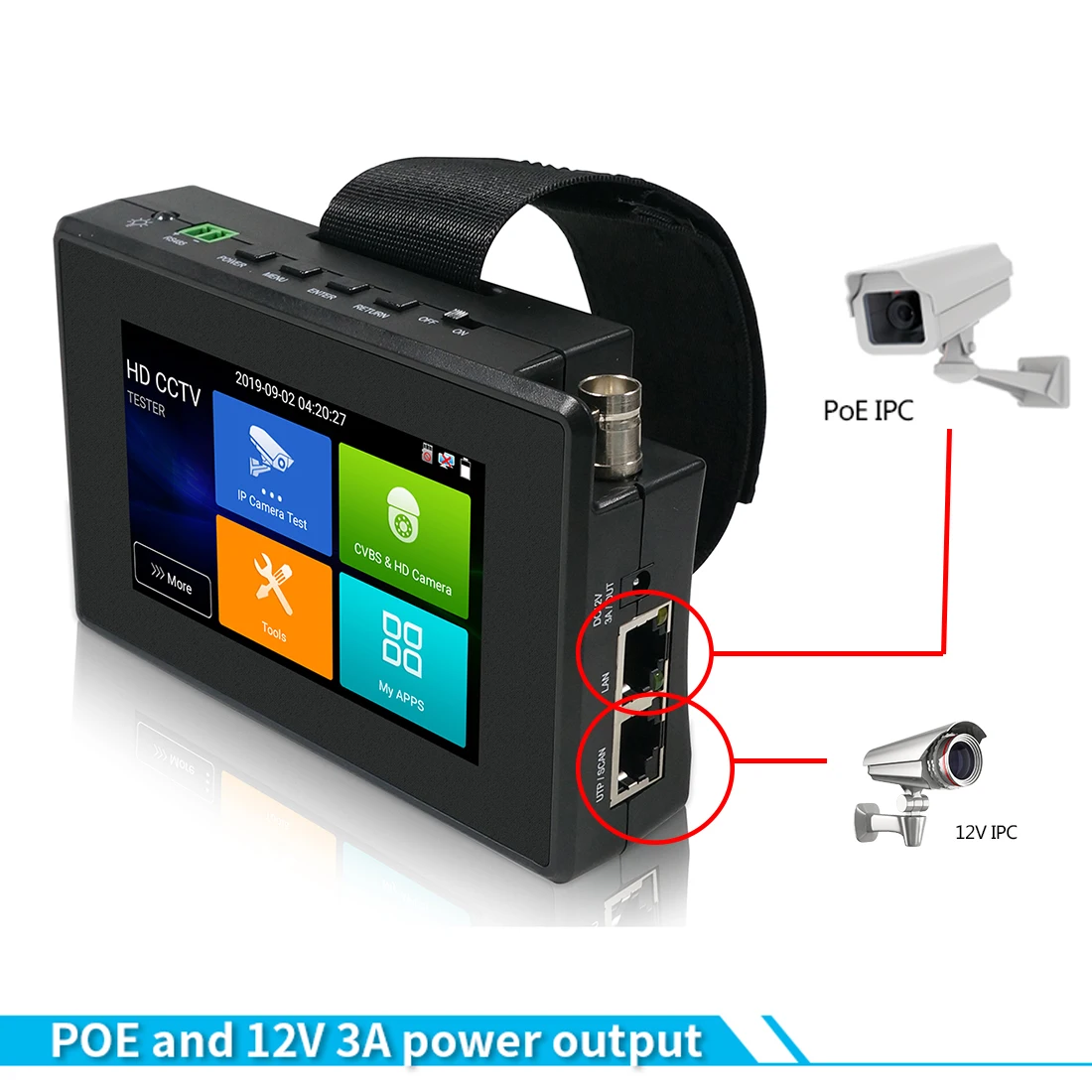

● PoE DC48V power output, Max power 25.5W
● Innovative coaxial HD focus, video signal quality test
● Built in WiFi, display image from the wireless camera, create WIFI hotspot
Other functions
● 10/100/1000M Ethernet, network state and traffic display
● Wrist design, portable and easier to carry
● TesterPlay: Tester, android version mobile phone, PC display at the same time
● Network tool: PING test, IP address scan, port flashing etc
● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 8 hours
● 4 inch touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Rapid Network Camera Testing, Auto log in and display image, create testing report
● Support multi-brands cameras test, enter IPC Test app, input username and password to test
● 8MP TVI/8MP CVI/8MP AHD camera test
● CVBS camera test and PTZ control
● IPC TEST, HIK test tool, DH test tool
● IP discovery, just by one key to detect all network cameras IP address
● Rapid video, just by one key to detect all network cameras and auto display
● DC 12V 3A power output
● PoE DC48V power output, Max power 25.5W
● Innovative coaxial HD focus, video signal quality test
● Built-in WiFi, display image from the wireless camera, create WIFI hotspot
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
● 10/100/1000M Ethernet, network state and traffic display
● Wrist design, portable and easier to carry
● TesterPlay: Tester, android version mobile phone, PC display at the same time
● Network tool: PING test, IP address scan, port flashing etc ● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /2400mAh Lithium-Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours

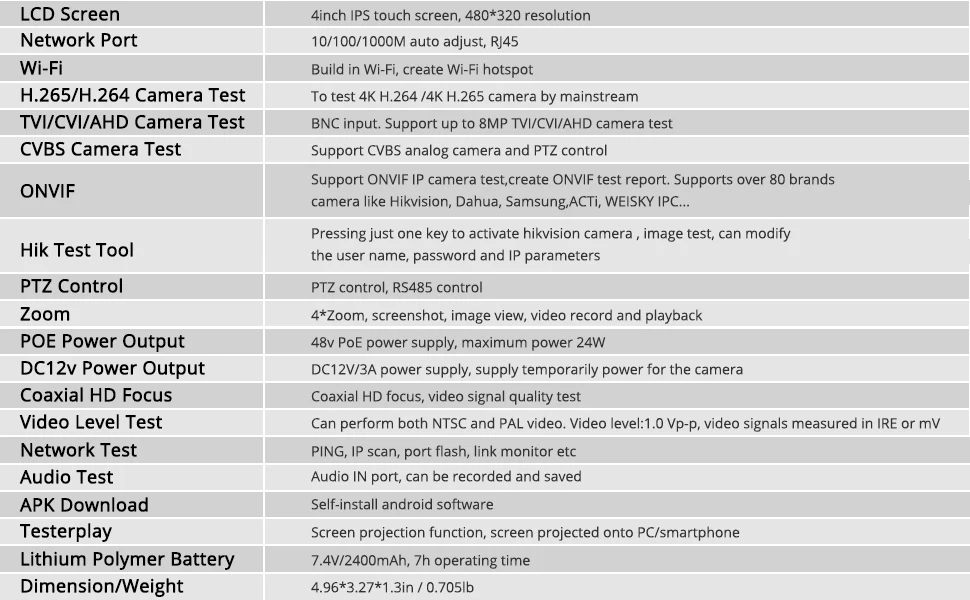

Feature:
- 4 inch touch screen, 800*480 resolutions
- H.265 & H .264 IP, 4K video display via mainstream
- Auto display image, create testing report
- Support up to 8MP TVI/CVI/AHD camera
- CVBS camera test and PTZ control
- IPC TEST, HIK test tool (Hikvision camera), DH test tool (Dahua camera)
- IP discovery, just by one key to detect all network cameras IP address
- Dual-screen display, IP and CVBS camera test at the same time
- Rapid video, just by one key to detect all network cameras and auto display
- DC12V 3A power output
- PoE DC48V power output, Max power 24W
- Innovative coaxial HD focus, video signal quality test
- Self -update software, you can install apps with android version
- PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
- Audio in, support record and save the audio/LED lamp, calculators, music players
- 7.4 V /2400mAh Lithium Polymer Battery, lasts about 8 hours
- Dimension/Weight: 4.96 x 3.26 x 1.3 inch/ 0.71 lb

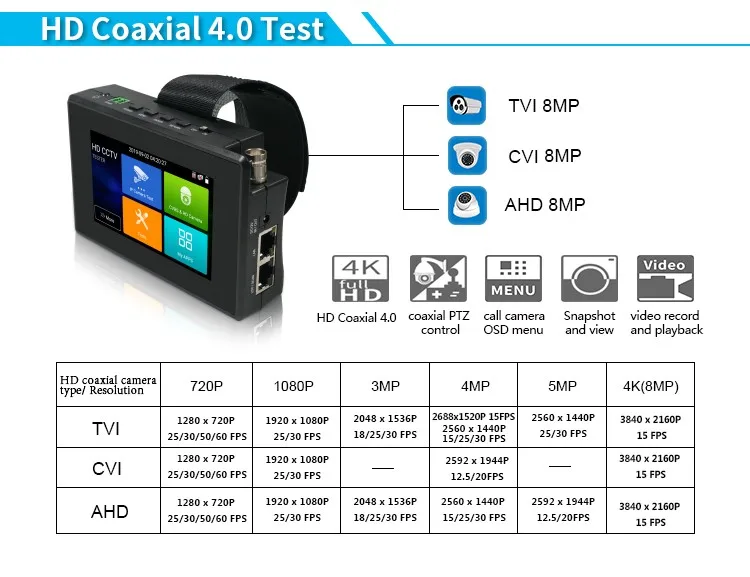

Supported TVI Camera Resolutions & Frame Rates:
- 4K/8MP_3840x2160p @12.5/15fps, 5MP_2592x1944p @12.5/20fps, 4MP_2688x1520p @15fps,2560x1440P @15/25/30fps, 3MP_2048x1536p @18/25/30fps, 1920x1080p @25/30fps,1280x720p @25/30/50/60fp.
Supported CVI Camera Resolutions & Frame Rates:
- 4K/8MP_3840x2160p @12.5/15fps, 6MP_2880x1920p @20fps,5MP_2592x1944P @20fps,4MP_2560x1440p @25/30fps,1920x1080p @25/30fps,1280x720p @25/30/50/60fps.
Supported AHD Camera Resolutions & Frame Rates:
- 4K/8MP_3840x2160p @15fps, 5MP_2592x1944p @12.5/20fps, 4MP_2560x1440p @15/25/30fps, 3MP_2048x1536p @18/25/30fps,1920x1080p @25/30fps,1280x720p @25/30/50/60fps.
