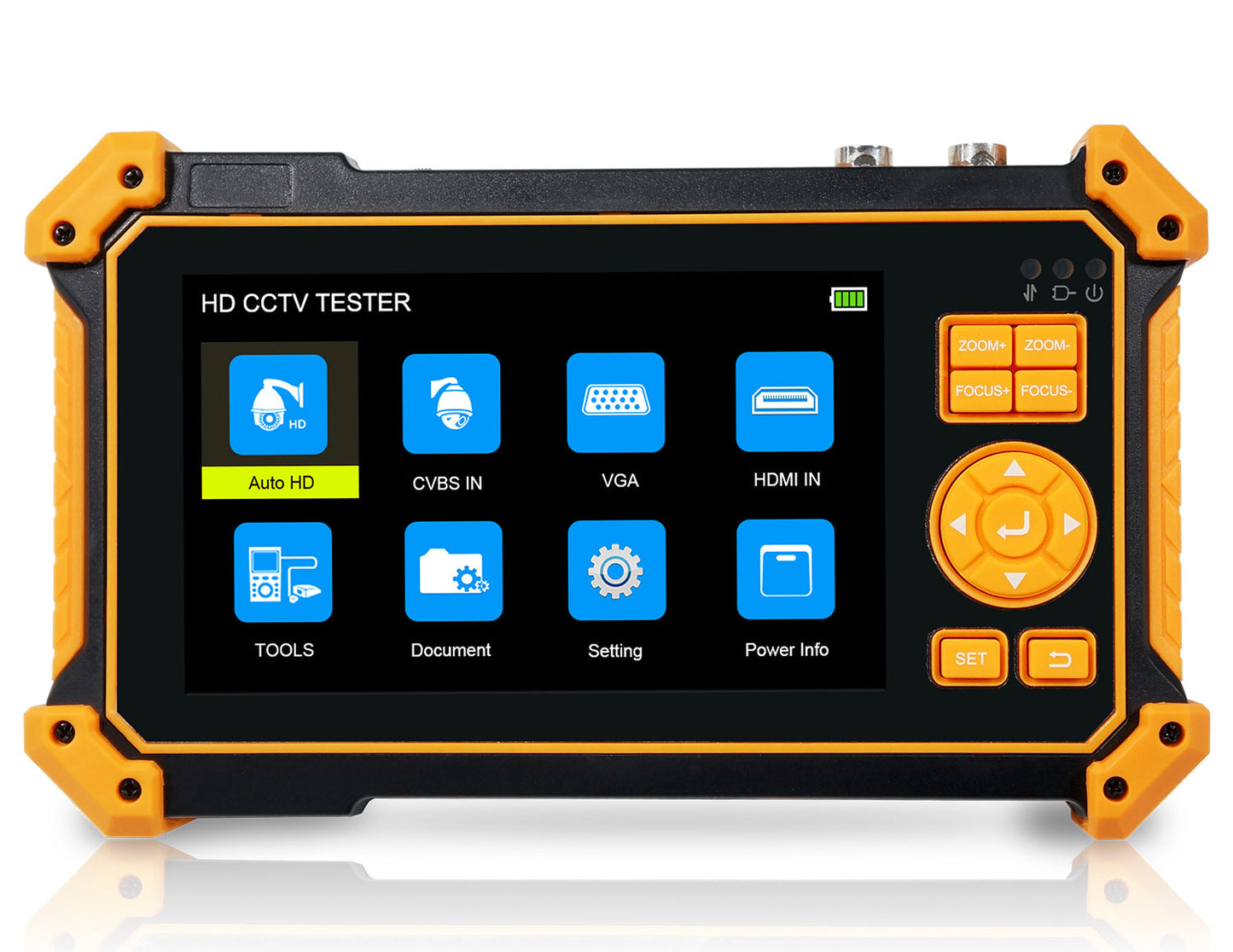

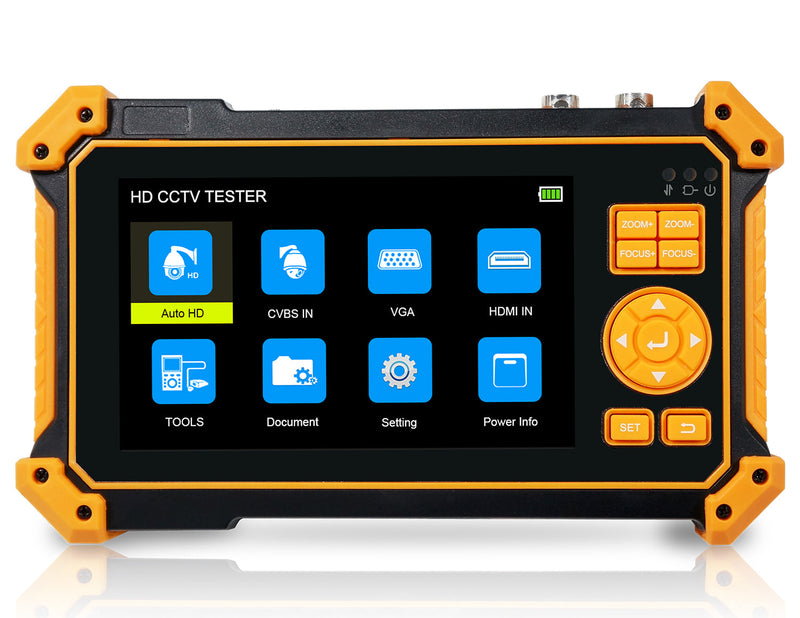

• Portable CCTV tester with 5 inch TFT-LCD Screen(Not touch screen), 800*480 resolution, small body, multi-functions, make your job more easily with this professional CCTV tester
• Feature Function: HDMI input(support 4K 30FPS) and VGA input (suppport 1920 x 1200P 60FPS), can be used for debugging DVR/NVR recorder, also can be a display
• Support up to 8MP TVI, 8MP CVI, 8MP AHD, 8MP EX-SDI/HD-SDI/3G-SDI HD coaxial camera test and CVBS analog camera test (PAL/NTSC auto adapt). NOTE: NOT SUPPORT IP CAMERA
• This camera tester also features a multi-purpose testing unit that includes built-in PTZ tester/controller, Auto HD (auto recognize HD coax camera type and resolution), UTP cable test, audio surveillance test, and DC12V power output
• CCTV tester has 5200mAh rechargeble battery, 6 hours operating time. Portable and easier to carry. Come with strap and tool bag

Model: HD-3100

● 5 inch TFT-LCD screen, 800*480 resolution

● 8MP CVI/ TVI/ AHD camera test

● VGA input, support 1920 x 1200 60FPS

● HD input, support 4K 30FPS

● DC12V 1A power output

●DC 5V 1A power output, support reading USB disk

● Auto HD, auto recognize HD coax camera type and resolution

● UTP cable test, detect the near-end, mid-end and far-end fault pointof the RJ45 cable plug

Camera test:

● 5 inch TFT-LCD screen, 800*480 resolution

● Analog camera test, PTZ controller

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

● VGA input, up to1920X1200 60FPS, support snapshot, video record & playback

● HD Input, up to 4K 30FPS, support snapshot, video record & playback

● DC12V/1A power output, camera can be powered from DC 12 Voltage

●DC 5V 1A power output, support reading USB disk

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *

Other Functions:

● Media player, video files and MKV/MP4 media files play

● High brightness LED light

● Audio in, test whether sound normal.

● Power manager function, view 12V supply voltage and power in real time, can detect whether the voltage and power of DC 12V power output is normal.

● 3.7 V /5200mAh Lithium Ion Battery, after 4 hours charging, working time lasts 6.5 hours

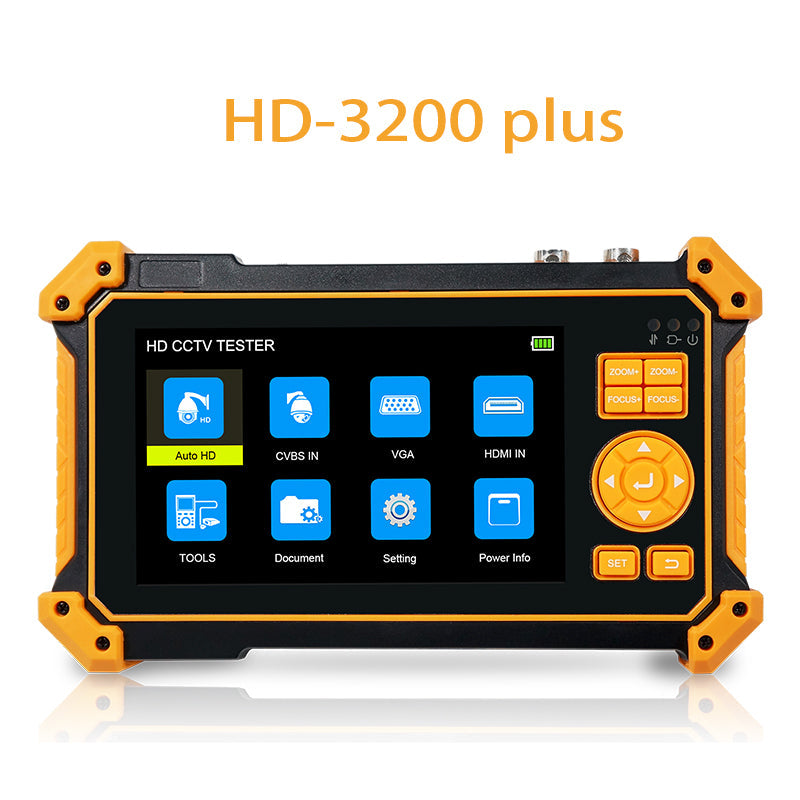

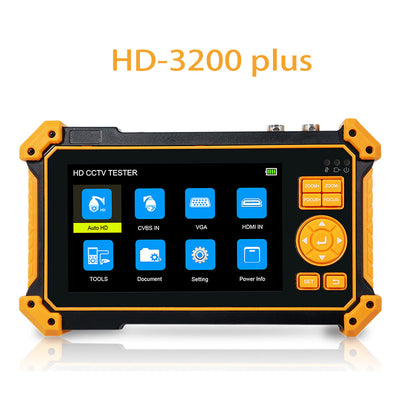

Model: HD-3200

● 5 inch TFT-LCD screen, 800*480 resolution

● 8MP CVI/ TVI/ AHD camera test

● 8MP EX-SDI, HD-SDI, 3G-SDI camera test

● VGA input, support 1920 x 1200 60FPS

● HD input, support 4K 30FPS

● DC12V 1A power output

●DC 5V 1A power output, support reading USB disk

● Auto HD, auto recognize HD coax camera type and resolution

● UTP cable test, detect the near-end, mid-end and far-end fault pointof the RJ45 cable plug

Camera test:

● 5 inch TFT-LCD screen, 800*480 resolution

● Analog camera test, PTZ controller

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

● VGA input, up to1920X1200 60FPS, support snapshot, video record & playback

● HD Input, up to 4K 30FPS, support snapshot, video record & playback

● DC12V/1A power output, camera can be powered from DC 12 Voltage

●DC 5V 1A power output, support reading USB disk

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *

Other Functions:

● Media player, video files and MKV/MP4 media files play

● High brightness LED light

● Audio in, test whether sound normal.

● Power manager function, view 12V supply voltage and power in real time, can detect whether the voltage and power of DC 12V power output is normal.

● 3.7 V /5200mAh Lithium Ion Battery, after 4 hours charging, working time lasts 6.5 hours

5 inch TFT-LCD Screen 5-in-one Camera Tester Monitor 4K 8MP CVI TVI AHD SDI CVBS Analog Camera CCTV Tester HDMI in VGA in, Support PTZ Control/DC12V Power Output/UTP Cable Tester, 3200-Plus

CCTV Tester HD Coaxial Camera Tester 5 inch TFT-LCD Screen Camera monitor 4in1 Support 4K 8MP 3840x2160 TVI/CVI/AHD/CVBS Camera test Support RS485 Audio HDMI VGA,12V output PTZ control

5 inch 4 in 1 HD CCTV Tester, Support 8MP CVI/TVI/AHD/CVBS Analog Camera Test, Security Video Monitor with VGA & HDMI Input, Auto HD Coax Camera, UTP Cable, PTZ Controller, DC 12V/5V 1A Power Output
