DT-T71 H.265 4K IP Analog Camera Tester CCTV Tester Monitor HD 1080P Security Combine Test Monitor TDR RJ45 cable test Combine Tester
Impossible de charger la disponibilité de la réception
Use this text to encourage communication or promote sharing on social networks.
T71 Support IPC(H.264/ H.265/ 4K) Camera+AHD+TVI+CVI+CVBS +12V/1A power output +TDR RJ45 Cable Test + 12V/1A power output+ 100M network port

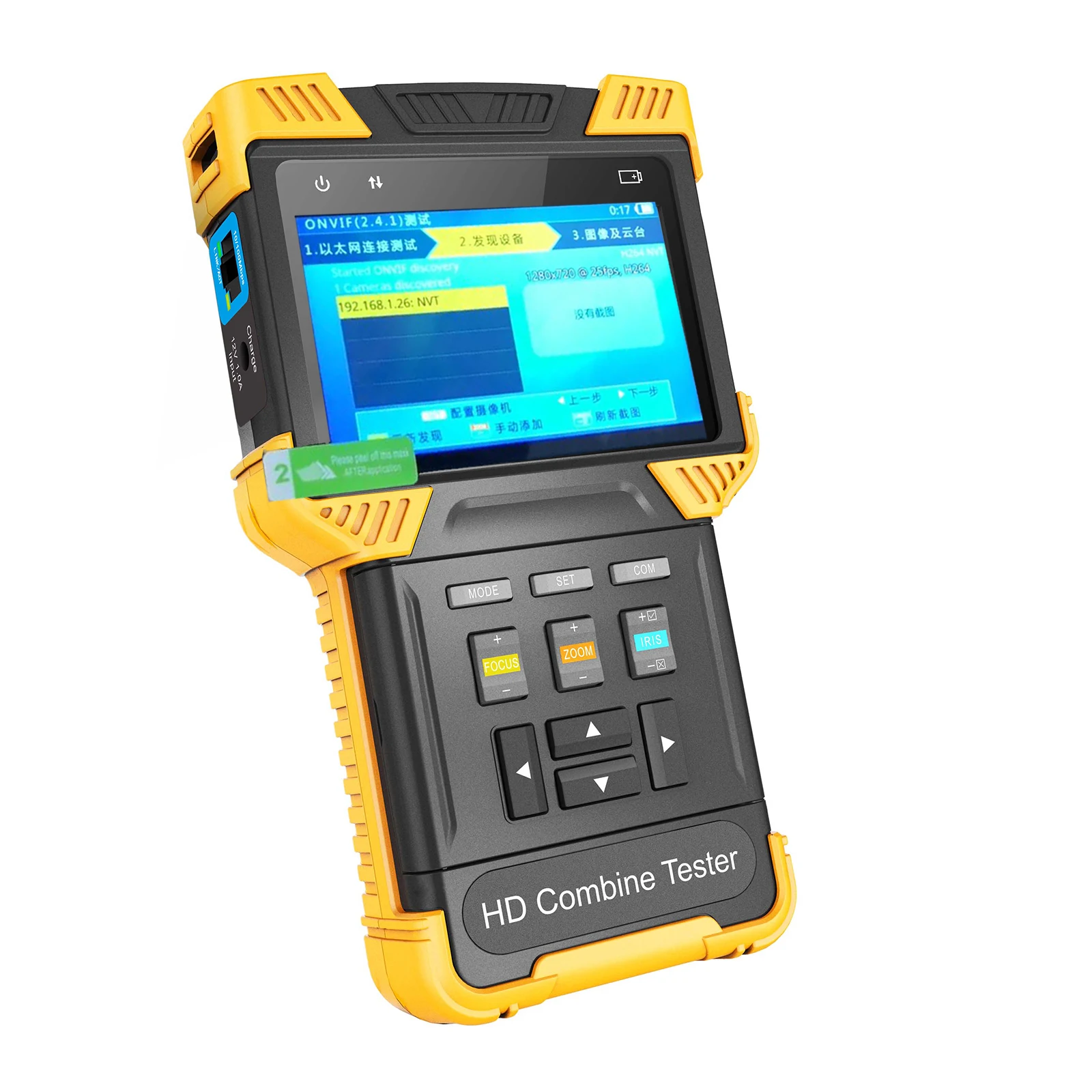

【Ip camera test】Support IPC(H.264/ H.265/4K) Camera . 10/100MLink test;link speed test;Ethernet loop detect;Ethernet flow monitor;Link quality indicator;Discover, inter-subnet discover,camera list, camera snapshot for fast camera indication, camera network setting, PTZ test, audio test, digital zoom of video( 8step), record video(original stream), UDP/TCP switching, packet lost indicator, camera profile setting.
【Analog SD test and PTZ controller】support Analog camera test : Real time video, PTZ control, audio test, full screen preview, digital zoom of video(8 step), save snapshot, record video(h.264), video resolution and frame rate indicator. It Support PTZ : Hikvision,Pelco-D/P,Samsung,Panasonic,Lilin,Yaan...more than 30 protocols .
【TDR RJ45 Cable Test and Other test】support RJ45 Cable Test : 0~200m RJ45 cable test,open/short/broken wire,resolution 1m . support :Local playback, snapshot and video digital zoom, video frame by frame play support. support Video generator :Send PAL/NTSC of various test pattern to output
【Ergonomic design, operate with single hand.】Real time operation prompt .12V/1A power output .Changeable Li-polymer battery, battery working time 5 hours .Swing keyboard input, QWERTY.With rubber protection layer.Dual LED torch. Software upgrade online

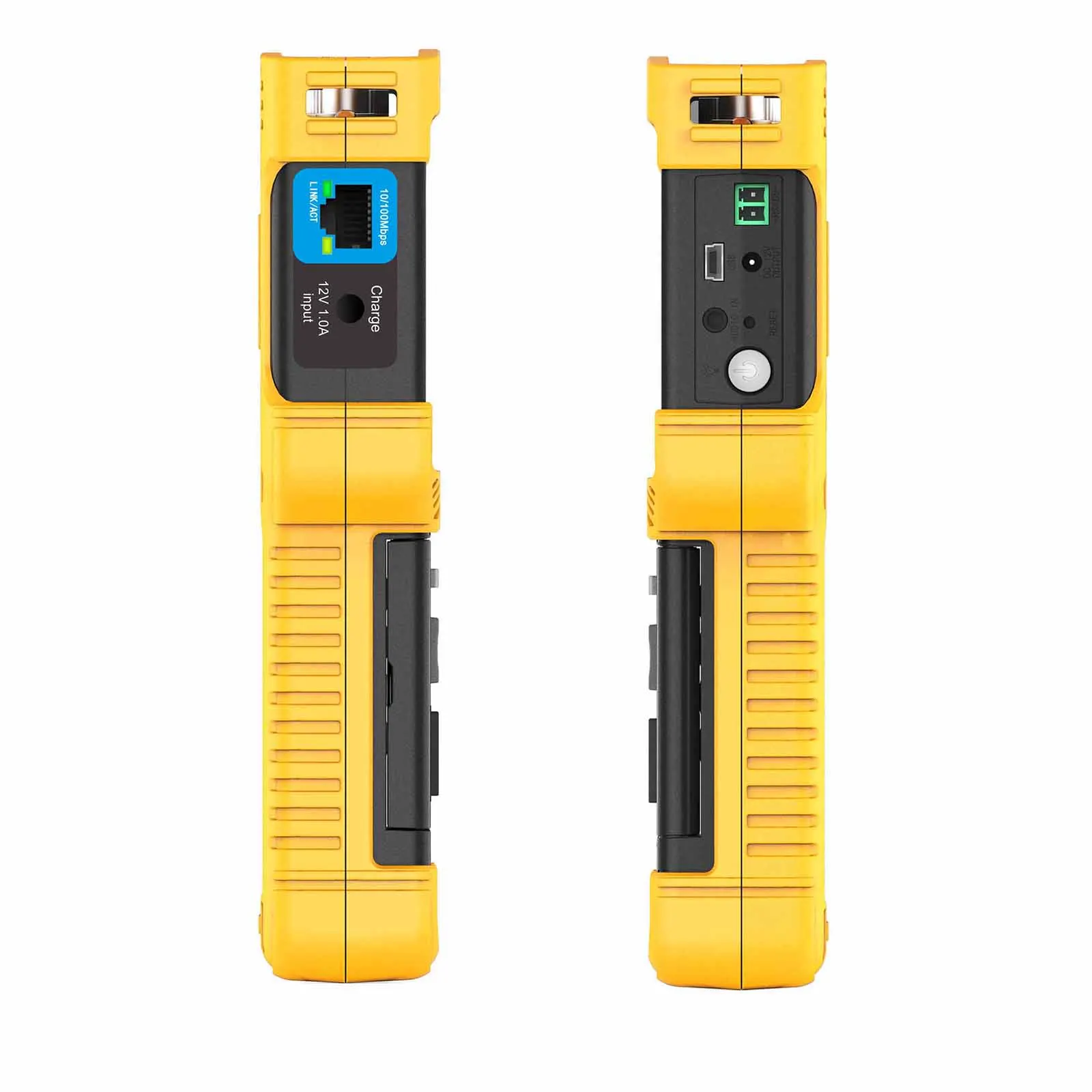

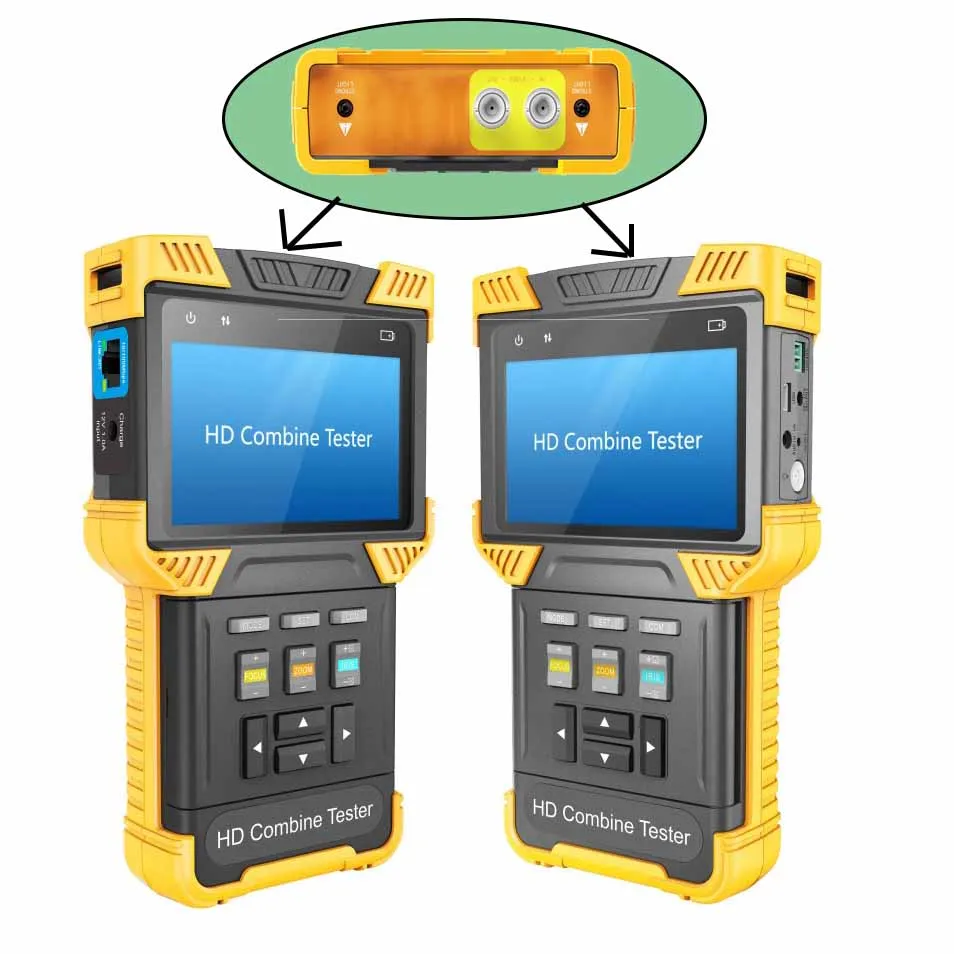

【Device】4inch TFT 800*RGB*480(WVGA) resolution,16.7M color,back light level adjustable. 8GB flash Internal storage . Language: Chinese, English, French, Spanish, Germany, Turkish, Russian. Function interface: Dual BNC connector(Video input/output),RS485comm,audio input,USB, reset button . Network interface: Dual 10/100M RJ45
This device is designed for video surveillance installation and maintenance. It can be applied to analog SD video, analog HD video, HD IP CCTV systems, RS485 PTZ control testing, IP camera testing, Ethernet testing, TDR cable testing*, video screen shots, video recording, playback, and other functions, and combined with analog camera testing. This device is powerful, easy to carry, very suitable for video security engineering installation and the maintenance of front-end camera equipment. It greatly improves engineering and installation efficiency, reducing the cost of maintenance.
General description
1.Support Analog, IPC(H.264/ H.265/ 4K) Camera
2.Step by step IPC test, quickly locate failure
3.ONVIF highly compatible
4.Ergonomic design, operate with single hand.
5.Real time operation prompt
6.12V/1A power output
7.Dual 100M network port,capable of detecting packet lost, monitoring network flow
8.TDR RJ45 Cable Test
9.4inch all viewing angle display,800X480 resolution, 16.7M color

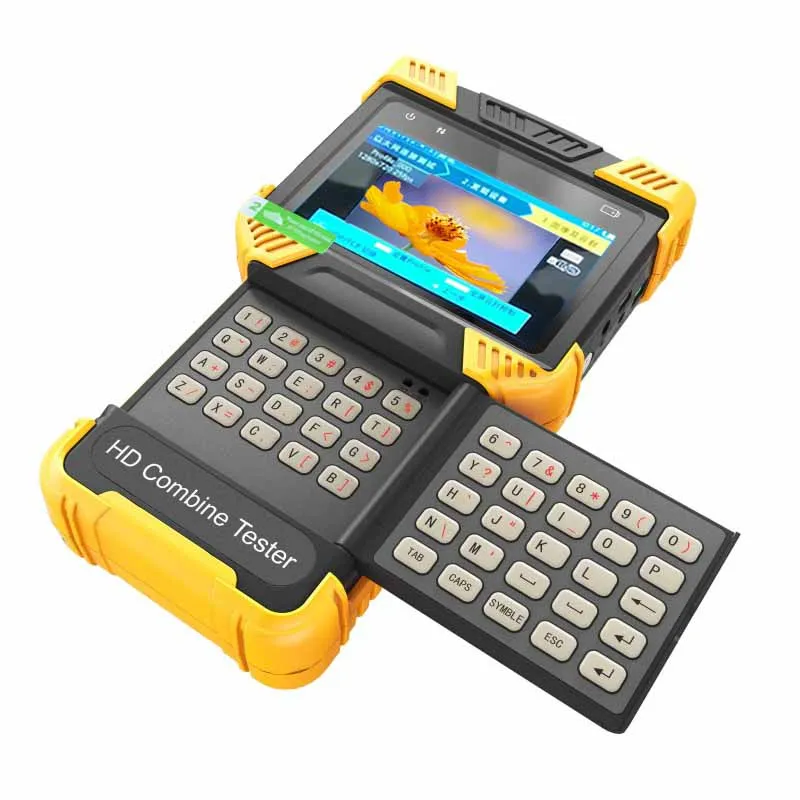

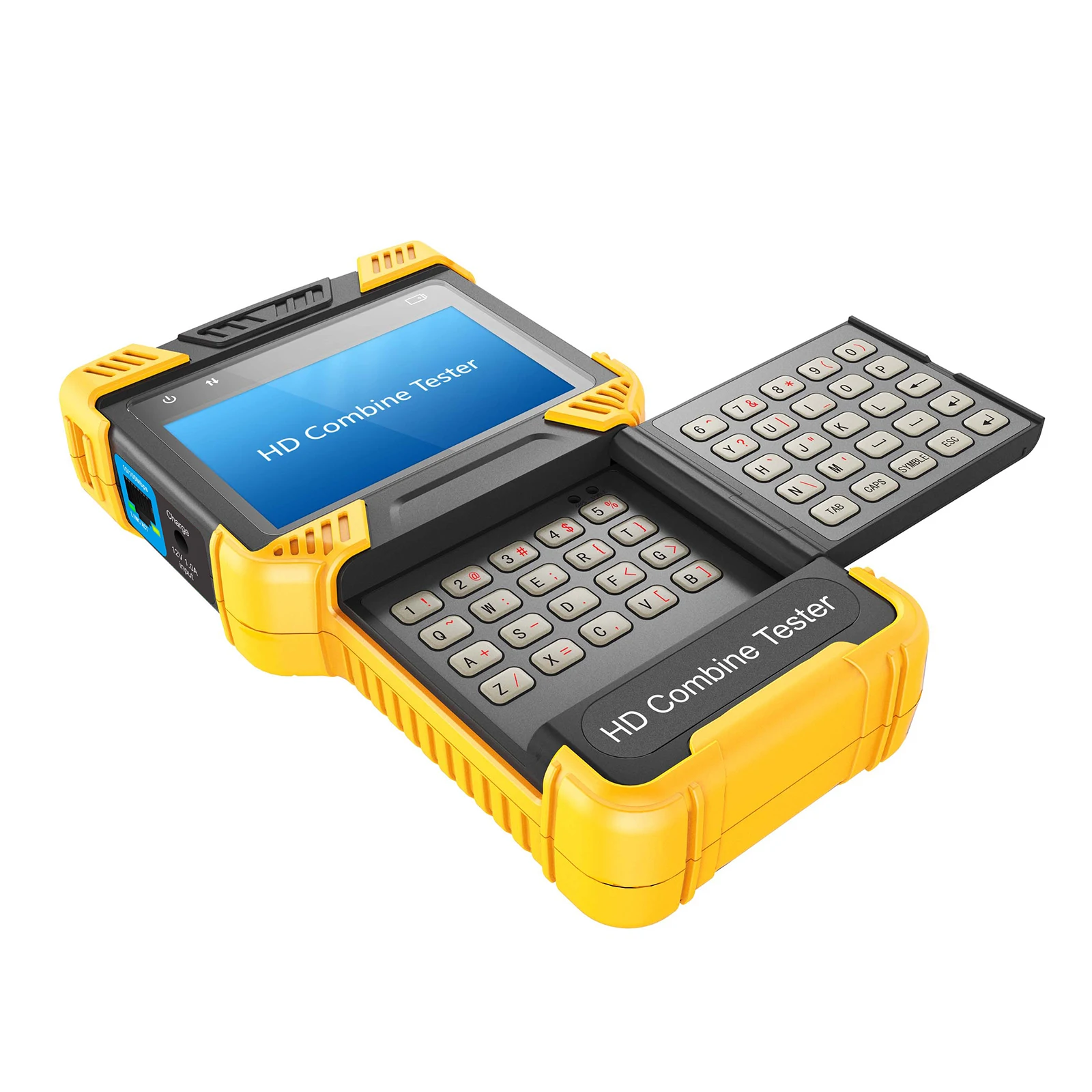

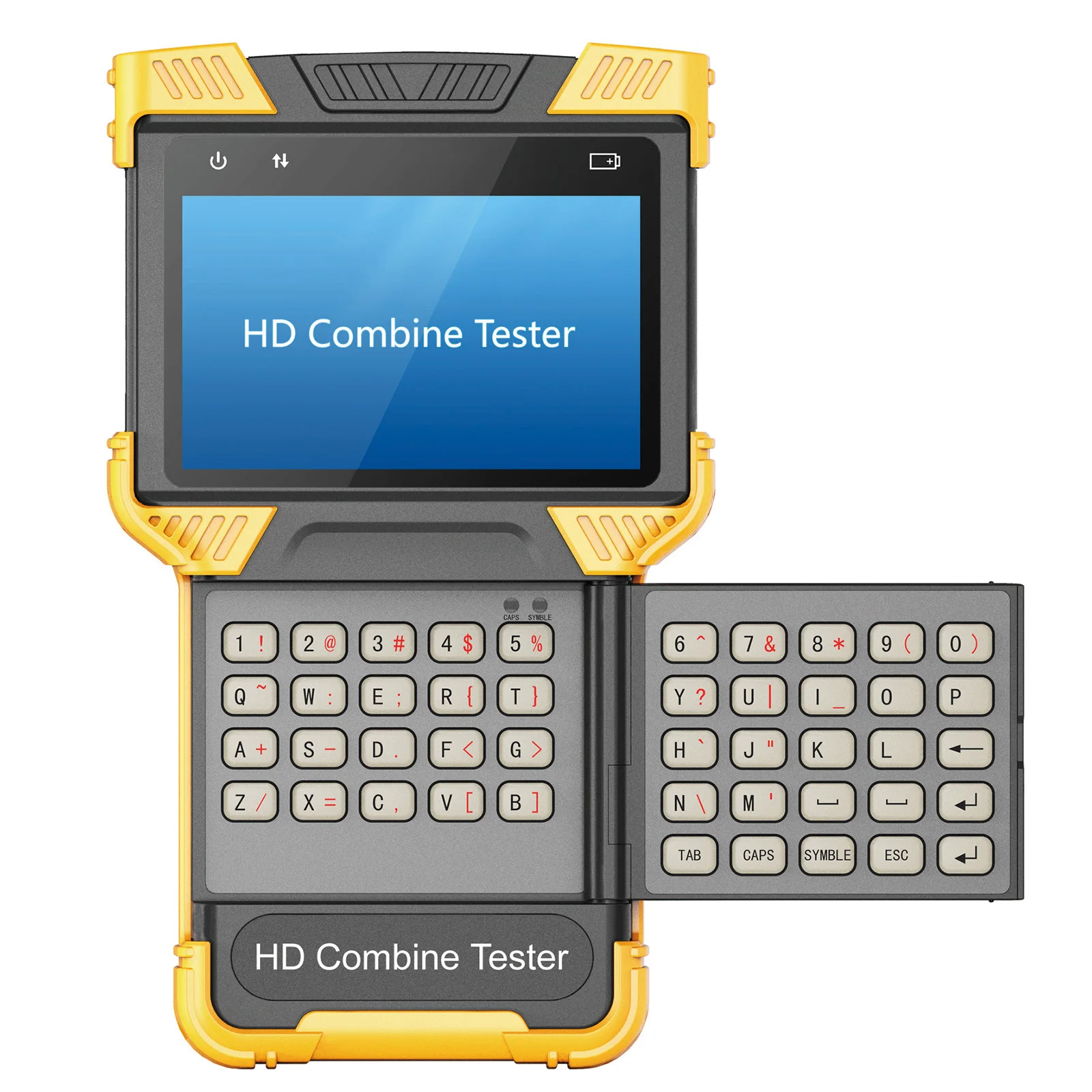

10.Swing keyboard input, QWERTY.
11.Changeable Li-polymer battery, battery working time 5 hours
12.With rubber protection layer
13.Dual LED torch
14.Software upgrade online

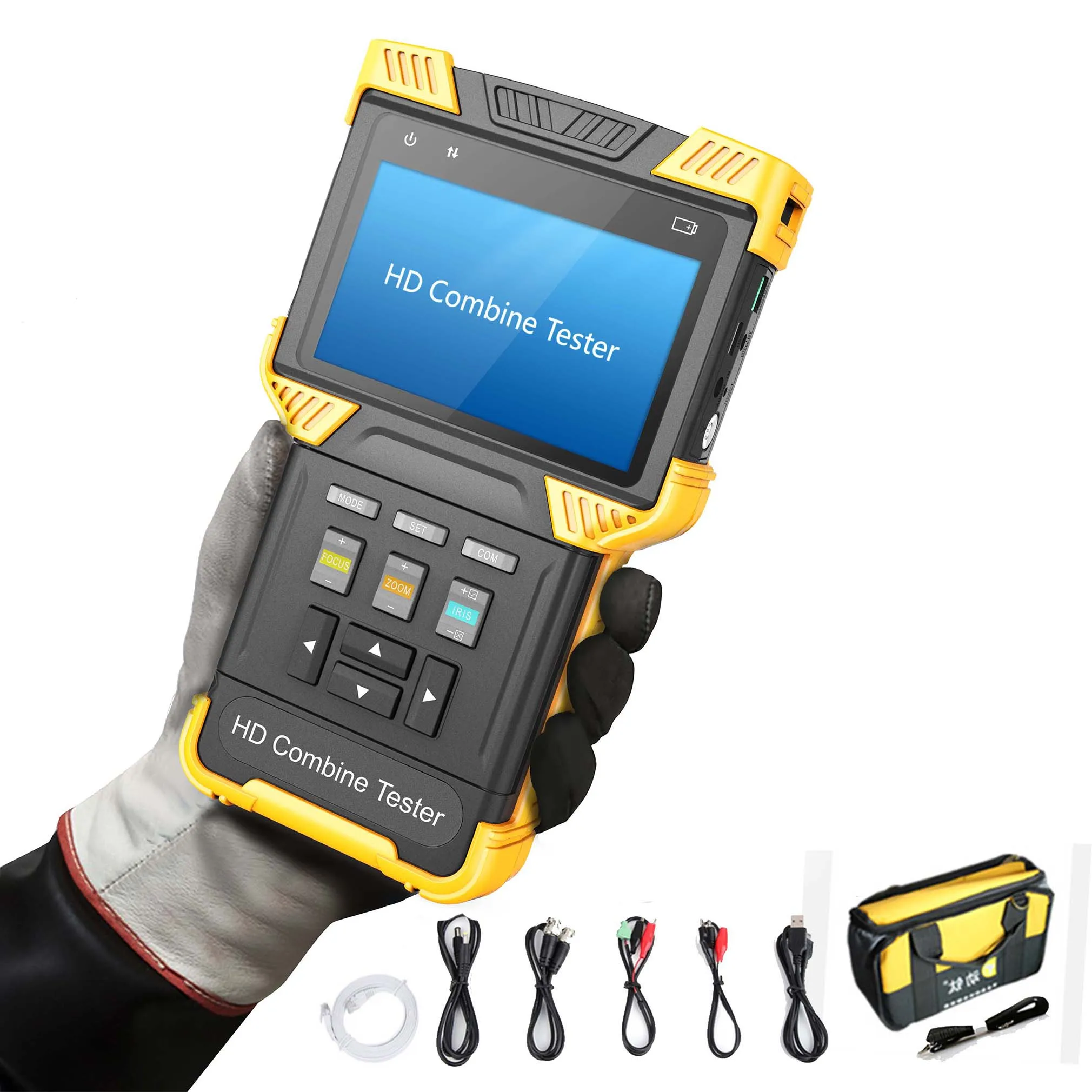

Packing list
1* CCTV Camera Tester
1* Charger
1* BNC Cable
1* RS485 Cable
1* 12V Power Output Cable
1* Audio Cable
1* Mini USB Cable
1* Lanyard
1*Tool Bag
