LT-600 series Network Cable Tester RJ45 Tester Lan Tester 4 inch IPS touch screen Tool Kit
Konnte die Verfügbarkeit der Abholung nicht laden.
Nutzen Sie diesen Text, um die Kommunikation anzuregen oder das Teilen in sozialen Netzwerken zu fördern.
Network Cable Tester RJ45 Tester Lan Tester RJ45 Cable Tracker Wire Tracker UTP Cable Tester RJ45 Network Tool Kit Cable Tracer
Feature

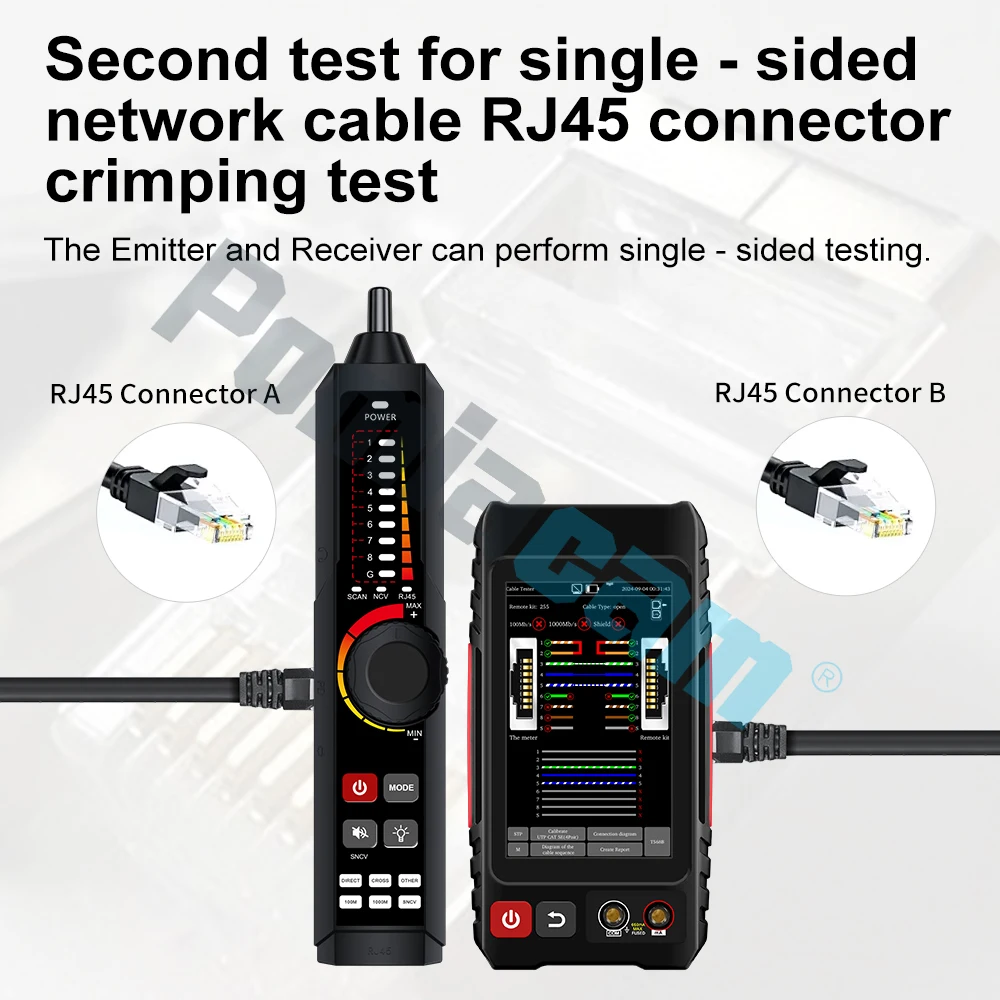

• The Network Cable Continuity, crimping of RJ45 connector and network cable length testing are all integrated into one.
• Cable tracer and UTP cable testing simultaneously, accurately locate the cables to avoid misjudgment.
• AC12-1000V, 50/60Hz inductive NCV scan function. sound and light dual alarms, supporting the distinction between live and neutral wires.
• RJ45 cable TDR test, test network cable’s breakpoints and short circuits, attenuation, reflectance, skew, etc.
• Cable length test, the maximum measurement length up to 3000 meters (only for Cable’s opentest)
• POE detector,supporting IEEE 802.3BT/AT/AF and non-standard protocol detection, power supply mode, power supply line pair detection, etc
• The FTP function enables users to copy test report and data via network FTP
• 1000M network port, it can perform network tests such as Ping, IP address conflict detection, PPPOE dial-up Internet access, route tracking, and LLDP switch port detection
• Intelligent Digital Multimeter,auto-ranging voltage/resistance/continuity measurement with isolation protection
• Optical Power Meter and Visual Fault Locator
Application
The LT-600M Multi-Functional Cable Tester, it is a practical tool for installation and maintenance of technical personnel in security monitoring, communication wires, integrated wiring and other weak current systems.
Supporting the continuity and sequence of network cables testing, check the crimping of RJ45 connectors,cable tracer .
Additionally, it provides Network Tool, including IP discovery, PING test, IP address scanning, Port flash, LLDP/CDP Detection, PPPOE dial-up, FTP Server, etc.
-Technical Specifications-
|
Model |
Network cable Tester 【LT600 series】Optional |
|
|
Screen & Display |
4 inch IPS touch screen, 800*480 resolution |
|
|
Cable Tracing/Wire Mapping/Continuity Test |
Transmit Signal |
Digital signal (decisively rejects noise and false signals) |
|
|
Cable Types |
Supports RJ45 twisted pair, RJ11 telephone cable, BNC video cable, and low-voltage metal cables. |
|
|
UTP Cable Test |
Tests any two or more wires in a network cable. The screen displays the connection sequence, 1000/100M, and cable number. The receiver is identified through indicators. |
|
|
Continuity Test |
Emitter: Minimum recognition length of 10cm |
|
|
|
Receiver: Minimum recognition length of 1m |
|
|
Short Circuit Detection |
Supports network cable short circuit detection |
|
Length Measurement |
Measures opens of network cables,the maximum measurement length up to 3000 meters .Accuracy: Cable length x 3% ± 1m |
|
|

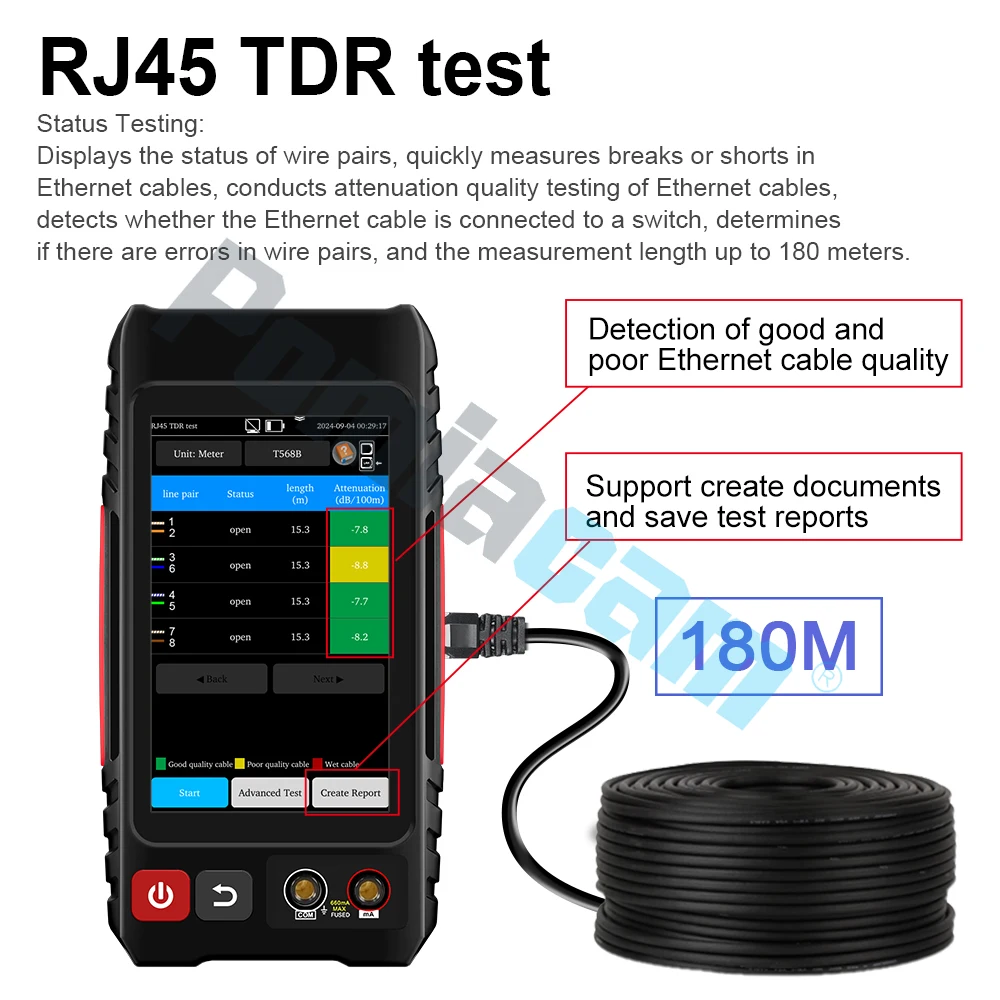

RJ45 cable TDR test |
RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew, and other parameters. Maximum measurable length 180 meters |
|
|

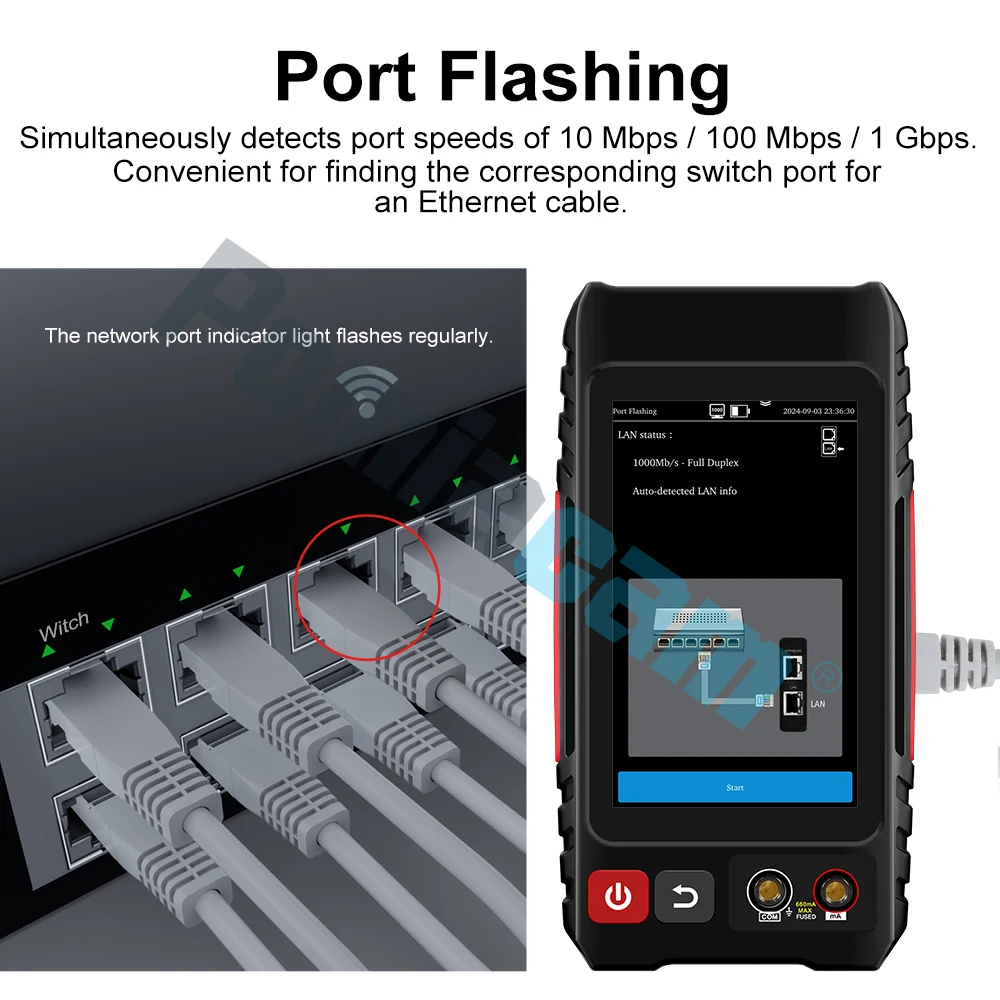

Port Flashing |
Quickly locates ports connected to Ethernet switches and other devices. |
|
|
PoE Testing |
Supports IEEE802.3BT/AT/AF and non-standard protocol detection. Displays power supply voltage, power supply pins, and pin polarity. |
|
|
Network tool |
IP discovery, IP address scan, PING test, switch port LLDP/CDP detection, switch port flashing, PPPOE dial-up, FTP server, etc. |
|
|

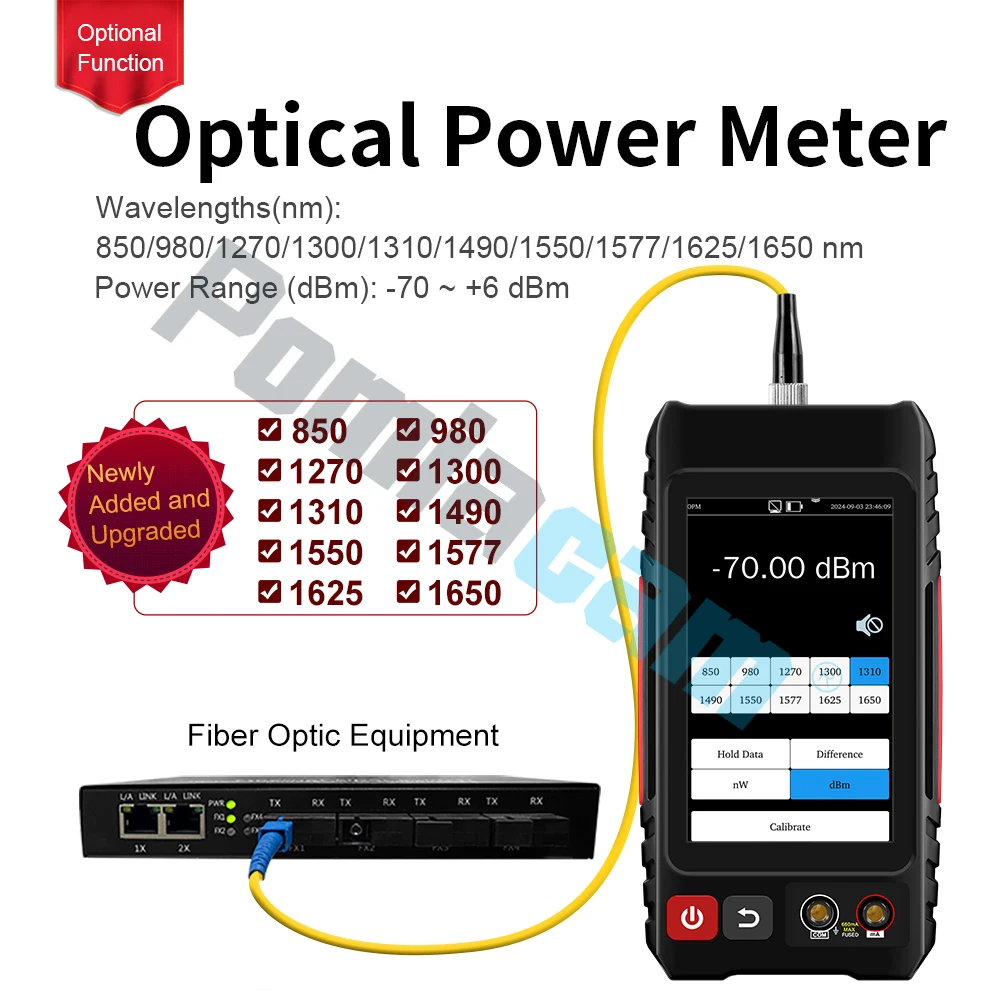

Optical Power Meter *（optional） |
Wavelength (nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm. Power range (dBm): -70 to +6 dBm |
|
|
Visual fault locator *（optional） |
Emits visible red laser to detect fiber optic line breaks, cracks, bends, and other faults. |
|
|

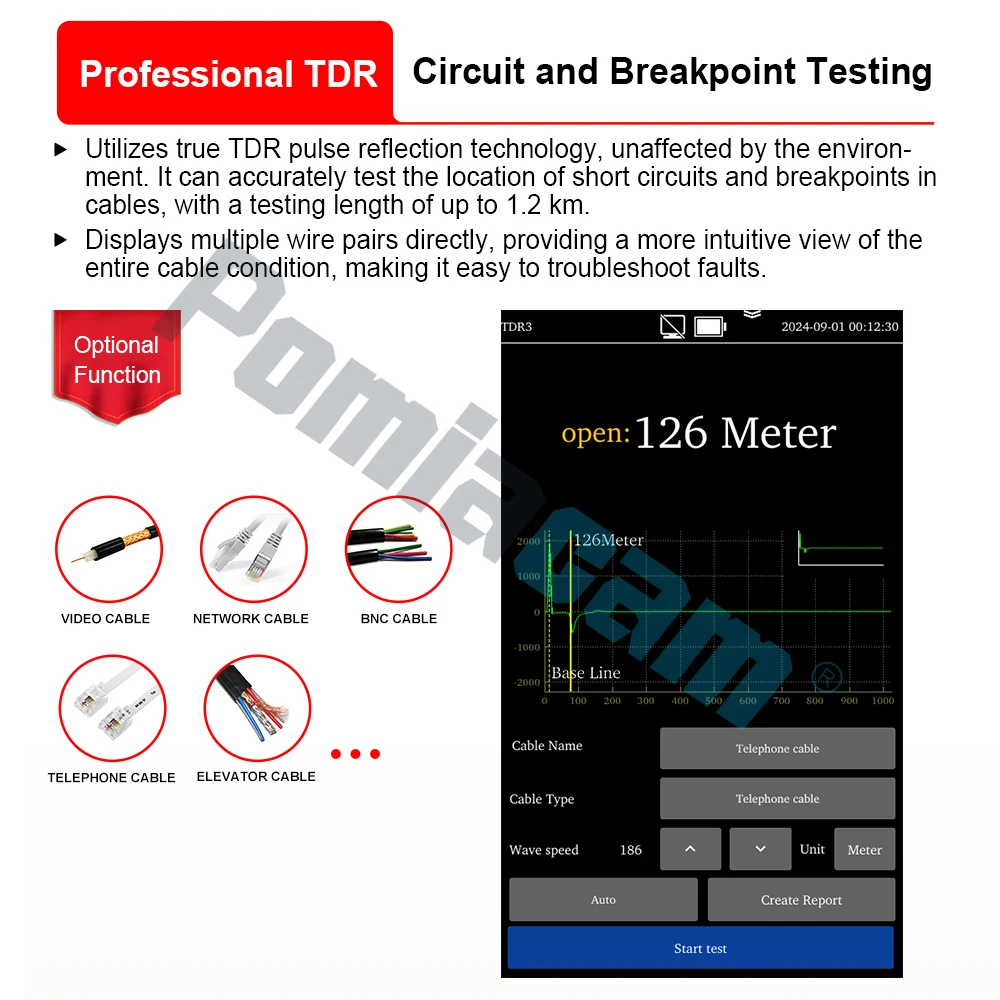

TDR cable test |
BNC cable, network cable, telephone cable, RVV cable, and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2 km |
|
|
Level meter*(Optional) |
Measures the peak level, sync level, and burst level of video signals |
|
|
Multi-meter specifications* |
||
|
DC voltage |
Range: 60mV/600mV/6V/60V/600V; Counts: ±6000; Minimum resolution: 0.01m VAccuracy: 0.01-600 Vaccuracy±(0.6%+4)/600V-1000 Vaccuracy±(0.8%+10) |
|
|
AC voltage |
Range: 60mV/600mV/6V/60V/600V; Counts: ±6000; Minimum resolution: 0.01mV; Accuracy: 0.01-600 Vaccuracy±(1.2%+4)/600V-750 Vaccuracy±(1.2%+10) |
|
|
Resistance |
Range: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ; Counts: 0~6000; Minimum resolution: 0.1Ω; Accuracy: 0.1-6 Maccuracy±(0.8%+10)/6M-60 Maccuracy±(2.5%+4) |
|
|
Capacitance |
Range: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF; Counts: 0~6000; Minimum resolution: 1pF; Accuracy: 1nF-6000u Faccuracy±(3.5%+20)/6000uF-60000u Faccuracy±(5%+4) |
|
|
Frequency Test |
Range: 6Hz/60Hz/600Hz/6KHz/60KHz/600KHz/6MHz; Counts: 0~6000; |
|
|
Live Wire Detection (LIVE) |
Supported |
|
|
Diode |
Range: 3V; Counts: 0~3000; Minimum resolution: 1mV; Accuracy: ±1.2%+20 |
|
|
Continuity |
Range: 50Ω; Counts: 0~500; Minimum resolution: 0.1Ω; Accuracy: ±1.2%+20 |
|
|
Power |
||
|
Battery Power |
Emitter |
3.7V 4000mAh lithium-ion rechargeable battery (working time about 6 hours) |
|
|
Receiver |
3.7V 2000mAh lithium-ion rechargeable battery (working time about 12 hours) |
|
Working Environment and Specifications |
||
|
Operating Temperature |
-10℃---+50℃ |
|
|
Operating Humidity |
30%-90% |
|
|
Dimensions |
Emitter |
154mm x 86mm x 40mm / 0.3Kg |
|
|
Receiver |
218mm x 48mm x 32mm / 0.15Kg |
