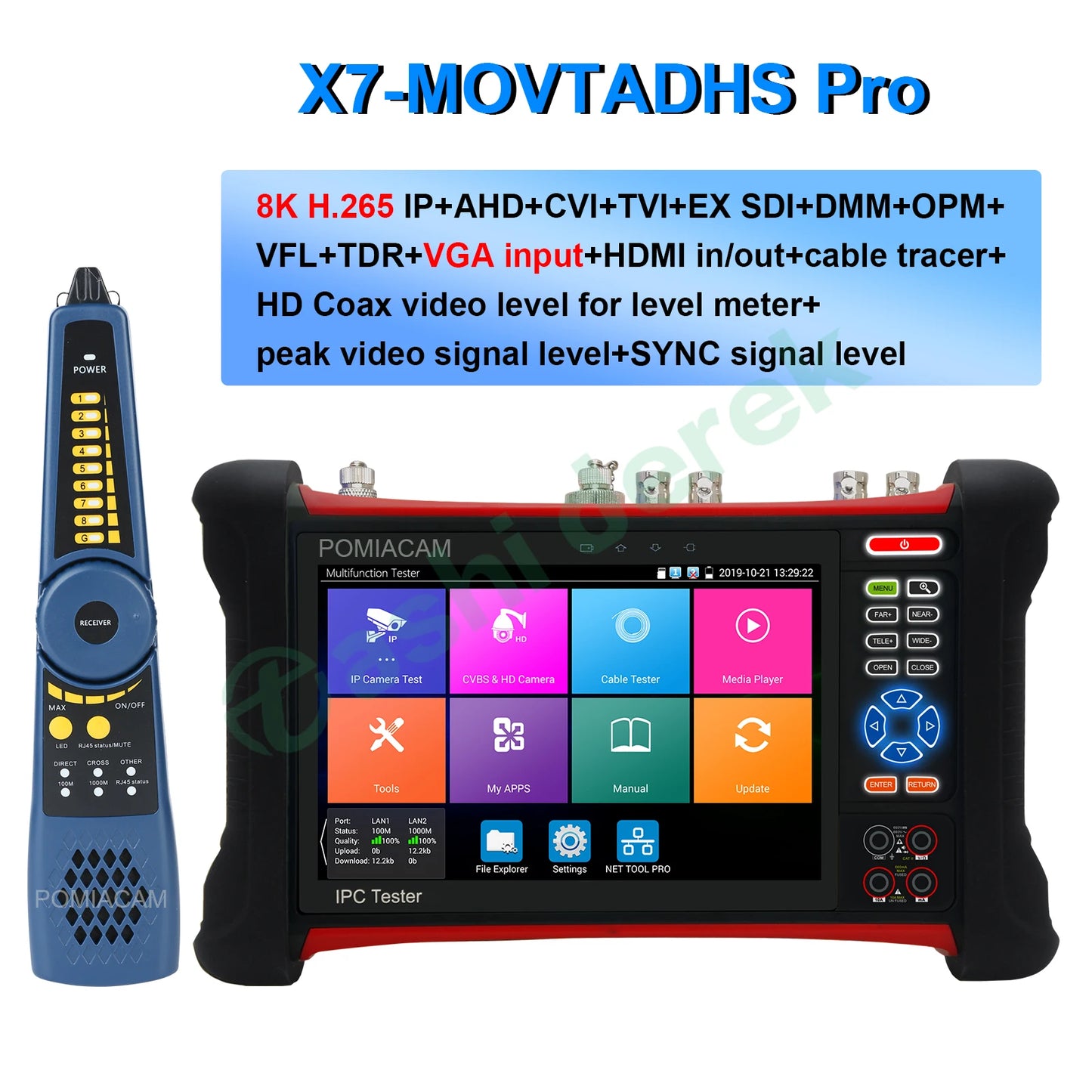

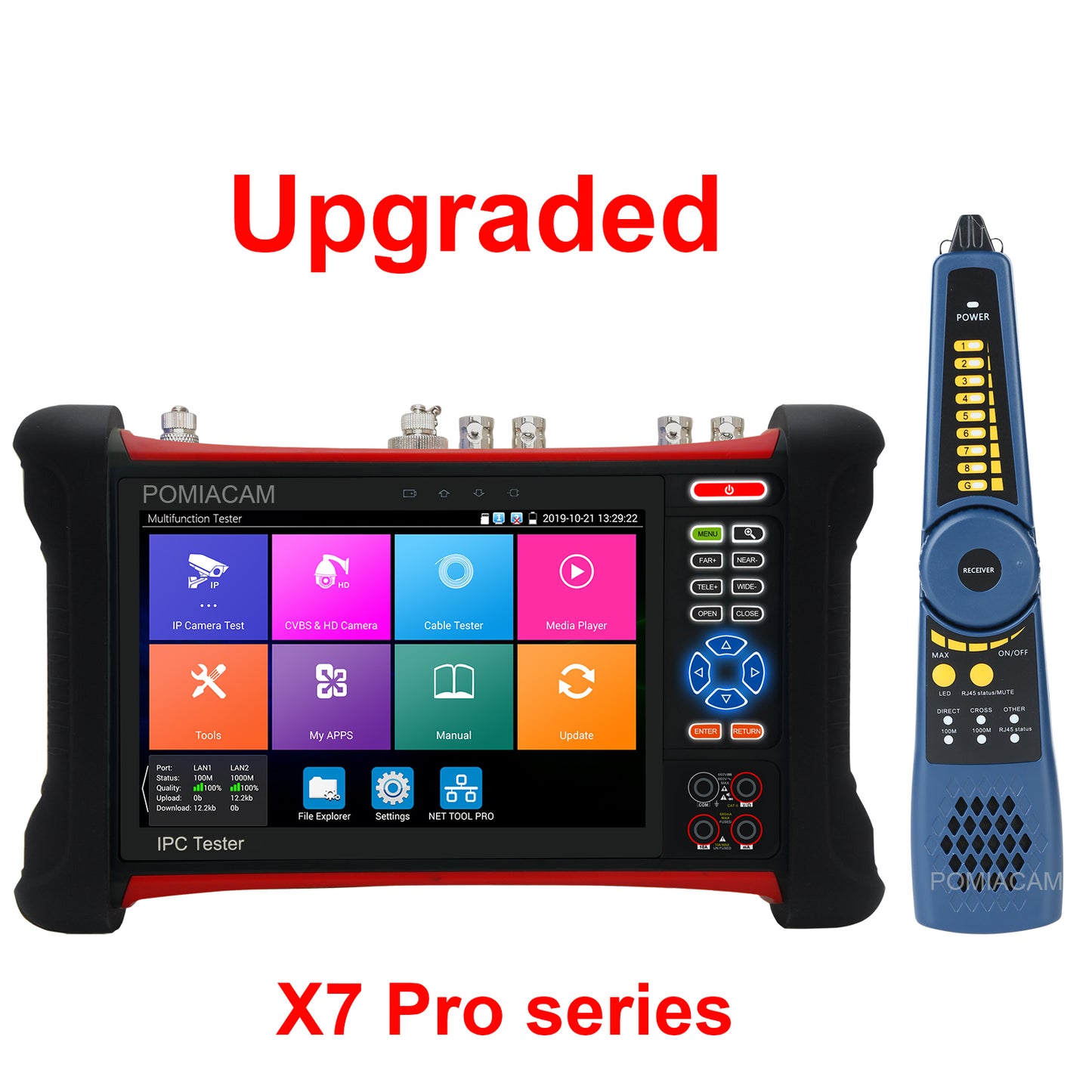

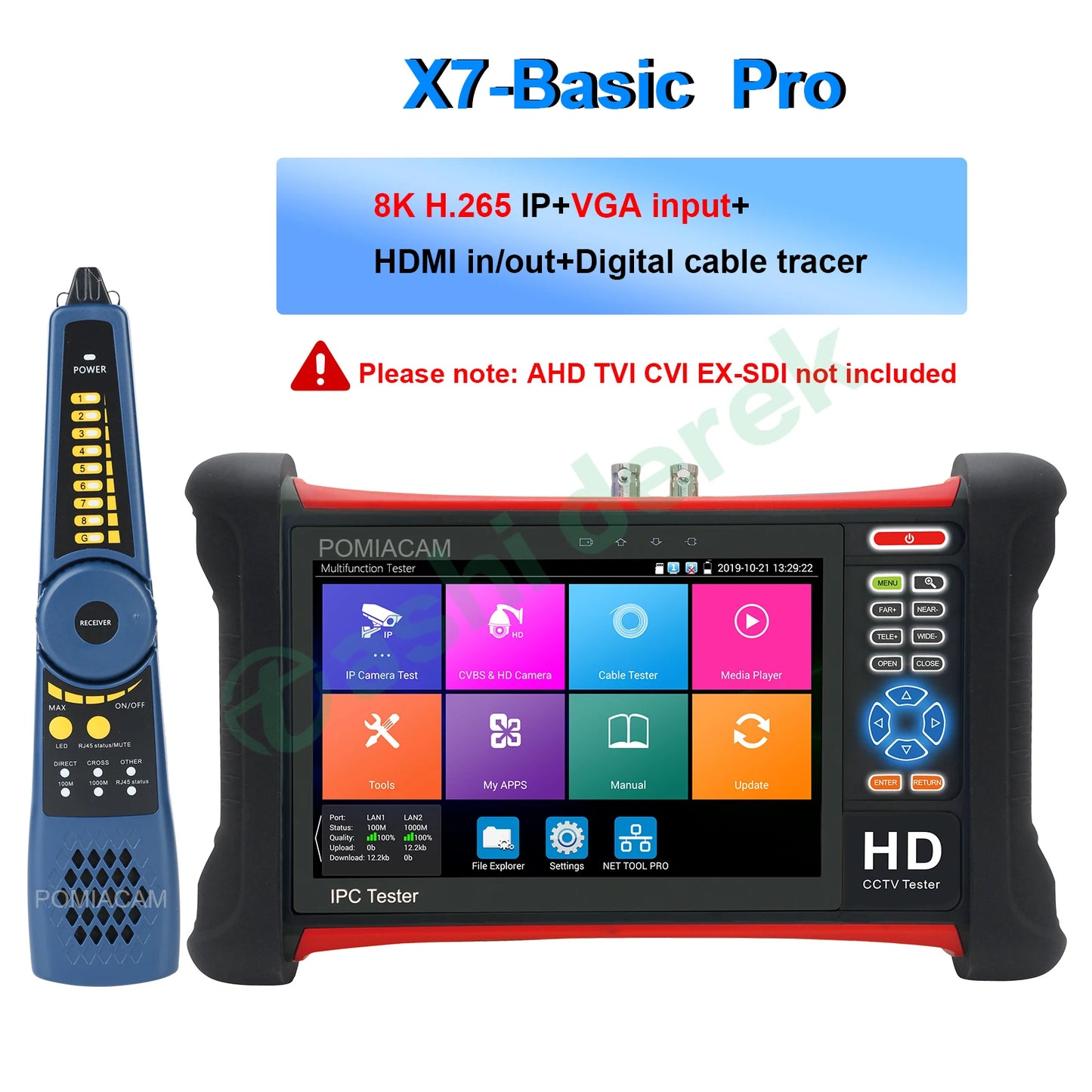

8K H265 IP/8MP TVI CVI AHD/Analog camera tester with HDMI in/out,
VGA input and HD Coax video level meter

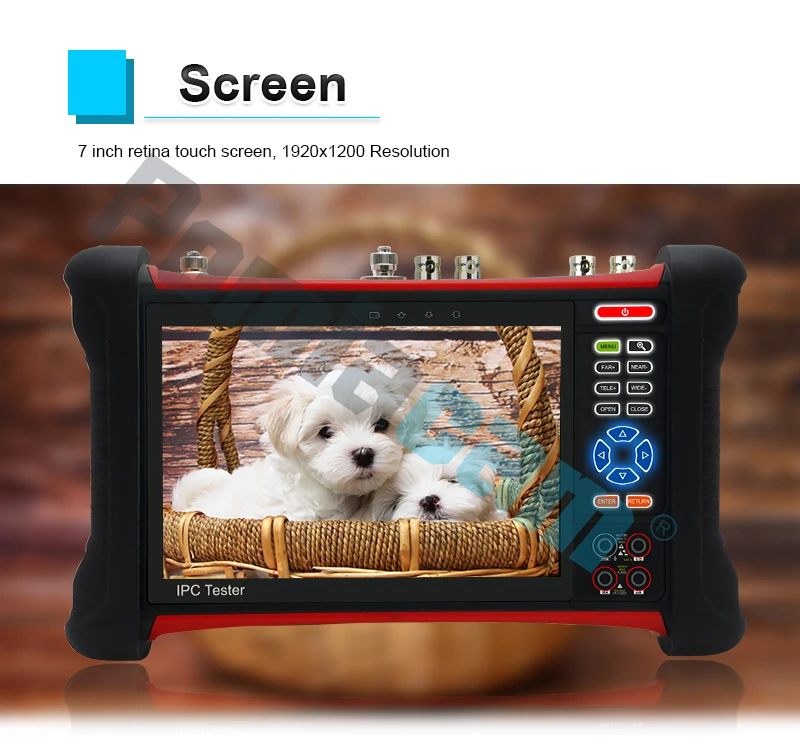

◆ 7 inch retina touch screen, 1920*1200 resolution
◆ 4K 30 FPS HDMI input,4K 60 FPS HDMI output
◆H.265/H.264, 8K video display via mainstream New
◆ Professional Wi-Fi Analyzer, support 2.4G/5G
◆ DC12V 3A, DC 24V 2A power output
◆ Dahua, Hikvision, etc ONVIF camera test
◆ 8MP TVI, 8MP CVI, 8MP AHD camera test
◆ Support VGA input New

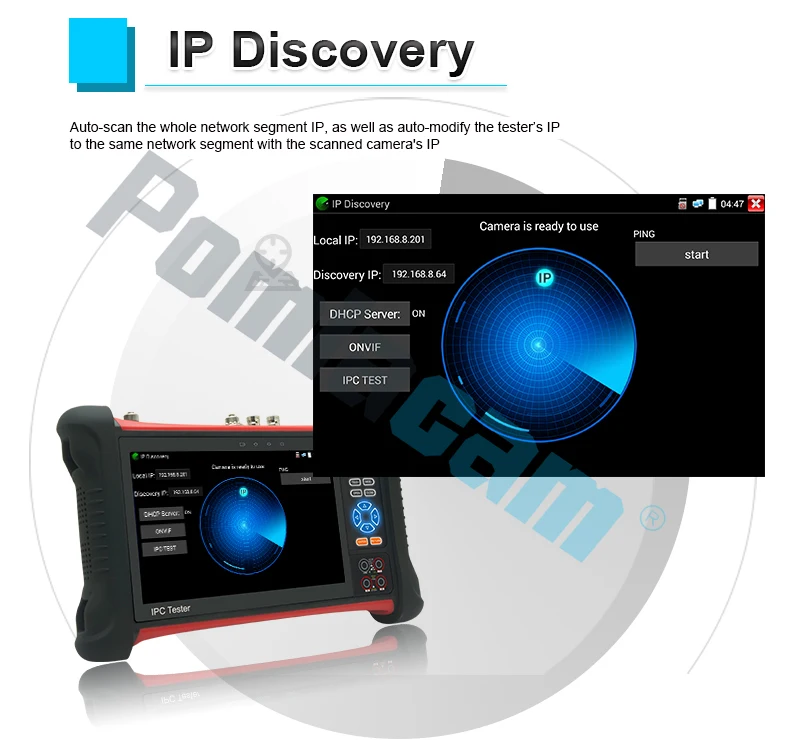

◆ Network tool: Ping, IP scan, Port Flash, DHCP server
◆ Chrome browser, test and set Axis camera
◆ Rapid ONVIF, auto view video and create testing report
◆ Built in WIFI, create WIFI hotspot
◆ DC48V 30W PoE power output
◆ Support digital cable tracer UTP cable test

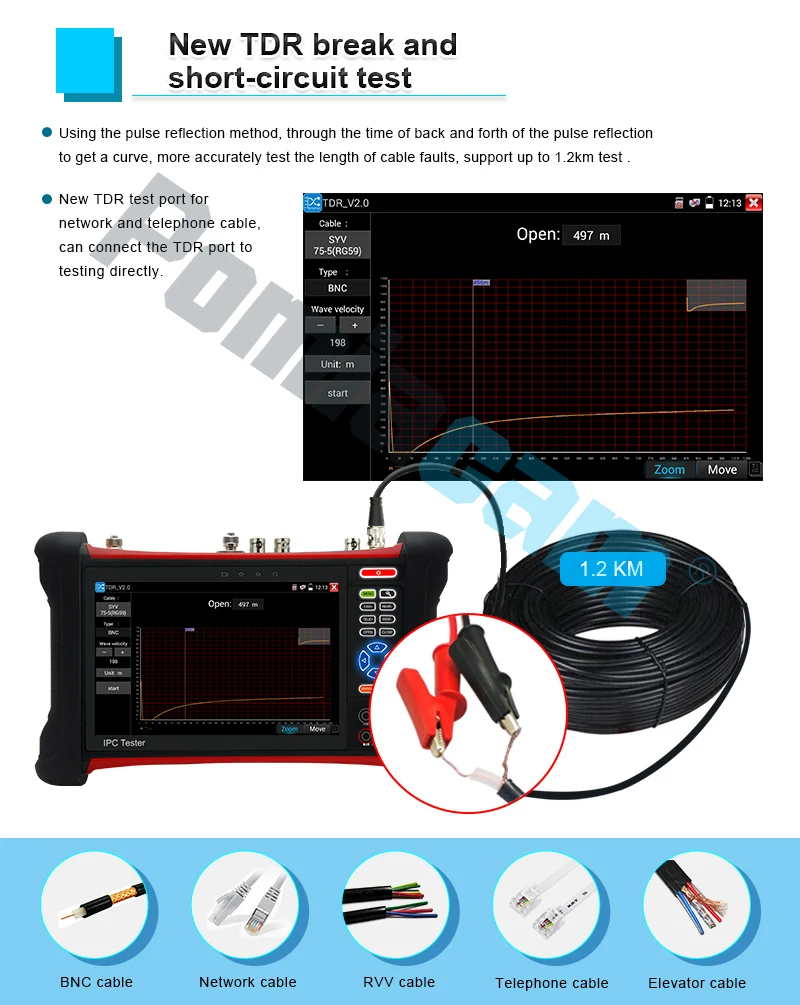

◆ RJ45 cable TDR testing, for cable's open and short
◆ HD Coax video level meter, support peak signal level, SYNC signal level, burst level test New
◆ Tester Play: Display camera stream on Tester and mobile testing devices/PC display simultaneously

The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment.
The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution.
The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions RJ45 TDR cable test, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work.
If take the all in one camera tester, making working conditions safer and increasing productivity.CCTV system installation and maintenance Network cabling project installation and maintenance    Dome camera, IP TVI CVI AHD, 8K H.265 camera testingVideo transmission channel testing PTZ controller


Camera test:
● 7 inch retina touch screen, 1920*1200 resolutions
● H.265 & H .264 IP, 8K video display via mainstream

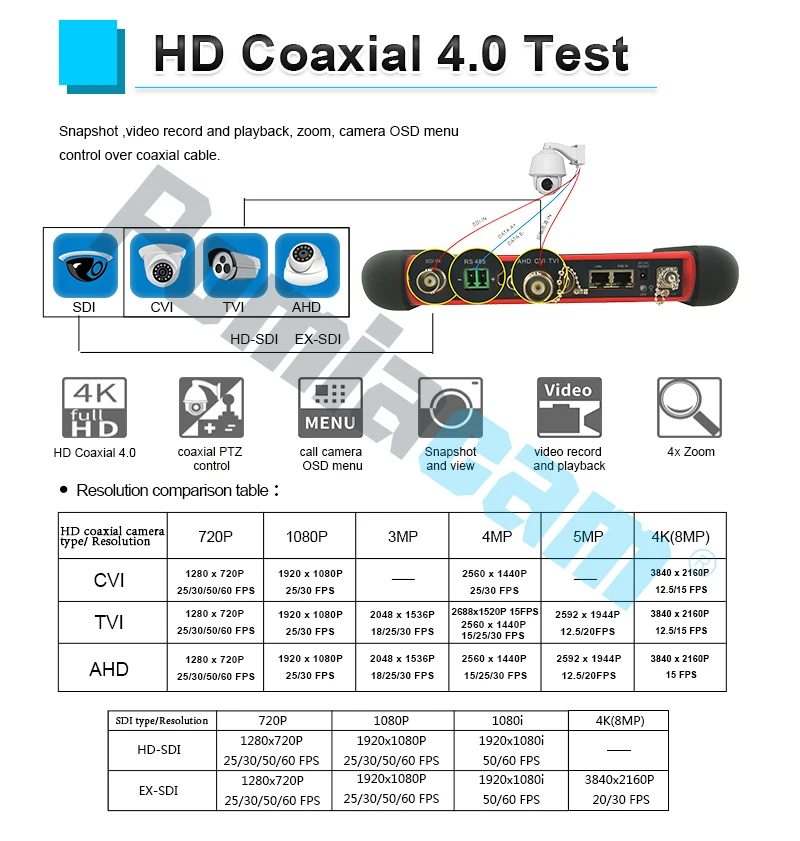

● 8MP TVI test, 3840 x 2160P 15 fps, 4xzoom, video record &playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 12.5/15 FPS, video record & playback, UTC control & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
●Support HD SDI and EX SDI2.0 camera testing * Optional
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

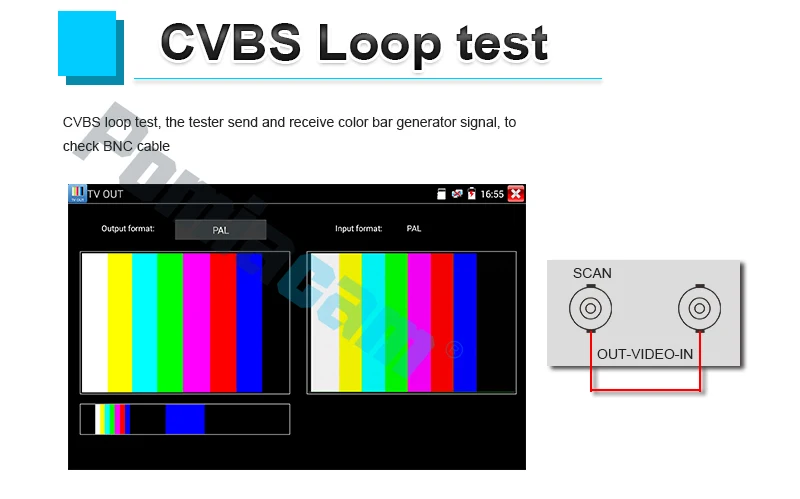

● CVBS camera test and PTZ control

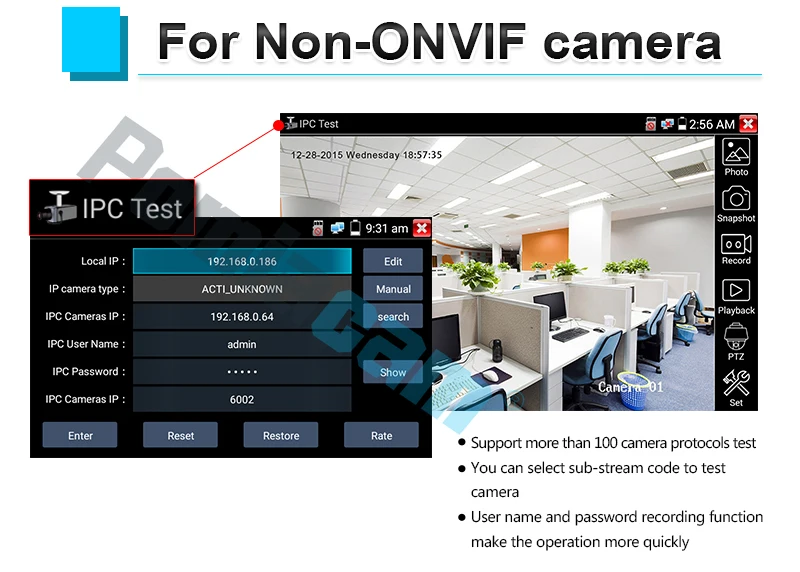

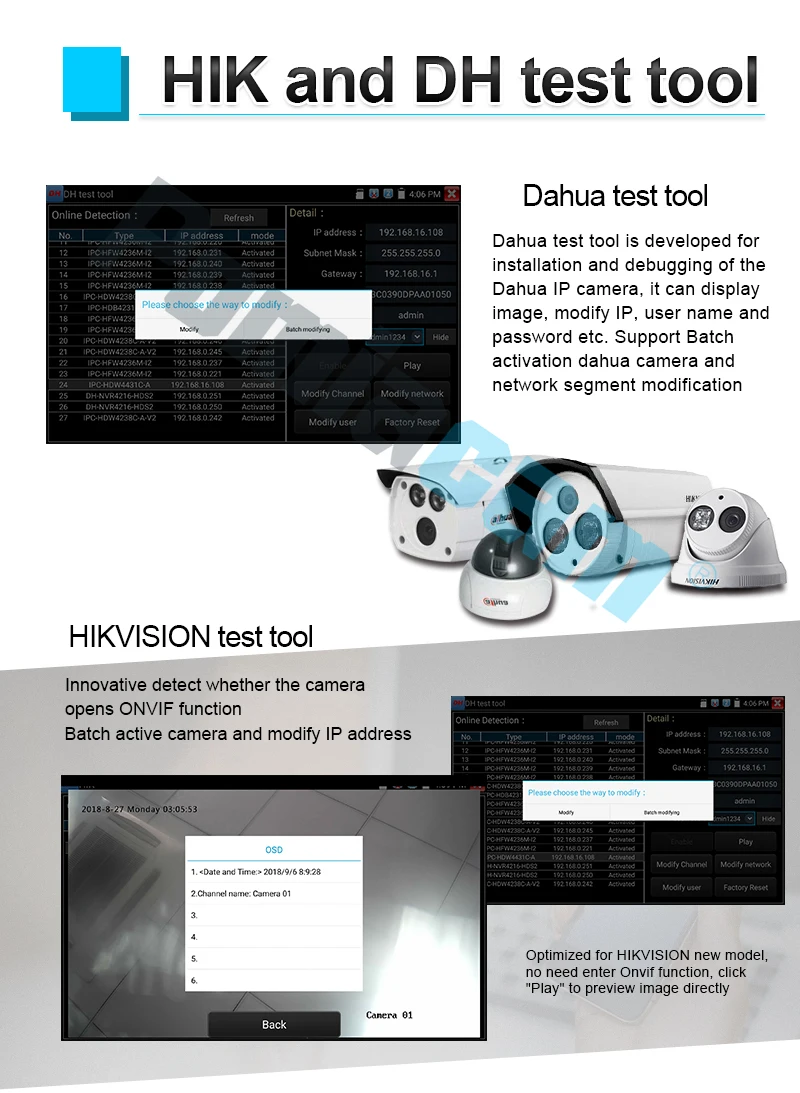

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)
● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement  New
●DC 24V 2A, 12V/3A power output, camera can be powered from DC 12 Voltage
● 48V PoE power output power

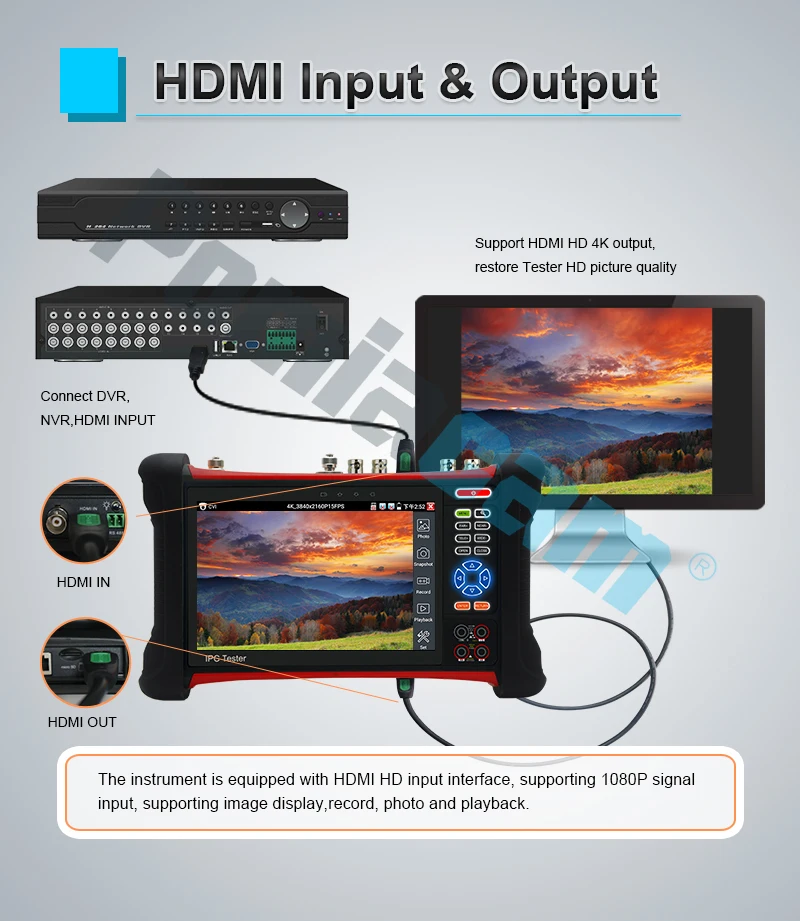

● 4K 30 FPS HDM input, 4K 60 FPS HDMI output
● Dual 1000M LAN ports, it can check network bandwidth, packet loss or error data
Cable test:

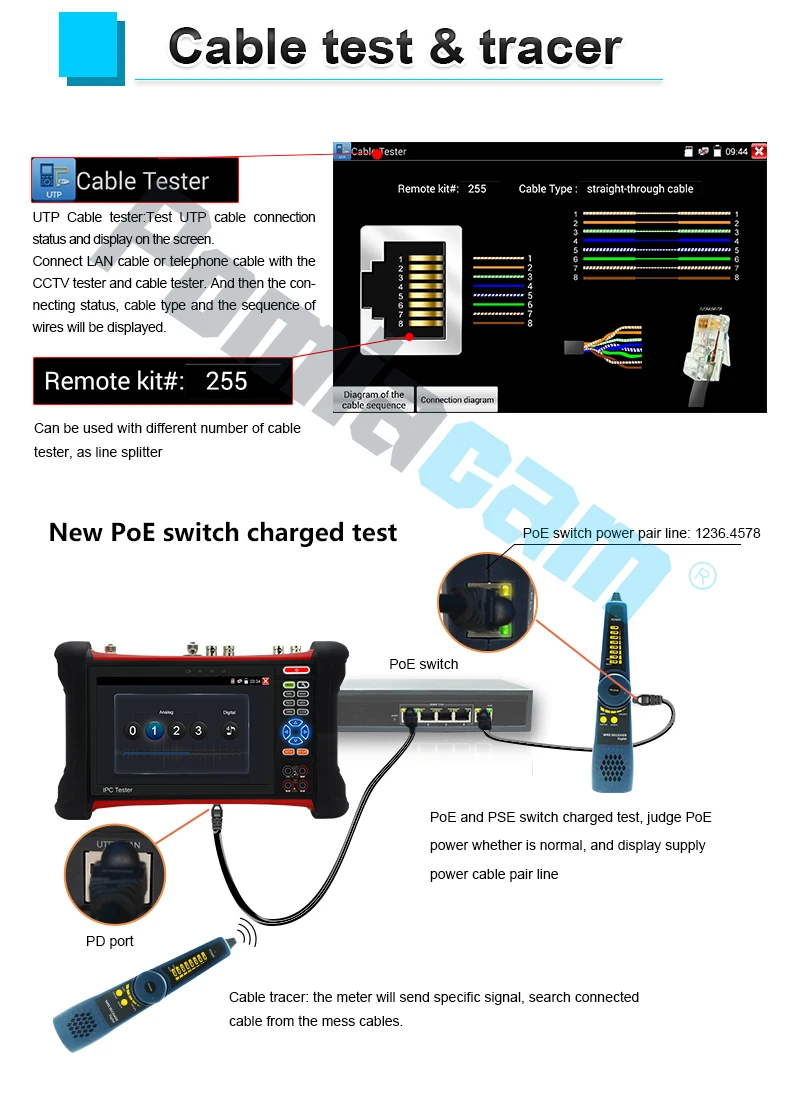

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

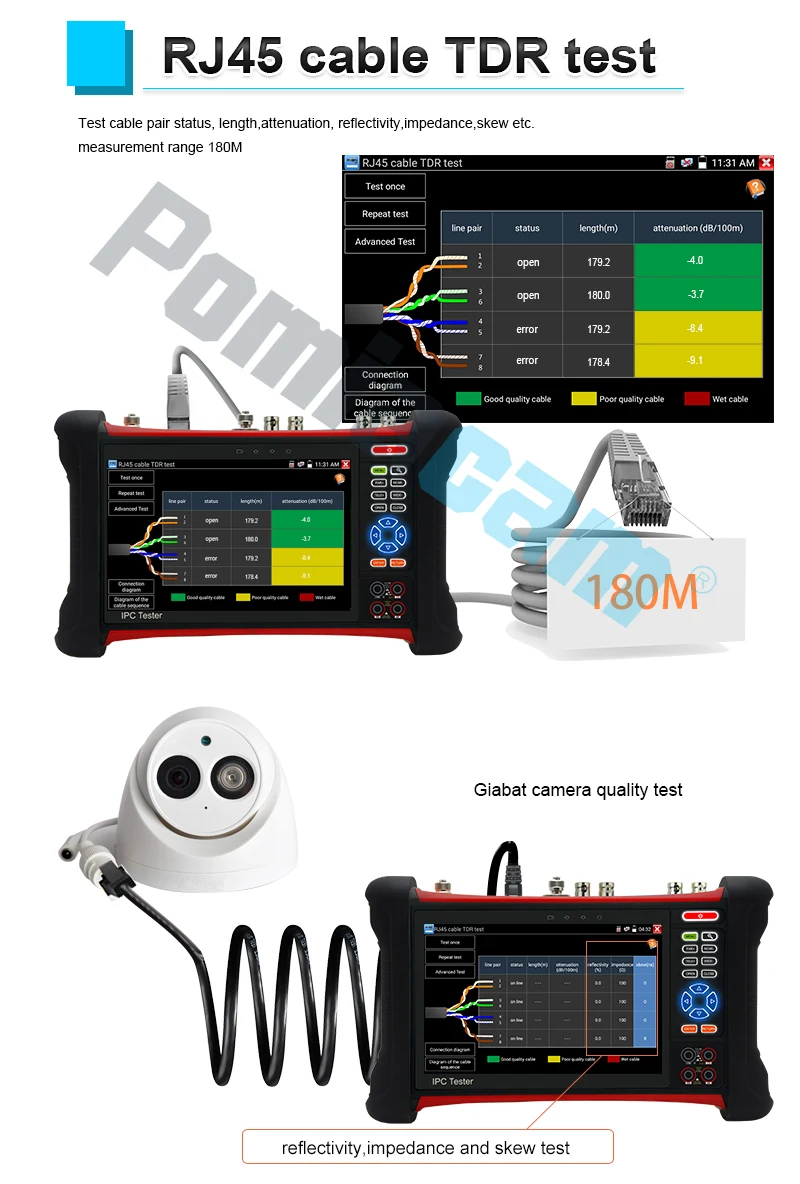

 ● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
 ● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

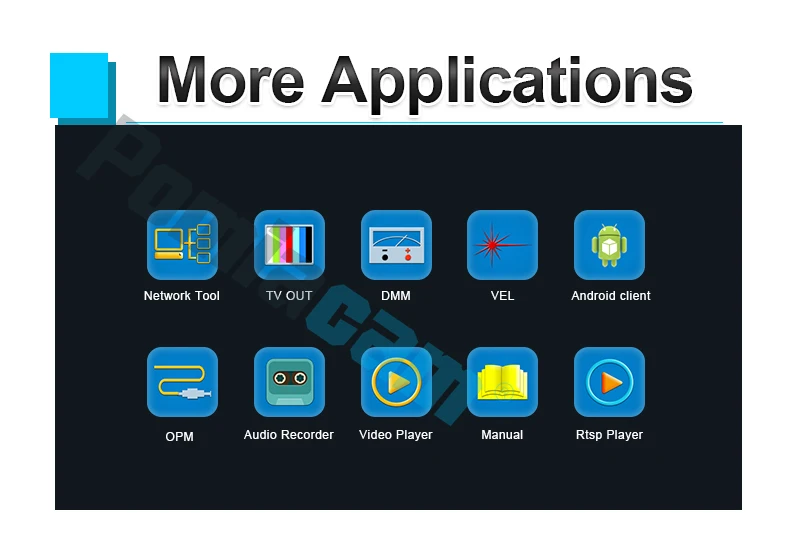

Other functions:
● Support VGA input  New
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

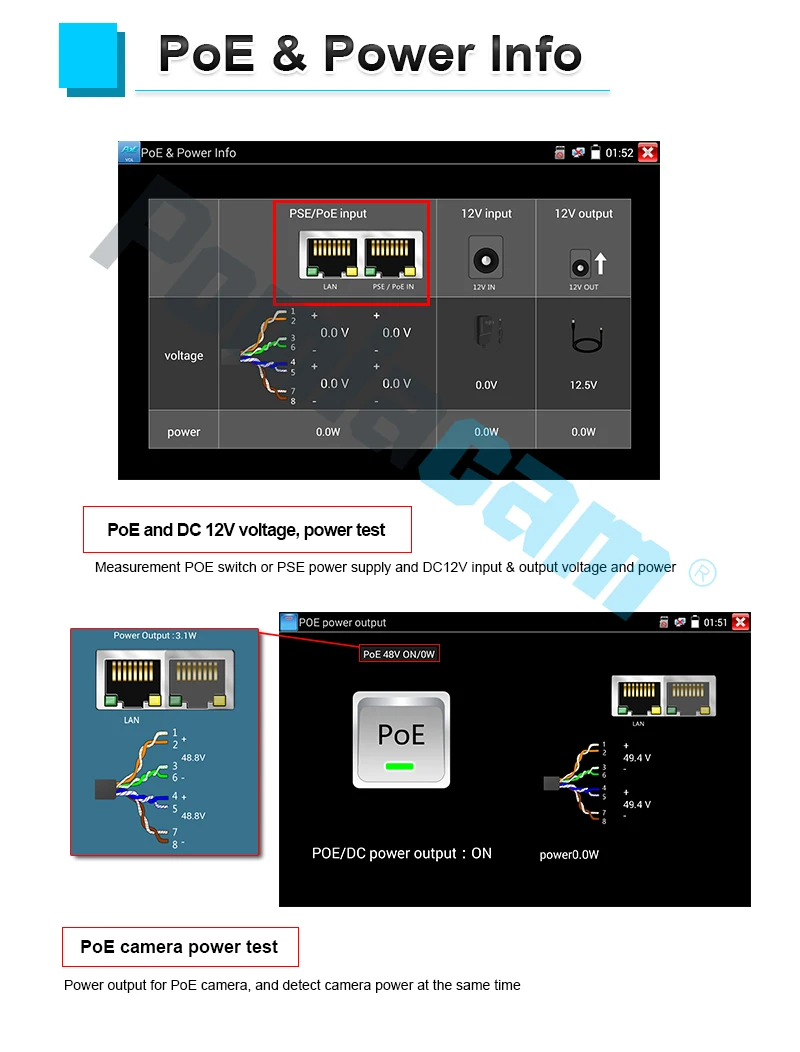

● POE & power information, DC12V& PoE power and voltage output /input measurement
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.6 V /7800mAh Lithium Ion Polymer Battery, Fast charging 4 hours charging, working time lasts 16 hours

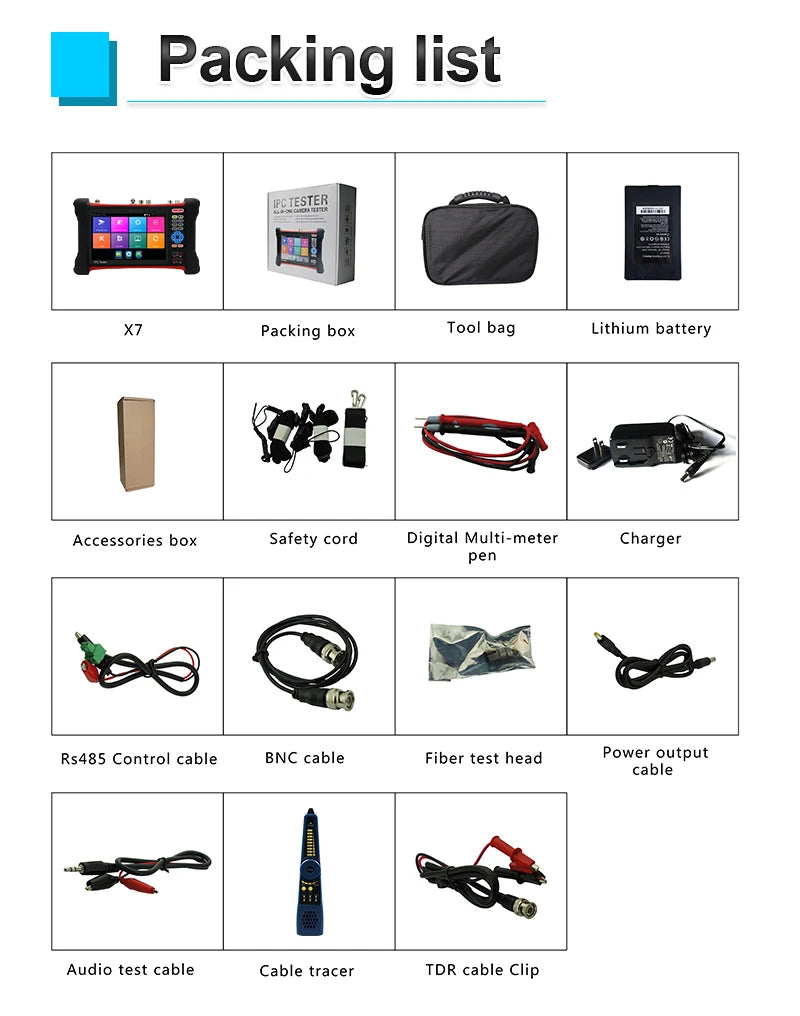

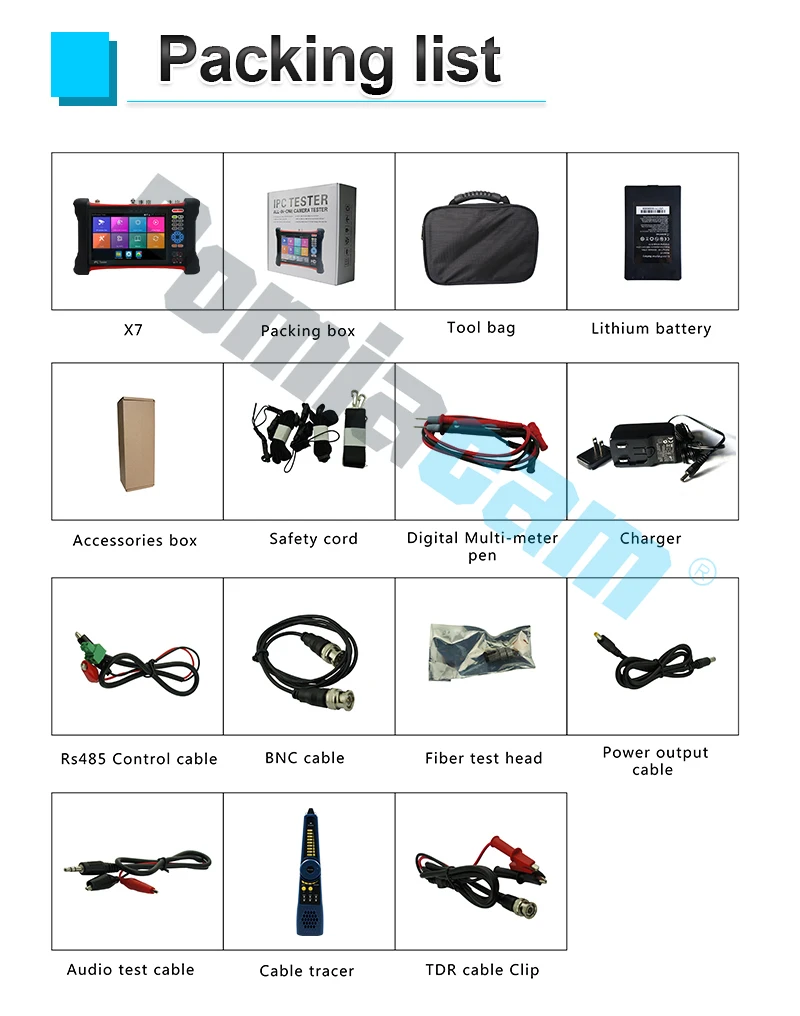

packing list

1) Tester
2) Cable tracer Probe
3). Adaptor DC12V 2A/ 8GB TF card
4) Polymer lithium ion battery (7.6V DC 7800mAh)
5). Tool bag / DC Power cable/BNC cable/ RS485 cable/ Audio cable/ Safety cord
6). Manual
