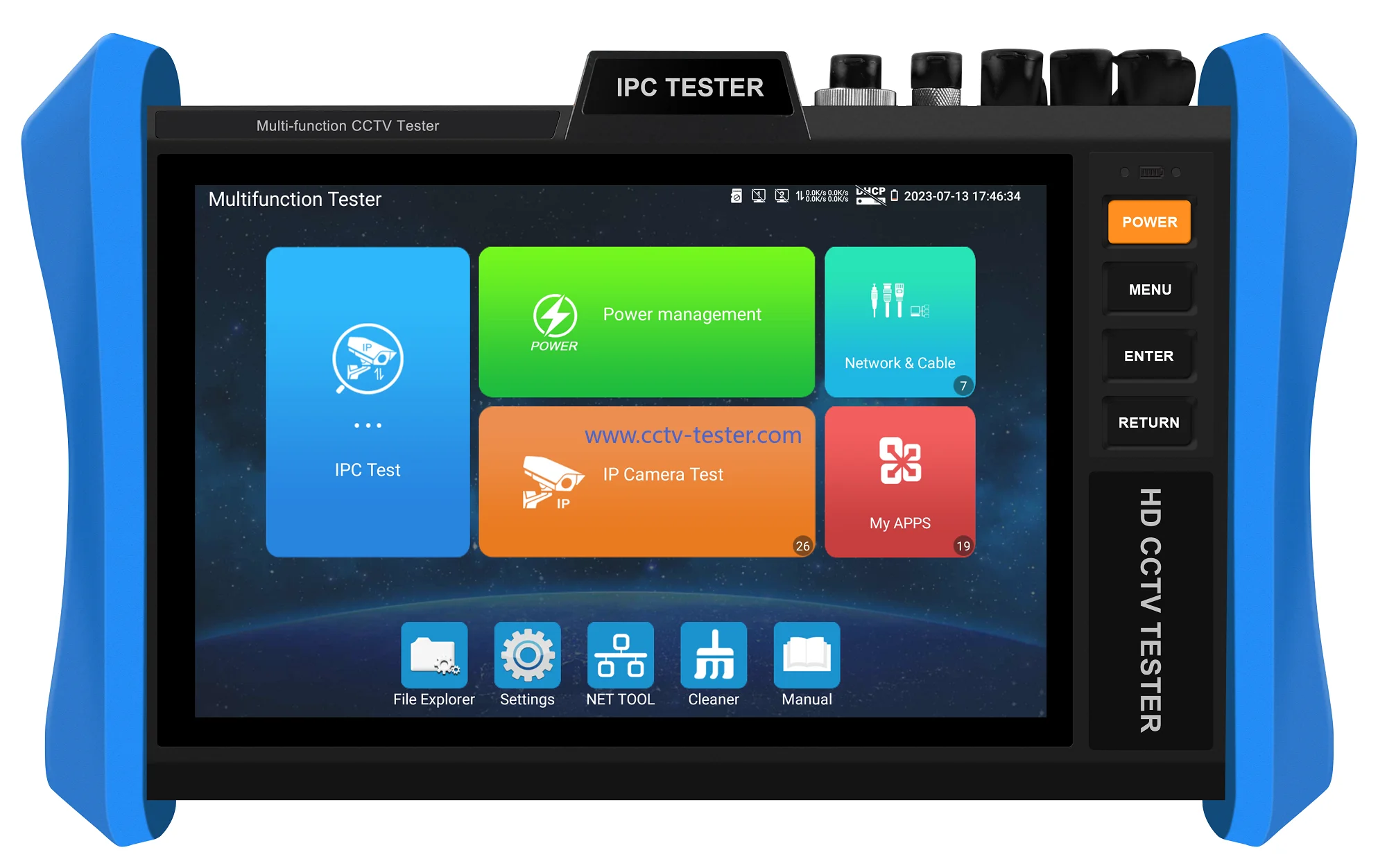

All-in-one 4K H.265 IP Camera Tester

IP / Analog / CVI / TVI / AHD/ HDMI / VGA / SFP /PoE++


- 8 inch IPS touch screen, 1920*1200 resolution

- 8MP CVI/ TVI/ AHD camera test, support TVI 5.0 Audio test

- 55V PoE++ power output, max power 60W

- DC12V 3A, DC24V 2A power output

- VGA Input, 4K 30FPS HDMI Input & 4K 60FPS HDMI output

- Brand new dual gigabit Ethernet ports

- WIFI analyzer, support 2.4G/5G frequency band

- ONE Gigabit SFP optical fiber module port

Model : T90-ADH

4K H.265, 8MP TVI, 8MP CVI, 8MP AHD IP Camera Tester

Features

Optical fiber network test / Fiber test:

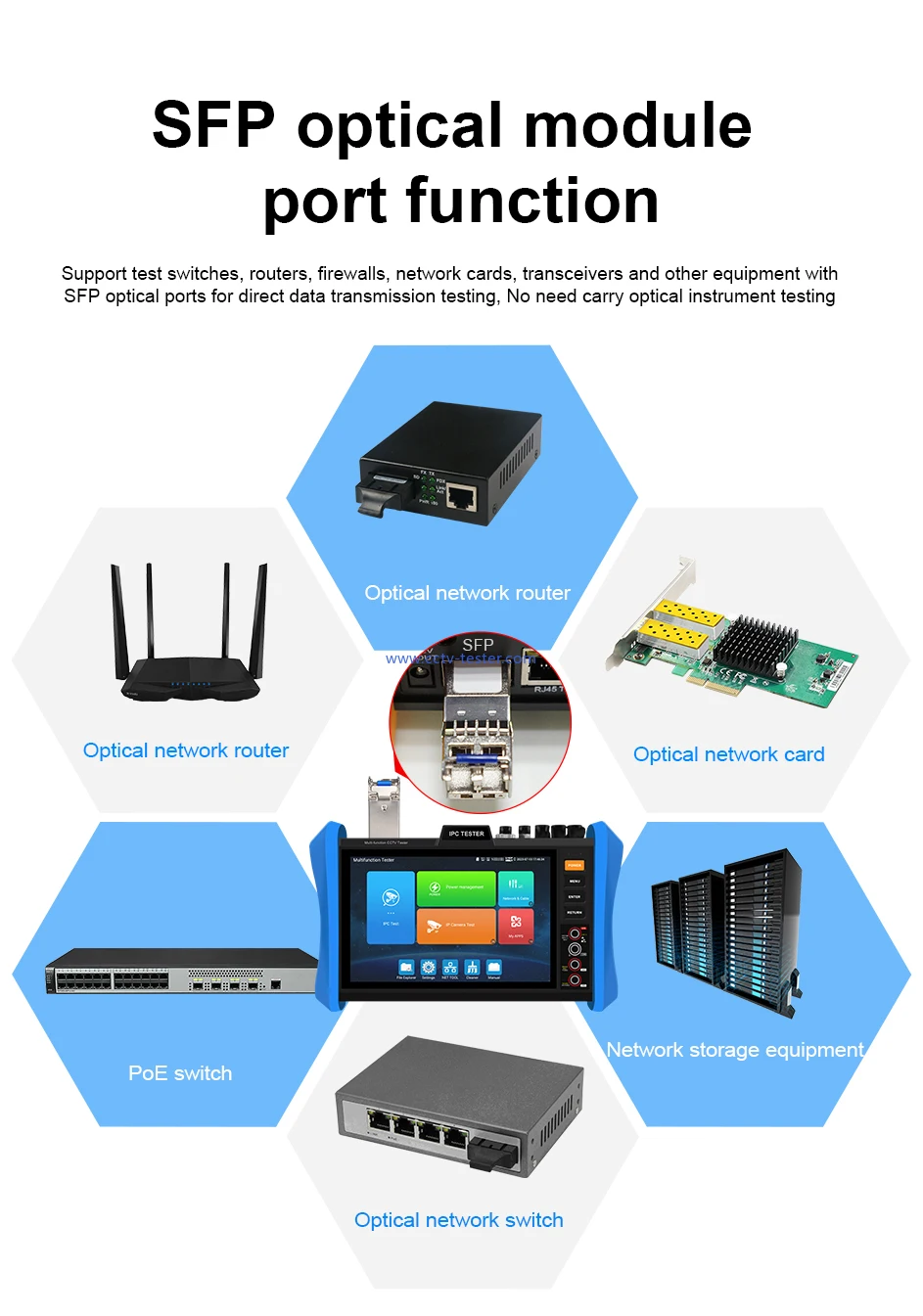

- NEW ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing

Camera test:

- 7 inch IPS touch screen, 1920*1200 resolution

- H.265 & H .264 IP, 4K video display via mainstream

- Support TVI5.0 audio test

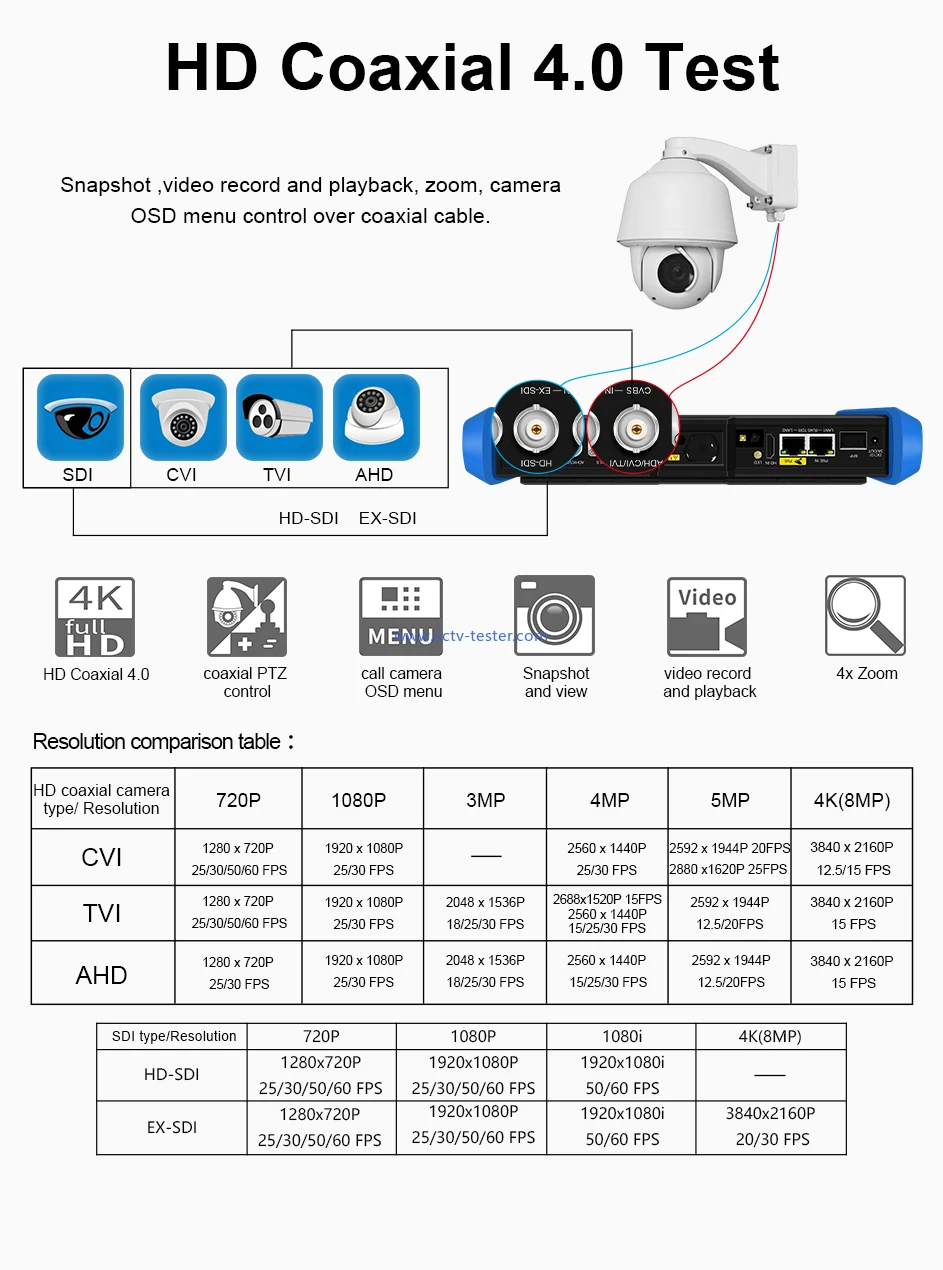

- TVI 5.0 test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

- 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

- 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

- Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

- HD Input, up to 4K 30FPS, and support snapshot, video record & playback

- NEW Rapid ONVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions

- Enter ONVIF app, input username and password to test

- CVBS camera test and PTZ control

- DC12V/3A power output, DC24V 2A power output

- DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank

- 55V PoE++ power output power, max power 60W

- Rapid video, just by one key to detect all network cameras and auto display

- Built in Wi-Fi Analysis, support 2.4G/5G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot

Cable test:

- Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized,and detect near-end, mid-end and far-end fault test of RJ45 cable plug

- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Other functions:

- HD Input support 4K 30FPS, HD output support 4K 60FPS

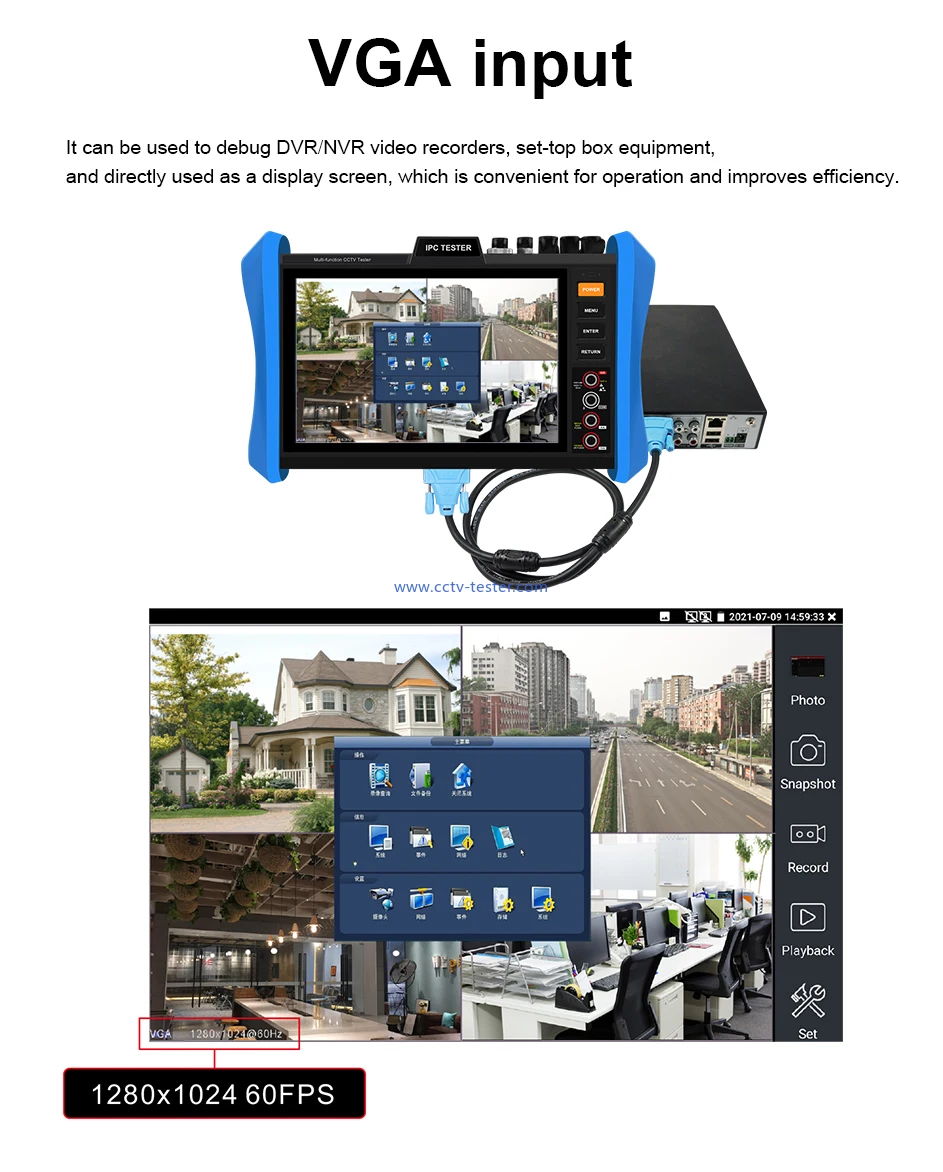

- 2K 60FPS VGA input

- Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength

- Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

- POE & power information, DC12V& PoE power and voltage output /input measurement

- Tester Play: Tester, android version mobile phone and PC display at the same time

- Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc

- Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

- 4K color bar generator, send CVI/TVI/AHD/CVBS color bar video signal for testing monitor or video cable, support 4K resolution

- Self-update software, you can install apps with android version

- Media player, 4K video files and MKV/MP4 media files play

- Quick office, quick office app (support excel, word, ppt format) doc. editable

- 8GB TFT card included

- Display its genuine resolution of the IP camera images

- Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

- 7.4 V /7800mAh Lithium Ion Battery, after 3.5 hours charging, working time lasts 11 hours

1. 8" IPS Touchscreen: High-resolution 1920x1200 display ensures crystal-clear visuals for professional camera testing.
2. 4K HDMI Input & Output: Supports up to 4K 30FPS input and 4K 60FPS output for detailed testing and seamless compatibility.
3. Power Versatility: 55V PoE++ (60W max), DC12V/3A, and DC24V/2A power output, plus USB functionality for versatile testing needs.
4. Comprehensive Testing Tools: Supports 8MP CVI/TVI/AHD, coaxial PTZ control, and rapid ONVIF with testing reports for all network cameras.
5. Advanced Network Analysis: Includes Wi-Fi analyzer (2.4G/5G), SFP fiber port, cable testing, and real-time traffic monitoring tools.
