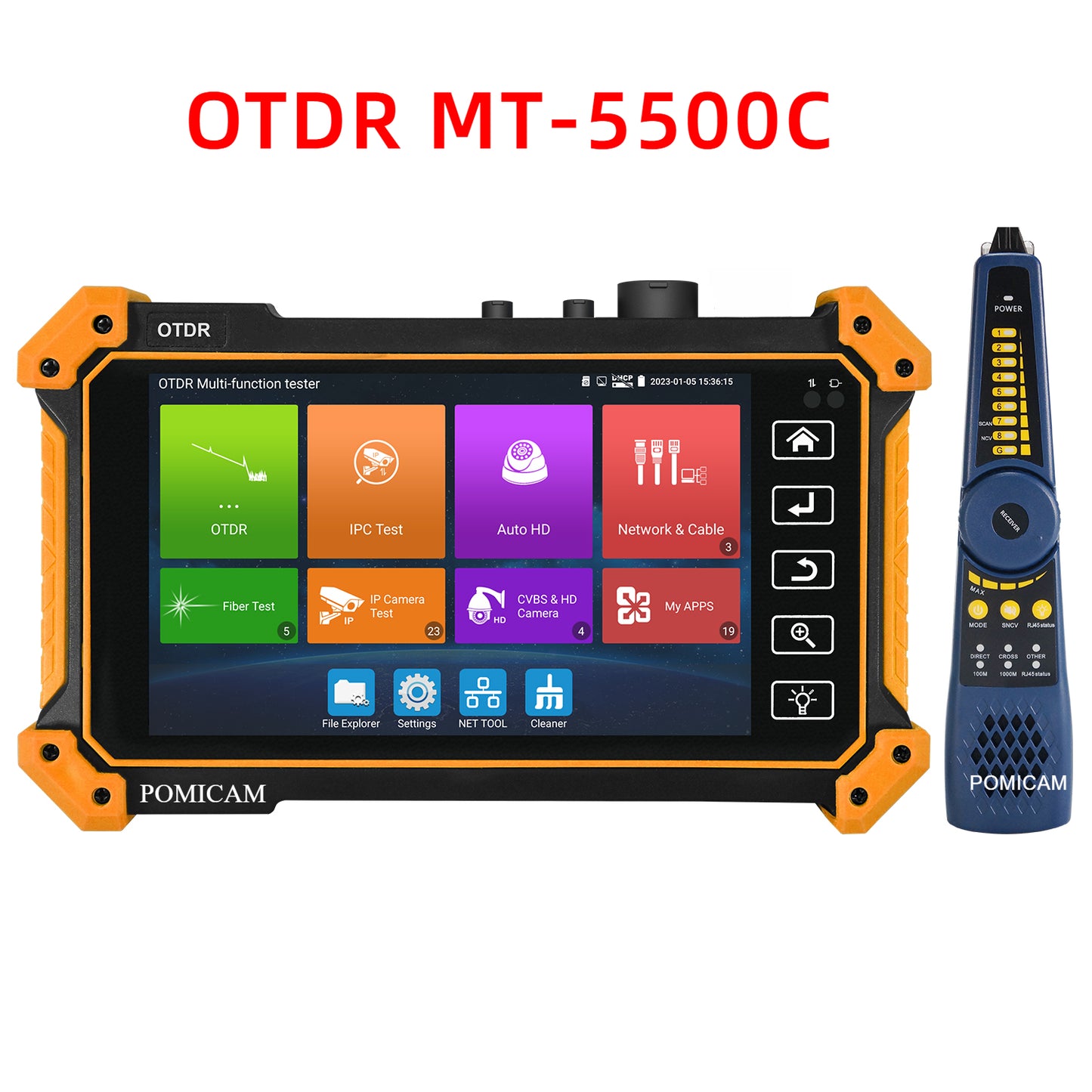

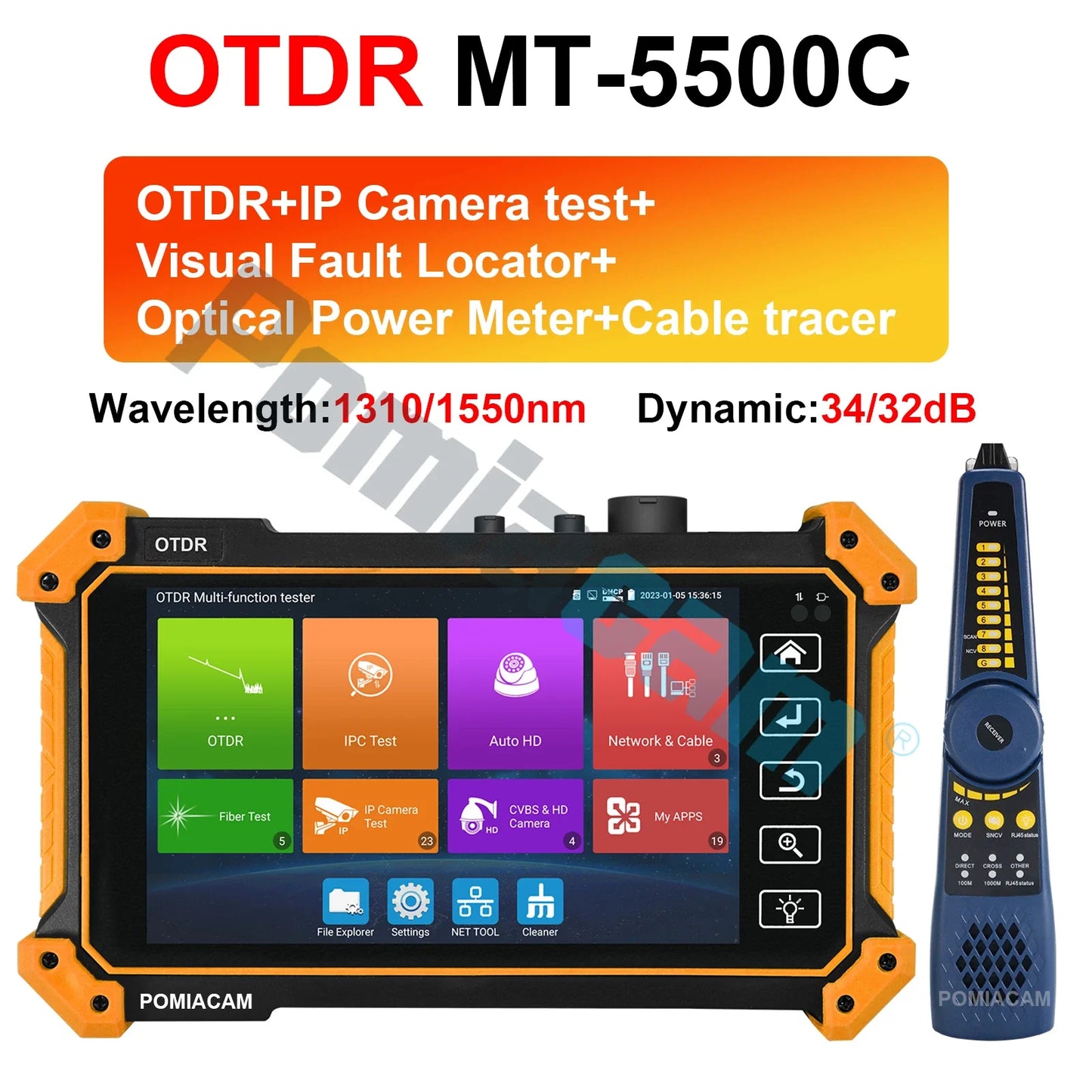

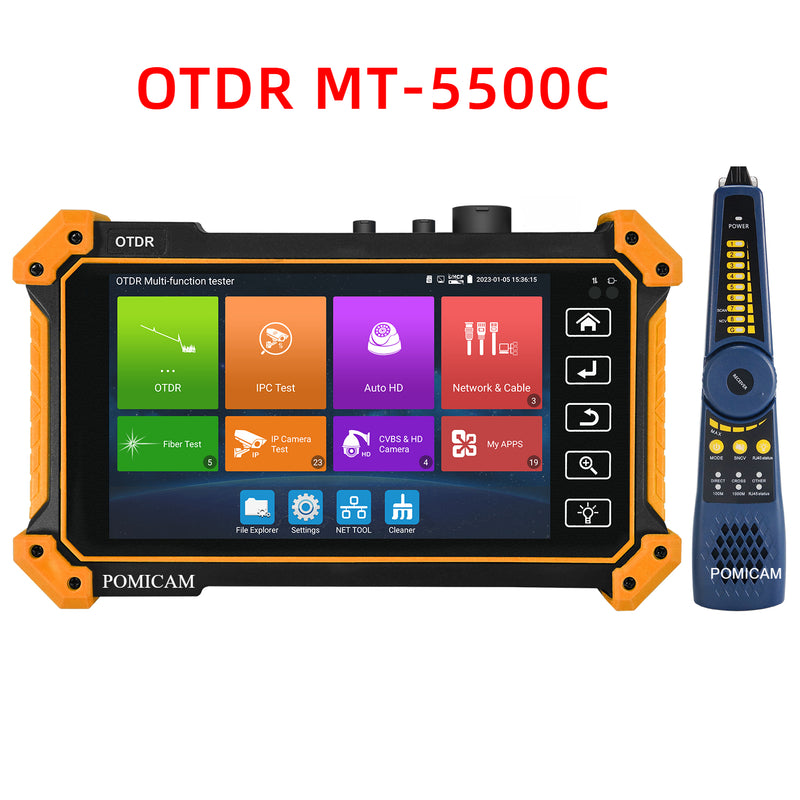

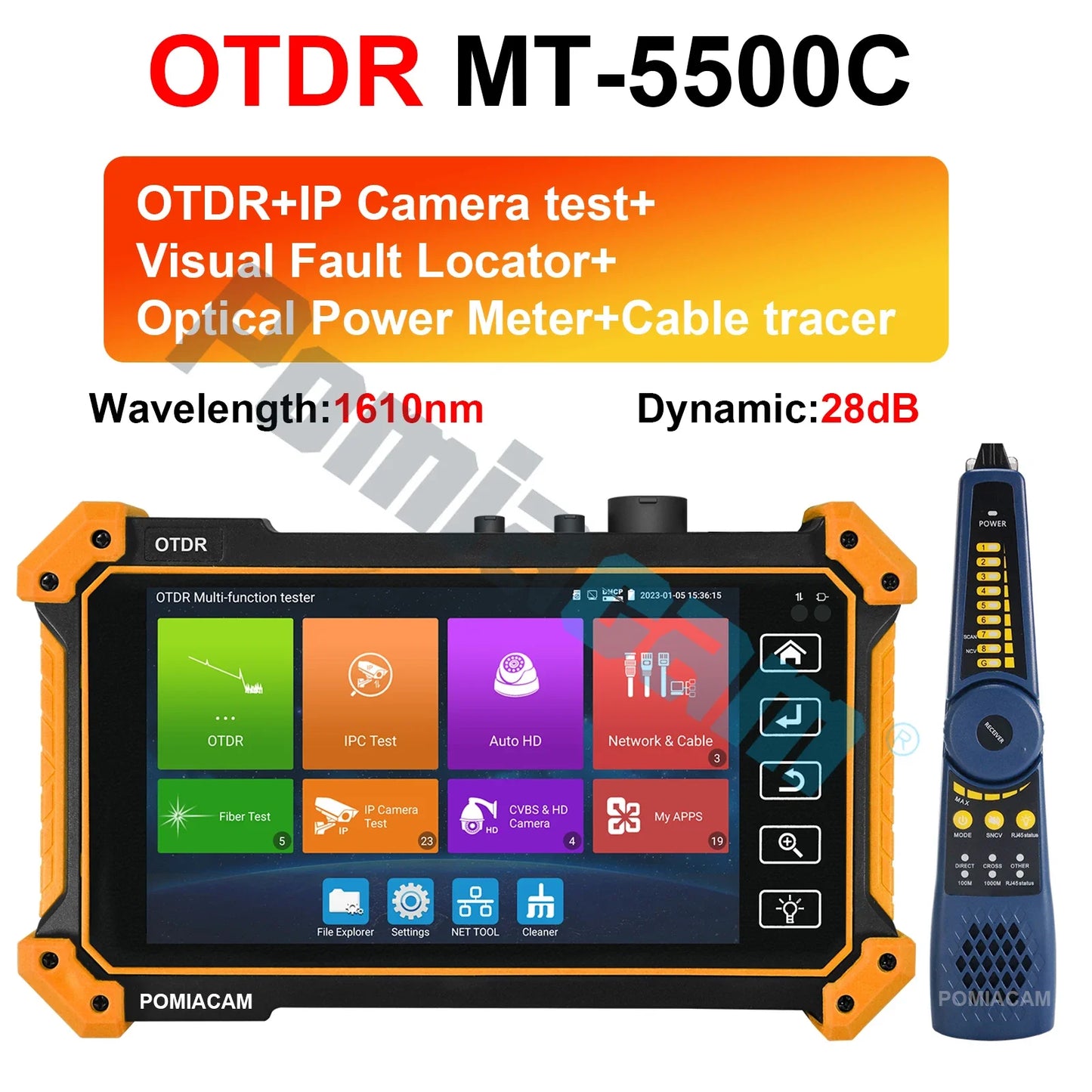

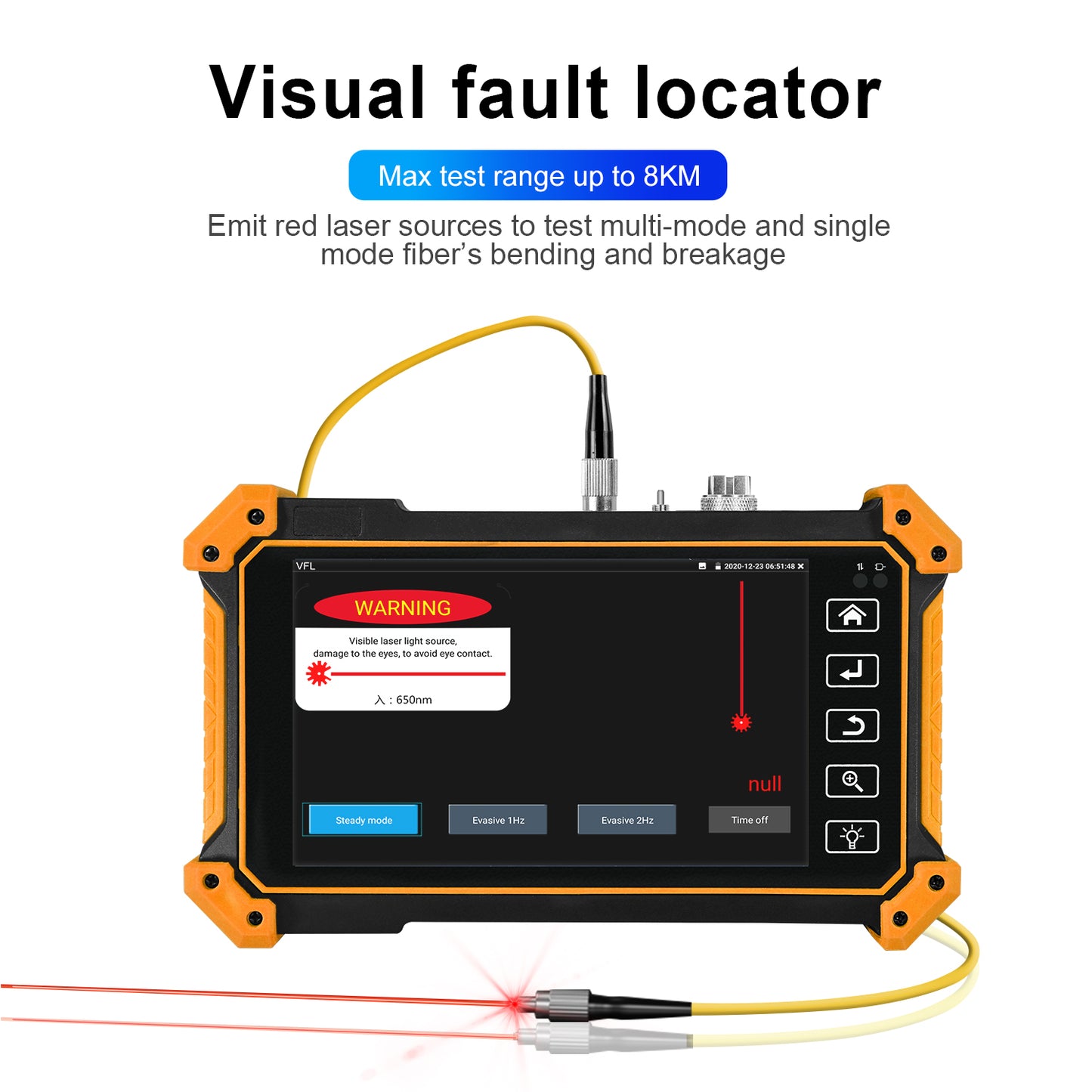

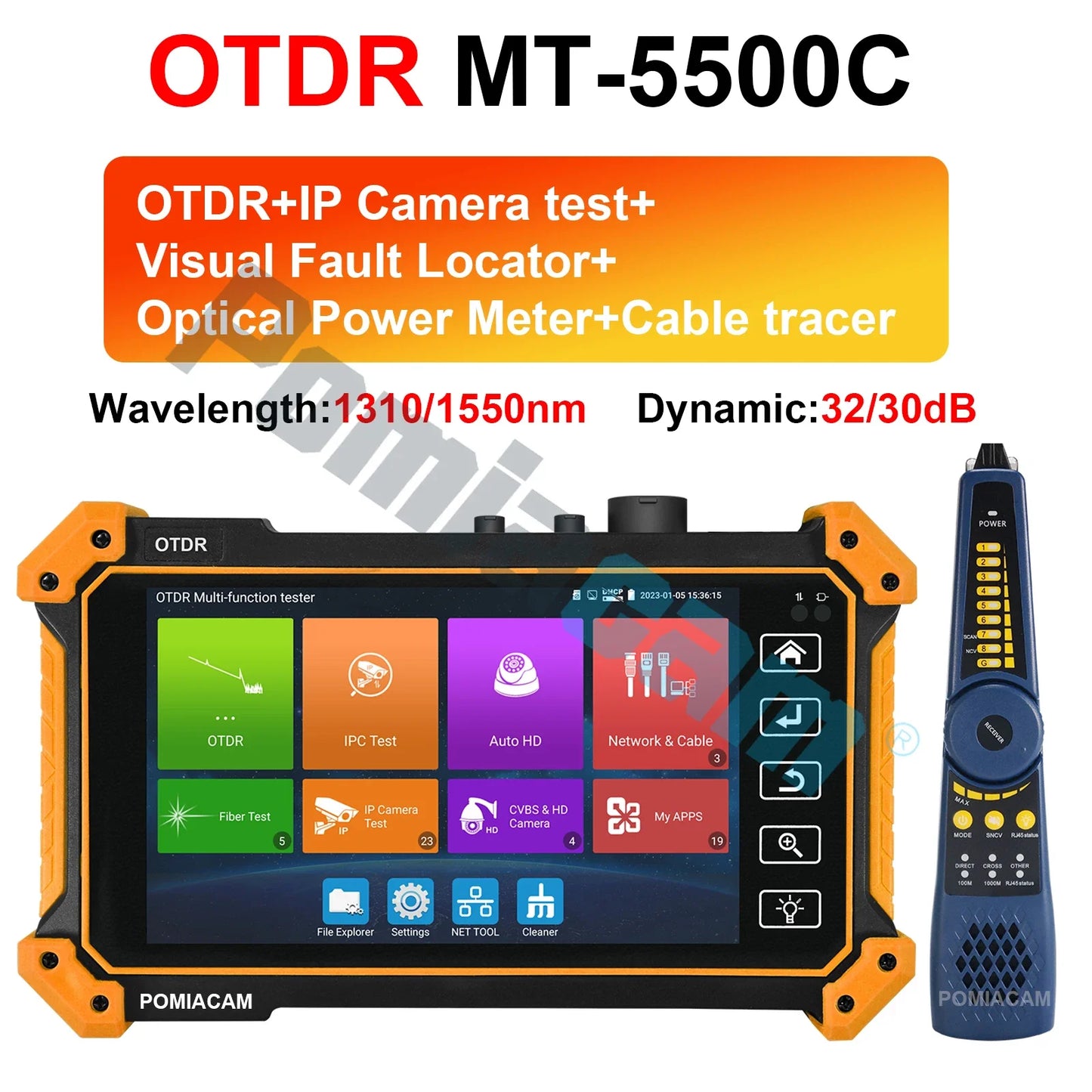

MT-5500C OTDR Test 1310/1550/1610nm optional 28/26dB optional 5.4"IPS IP Camera Built-in Visual Fault Locator & Optical Power Meter with Cable Tracer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
OTDR
● 5.4 inch IPS touch screen, 1920*1152 resolution
● 1310/1550/1610 wavelengthoptional, 26/28/30/32/34dB Dynamic range optional, max test range 150KM*

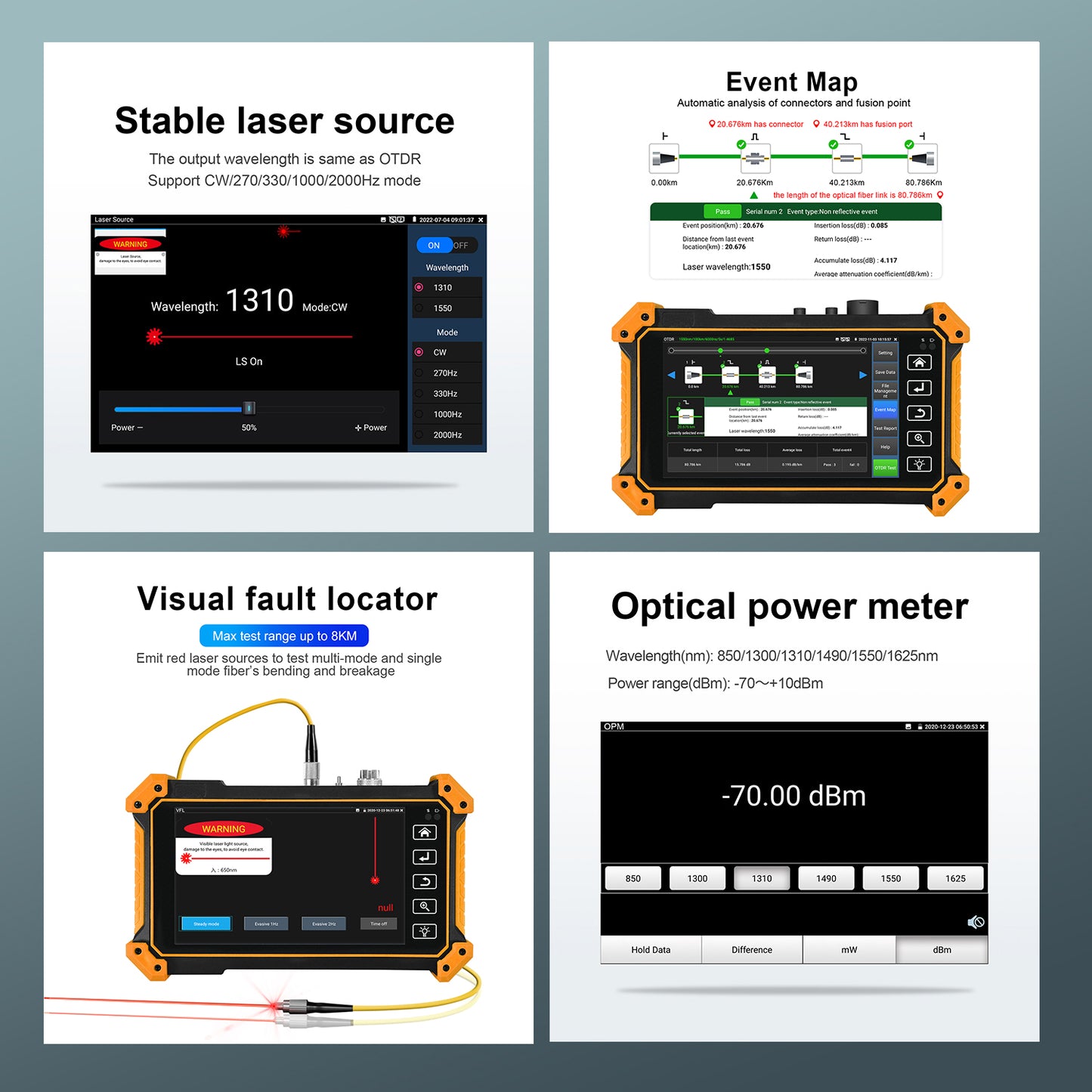

● Stablelaser source, support CW/270/330/1000/2000Hz

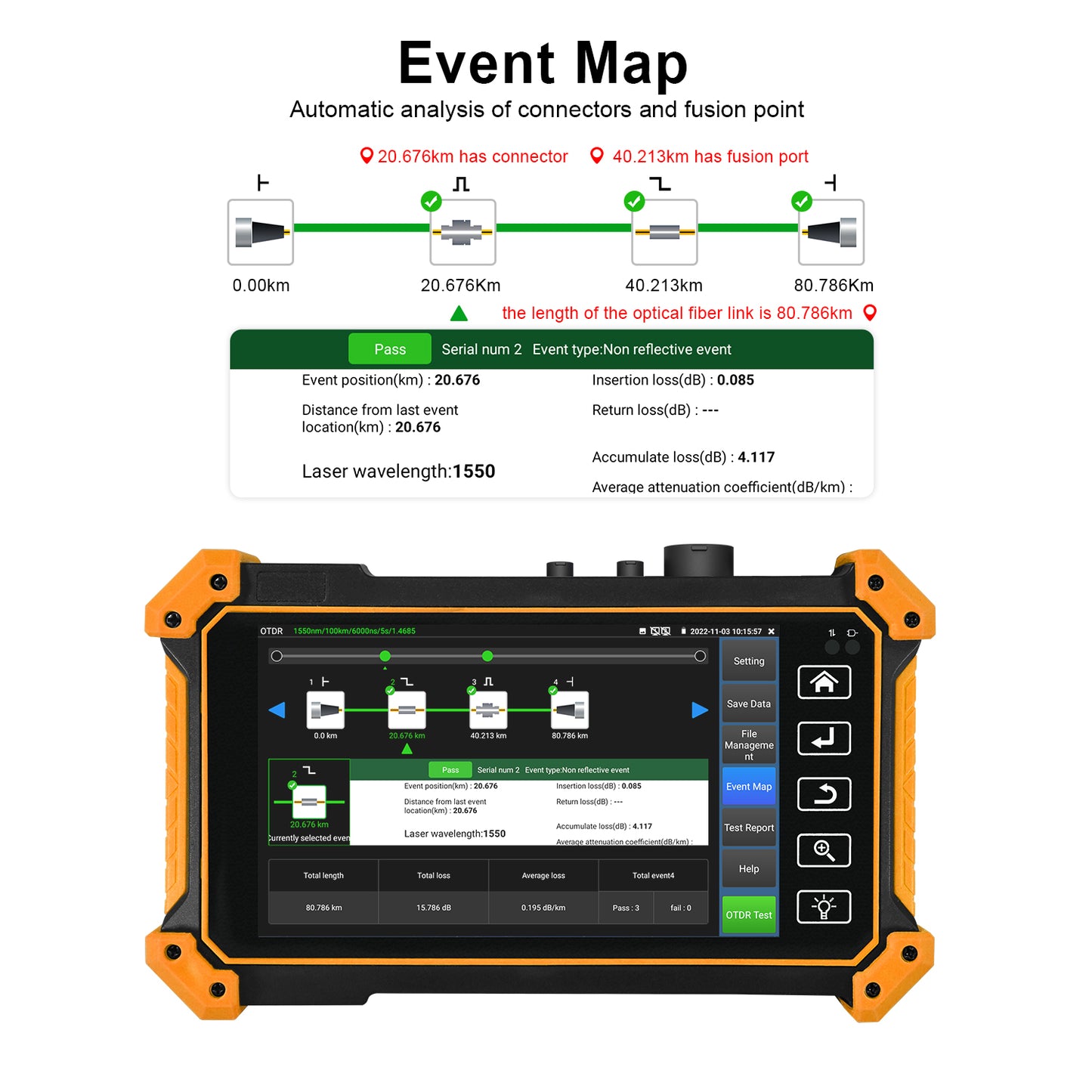

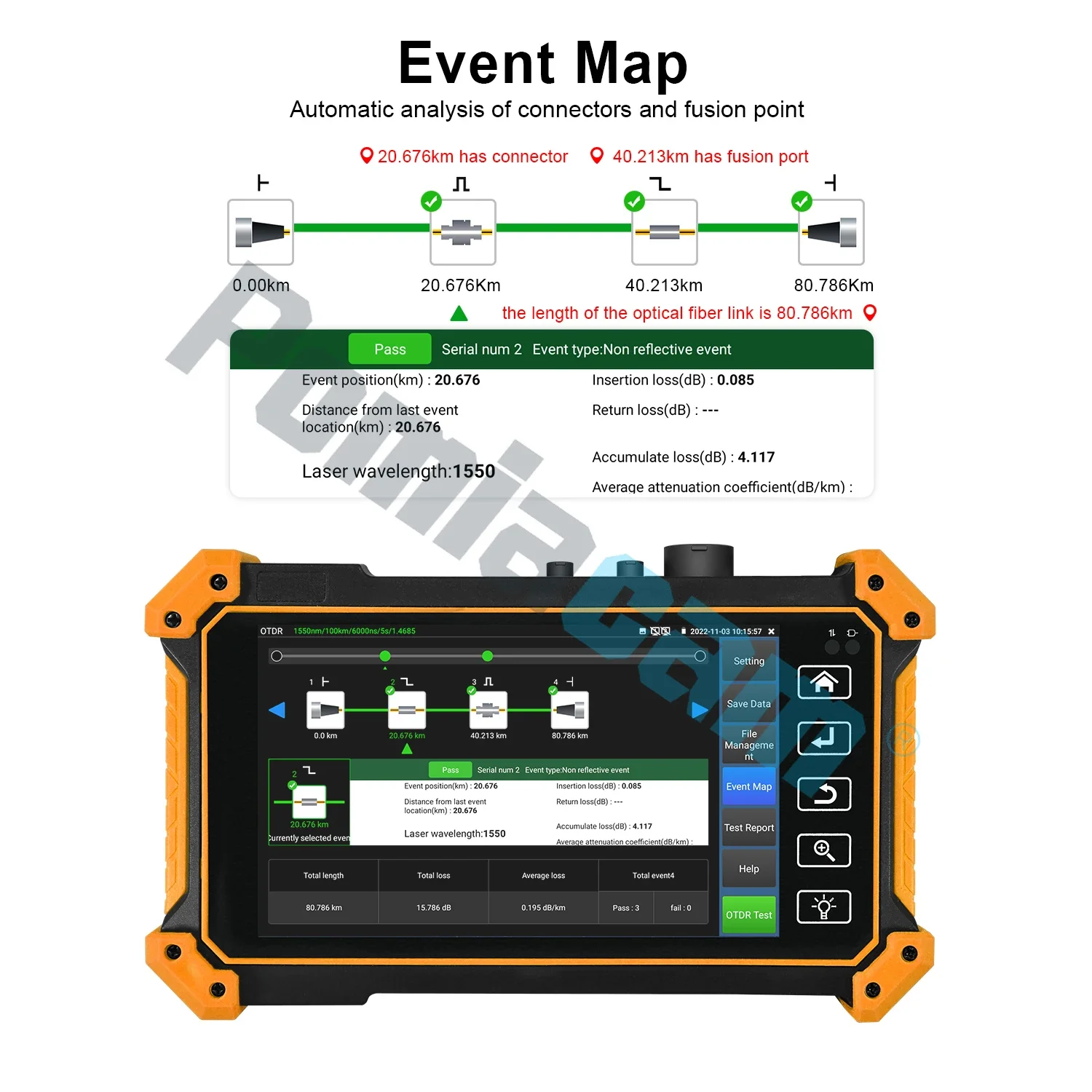

● Test fiber's length, loss, attenuation parameters and event map, locate connection point/ fusion point
● Automatic analysis of various linkers/fusion points, easy analyze of various events
● Save and view the testing curves, support zoom and move curves, view details.
● Support saving curves number≥30000pcs

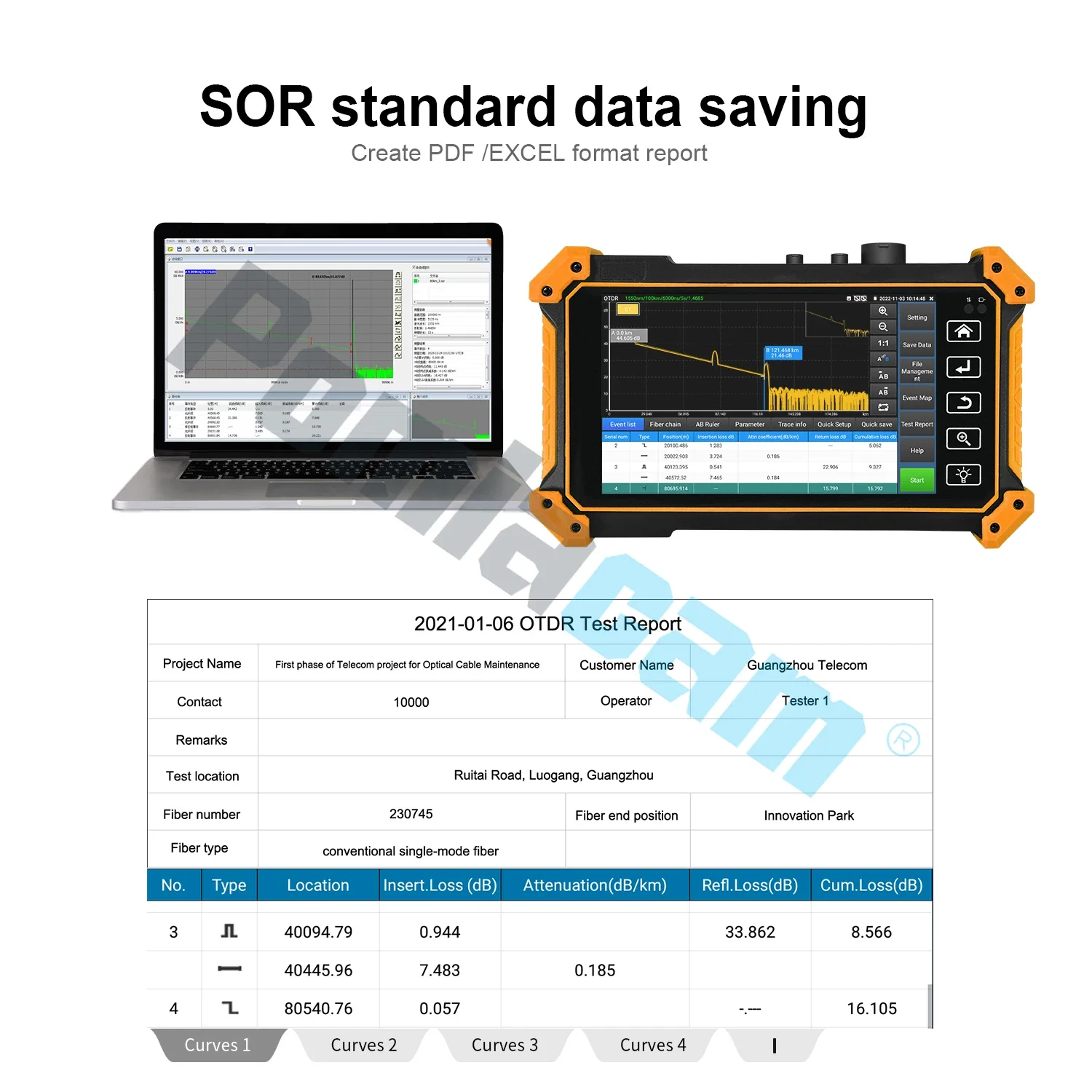

● Support create testing report, including curve trajectory graphs, parameter settings, fiber event information,and fiber link information
● Report saved as EXCEL, PDF, or screenshots format etc

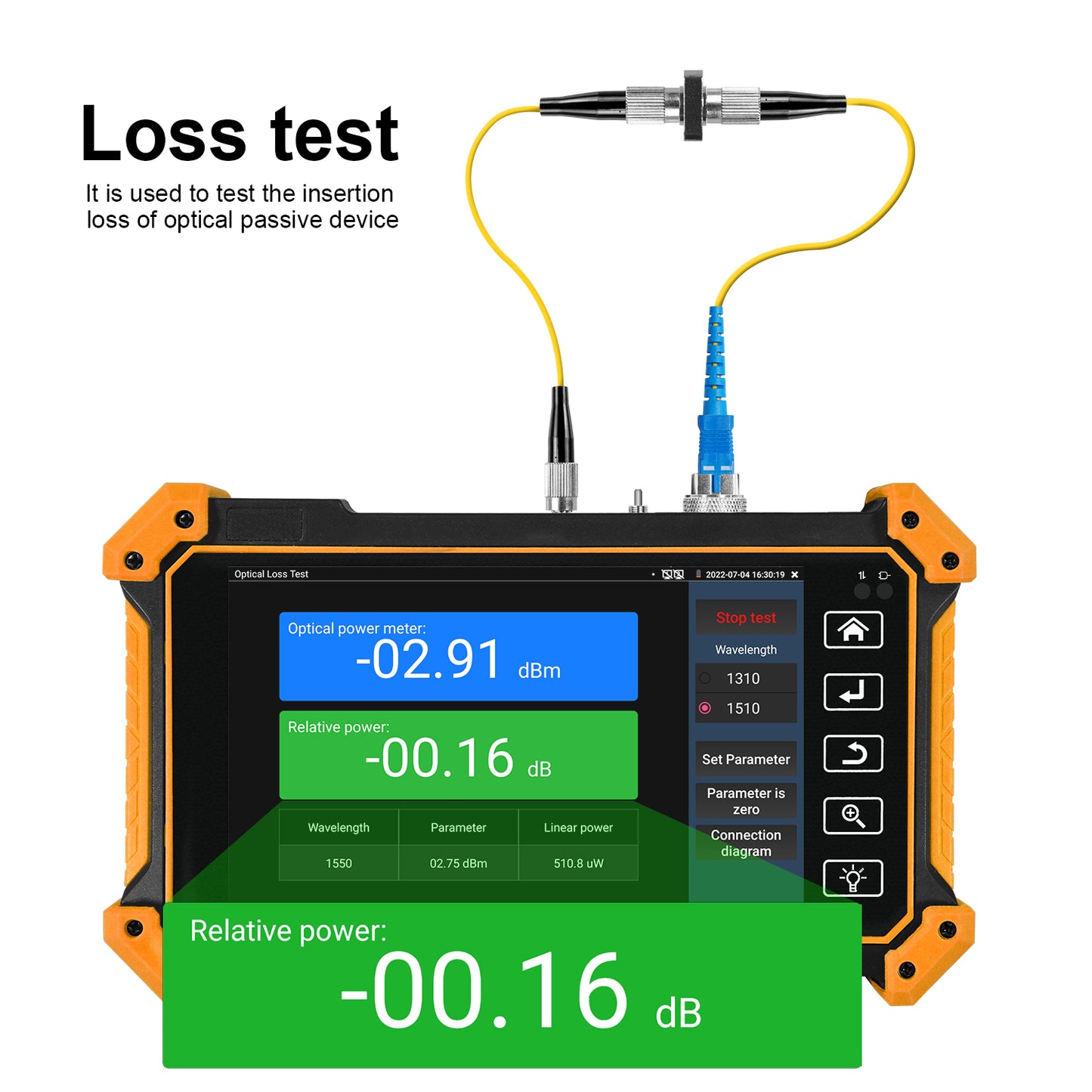

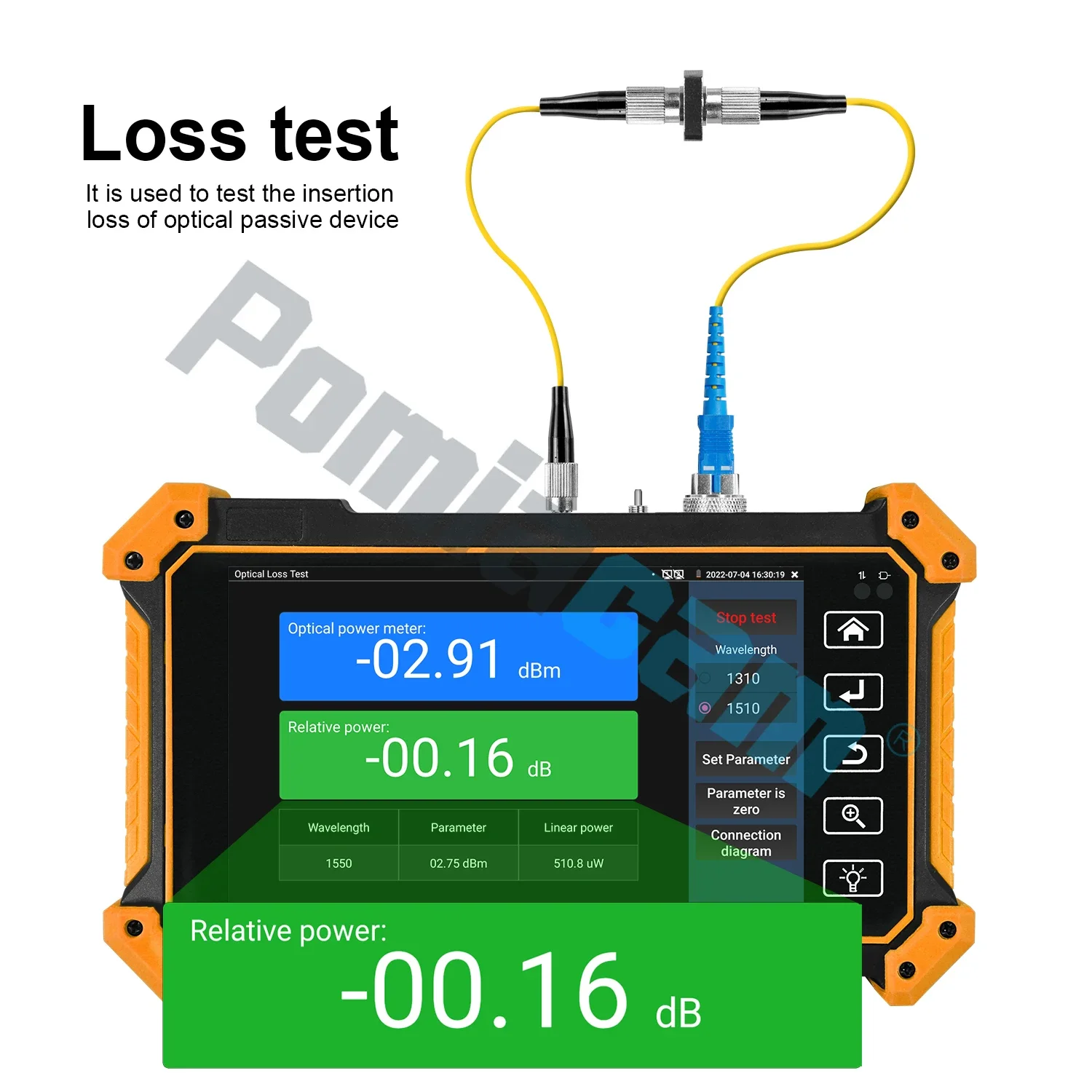

● Loss test, detect the optical or optical components loss value
Camera test:
● 5.4 inch IPS touch screen, 1920*1152 resolution
● 4K H.265 video display via mainstream
● AXIS, Hikvision, dahua camera testing, enter ONVIF app, input username and password to test
● DC12V/3A, 48V PoE power output, temporarily supply power for the camera
● Chrome browser, test and set Axis camera
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:

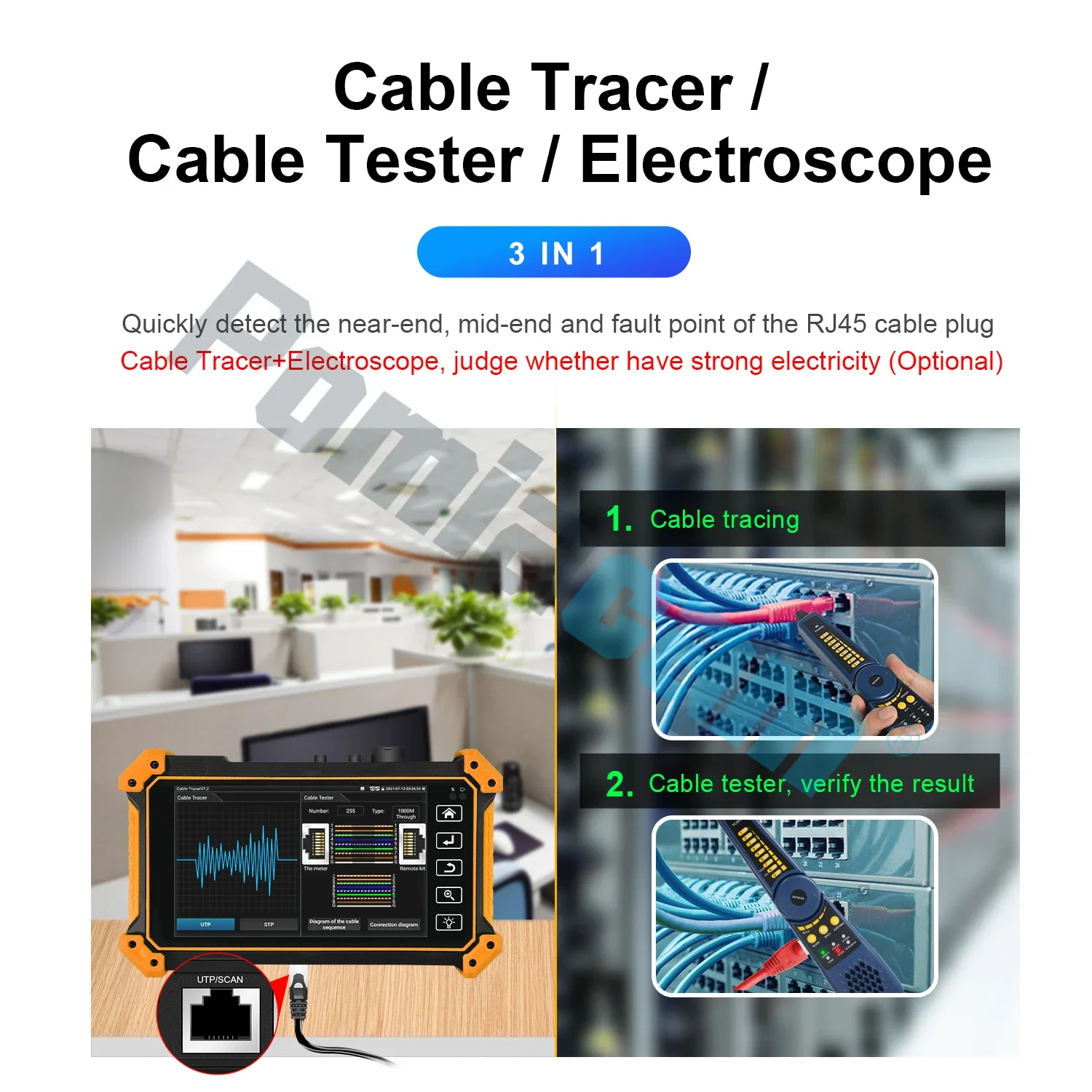

● Improvement cable tester, UTP cable, telephone cable etc sequence and continuity test, save testing report.Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● RJ45 cable TDR test, cable pair status and length test, max test 600 meters.

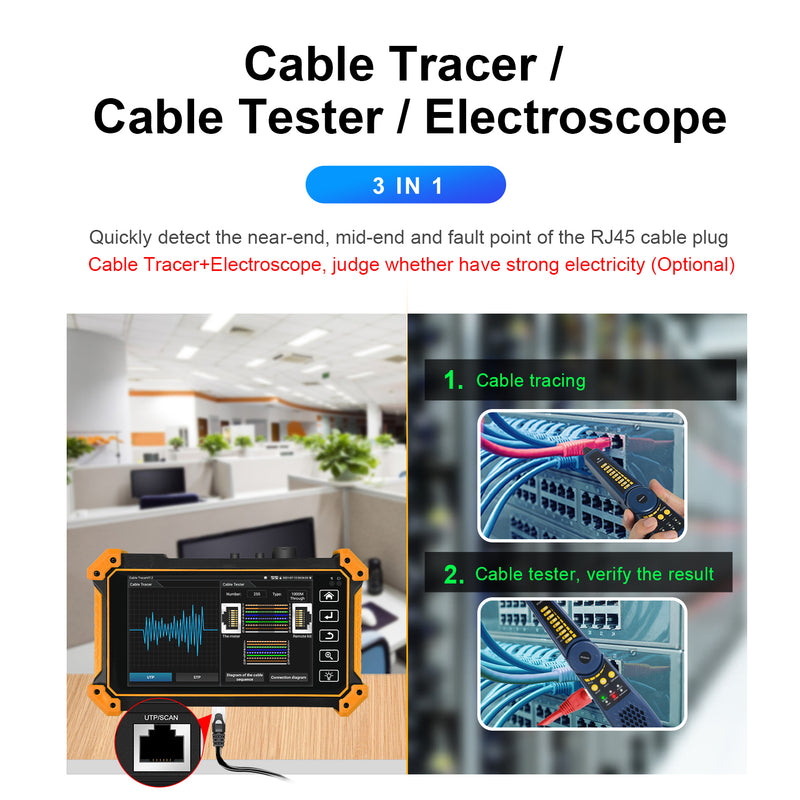

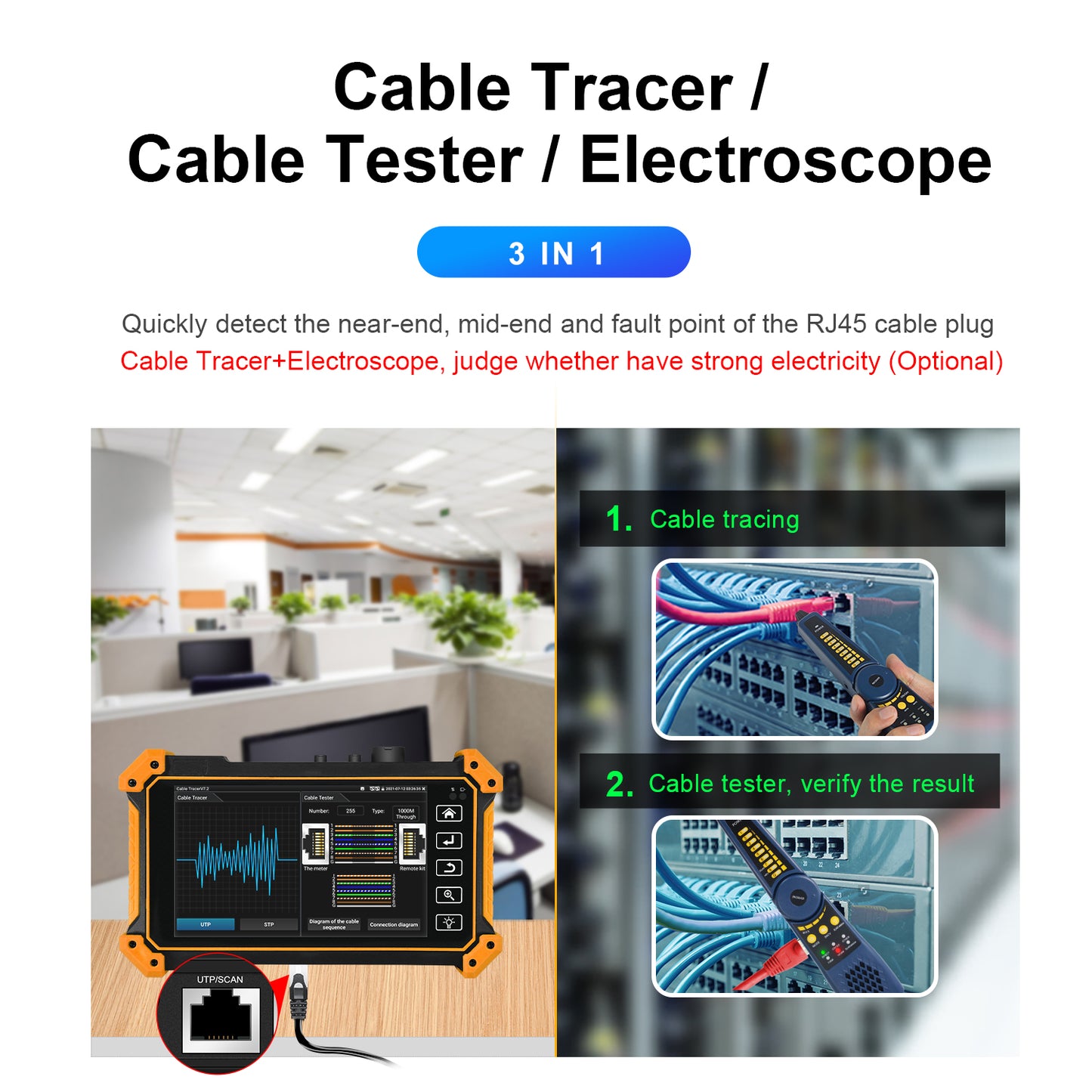

● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
Other functions:

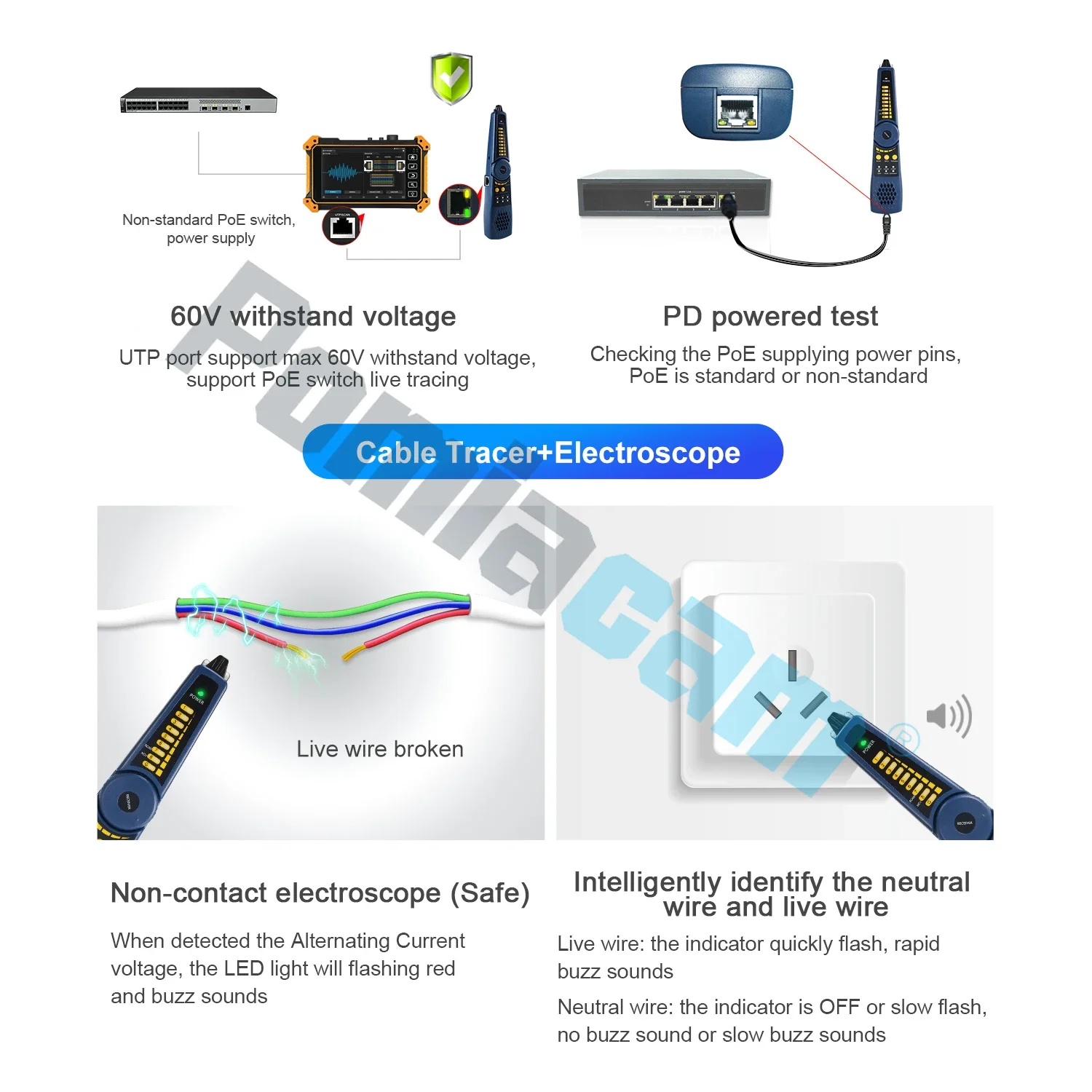

● New Power management file, output power and input power management interface, to quickly check PoE48V, 12V3A power and voltage

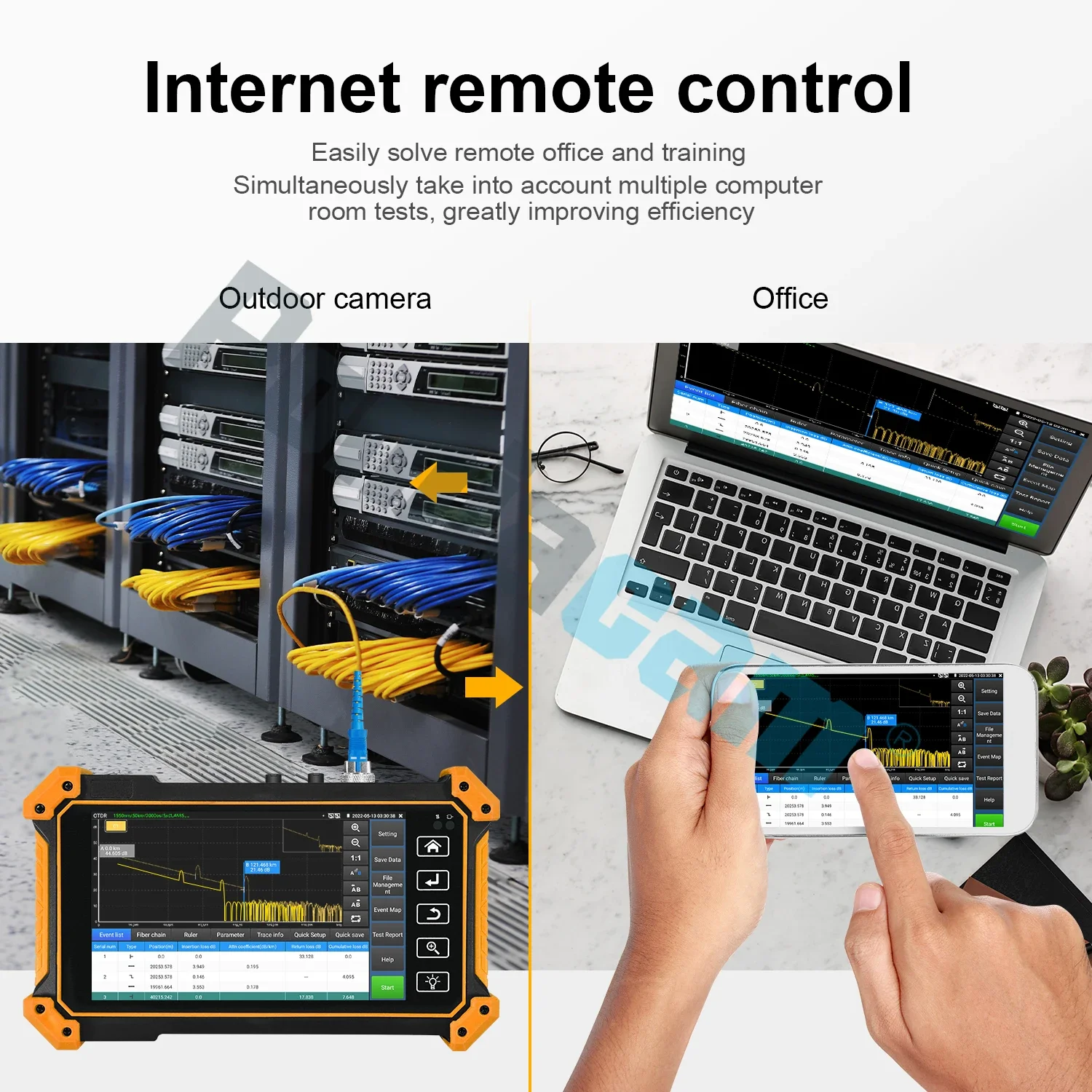

● Tester Play: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, LAN info
● Advanced Network Tool, Scan IP, Route tracking, Socket debugging, ping packet test, DHCP, PPPOE, LLDP testing etc
● 7.4V 2600mA Li-ion Battery, 3 hours charging, normal working time lasts 6 hours
