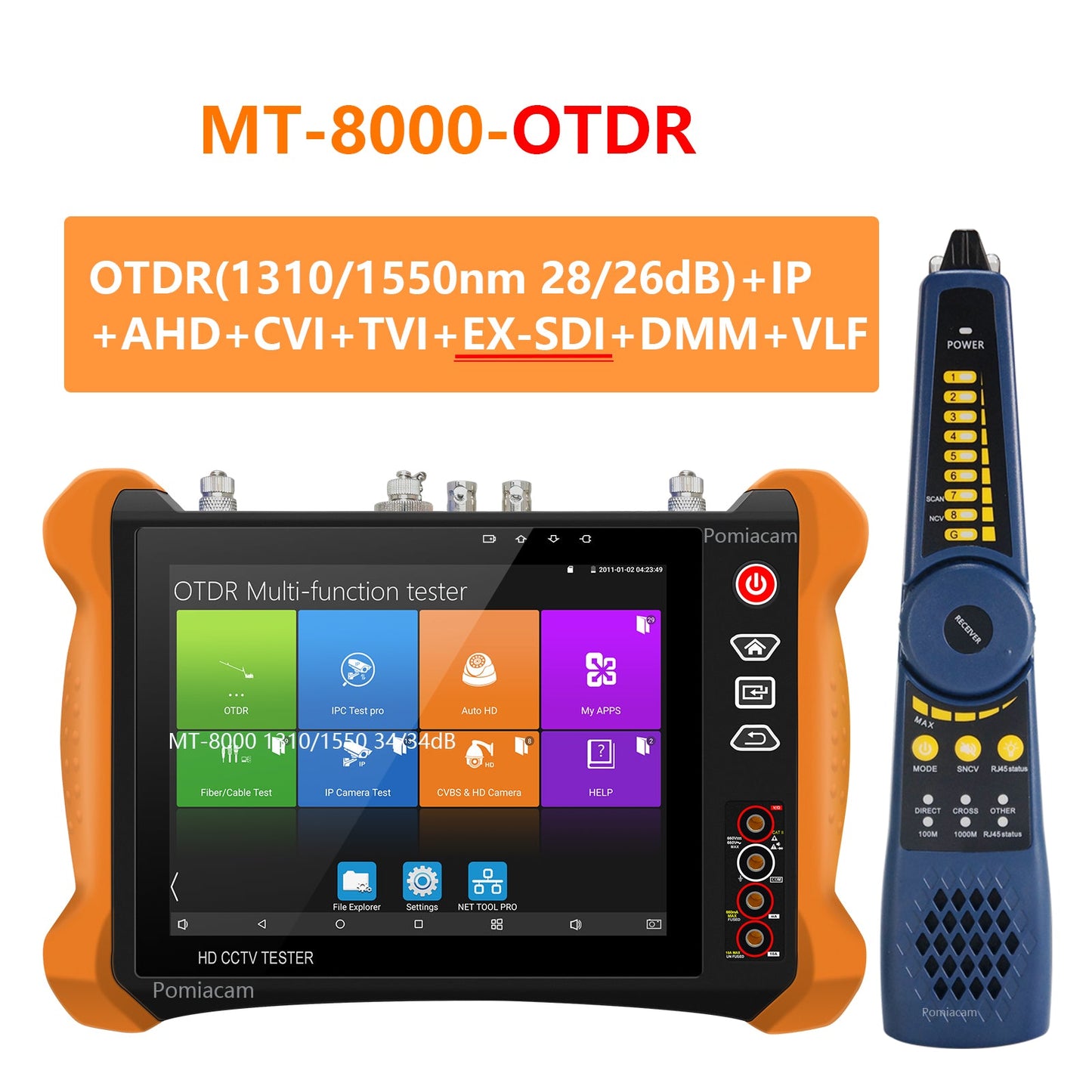

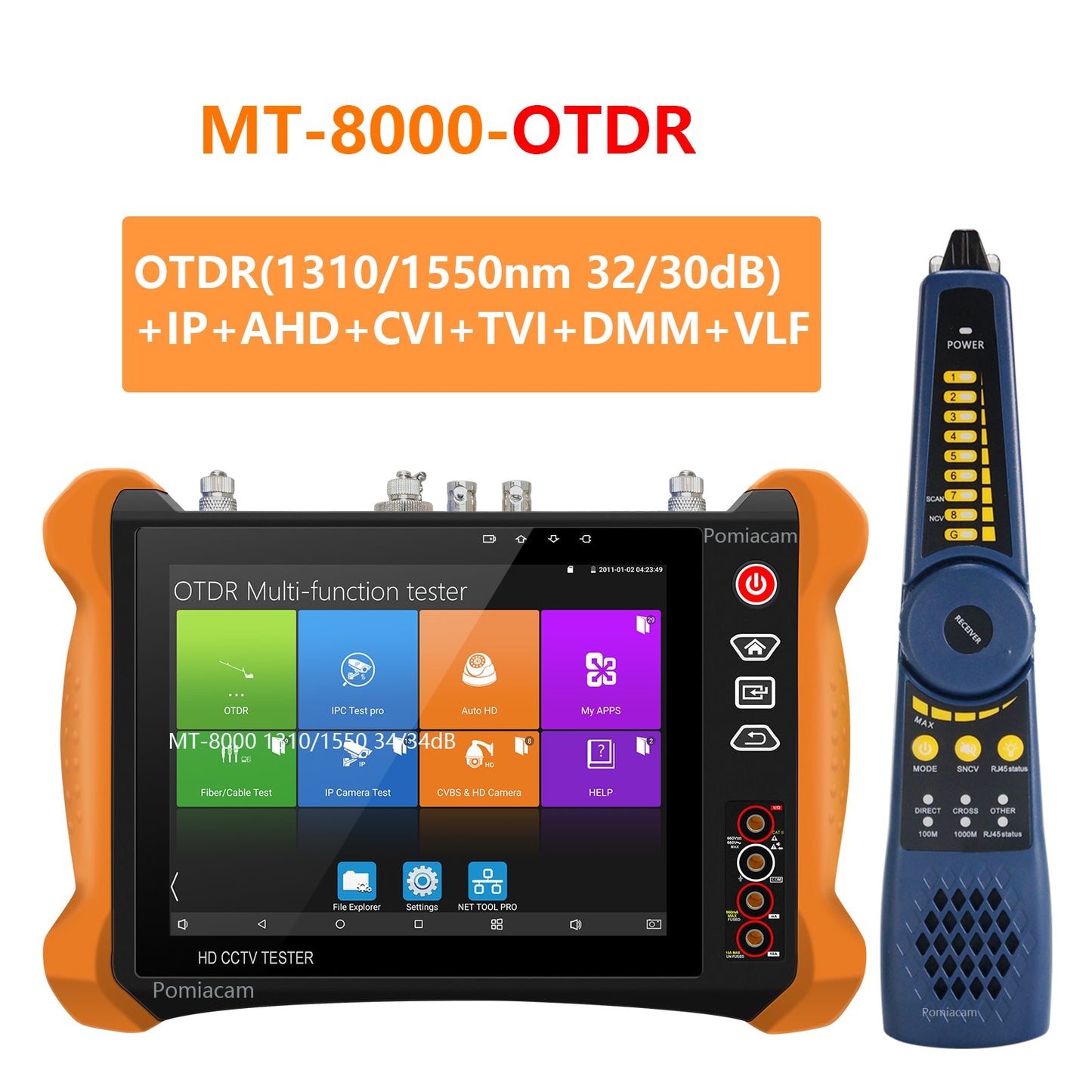

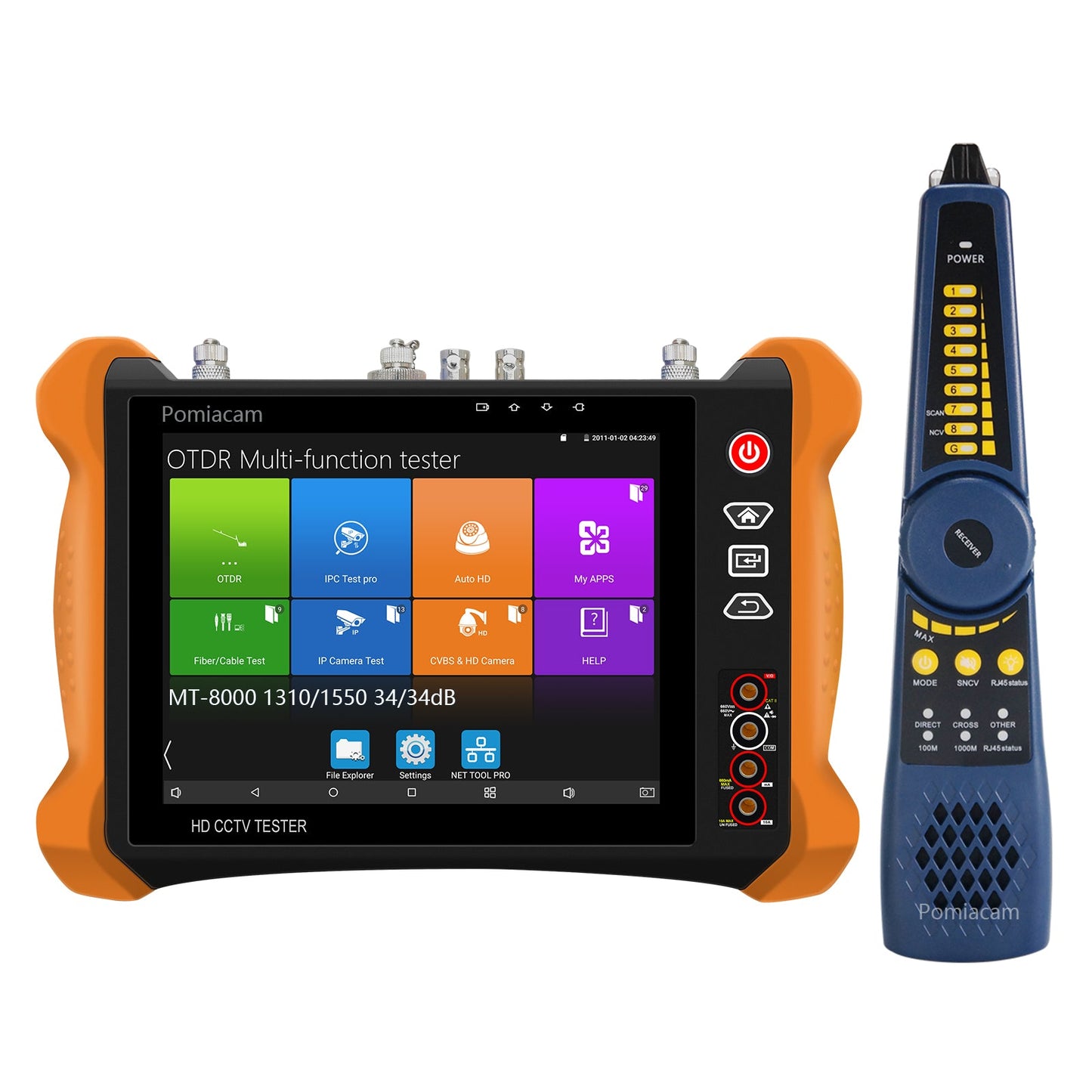

Model : MT-8000 (OTDR)

4K H.265/H.264, 8MP TVI, 8MP CVI, 8MP AHD IP camera tester

Features

OTDR: New

— 8 inch retina touch screen, 2048*1536 resolution

— 1310/1550 Dual wavelength, max test range 130KM

— Automatic analysis of various linkers/fusion points, easy analyze of various events

— Save and view the testing curves, support zoom and move curves, view details.

— Support saving curves number ≥30000pcs

— Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. Report saved as EXCEL, PDF, or screenshots format etc

Camera test:

— H.265 & H .264 IP, 4K video display via mainstream, analog camera tester

— 8MP TVI test, 3840 x 2160P 15 fps,4xzoom, video record &playback, coax PTZ control & call OSD menu

— 8MP AHD test, 3840 x 2160P 12.5F/ 15fps, 4xzoom, video record & playback, coax PTZ & call OSD menu

— 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coax PTZ & call OSD menu

— Support 4K 60FPS HD input, 4K 30 FPS HD output New

— IPC TEST PRO app, Camera test often need to open multiple apps,"IPC TEST PRO" app

— Rapid ONVIF, Auto log in and display image, create testing report

— Chrome browser, test and set Axis camera

— AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

— IPC TEST (Non-ONVIF test)

— Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

— DC12V/3A power output, camera can be powered from DC 12V Voltage

— 48V PoE power output

— Rapid video, just by one key to detect all network cameras and auto display

— Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

— CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable

— Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

— Improvement cable tester, UTP cable, telephone cable etc sequence and continuity test, save testing report. Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

— RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, max test 180M

— Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

— TDR cable test:BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. Measurement range 1.2KM

— Larger Lithium Ion Polymer Battery, 3.5 hours faster charging, working time lasts 11 hours
