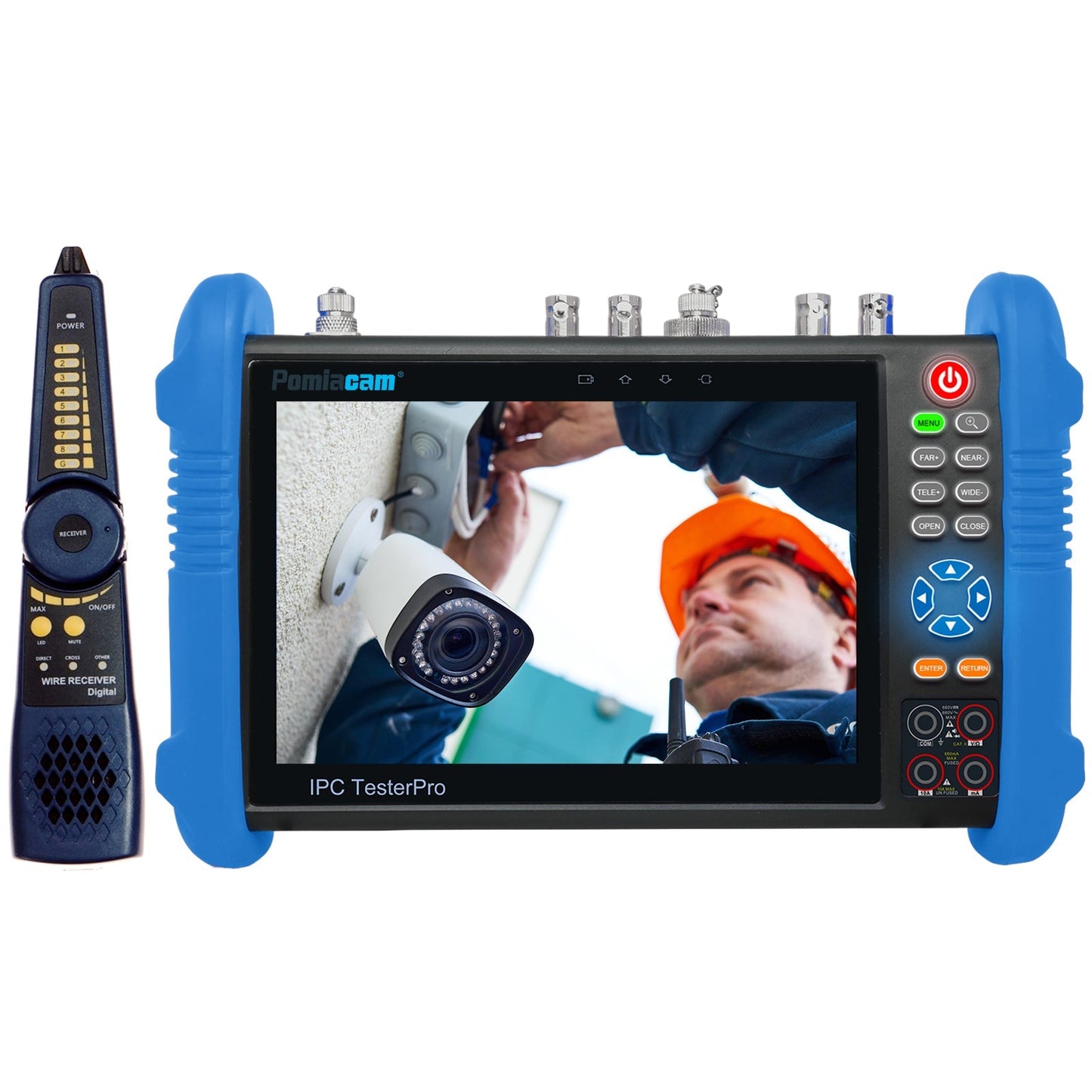

The 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1280x800 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additionally, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

-CCTV system installation and maintenance
-Network cabling project installation and maintenance
-Dome camera, IP TVI CVI AHD SDI 8K H.265 camera testing
-Video transmission channel testing
-PTZ controller

● 7 inch IPS touch screen, 1280*800 resolution
●8K H.265 video display via mainstream
● Analog camera test and PTZ control
● 8MP TVI test,3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu *
● 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 8MP EX-SDI test, 3840 x 2160P 25/30 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● Rapid ONVIF, Auto log in and display image, create testing report
●AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
●IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement *
● DC24V 2A, DC12V 3A power output, camera can be powered from tester
● 48V PoE power output power, max power 30W
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
●Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
●RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
● Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately. *
● Cable Length, BNC cable, network cable, telephone cable, RVV cable, elevator cable, and cat 5/6 cable's length test. Max measurement for cable's open is 1.5KM. (Short circuit length test not supported)*
● TDR cable test: BNC cable, network cable, telephone cable, RVV cable, elevator cable and cat 5/6 cable's length and short circuit. Max measurement 1.2KM *
● Digital Multimeter: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, capacitance measurement *
● Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 ~+10 dBm, for optical power testing and Fiber link loss relative measurement *
● Visual fault locator: 10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, max test 10KM *
● Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● POE & power information, DC12V & PoE power and voltage output / input measurement
● TesterPlay: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● HDMI input support 4K 30FPS, HDMI output support 4K 60FPS *
VGA input support 1920*1080P*
●Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
●Self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
●8GB SD card included
● Audio in, upport record and save the audio/LED lamp, calculators, music players and other application tools
●7.6 V /7800mAh Lithium Ion Polymer Battery, after 3.5 hours fast charging, working time lasts 16 hours
