HD Coaxial Camera Tester CCTV Tester Monitor IV8C Support 8MP CVBS AHD TVI CVI 4-In-1 Tester 5 Inch Screen with PTZ Controller

Sale price $65.00 Regular price $108.57

Item Descriptions:

Professional CCTV testing tool IV8C 5 Inch TFT LCD 8MP AHD 8MP TVI 8MP CVI CVBS CCTV Camera Tester Monitor support PTZ UTP Cable Test

Please note:IV8C plus not support VGA/HDMI input

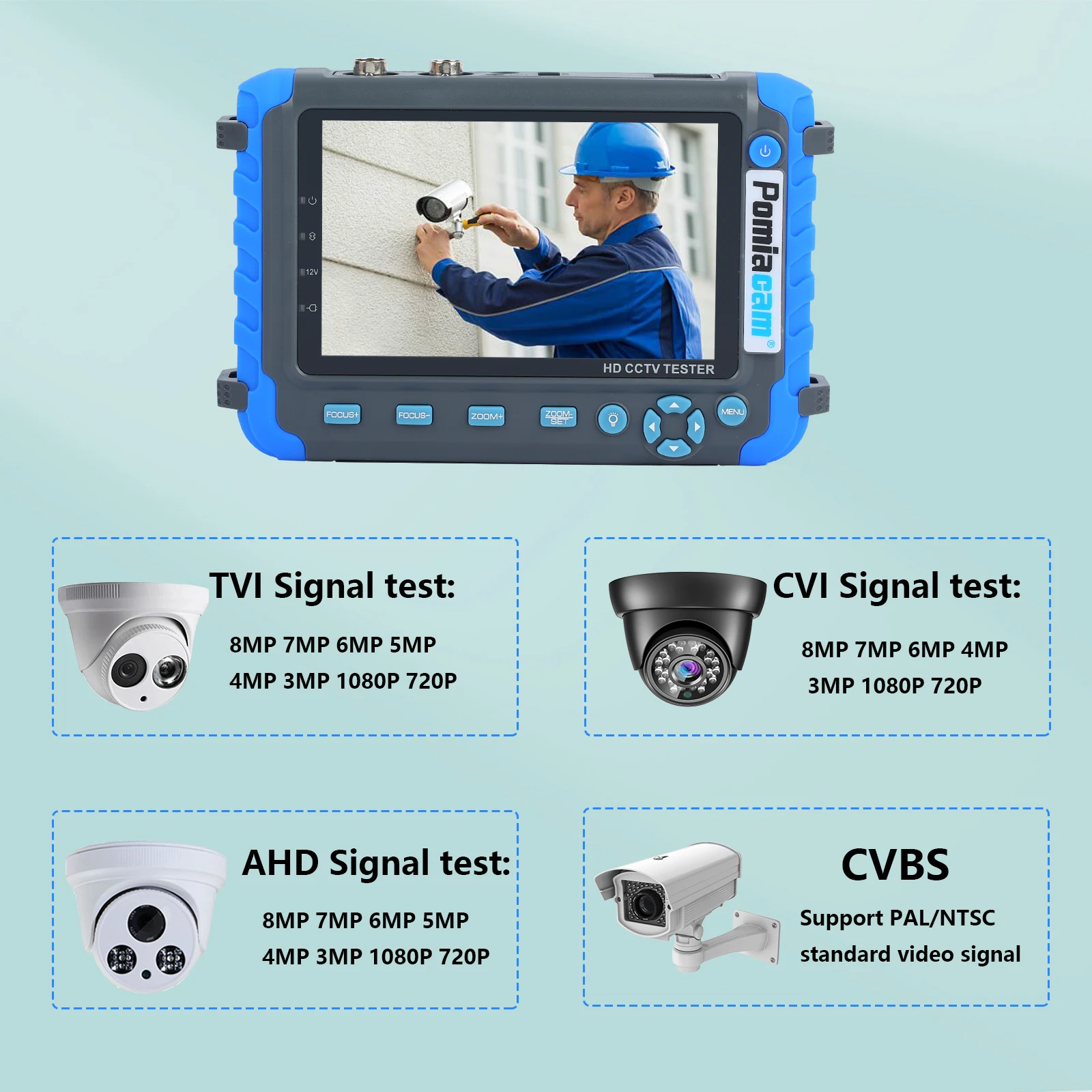

IV8C plus support  CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:

(1) AHD Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P;

(2) TVI Signal test:  8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P;

(3) CVI Signal test: 8MP 7MP 6MP 4MP 3MP 1080P 720P;

Product overview:

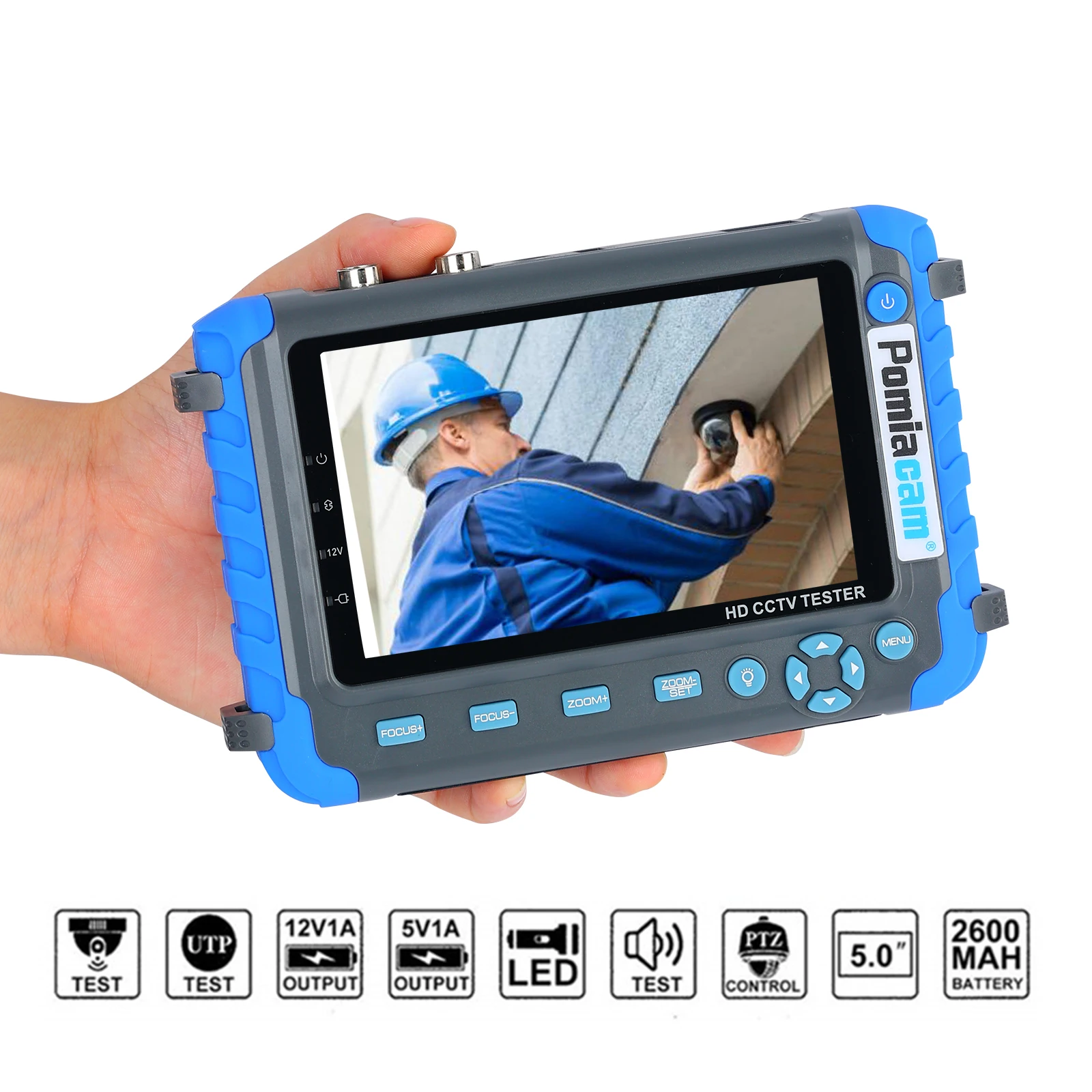

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.



Main Features:

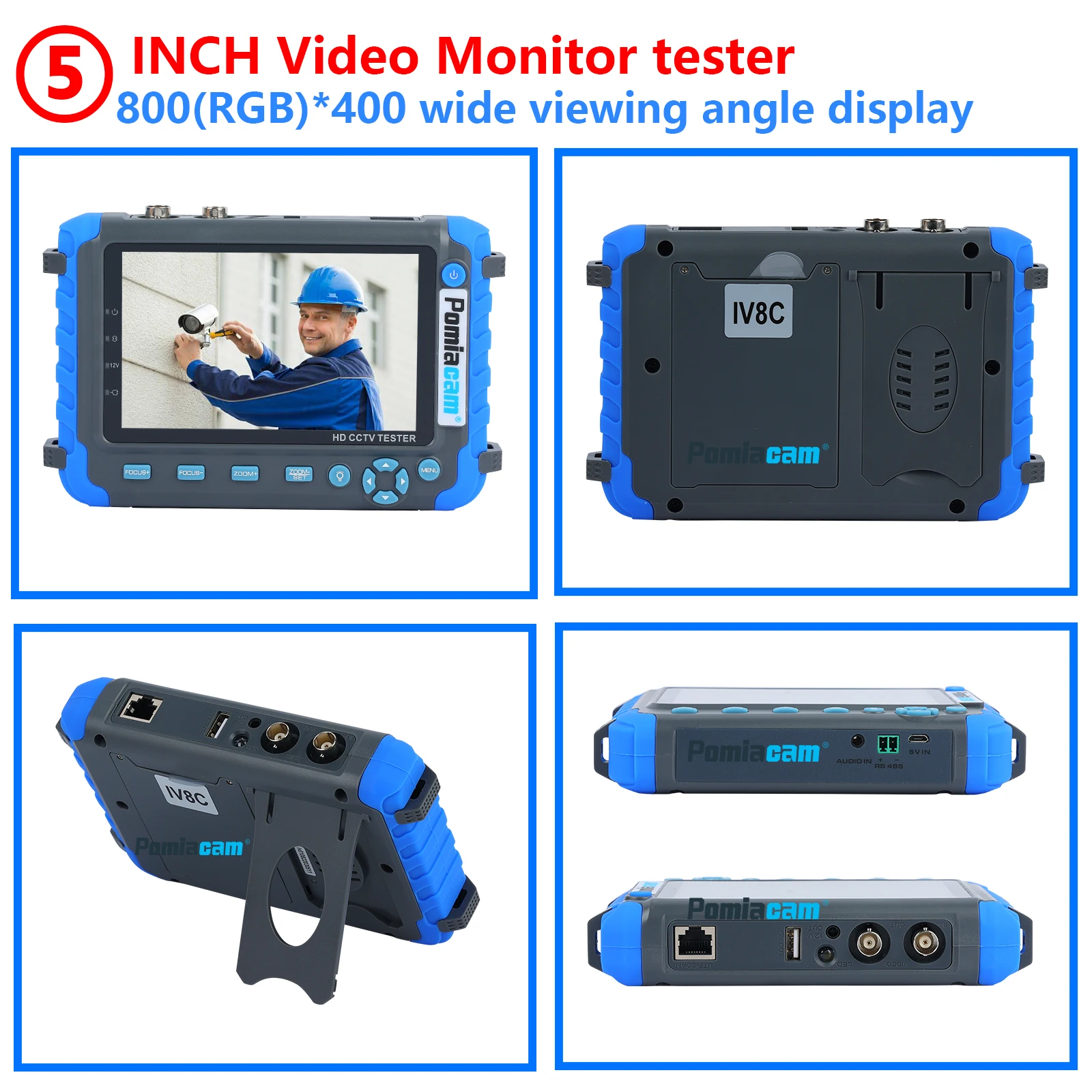

* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,

*  Support PAL/NTSC standard video signal. CVBS testing.

* PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

* Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

* DC12V 1A output power

Power the camera with DC12V (1A) power from the tester.

* Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

* Improvement cable test

UTP cable, telephone cable etc order and connectivity test, can save testing report

* TVI camera test

HD TVI video surveillance testing, support max 8MP. When TVI signal input, the tester will display HD TVI camera image.

* CVI camera test

HD CVI video surveillance testing, support max 8MP. When CVI signal input, the tester will display HD CVI camera image.

* AHD camera test

HD video surveillance testing, support max 8MP. When AHD signal input, the tester will display the AHD camera image.

* LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.



Specifications:

Model

IV8C

LCD screen

5.0 inch TFT-LCD, 800(RGB)x 480 resolution

Video test

NTSC/PAL (Auto adapt)

LCD adjustment

Brightness, Contrast, Saturation adjustable

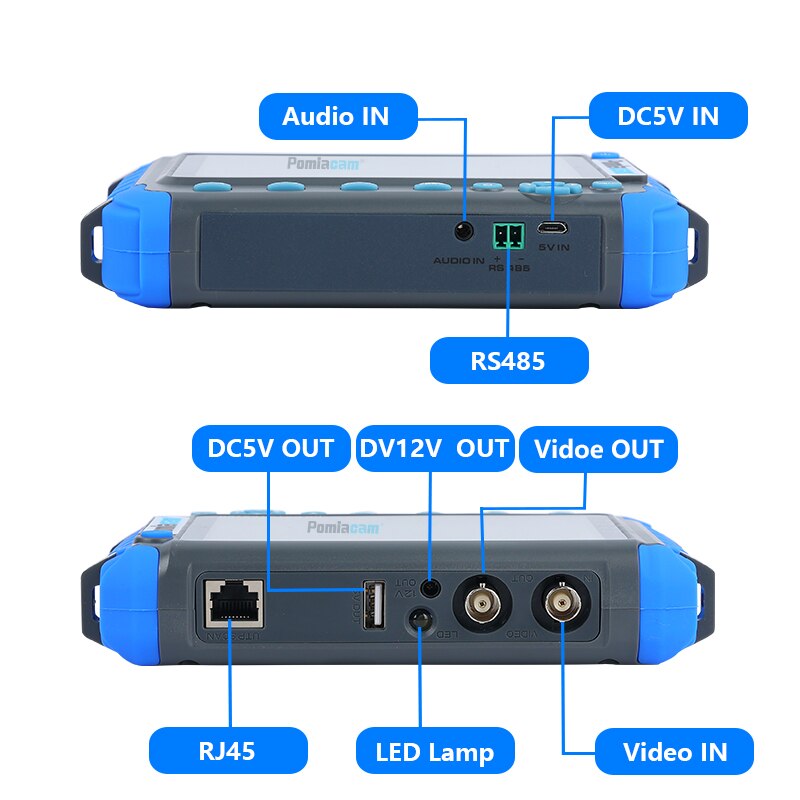

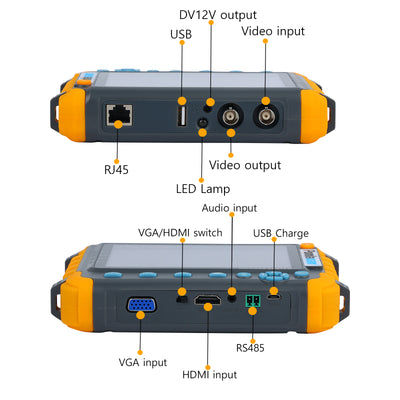

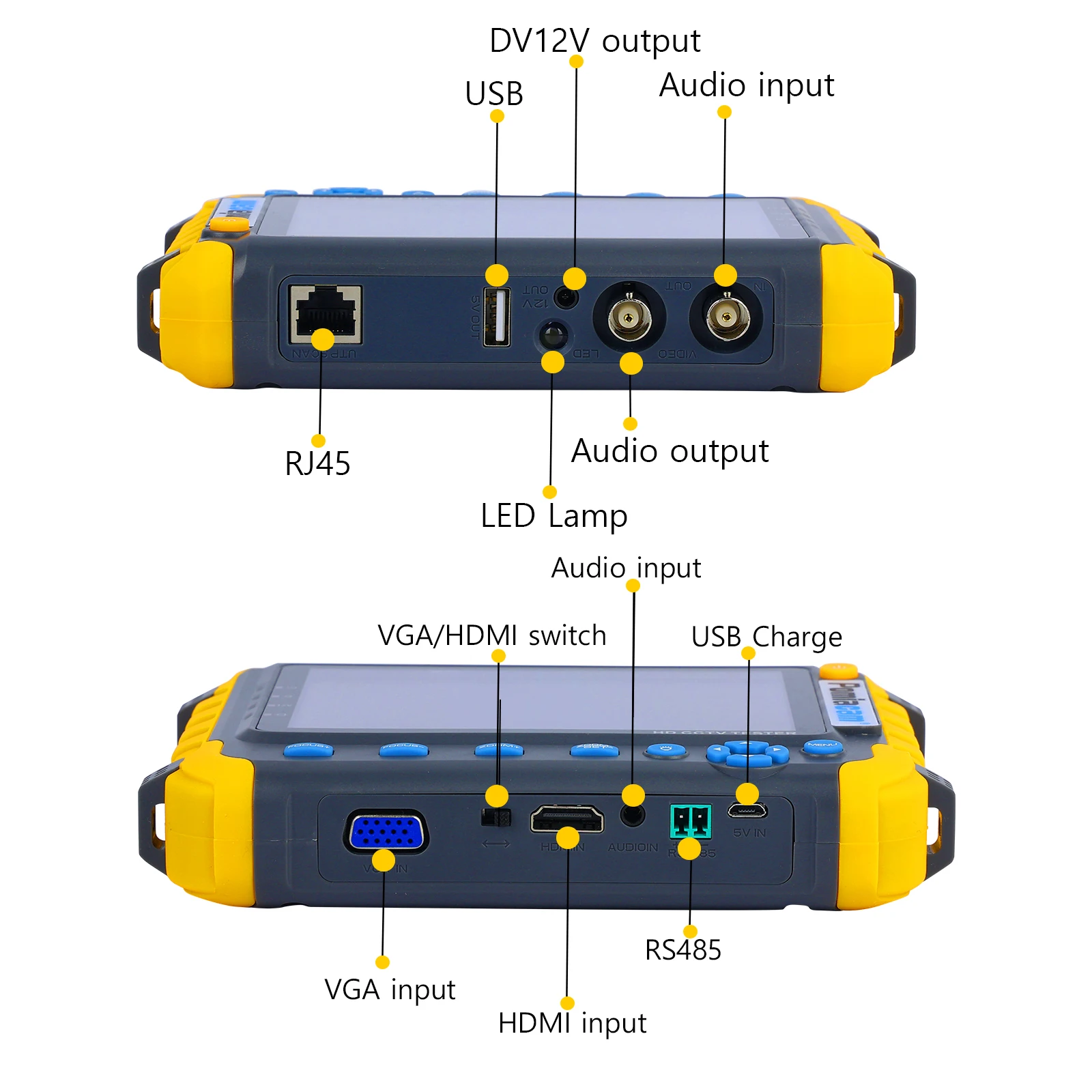

Video IN/OUT

1 channel BNC Input & 1 channel BNC Output

VGA/HDMI input

NOT Support

PTZ Controller

Support RS485

PTZ Protocol

Compatible with protocols PELCO-D/P,

Baud Rate

Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps

Color bar generator

Support both PAL / NTSC format's standard color bar output

(Red, Green, Blue, White, Black, Grey) and testing image output

UTP Cable Test

Display UTP cable connection status , cable type and

the sequence of wires as well as read the number of the test box.

DC12V power output

Output DC12V1A power for camera

Audio input test

1 channel audio signal input

Coaxial HD test

TVI test

1 channel TVI input(BNC interface),

support 8MP



CVI Test

1 channel TVI input(BNC interface),

support 8MP



AHD Test

1 channel AHD input (BNC interface),

support AHD 2.0 version, 8MP



POWER

Power Adapter

DC 5V(1.5A)

Battery

Built-in 18650 2600mA battery X 2,

After charging 3-4 hour, working time lasts 11 hours

General

 Language

 English and Chinese optional

Working Humidity

30%-90%

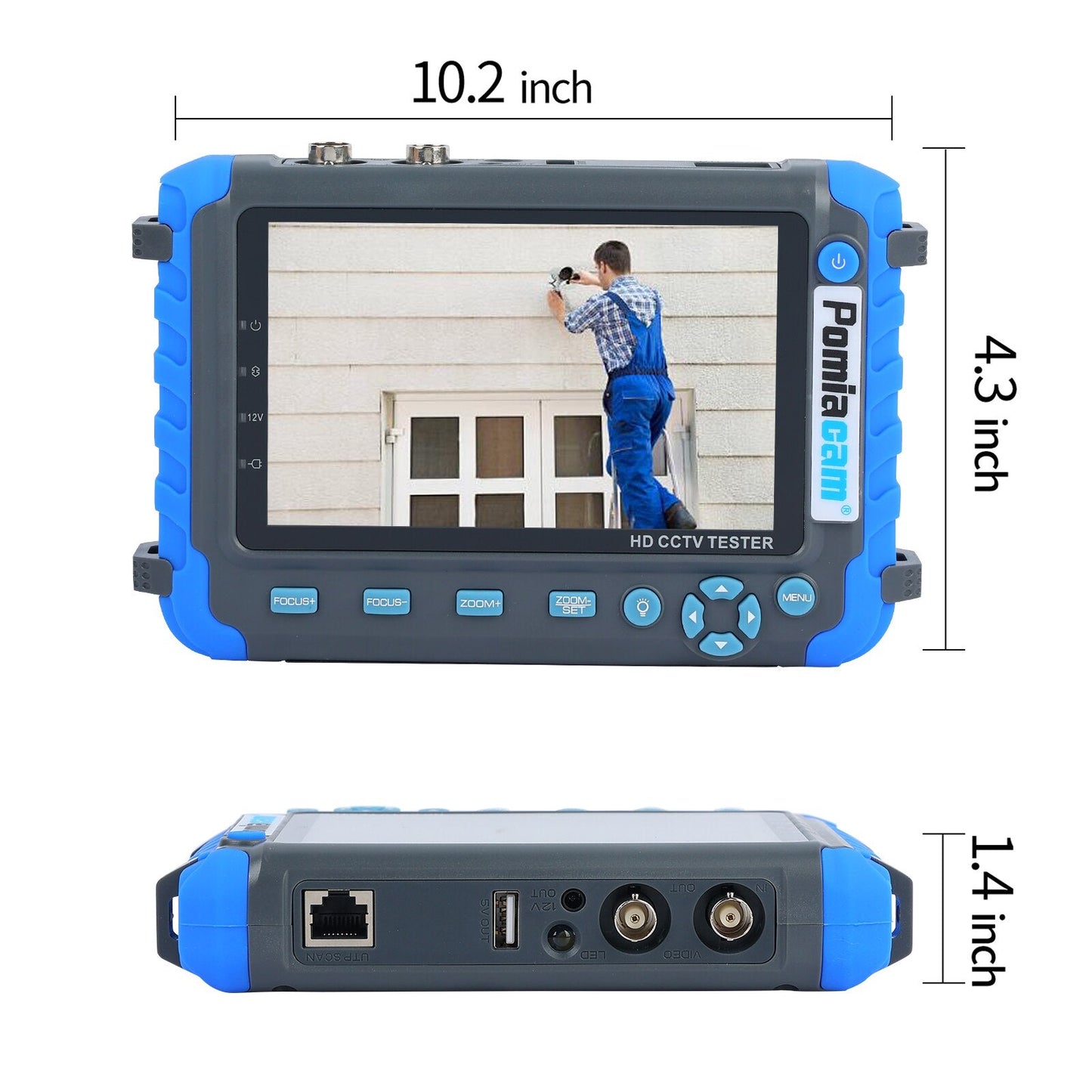

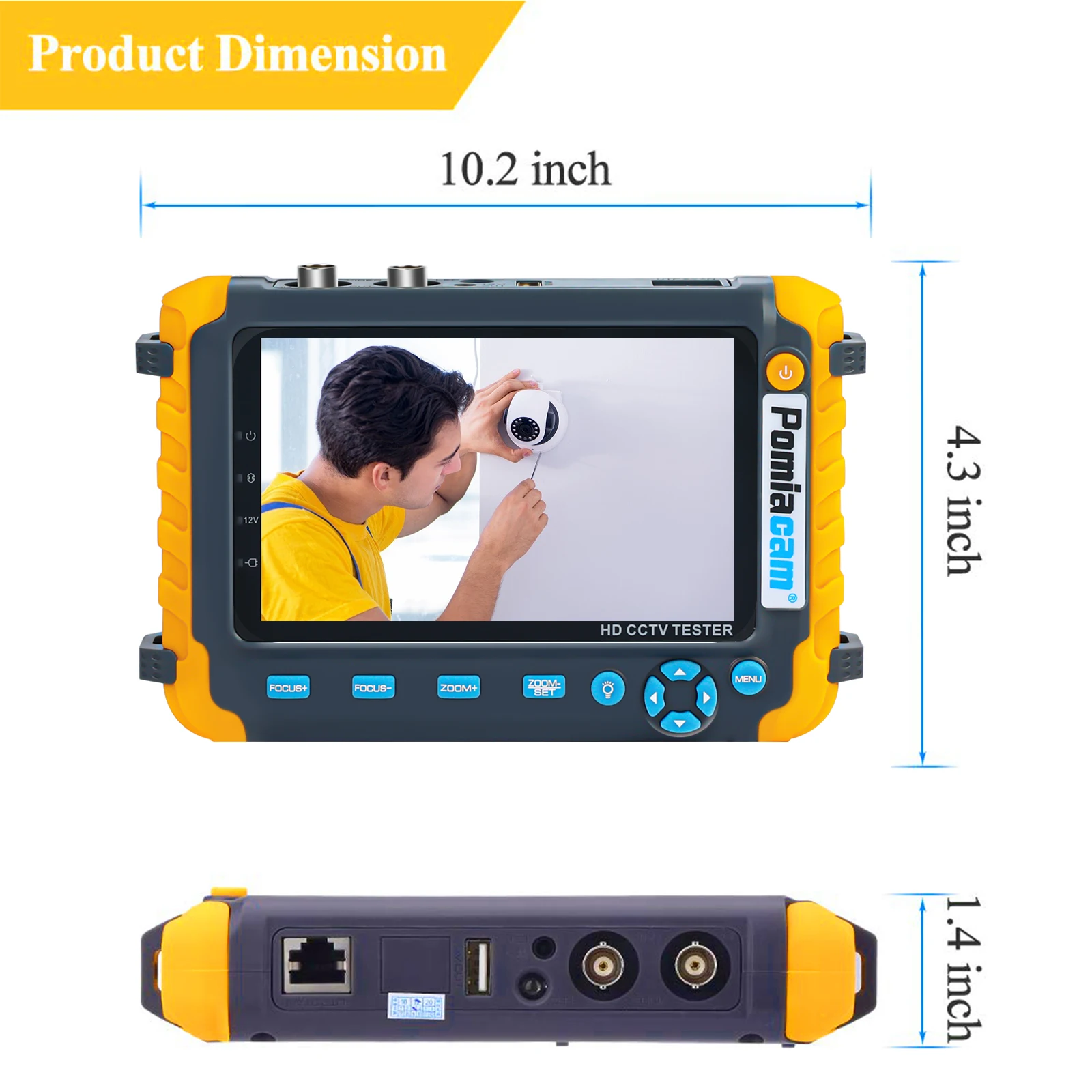

 Dimension

194mm x 112mm x 48mm / 540g

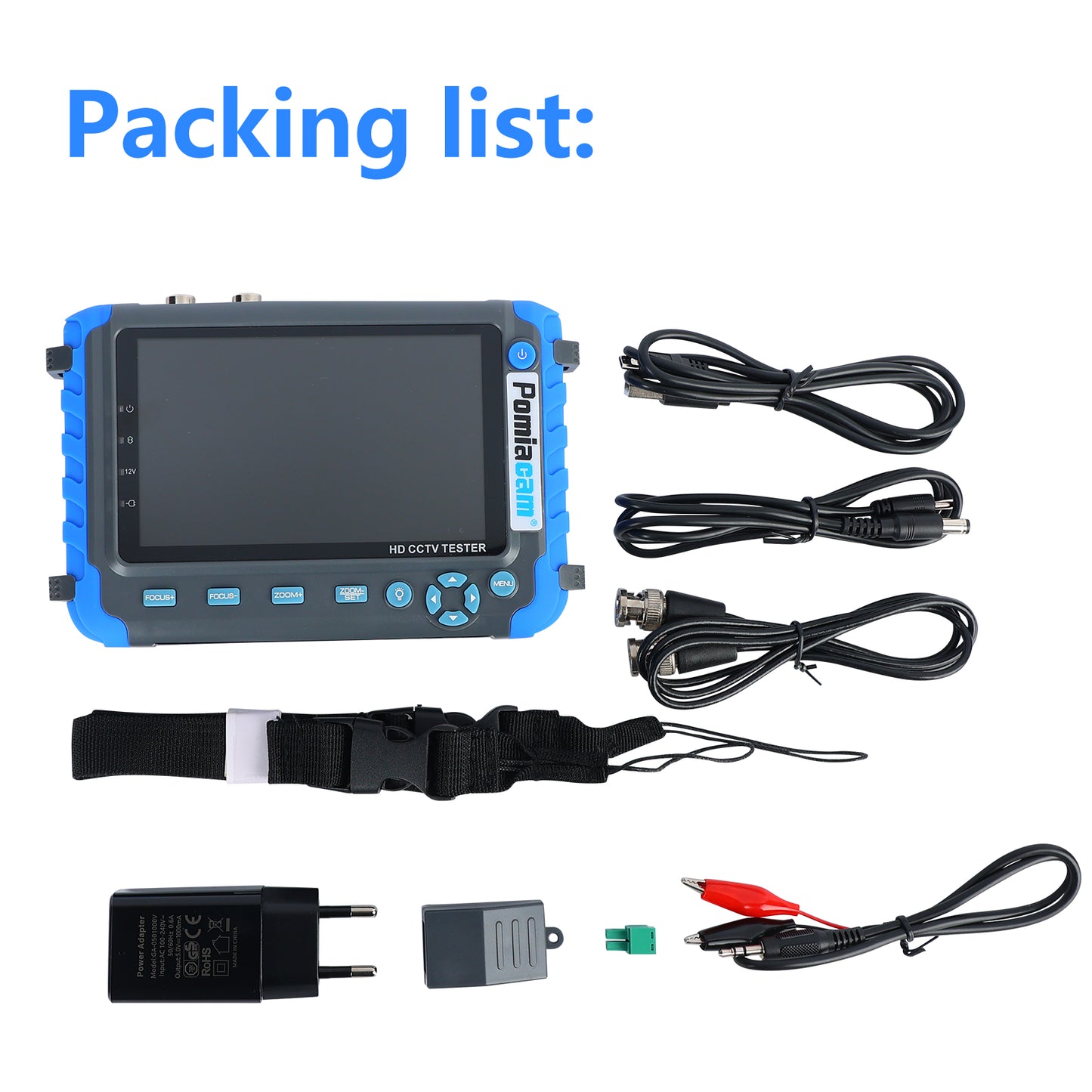

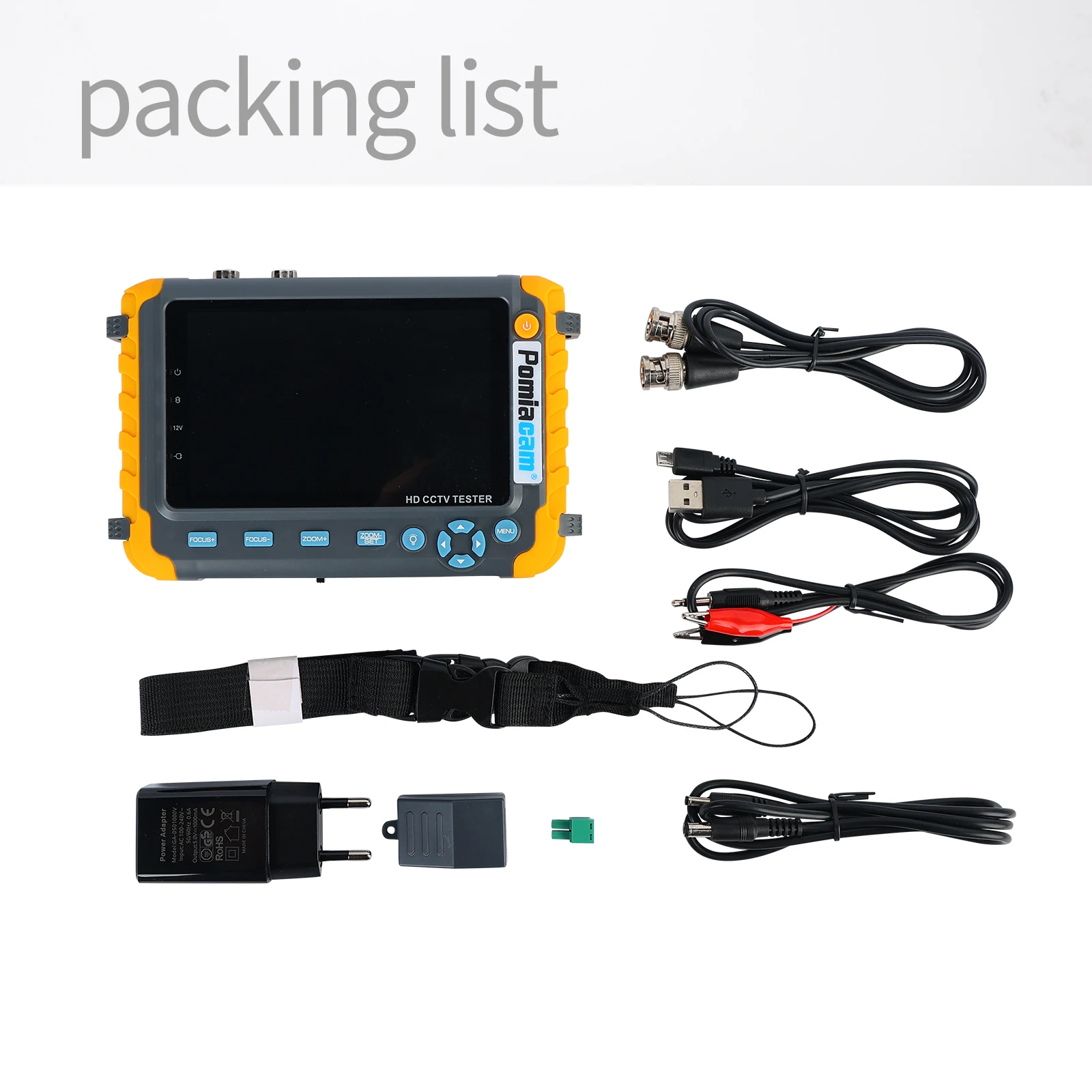

Packing list:

  •  HD coaxial tester
  • Adapter DC5V 1A(with USB cable)
  • International Standard 18650 2600ma battery
  • BNC cable
  • RS485 connector
  • Power output conversion cable
  • Audio cable
  • Lanyard
  • Tool bag
  • Instruction Manual

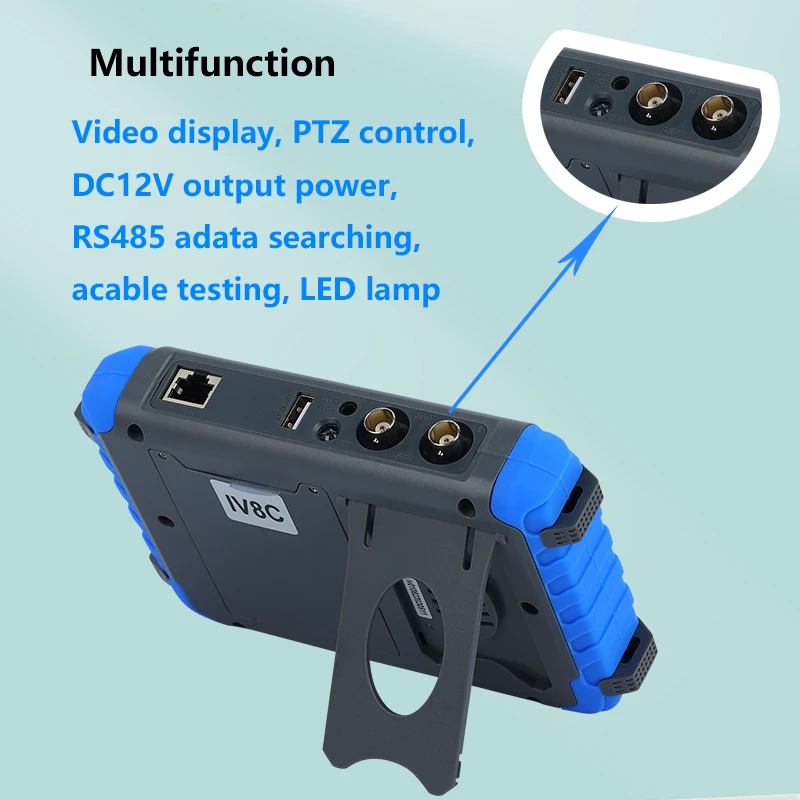

CCTV tester multifunctionCCTV Tester Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera Test, 4-In-1 CCTV Tester Monitor.5.0 inches 800(RGB)x480 High-resolution view angle display, more intuitive and easy to display the camera image quality, support PAL/NTSC standard video signal.IV8C not support VGA/HDMI input

CCTV tester is suitable for various camerasThe new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. (NOT Support IP Camera). HD Coaxial Camera Tester also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.

Support PTZ controlVideo monitor tester built-in Pelco-D / P PTZ control protocol,etc.HD Coaxial Camera Tester through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.

Rechargeable CCTV TesterPower the camera with DC 12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. after charging 3-4 hour, working time lasts 11 hours.The tester has advanced power control and protection circuits, saving energy and electricity.

HD Coaxial Camera TesterNetwork cable test function, through the UTP CABLE TEST test port on the instrument.Professional CCTV testing tool is useful for engineers to install and maintain security systems at night. LED on/off button for easy operation. 100% brand new and high quality.
