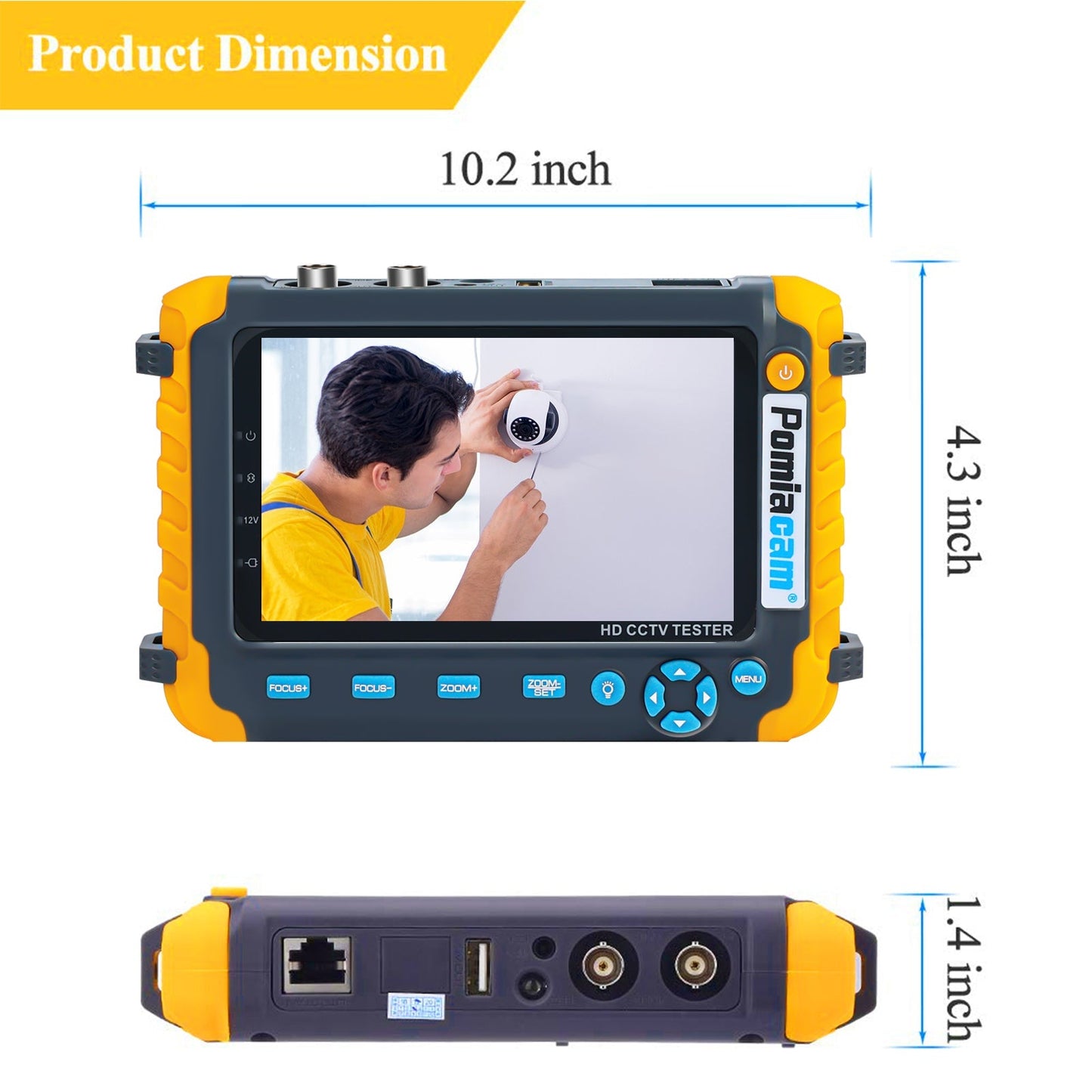

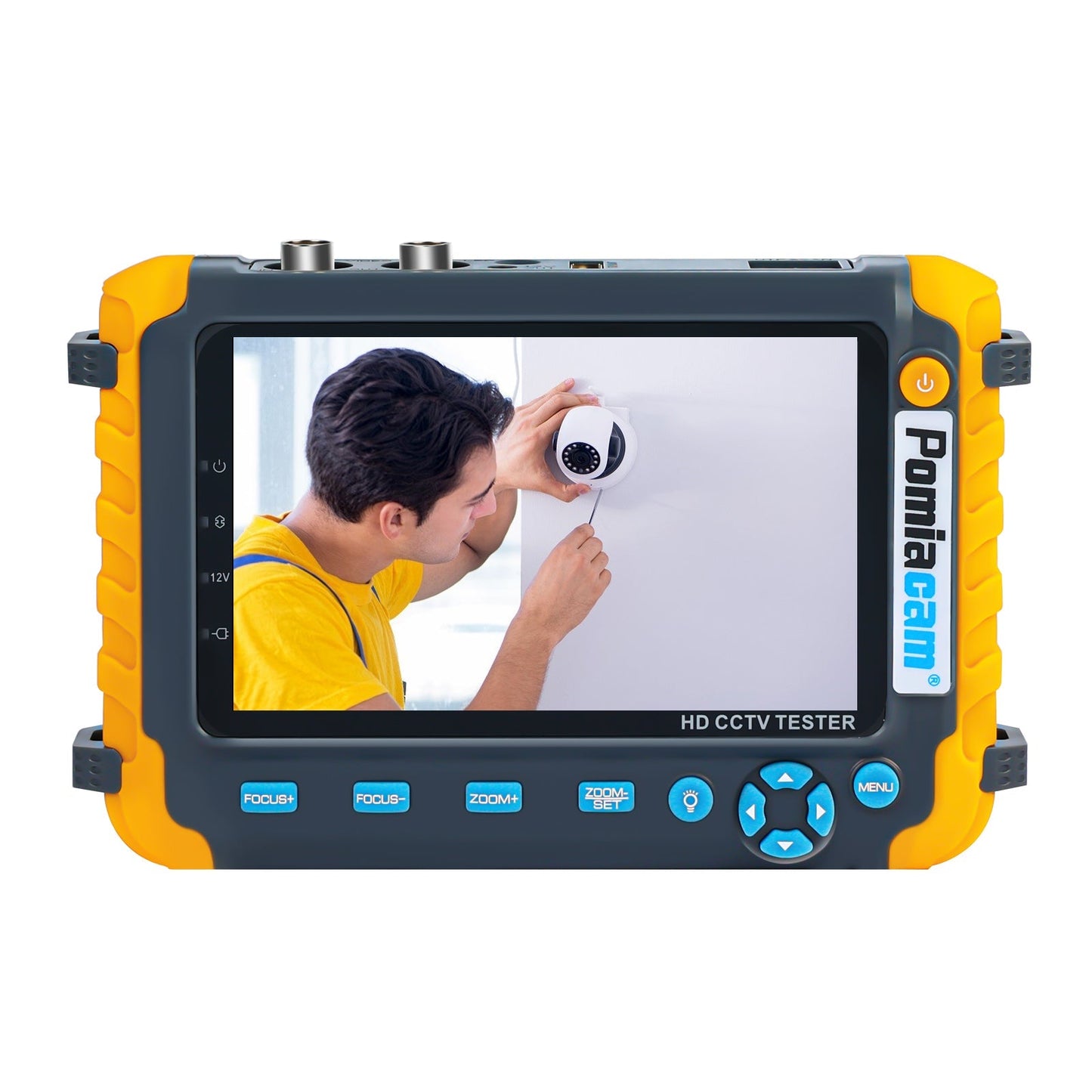

Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution isMax 8MP
HD TVI video surveillance testing, supportMax 8MP
When TVI signal input, the tester will display HD TVI camera image.
HD video surveillance testing, support AHD 2.0 version,Max 8MP. When AHD signal input, the tester will display the AHD camera image.
HD CVI video surveillance testing, supportMax 8MP. When TVI signal input, the tester will display HD TVI camera image.
