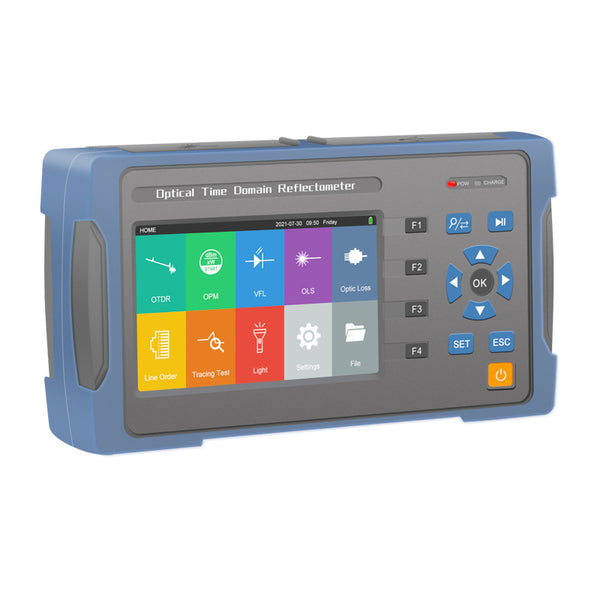

Multi-functionOTDR
Dimension: 20*16.7*8.2cm
Weight: 1kg
Ordering Details
|
TM291D-1 |
1310/1550nm, 24/22dB |
Touching screen |
|
TM291D-2 |
1310/1550nm, 26/24dB |
Touching screen, |
|
TM291SF-15(with filter) |
1550nm, 20dB |
Touching screen, support active test |
|
TM291SF-16(with filter) |
1610nm, 20dB |
Touching screen, support active test |
Function
|
Standard Function |
OTDR, OPM, OLS, VFL, Optic Loss,Light |
|
Optional Function |
Line Order, Tracing Test |
Functions
1. OTDR: 0-60km
2. Optical Power Meter : -70~+10dbm or -50~+26dbm
3. Visual Fault Locator : >=10mw
4. Optical Light Source : 1310/1550nm ,>-5dBm
5. Optic Loss
6. Line Order (Optional)
7. Tracing Test (Optional): Can track the direction of the found line
8. LED lighting function, dark environment construction is more convenient
Features
1. Wavelength: 1310/1550nm；1550nm；1610nm
2. Measurement distance: 60km
3. Touching screen
4. Test record can be saved as so format
5. Standard Function: OTDR/OpticalPowerMeter/OpticalLightSource/VisualFaultLocator/Optic Loss/ Light
Optional Function:Line Order/ Tracing Test
6. Editable file name and lineNo.
7. Support upgrade
8. Quick boot, it takes only 2 seconds to test
Specifications
|
OTDR |
|||||
|
Wavelength(nm) |
1310/1550nm |
1310/1550nm |
1550nm |
1610nm |
|
|
Dynamic Range |
24/22dB |
26/24dB |
20dB |
20dB |
|
|
Measurement Distance |
0-60 km |
||||
|
Type of Fiber |
9/125um SM |
||||
|
Type of Connectors |
FC/PC/; SC/PC (FC/APC SC/APC--Optional) |
||||
|
Peak Value of laser |
>=30mW |
||||
|
Unit |
Meter/ inch/ mile |
||||
|
Dead Zone of Reflection |
2m |
||||
|
Dead Zone of attenuation Event |
12m |
||||
|
Accuracy Distance (Reflection Event) |
About±(1m+2 *10(-4)* distance) |
||||
|
Storage of records |
200 groups |
||||
|
Visual Fault locator（VFL） |
|||||
|
Wavelength (nm) |
650nm |
||||
|
Output power |
>=10mW |
||||
|
Mode |
CW，1Hz，2Hz |
||||
|
Fiber type |
SM |
||||
|
Optical Power Meter |
|||||
|
Measurement range dBm |
-70～+10 dBm |
-50～+26 dBm |
|||
|
Wavelength range（nm） |
800～1650 |
||||
|
Calibrated wavelength |
850、1300、1310、1490、1550、1625 |
||||
|
Detector |
InGaAs |
||||
|
Accuracy |
<±3%（-10dBm、22℃） |
||||
|
Resolution |
Linearity：0.1%，Non-linearity：0.01dBm |
||||
|
Connector |
Changeable FC/PC SC/PC ( ST as Optional) |
||||
|
Optical Light Source |
|||||
|
Emitter |
FP-LD |
||||
|
wavelength (nm) |
1310/1550nm |
||||
|
Connector |
FC/PC（SC/ST as optional） |
||||
|
Output power |
≥-5dBm |
||||
|
Output stability(dBm) |
±0.04@20℃@15min |
||||
|
Modulation |
CW/270Hz/1KHz/2KHz |
||||
|
Fiber type |
SM |
||||
|
Optic Loss |
|||||
|
Connector |
FC/ SC |
||||
|
Test Range |
0-30dB |
||||
|
Accuracy |
10% |
||||
|
Others |
|||||
|
LCD |
3.97inch,800*480pixels, IPS screen |
||||
|
Battery |
7.4V/4400mAH Lithium-ion battery, >5000 tests |
||||
|
Temperature |
Work temperature: -5 ~ 50°C, storage temperature: -10 ~ 60°C |
||||
|
Humidity |
0～85%(Non-condensing) |
||||
|
Dimensions（mm） |
180×100×45 |
||||
|
Weight(g) |
480 |
||||
|
StandardFunction |
OTDR,OPM, OLS, VFL, Optic Loss,Light |
||||
|
Optional Function |
Line Order, Tracing Test |
||||
Packing List
|
NO |
Name |
Qty |
|
Standard accessories |
||
|
1 |
OTDR with FC/UPC connector |
1 |
|
2 |
AC/DC Charger |
1 |
|
3 |
CD (software and user manual) |
1 |
|
4 |
User manual |
1 |
|
5 |
Test Report |
1 |
|
6 |
Softcase |
1 |
|
Optional Accessories |
||
|
1 |
SC /ST connector for OTDR Port |
1 |
|
2 |
SC/ST Connector for OPM port |
1 |
Note: The default connector of this OTDR FC/UPC, and the FC/APC type is optional. The above contents are subject to change without notice due to the need for design improvement.
|
Standard |
||||
|
Model |
TM291D |
TM291D |
TM291SF-15 |
TM291SF-16 |
|
Wavelength |
1310/1550nm |
1310/1550nm |
1550nm |
1610nm |
|
Dynamic |
24/22dB |
26/24dB |
20dB |
20dB |
|
Test Length |
60km |
60km |
60km |
60km |
|
Active Test |
× |
× |
√ |
√ |
|
Touch Screen |
√ |
√ |
√ |
√ |
|
OPM |
√ |
√ |
√ |
√ |
|
VFL |
√ |
√ |
√ |
√ |
|
OLS |
√ |
√ |
√ |
√ |
|
Optic Loss |
√ |
√ |
√ |
√ |
|
Light |
√ |
√ |
√ |
√ |
|
Line Order |
× |
× |
× |
× |
|
Tracing Test |
× |
× |
× |
× |
|
Full Function |
||||
|
Model |
TM291D |
TM291D |
TM291SF-15 |
TM291SF-16 |
|
Wavelength |
1310/1550nm |
1310/1550nm |
1550nm |
1610nm |
|
Dynamic |
24/22dB |
26/24dB |
20dB |
20dB |
|
Test Length |
60km |
60km |
60km |
60km |
|
Active Test |
× |
× |
√ |
√ |
|
Touch Screen |
√ |
√ |
√ |
√ |
|
OPM |
√ |
√ |
√ |
√ |
|
VFL |
√ |
√ |
√ |
√ |
|
OLS |
√ |
√ |
√ |
√ |
|
Optic Loss |
√ |
√ |
√ |
√ |
|
Light |
√ |
√ |
√ |
√ |
|
Line Order |
√ |
√ |
√ |
√ |
|
Tracing Test |
√ |
√ |
√ |
√ |
