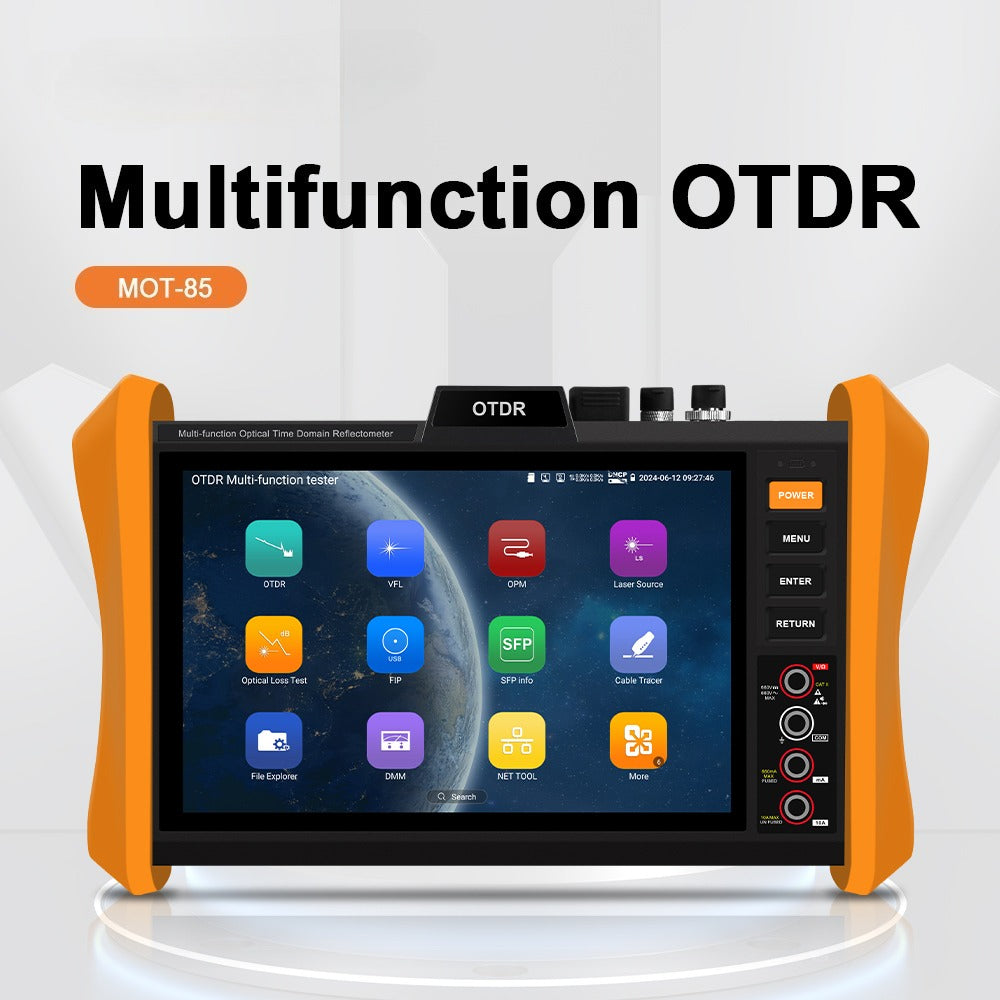

OTDR:

● 8 inch IPS touch screen, 1920*1200 resolution

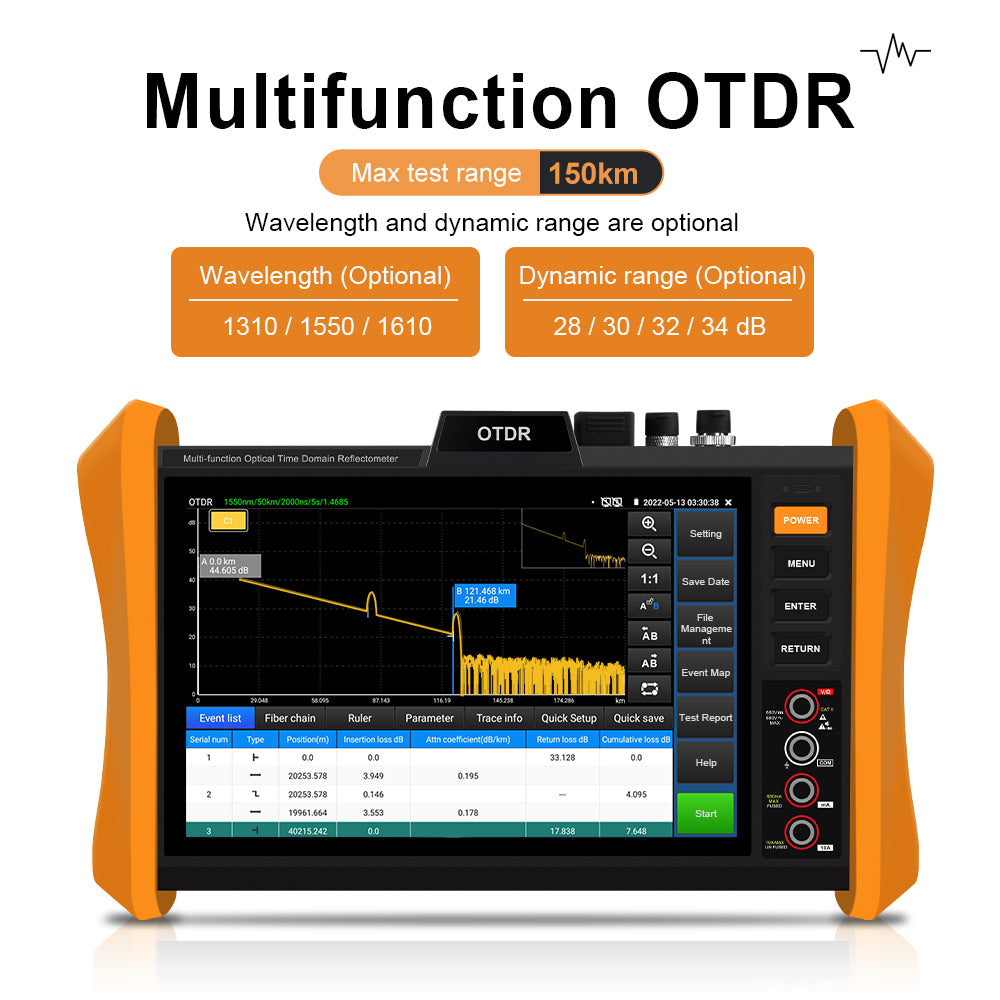

● 1310/1550/1610 wavelength optional, 26/28/30/32/34dB Dynamic range optional, max test range 150KM*

● Stable laser source, support CW/270/330/1000/2000Hz

● Test fiber’s length, loss, attenuation parameters and event map, locate connection point/ fusion point

● Automatic analysis of various linkers/fusion points, easy analyze of various events

● Save and view the testing curves, support zoom and move curves, view details

● Support saving curves number ≥30000pcs

● Support create testing report, curve trajectory graphs, parameter settings, fiber event information, and fiber link information

● Report saved as EXCEL, PDF, or screenshots format etc

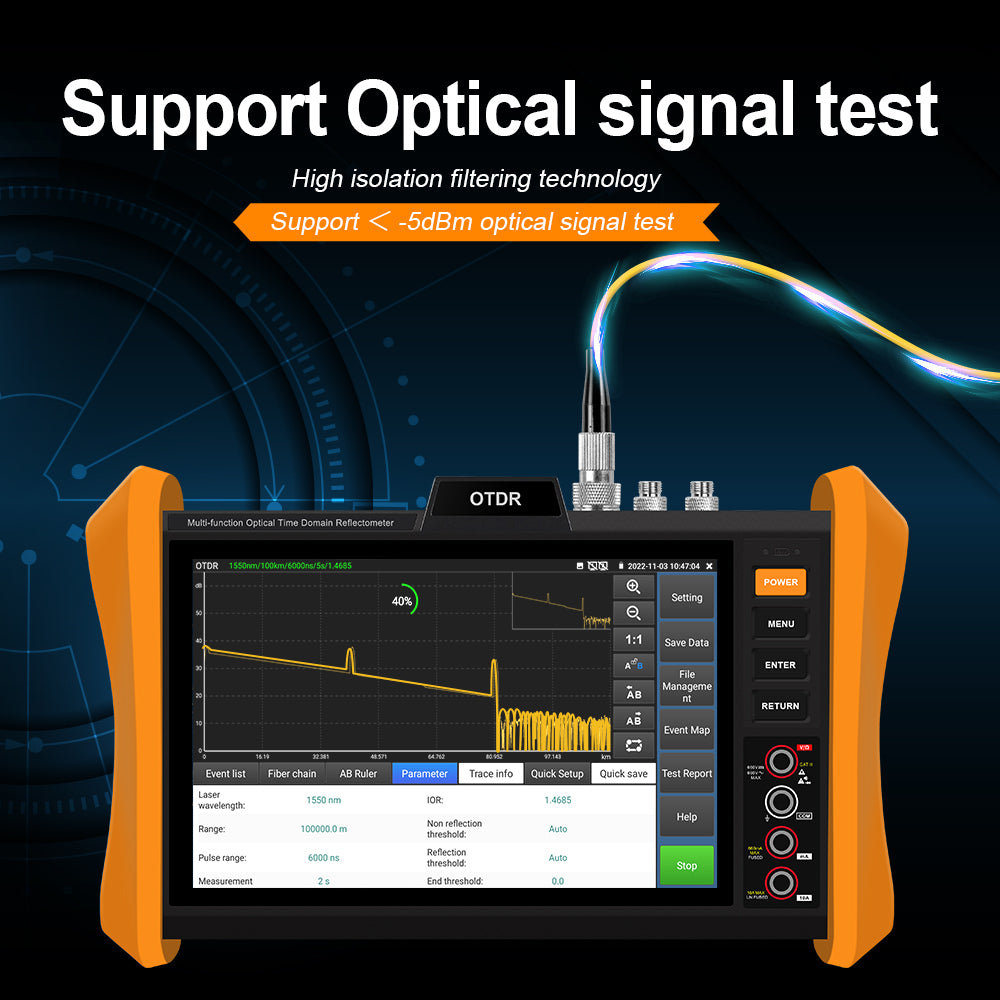

● Optical Loss test, detect the optical or optical components loss value .It is a key basic function for confirming the optic fiber installation condition and fault status. Light source shares with OTDR ports outputs laser light.

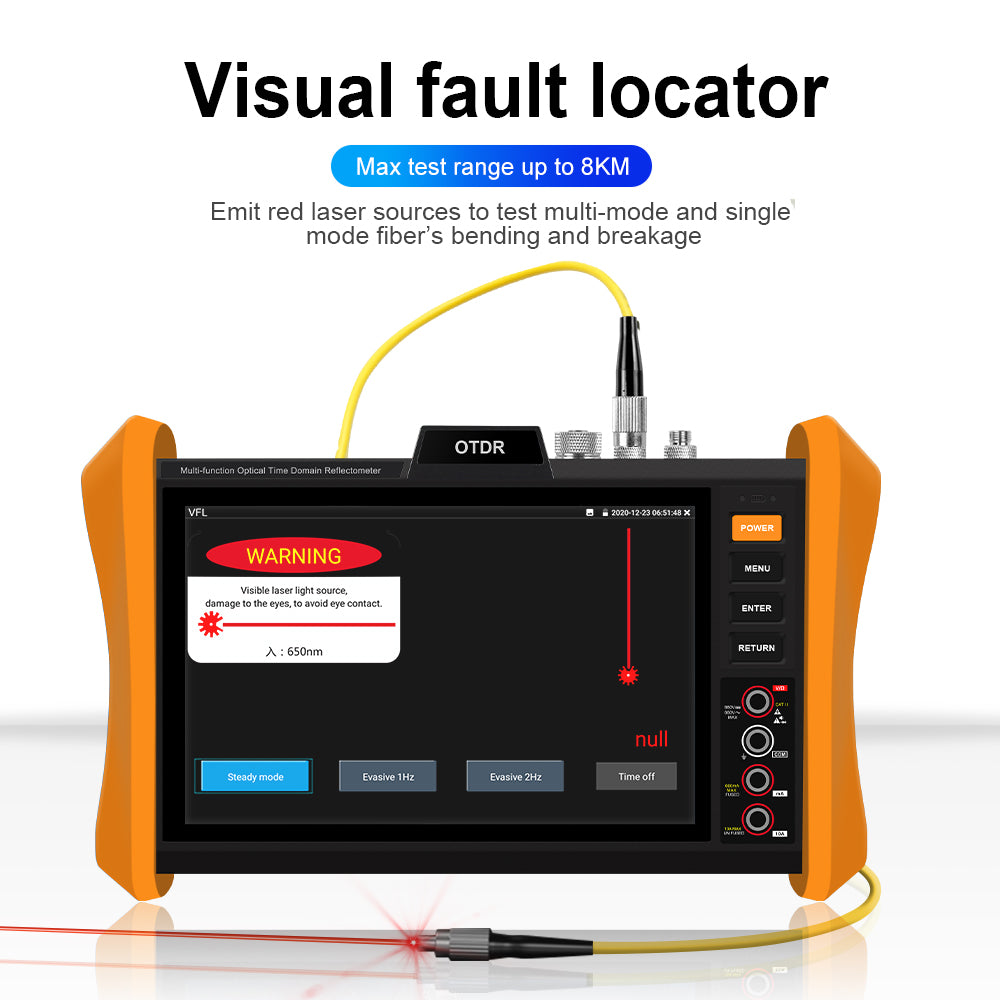

● Visual Fault Locator, it Outputs red light for checking continuity of launch fibers or short patch cord. Breaks and bending in fiber can be identified visually.

● Stable Laser Source, it shares OTDR optical port and work on the same working wavelength of OTDR, the output power can be adjustable for different testing applications.

● Optical power meter with five wavelength 1625nm,1550nm, 1490nm, 1310nm,1300nm, 850nm, linear or nonlinear optical power display, both for optical power testing and Fiber link loss relative measurement

● Digital multimeter, DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc sequence and continuity test, save testing report. Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● Upgraded RJ45 cable TDR test, support cable’s open and short testing, max test 180m

● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

● Cable length, BNC cable, network cable, telephone cable, RVV cable, elevator cable, and cat 5/6 cable’s length test. Max measurement for cable’s open is 3KM (Short circuit length test not supported)

Other functions:

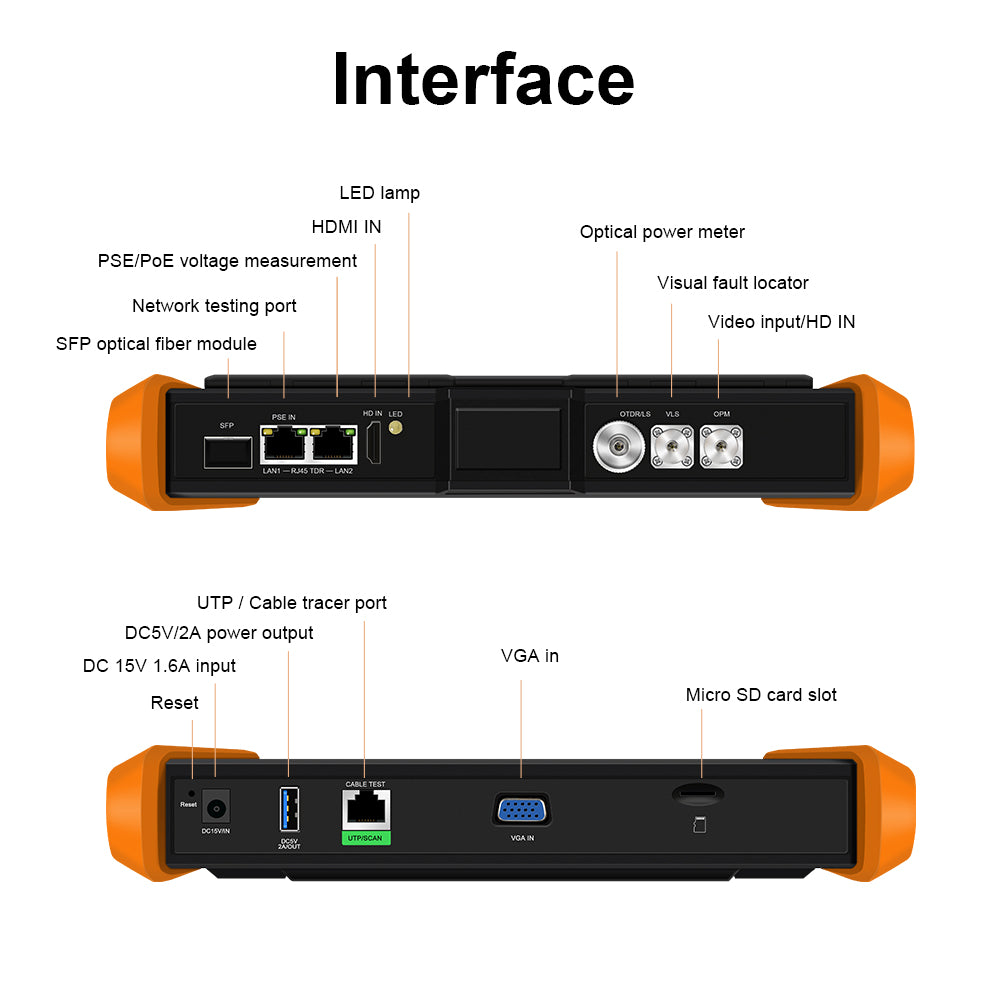

● ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing

● Advanced Network Tool, Scan IP, Route tracking, Socket debugging, ping packet test, DHCP, PPPOE, LLDP

● 7.4V 7800mA Li-ion Battery, 3.5 hours charging, normal working time lasts 11 hours:


TDR functionality not included. If you require TDR,

please contact me. Whatsapp +8613798250203
