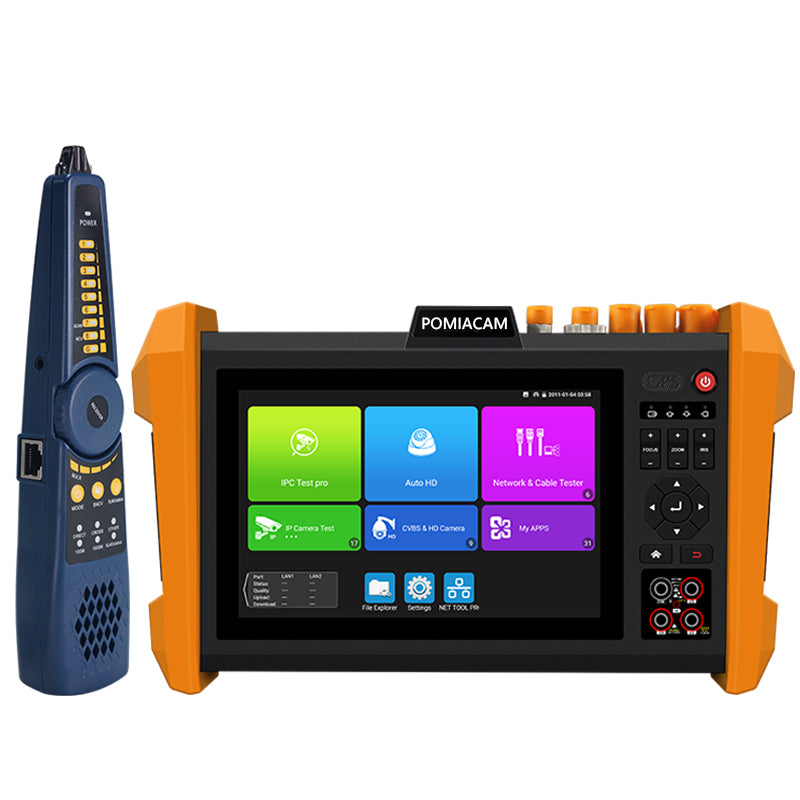

8K H.265 Multifunction 7 inch CCTV Tester SFP optical module AHD CVI TVI SDI color bar generator in one tester monitor

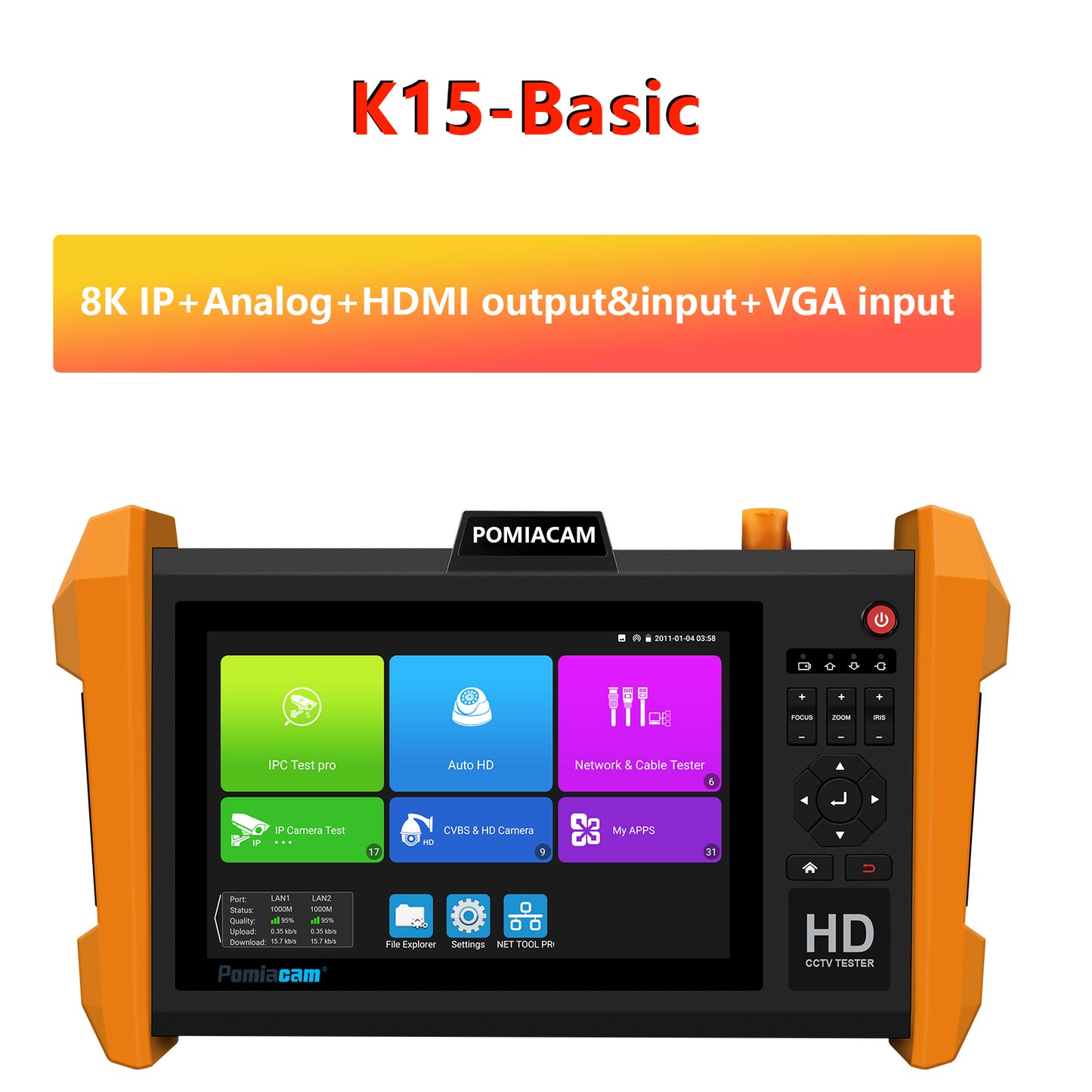

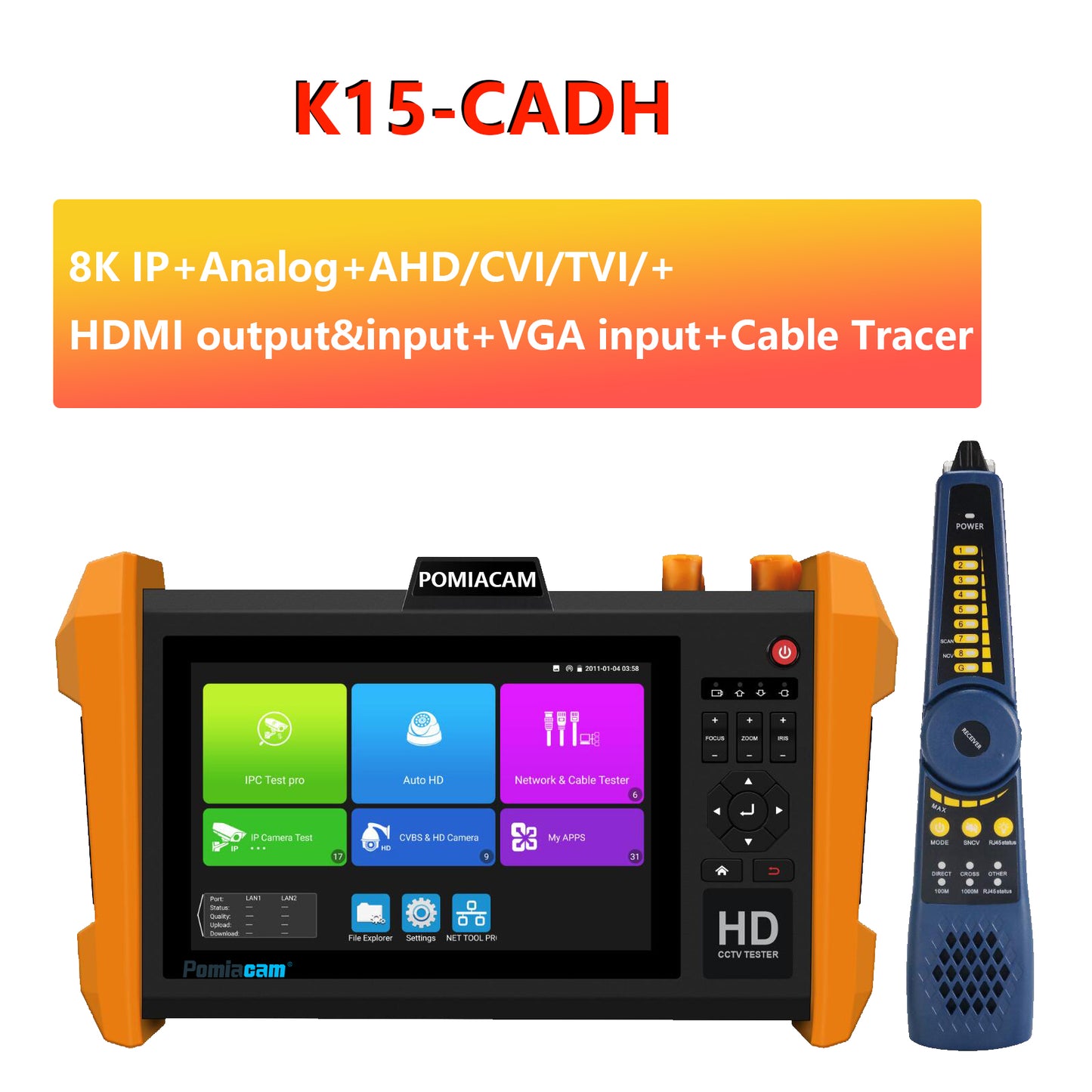

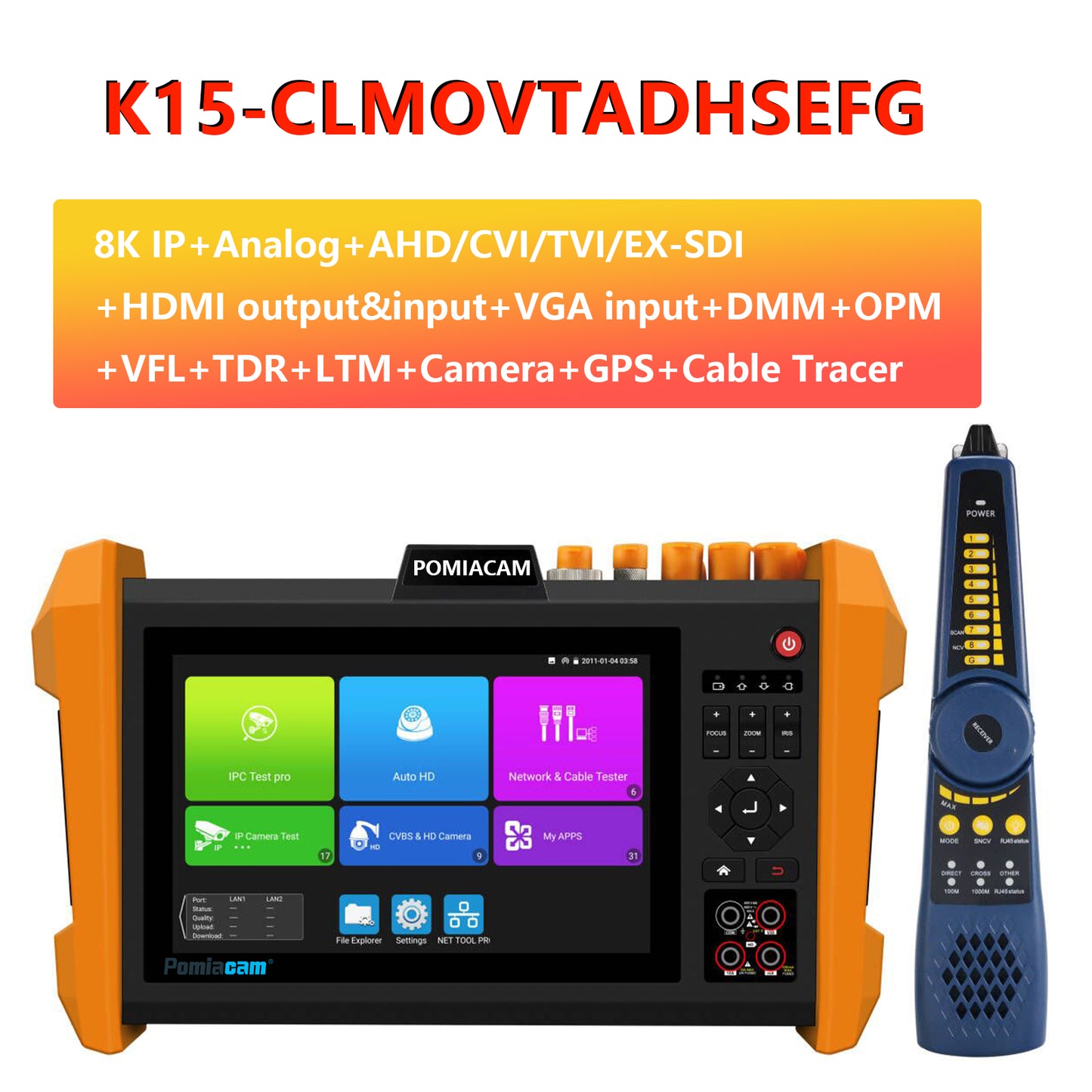

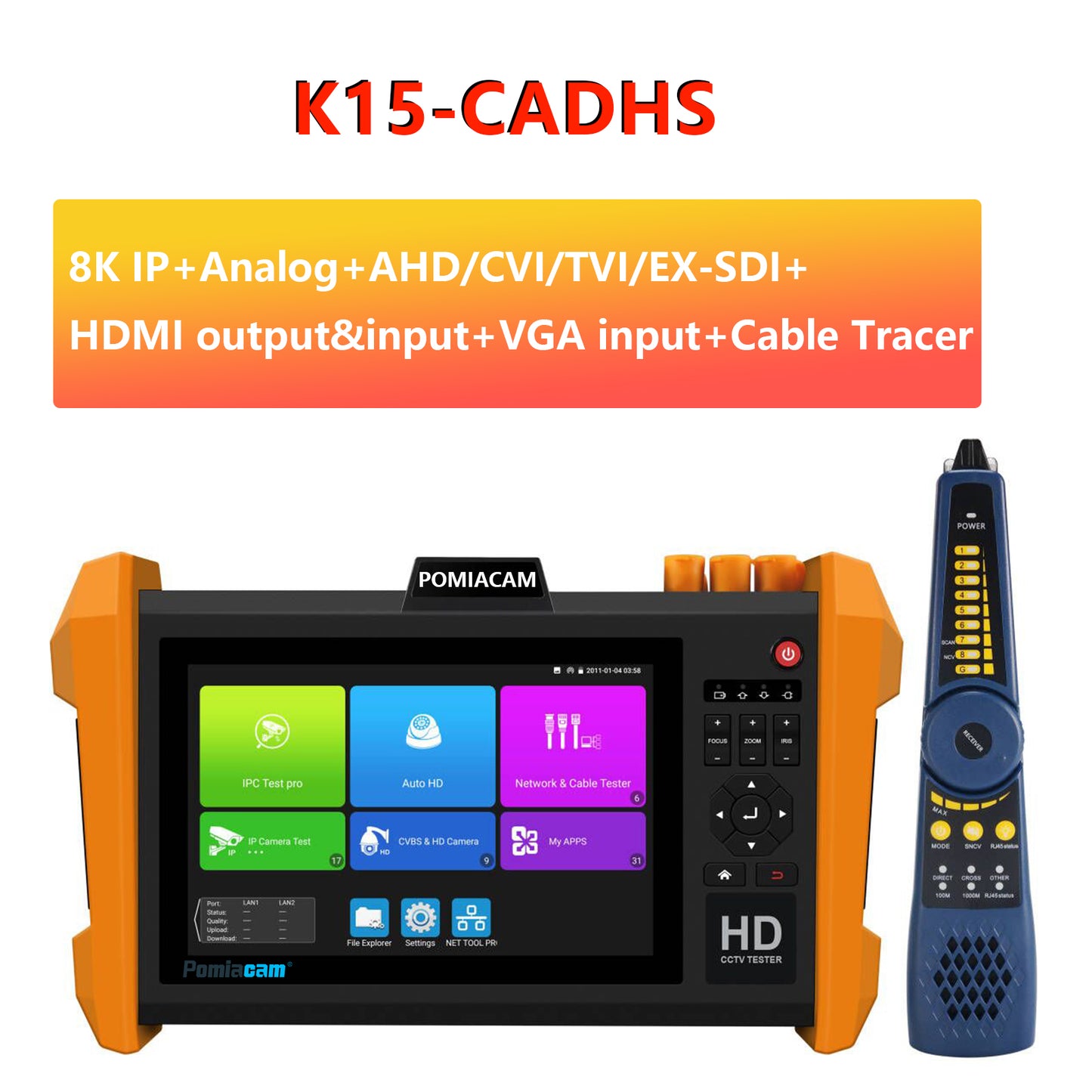

Model: K15/K15-ADH/K15-ADHS/ K15-CLMOVTADHSEFG(full function)


Optical fiber network test/fiber test:

● ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing NEW

● Optical power meter and visual fault locator (Optional)

● Laser distance meter, range 100m, accuracy ±3mm. It supports multiple measurement modes of length, side length, area and volume, and can accumulate and save test results. (Optional) NEW

● Lens focal length calculation, recommend lens by testing and monitoring the distance, display real-time images, simulating the display area of different lens sizes of 2.8 /3.6 /4 /6 /8 /12 /16 /25mm,for reference in lens purchase. (Optional) NEW

Camera test:

●7 inch IPS touch screen, 1920*1200 resolution

● 8K H.265 video display via mainstream

● Support TVI 5.0 audio test

● TVI 5.0 test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu ,

● 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP EX-SDI test, 3840 x 2160P 25/30 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)

● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu * (Optional)

● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu * (Optional)

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.

● HDMI Input, up to 4K 30FPS, and support snapshot, video record & playback

● Rapid ONVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions; NEW

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● CVBS camera test and PTZ control

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

● DC12V/3A power output, DC24V 2A power output

● DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank

● 48V PoE power output power, max power 30W

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi Analysis, support 2.4G/5G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized,and detect near-end, mid-end and far-end fault test of RJ45 cable plug

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc.

● Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately *(Optional)

● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit measurement range 1.2KM, Add TDR network port, it is convenient to test network cable. *(Optional)

Other functions:

● Laser distance meter , measurement range 100m, accuracy±3mm

● HDMI Input support 4K 30FPS, HDMI output support 4K 60FPS

● 2K 60FPS VGA input

● Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● POE & power information, DC12V & PoE power and voltage output /input measurement

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● 4K color bar generator, send CVI/TVI/AHD/CVBS color bar video signal for testing monitor or video cable, support 4K resolution

● Self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app (support excel, word, ppt format) doc. editable

● 8GB TF card included

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.6 V /7800mAh Lithium Ion Polymer Battery, after 3.5 hours charging, working time lasts 16 hours
