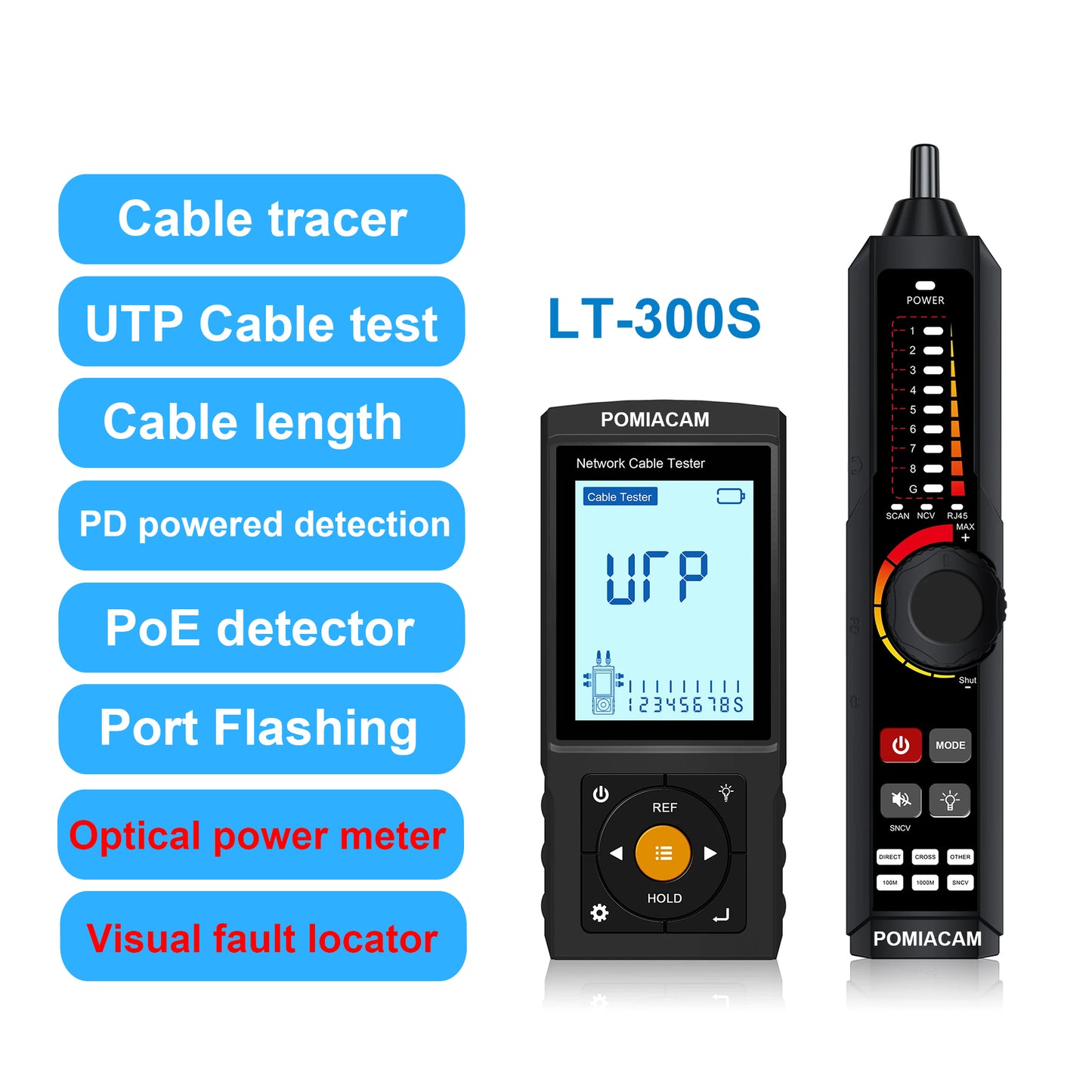

LT-300S 3 inch Network Cable Tester LAN RVV Telephone Wire Tracker Tracer for UTP RJ45 RJ11 BNC Detector Rechargeable Line Finder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
3 inch Network Cable Tester LAN Telephone Wire Tracker RVV Elevator Cable Tracer for UTP RJ45 RJ11 BNC Detector Rechargeable Line Finder

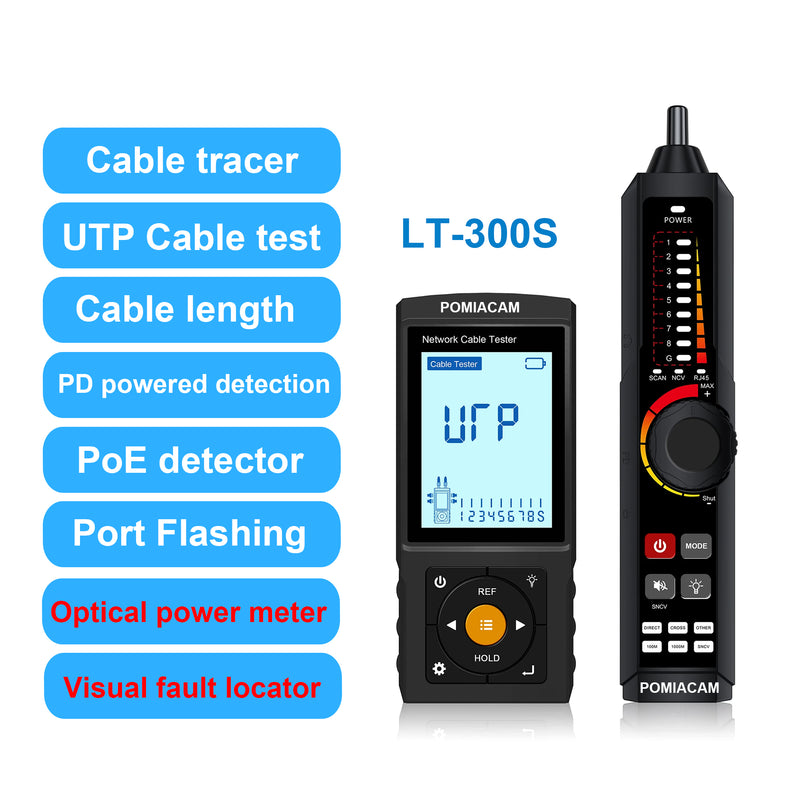

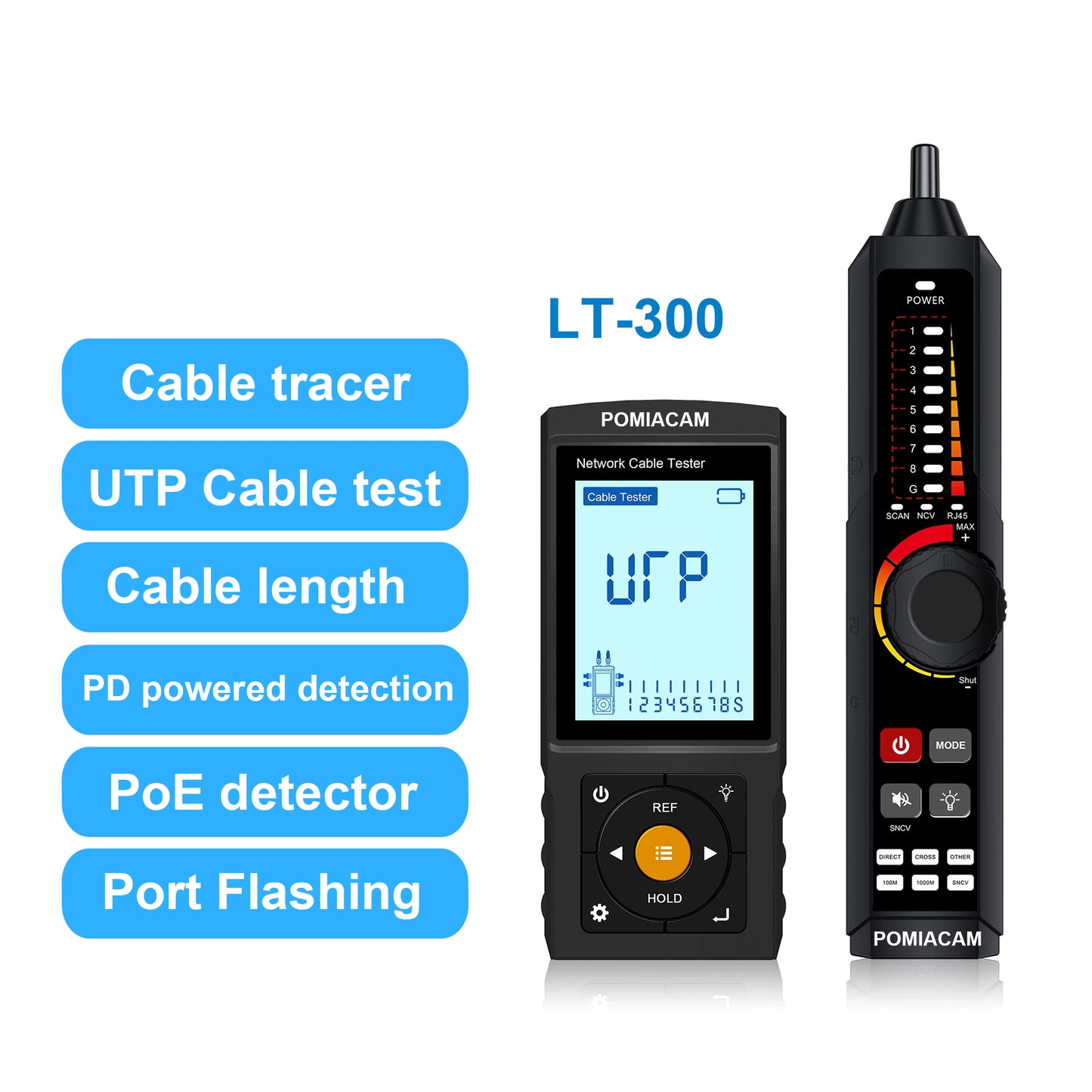

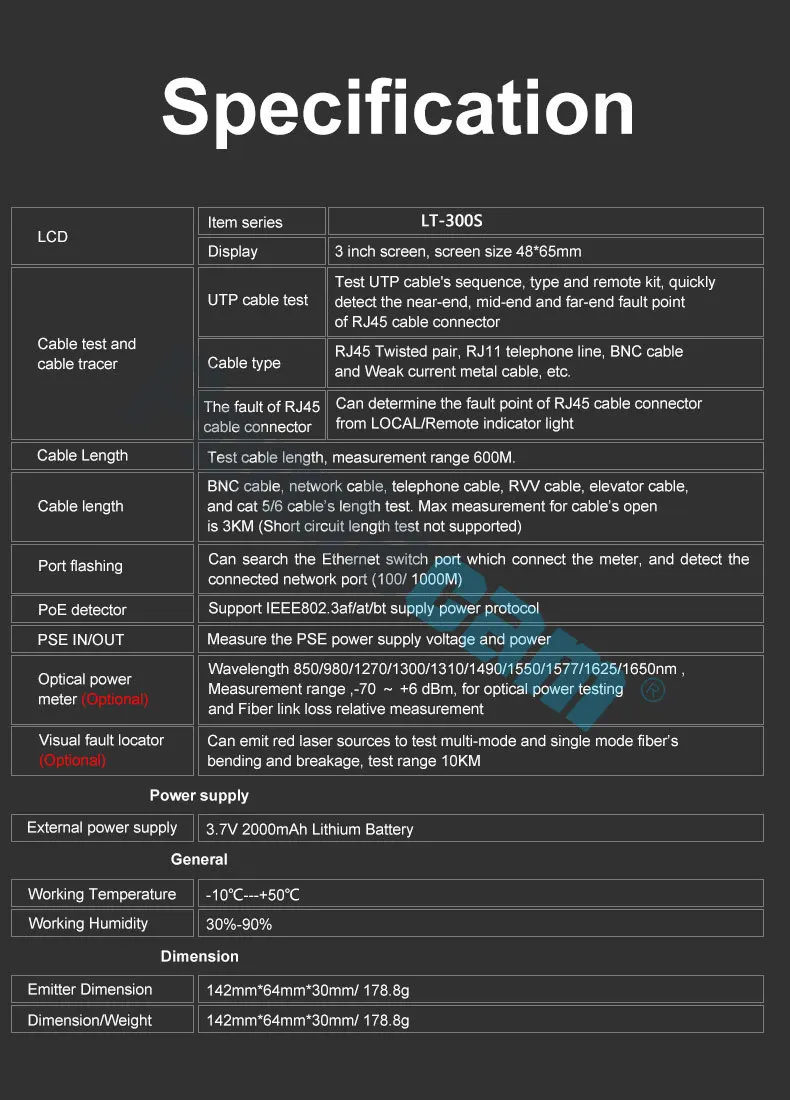

Model: LT-300S

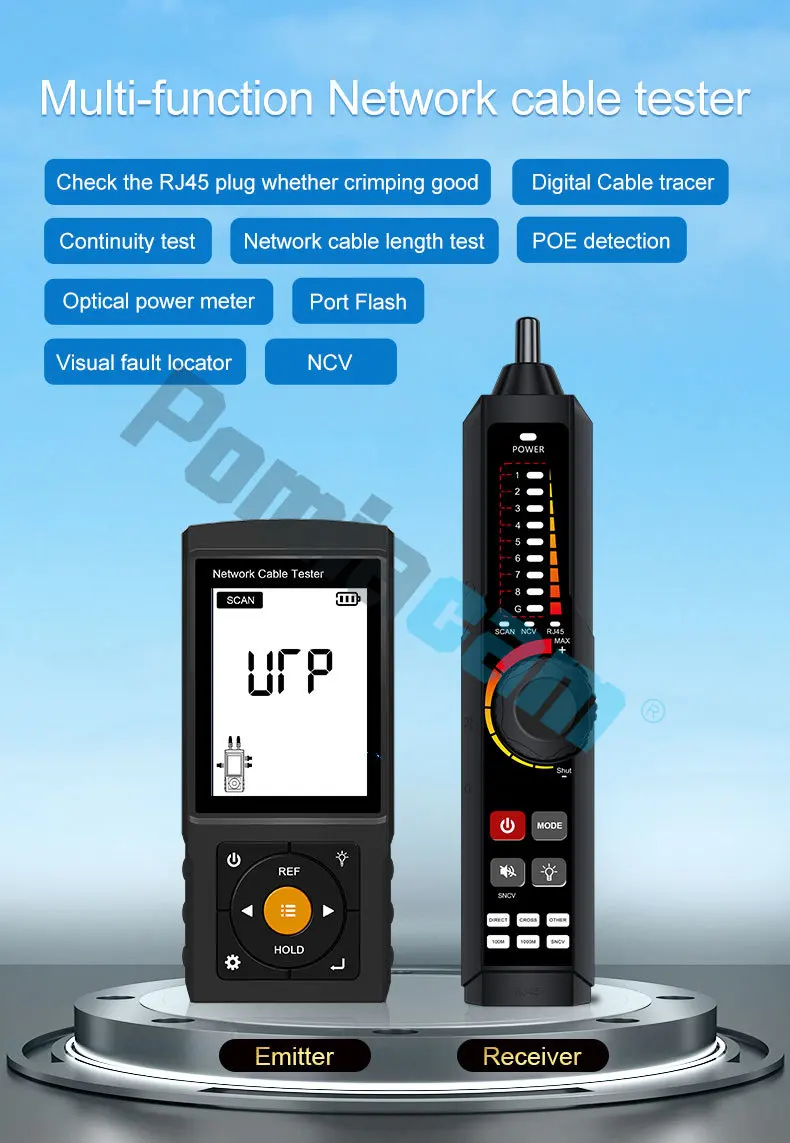

● 3 inch screen, screen size 48*65mm

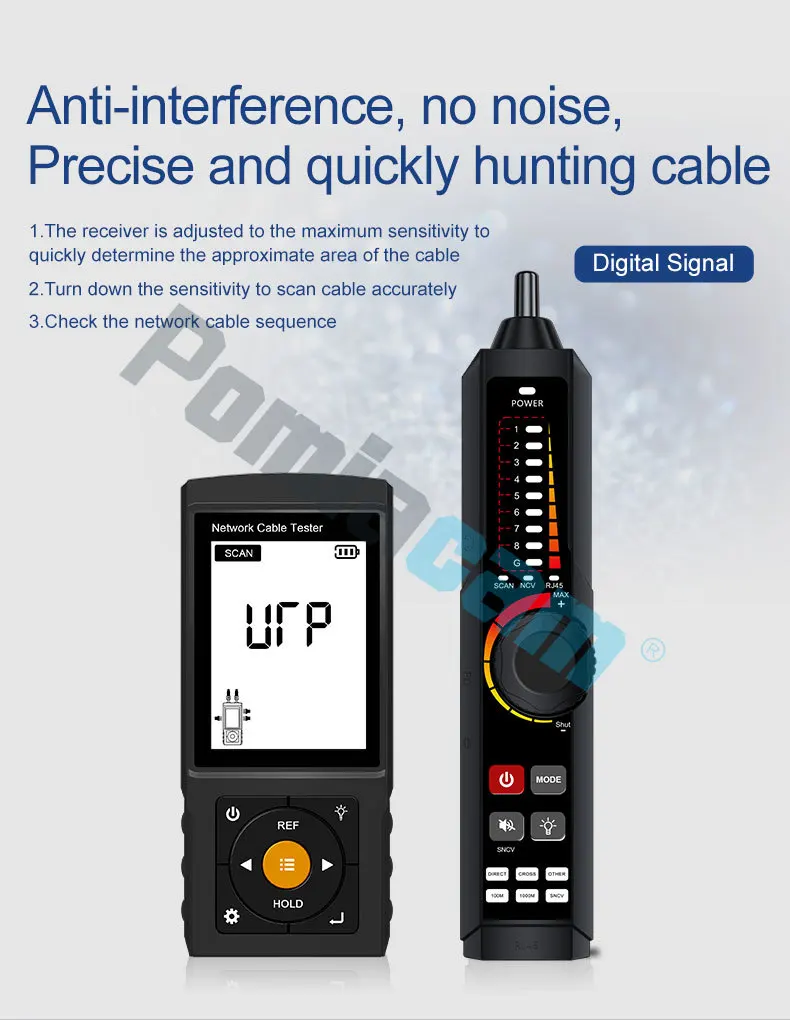

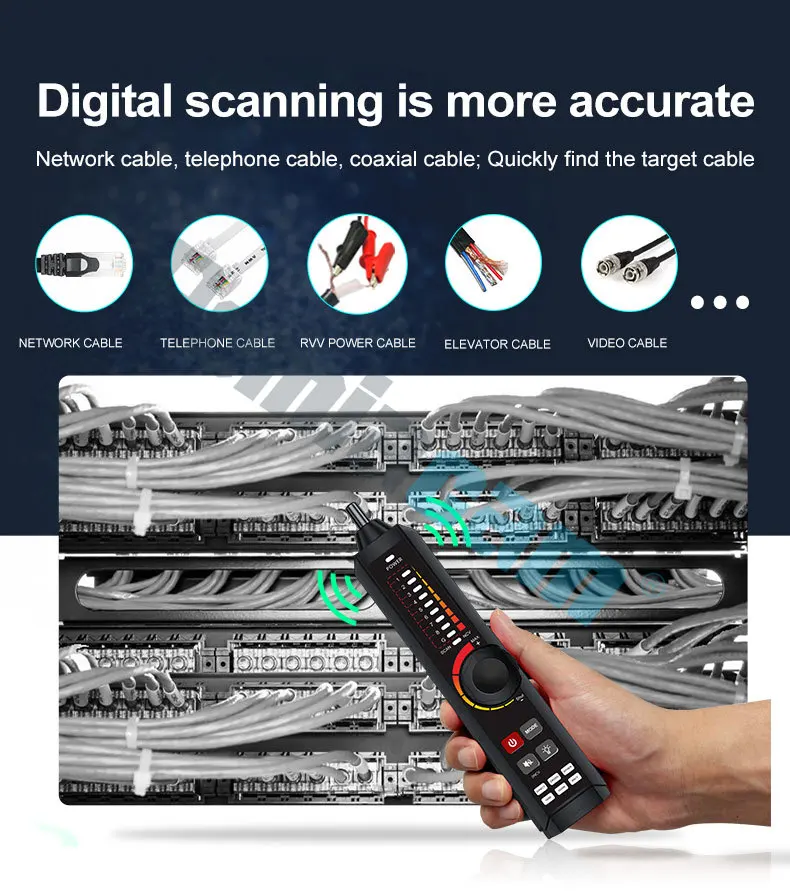

● Cable tracer, can search UTP cable, BNC cable from mess cable
● PoE detector, support IEEE802.3af/at/bt supply power protocol, measure the PSE power supply voltage
● Cable Length, max 600m

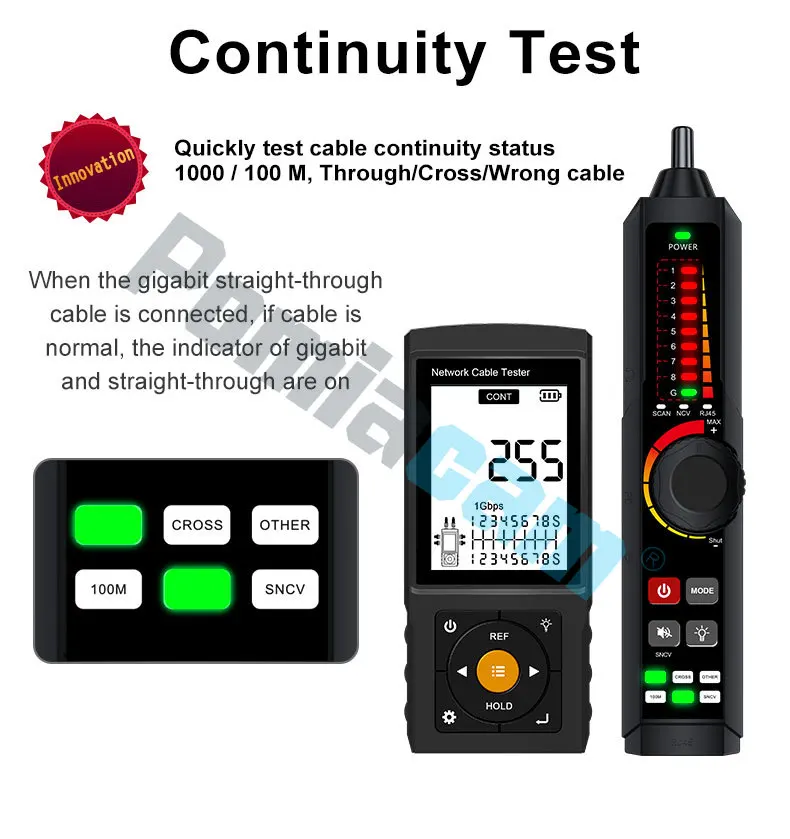

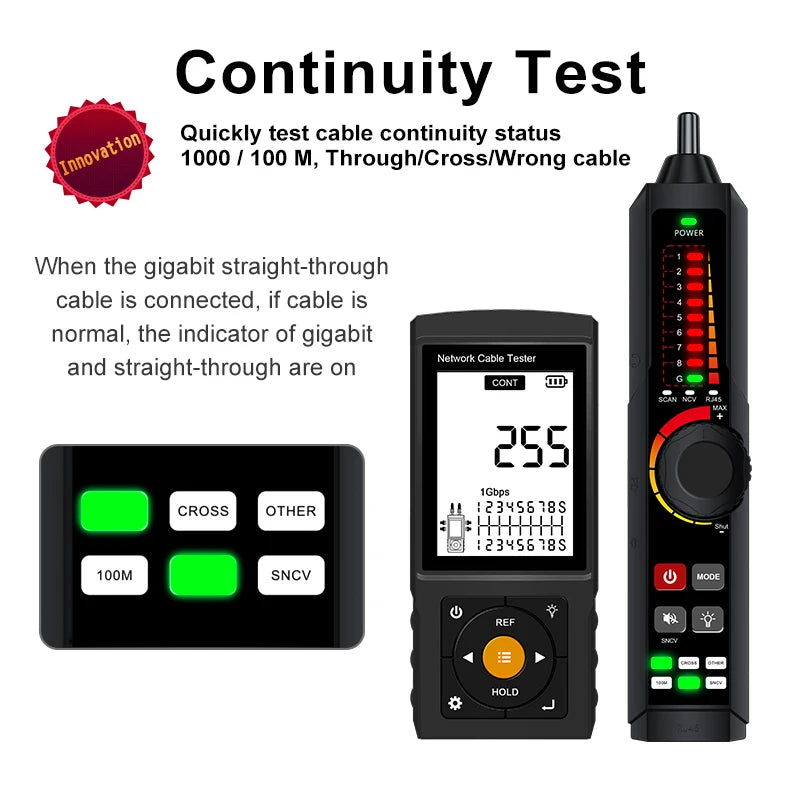

● UTP cable test, test cable’s sequence, type and remote kit
● Network cable short-circuit test and the fault point of RJ45 cable connector
● Optical power meter and Visual fault locator
Feature
● 3 inch screen, screen size 48*65mm
● Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily.

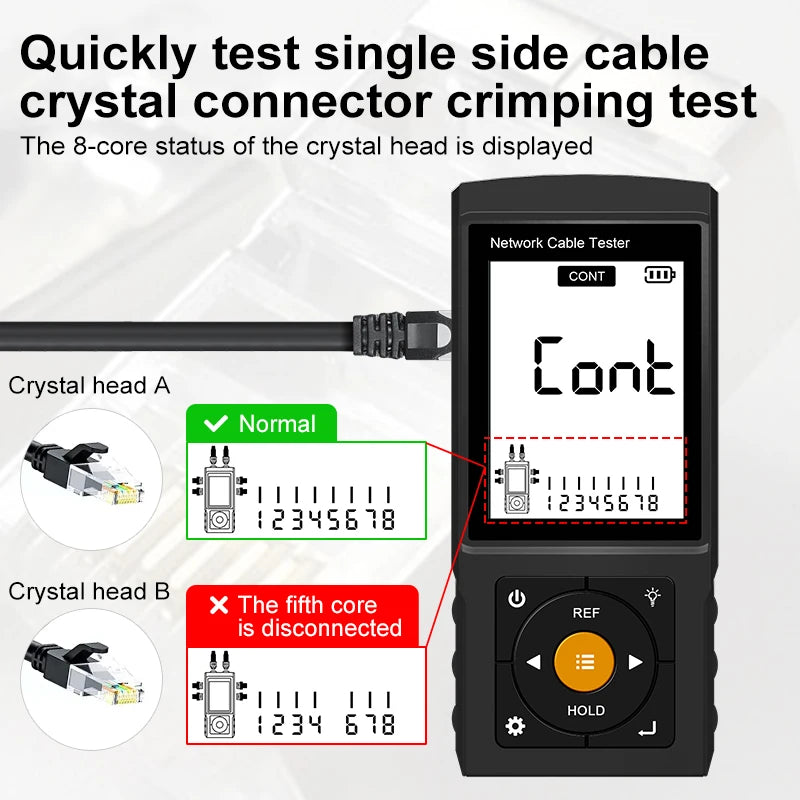

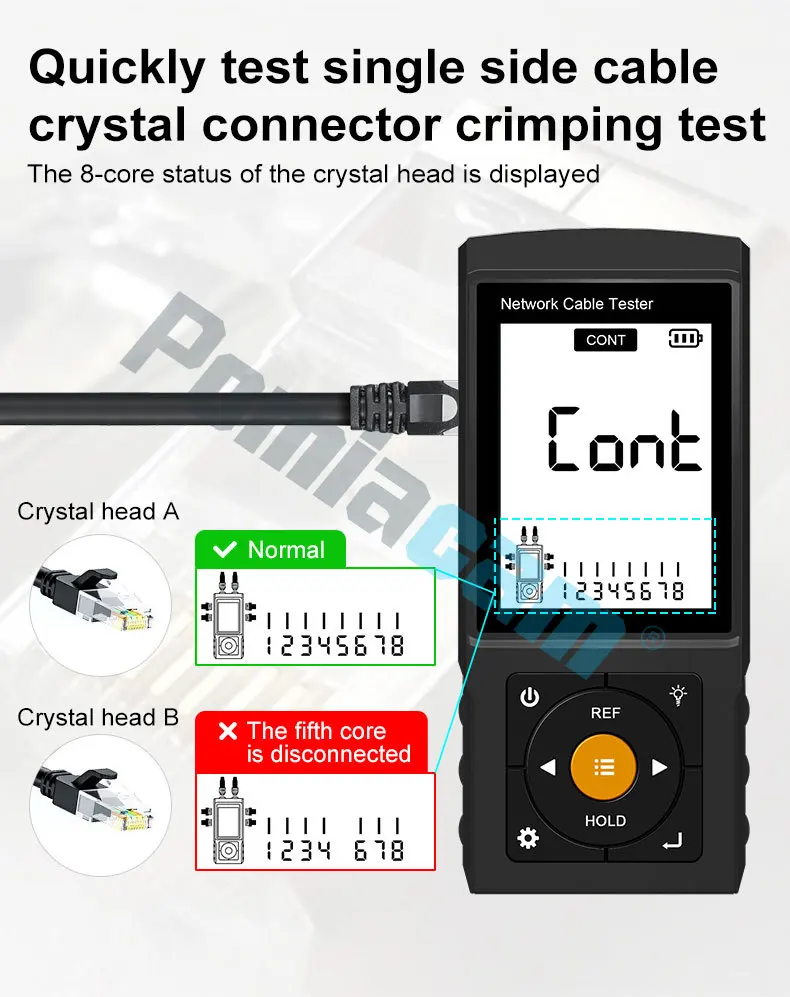

● Advanced UTP cable test, test UTP cable's sequence, type and remote kit, quickly detect the near-end, mid-end and far-end fault point of RJ45 cable connector.

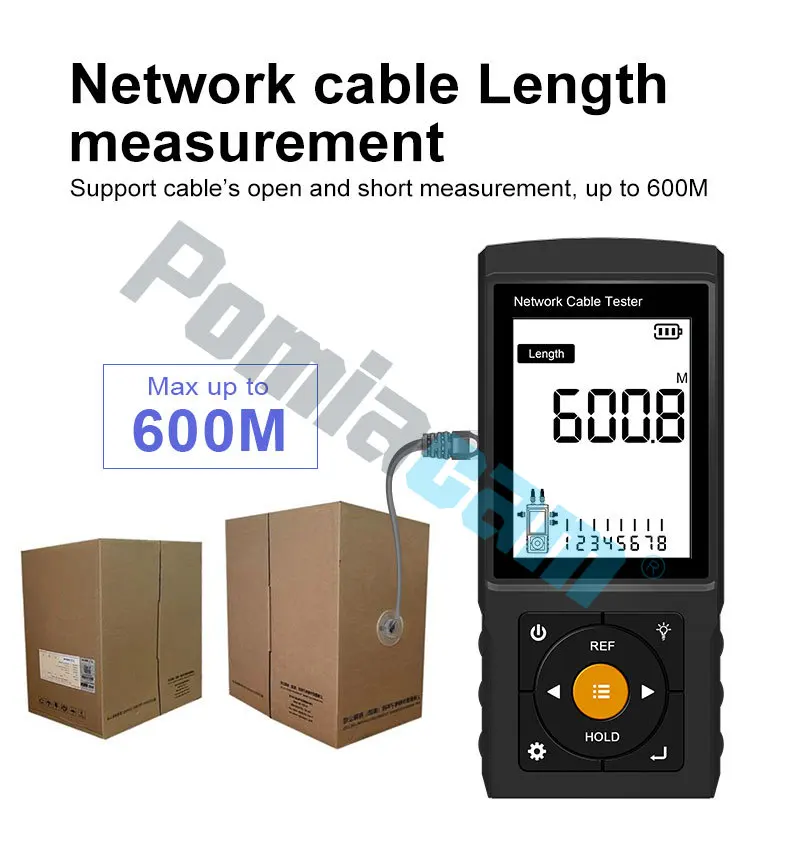

● RJ45 cable TDR test, test cable’s length, measurement range 600 meter.

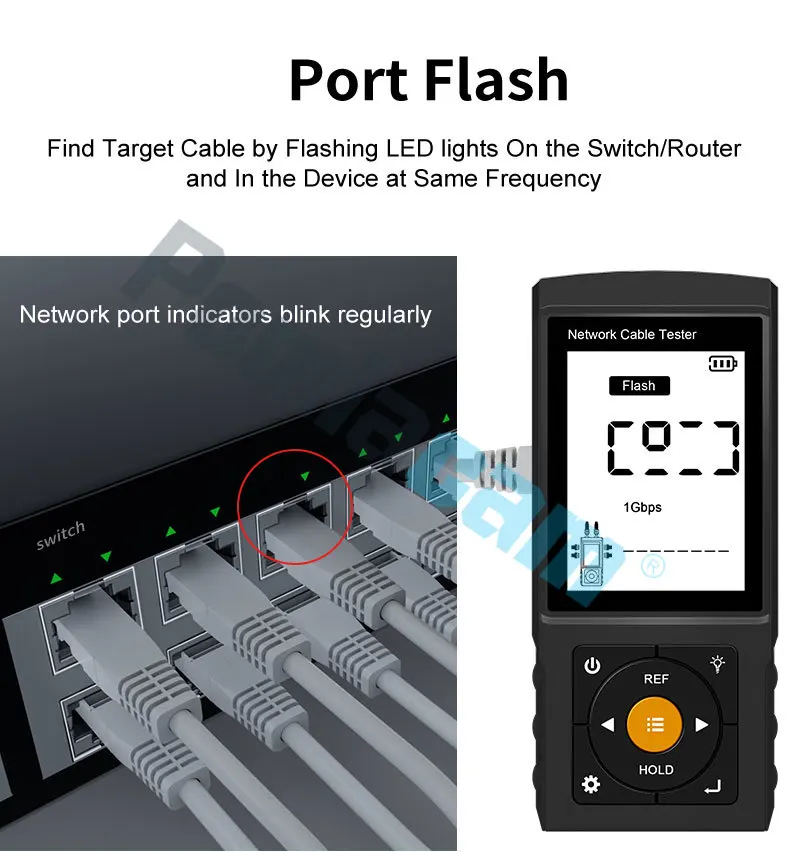

● Port Flash, can search the switch port which connect the meter, and detect the connected network port (100/ 1000M).

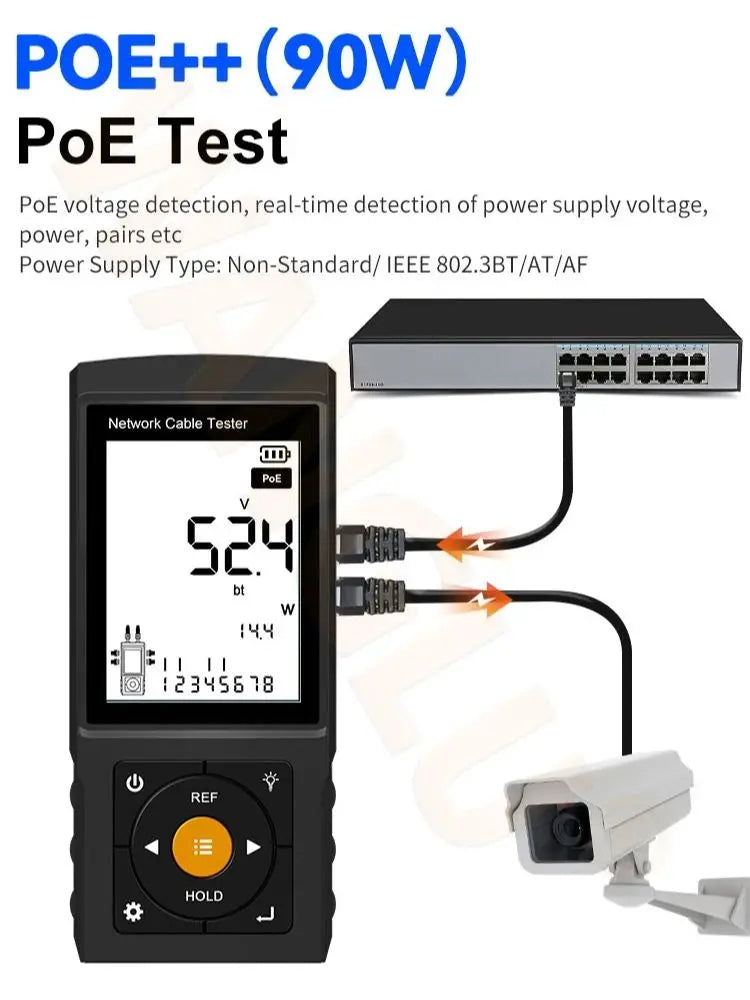

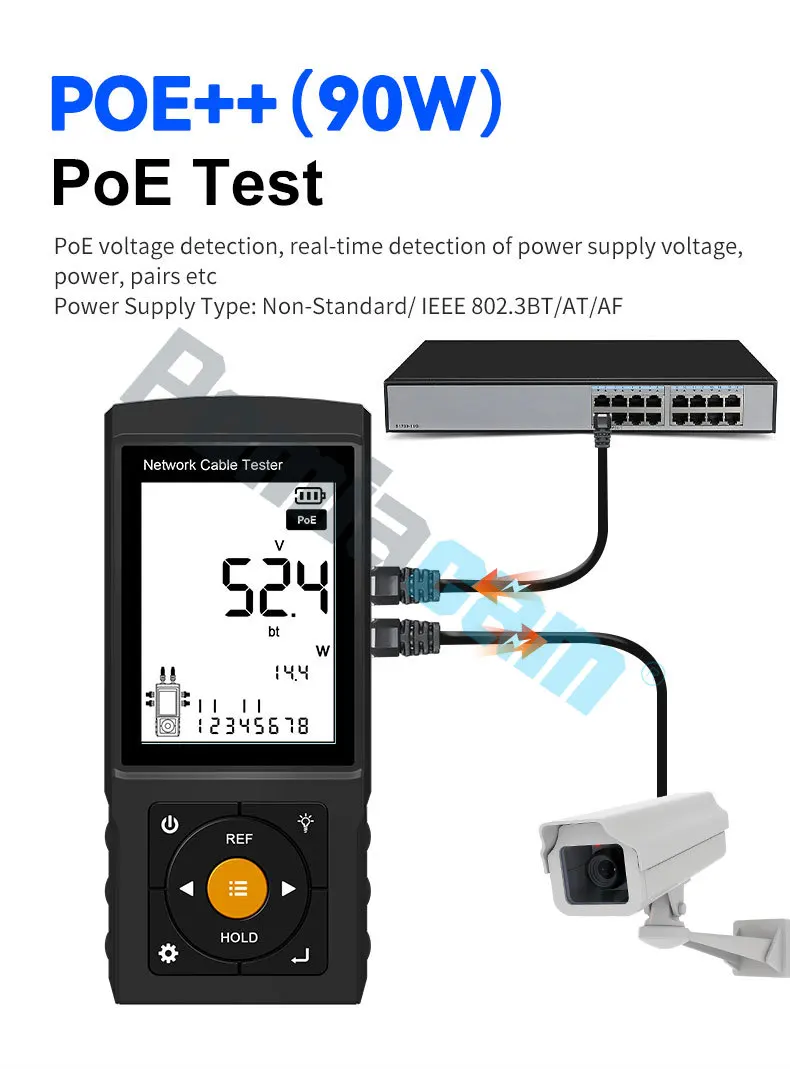

● PoE detector, support IEEE802.3af/at/bt supply power protocol.
● PSE IN and OUT, measure the PSE power supply voltage and power.

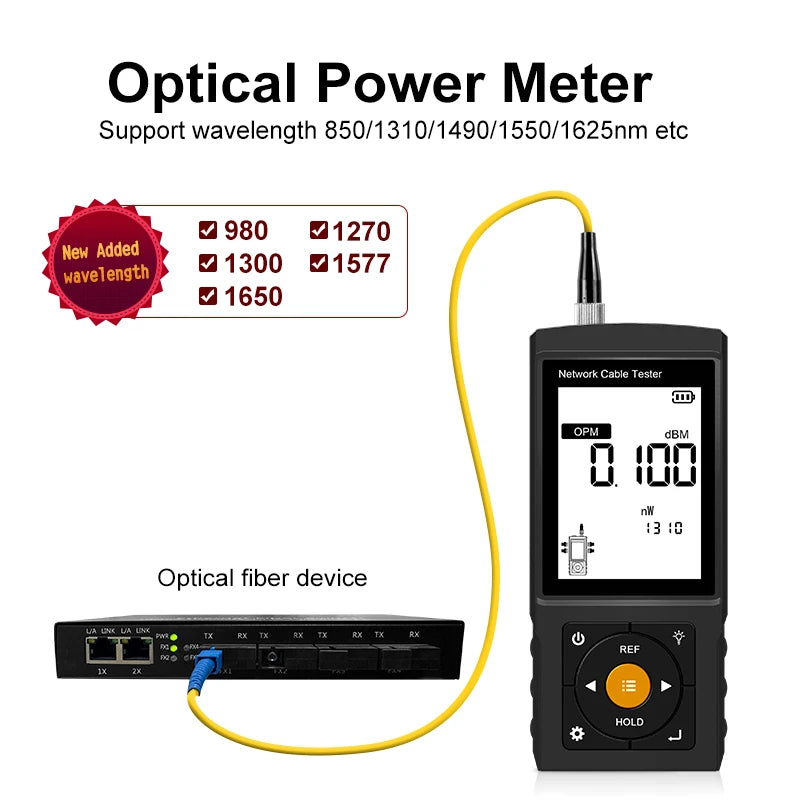

●Optical power meter, Wavelength 850/980/1270/1300/1310/1490/1550/1577/1625/1650 nm. Measurement range,-70 ~ +6 dBm, for optical power testing and Fiber link loss relative measurement.
●Visual fault locator, can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10 KM.

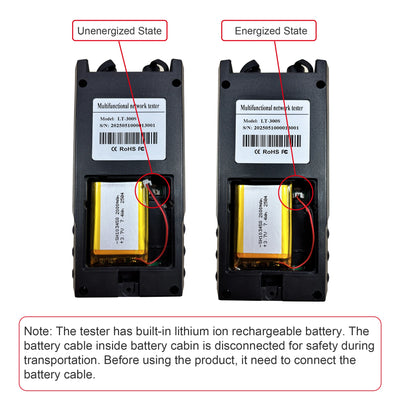

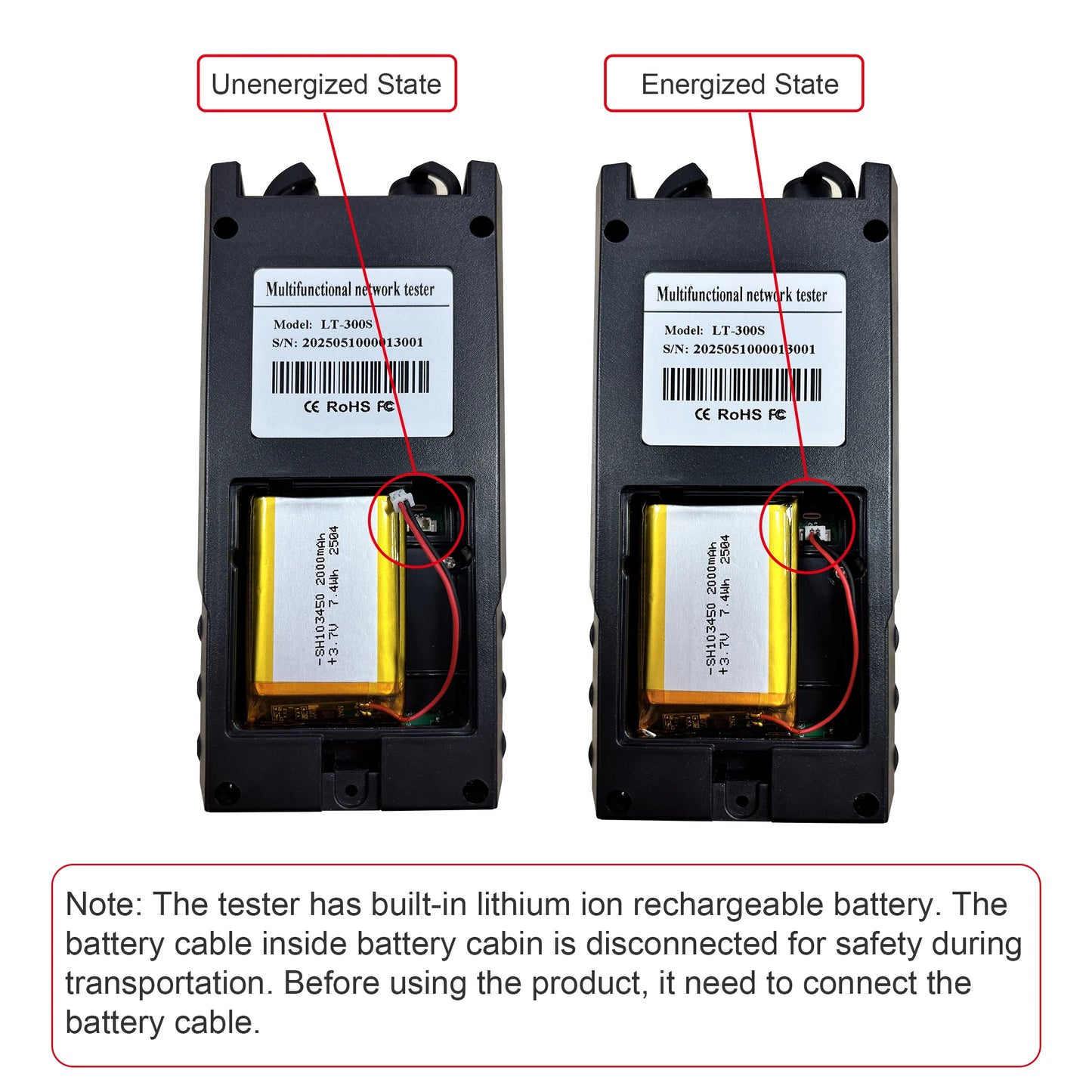

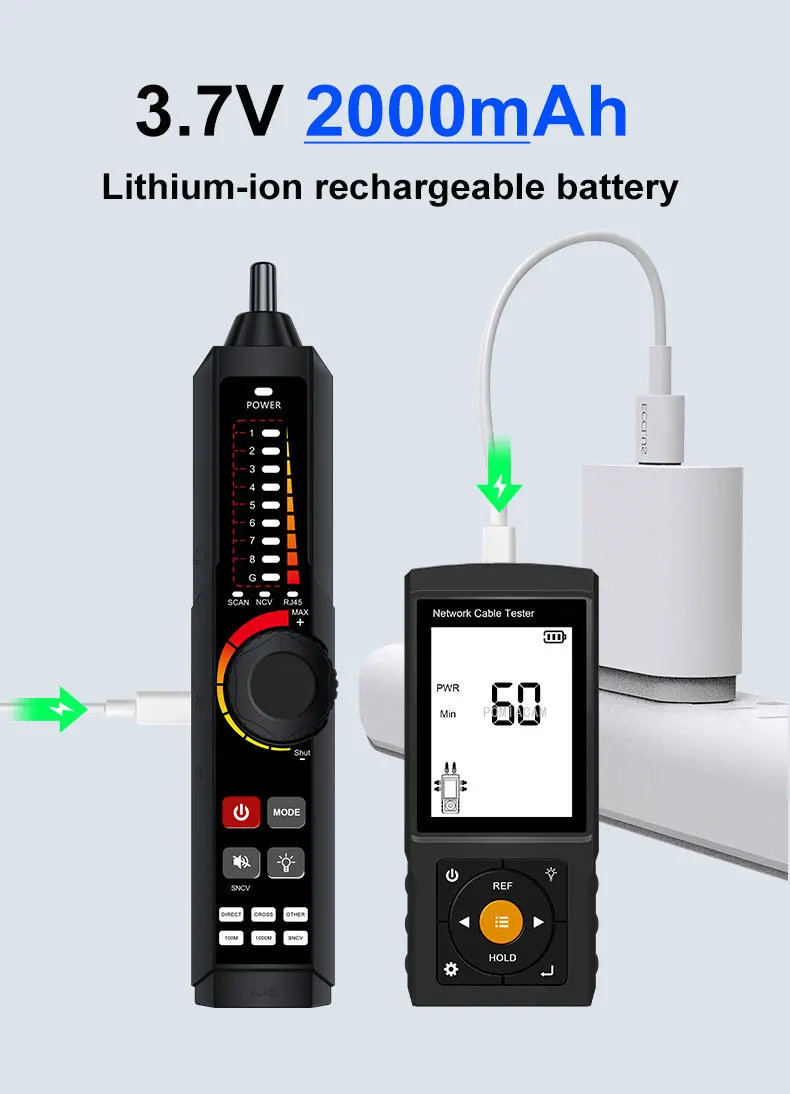

●3.7V 2000mAh Lithium Rechargeable Battery
Application

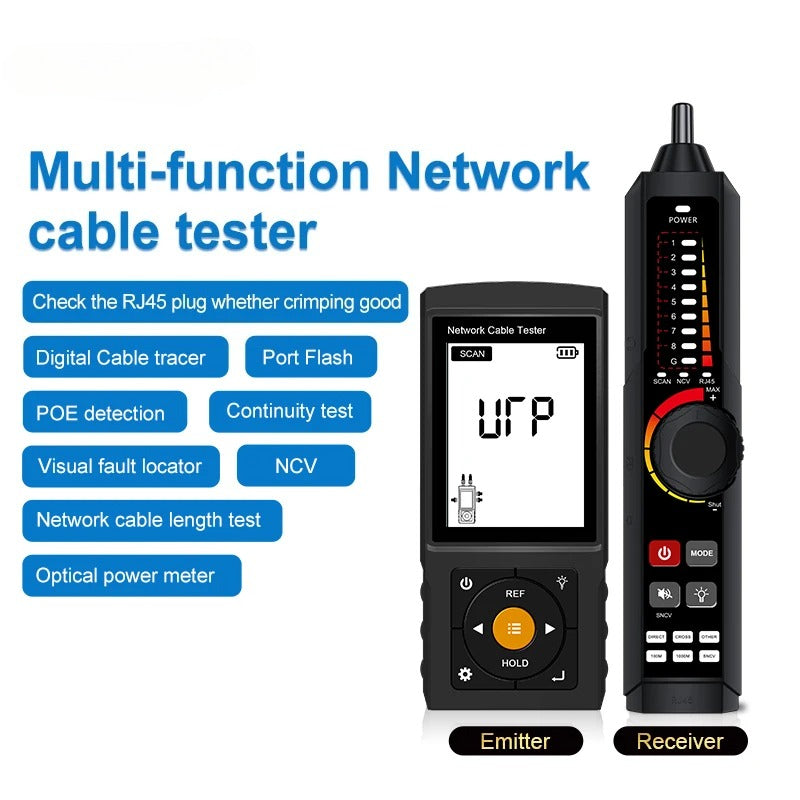

The multifunction Cable tester is designed for maintenance and installation of cable, cable tracer, optical power meter and Visual fault locator test in one equipment. The unit supports detect the near-end, mid-end and far-end fault point of RJ45 cable connector, and also supports PoE power supply protocol, measure the PSE power supply voltage and power. Installers and engineers take the all in one cable tester, making working conditions safer and increasing productivity.
● Network cabling project installation and maintenance
● Computer room detection and maintenance
Package Include
1) Cable Tester
2) Cable Tracer
3) Tool Bag/ SC, ST Connector
4) User Manual
