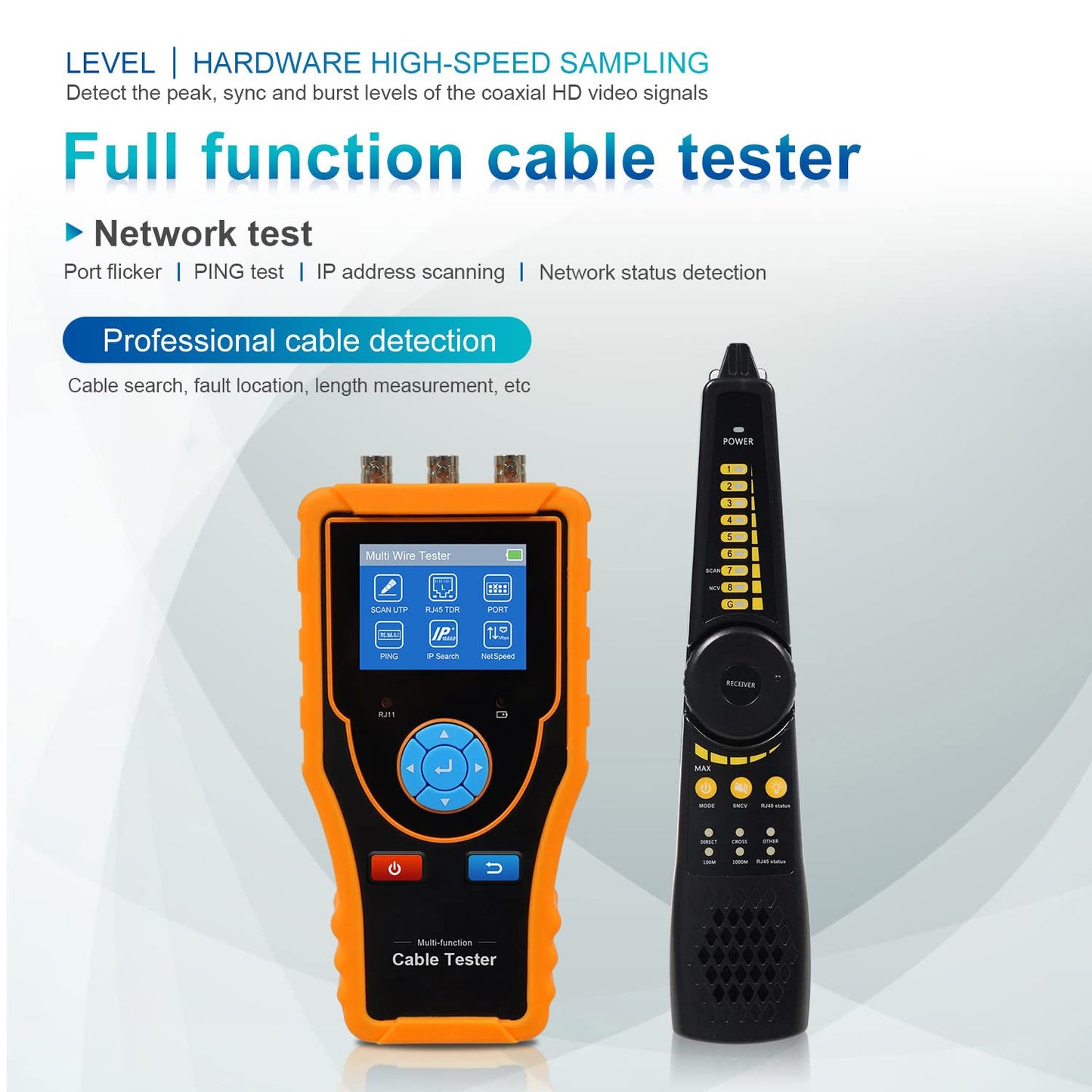

Network Cable Tester, RJ45 Cable TDR Tester Wire Tracker PoE Voltage Test Video Level Meter Test TDR Cable Tester for Cat6e Cat5e BNC Cable Telephone Line Open Short Length
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
LT-1200T: Cable Tester+Network Cable +TDR
● 2.4 inch TFT-LCD screen, 320x240 resolution
● Cable tracer, can search UTP cable, BNC cable from mess cable
● Port Flash, PING test, IP address Scan, Link Monitor, etc
● TDR Opens and short circuit test, the Max. distance is 1.2km *
● RJ45 cable TDR test, cable quality test
● UTP cable test, test cable's sequence, type and remote kit
● Can detect CVBS video signal peak value, SYNV value and burst value
Features:
● 2.4 inch TFT-LCD screen, 320x240 resolution
● Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily.
● Advanced UTP cable test, test UTP cable's sequence, type and remote kit, quickly detect the near-end, mid-end and far-end faultpoint of RJ45 cable connector.
● RJ45 cable TDR test, test cable quality, length and attenuation.
● Video level meter, can detect the CVBS signal peak value, SYNC value and burst value(Optional)
● Port Flash, can search the switch port which connect the meter.
● PING test, check whether IP camera or other network equipment's Ethernet port is working normally, the IP address whether is correct.
● IP Scan, quickly find the IP address of the IP camera or other network equipment which connected to the meter.
● Link status, quickly identify the connected network port (10/100/ 1000M)andduplex mode(full duplex / half duplex)
● TDR cable test 2.0, can test break point and short-circuit of cat 6e/5e (4 pairs), power line, BNC cable and Telephone line, etc. the Max. 1.2kmlength(Optional)
●3.7 V /2000mAh Lithium Ion Battery, after 3 hours charging, working time lasts 16 hour
