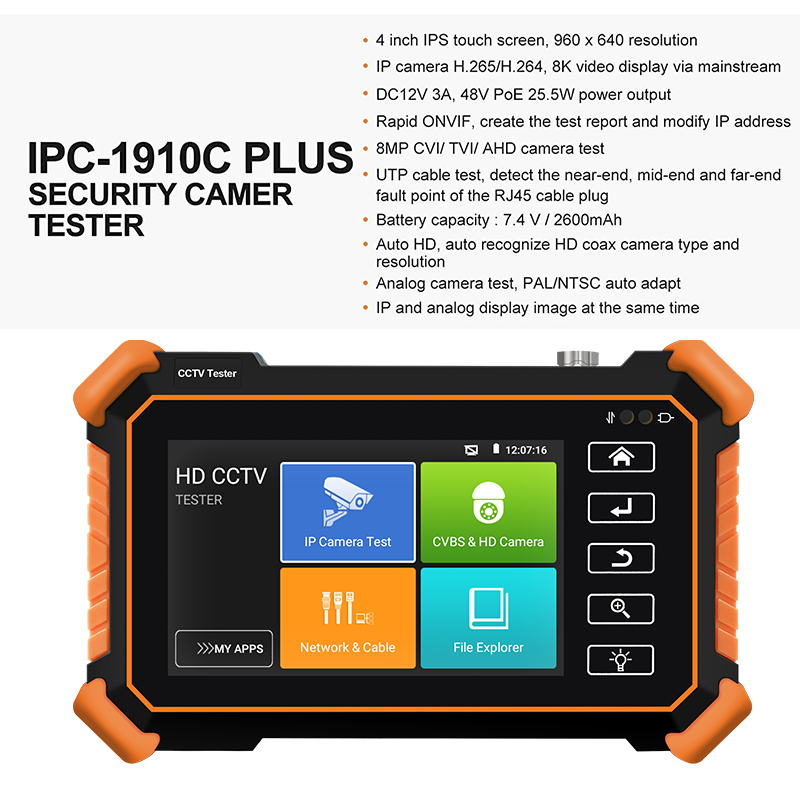

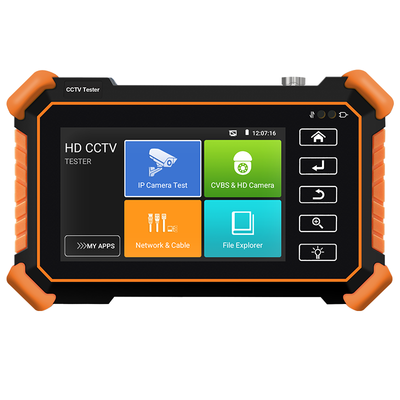

CCTV Tester,IPC-1910C Plus with Cable Tracer 8MP AHD CVI TVI CVBS IP Camera Test 8K HD Display Video Monitor 4 inch IPS Touch Screen IPC Tester Support H.265 POE PTZ WiFi RS485 Replace
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- 【Upgrade 8K Camera Tester】HD camera tester support max 4K 8MP 8K 32MP H.264/H.265 IP Camera test.In H.265 encoding mode,the main stream test image supports a maximum resolution of 8K/24FPS.Use the latest 9.0 Android version,so you can install the APP in it. Use it to make your installation simple and efficient.
- 【Coaxial HD CCTV Camera test】Support max 8MP(3840x2160P) TVI / AHD / CVI camera test, support UTC PTZ control and call OSD menu. Built-in "Auto HD" APP can automatically recognize the camera type when viewing HD AHD / TVI / CVI / SDI cameras. The IPC tester also support CVBS analog camera test. NTSC/PAL (Auto adapt). PTZ control, RS485 control,Baud 600-115200bps,compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic etc.
- 【Professional testing tools】 Built-in special tools for Hik and DH, support batches of fast setting of Hik and DH cameras. At the same time, it has built-in OVIF test tool and other brand camera test tools, which can be compatible with most existing cameras.Support PoE 48V, maximum power 25.5W, UTP cable test, POE/PSE test.Powerful network tools to help you detect and set various network parameters.

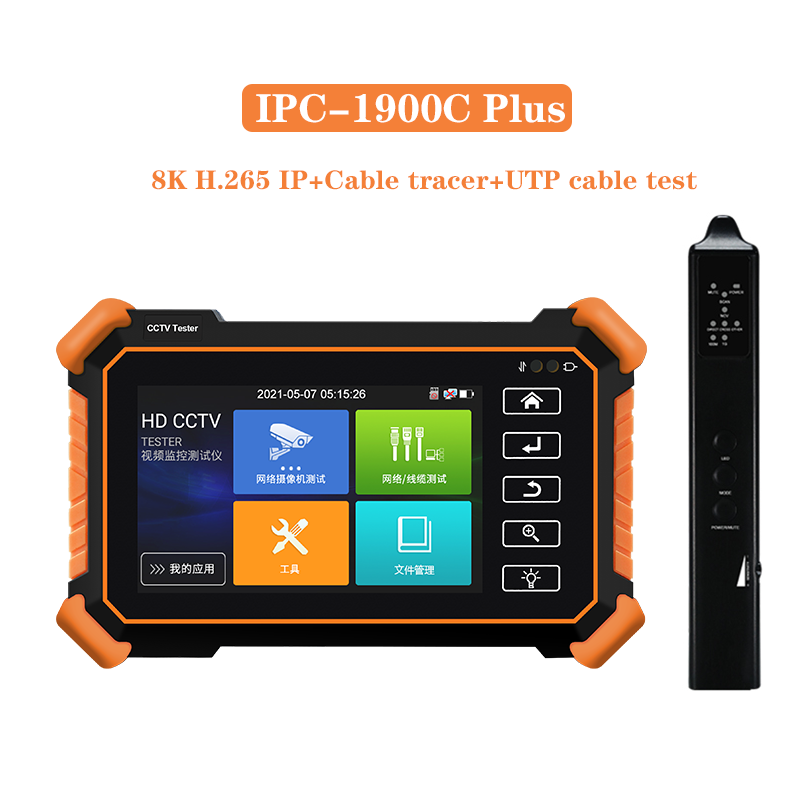

- 【More parameters&Cable tracer】 : With 4 inch IPS touch screen, 960x640 resolution. built-in 7.4V/2600mAh/19.24Wh battery.Normal working time 9 hours.Dual Ethernet port 10/100Mbps,Use Cable tracer to quickly find out the other end of the RJ45 or RJ11 cable from the messy cables in security maintenance and network engineering. Confirms ntework cable location, verifies cable continuity, and detects cable faults.
● 4 inch IPS touch screen, 960*640 resolution
● H.265/H.264, 8K video display via mainstream
● 8MP CVI/ TVI/ AHD camera test*(Optional)
● Auto HD, auto recognize HD coax camera type and resolution*(Optional)
● Analog camera test, PAL/NTSC auto adapt*(Optional)
● DC12V 3A, 48V PoE 25.5W power output
● Rapid ONVIF, create the test report and modify IP address
● High brightness LED light
● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
Feature:
Camera test:
●4 inch IPS touch screen, 960*640 resolution
● H.265 & H .264 IP, 8K video display via mainstream
● Analog camera test, PAL/NTSC auto adapt*(Optional)
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu*(Optional)
● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(Optional)
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(Optional)
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
●Rapid ONVIF, Auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan cameraimage, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
●AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name,can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. Support reset password and set video occlusion alarm of HIKVISION cameras.
● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name.
● IP and analog display image at the same time
●IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● DC12V/3A power output, camera can be powered from DC 12 Voltage.
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impendance, skew etc, can create test report
● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *(Optional)
Other Functions:
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
●TesterPlay: Tester, android version mobile phone and PC display at the same time
●Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
●Customers self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● SD card slot, support up to 32G, to save video, picture and other files
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
●7.4 V / 2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 9 hours

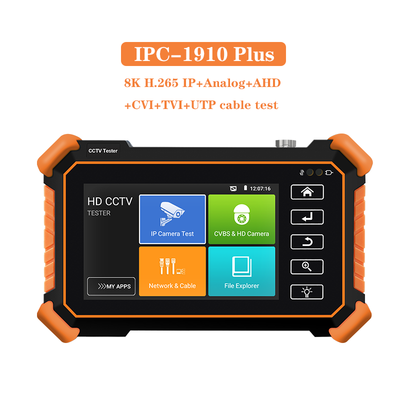

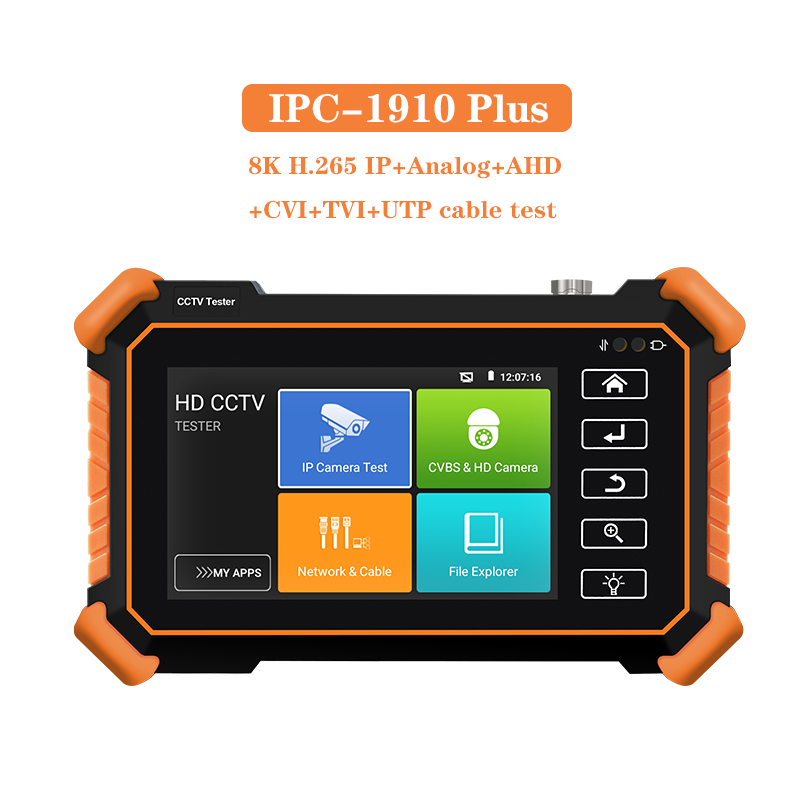

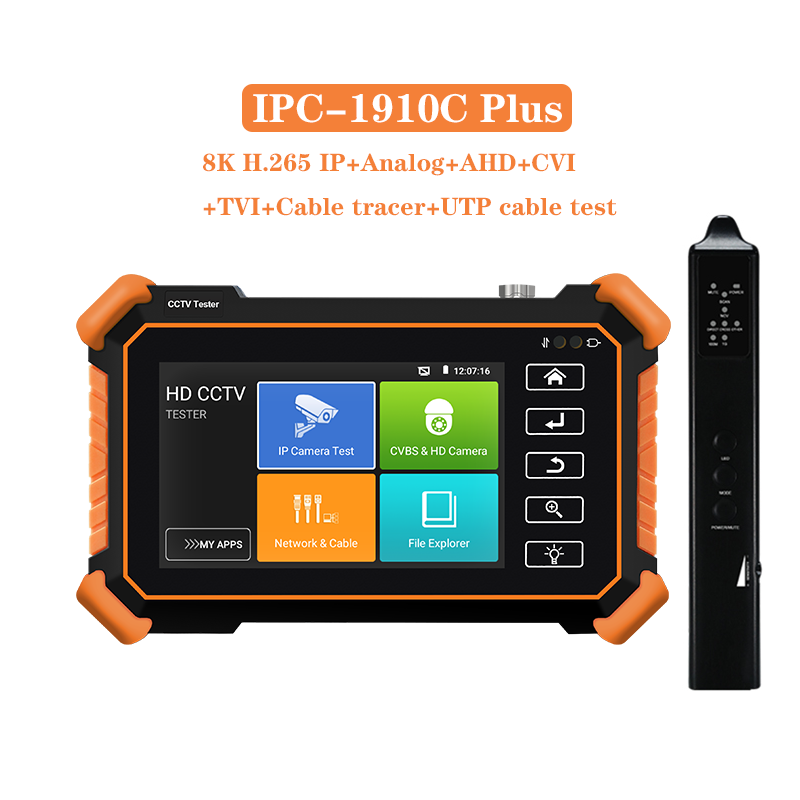

IPC-1910 plus
CCTV Tester,IPC-1910C Plus with Cable Tracer 8MP AHD CVI TVI CVBS IP Camera Test 8K HD Display Video Monitor 4 inch IPS Touch Screen IPC Tester Support H.265 POE PTZ WiFi RS485 Replace
4 inch CCTV Tester IP camera Monitor H.265 8MP AHD CVI TVI camera tester DC12V output New item WIFI PTZ UTP Cable CCTV Test
CCTV Tester IP camera Monitor 4 inch H.265 8MP AHD CVI TVI camera tester DC12V output New item WIFI PTZ UTP Cable 4K CCTV Test
cctv tester,camera tester,wifi tester,ip camera tester,cctv ip hd tester,cctv test,cctv monitor,ipc tester,cctv test monitor,hdmi tester,bnc monitor,tester cctv,4 inch monitor,camera display monitor,security monitors & displays,bnc cable tester,cctv ip hd tester,video signal tester,monitor for security cameras,cctv test monitor

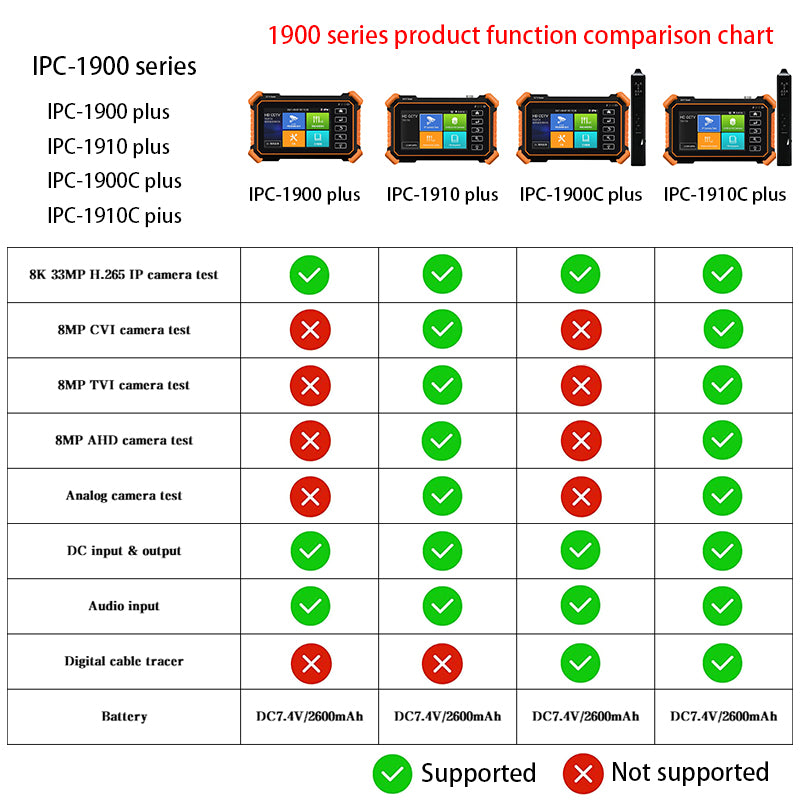

IPC-1910C IPC-5200C IPC-9800MOVTADHS X7MOVTADHS X9MOVTADHS
Screen size and resolution |
4 inch touch screen (960*640P) |
5 inch touch screen (1920*1080P) |
7 inch touch screen (1920*1200P) |
7 inch touch screen (1920*1200P) |
8 inch touch screen (2048*1536P) |
8K 32MP IP Camera Test |
✓ |
N/A |
N/A |
N/A |
N/A |
12MP IP Camera Test and TVI CVI ADH SDI CVBS |
Not support SDI camera test |
✓ |
✓ |
✓ |
✓ |
HDMI In/Out |
N/A |
Only HDMI input and VGA input |
✓ |
✓ |
✓ |
Digital Multi-meter |
N/A |
N/A |
✓ |
✓ |
✓ |
Optical power meter |
N/A |
N/A |
✓ |
✓ |
✓ |
TDR breakpoint test (hardware support) |
N/A |
N/A |
✓ |
✓ |
✓ |
Visual failt locator |
N/A |
N/A |
✓ |
✓ |
✓ |
Power Output |
DC12V/3A |
DC12V/3A |
5V.2A/12V.3A/ |
5V.2A/12V.3A/24V.2A |
5V.2A/12V.3A/ |
Dual Gigabit Ethernet Ports |
Single Gigabit Ethernet port |
Single Gigabit Ethernet port |
✓ |
✓ |
✓ |
