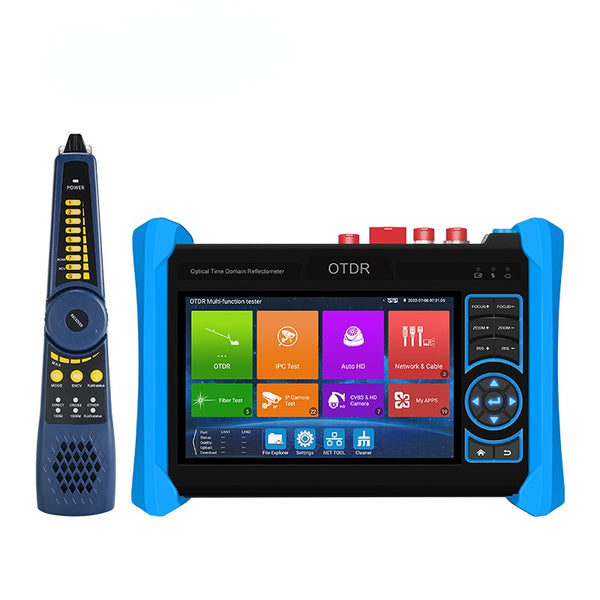

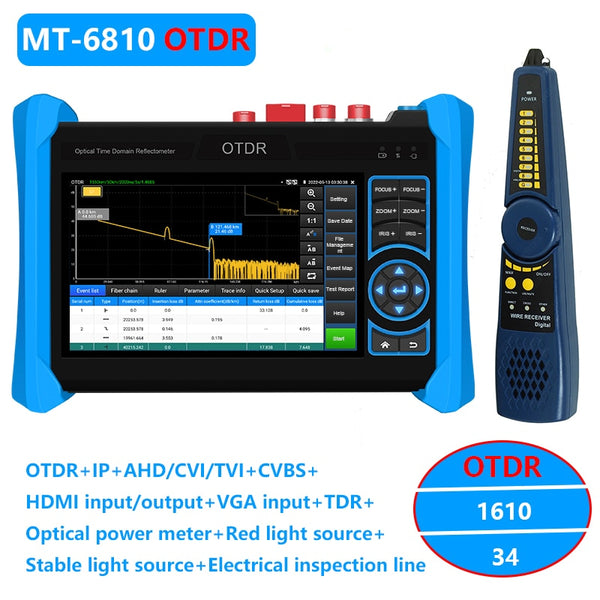

MT-6810 Multifunction OTDR CCTV tester 5.4 Inch IPS touch screen 8K H.265 IP+Analog+AHD+CVI+TVI camera test 2K VGA input
Impossibile caricare la disponibilità per il ritiro
Use this text to encourage communication or promote sharing on social networks.
5.4inch Cheaper handheld OTDR & 8K H.265 CCTV Tester with IP AHD CVI TVI OPM VFL cable tester
MT-6810: 8K H.265 IP + Analog + AHD + CVI + TVI camera test + 4K HDMI input & output + 2K VGA input+Digital cable tracer + Visual fault locator + Optical power meter+1310/1550 Dual wavelength
● 5.4 inch IPS touch screen,1920*1152 resolution+ New system
● 1310/1550 Dual wavelength, max test range 150KM
● Automatic analysis of various linkers/fusion points, easy analyze of various events
● Save and view the testing curves, support zoom and move curves, view details
● Support saving curves number ≥30000pcs
● Stable laser source, support CW/270/330/1000/2000Hz
● Loss test, detect the optical or optical components loss value
● Optical power meter and Visual fault locator
● Event Map, locate connection point/ fusion point
● Report saved as EXCEL, PDF, or screenshots format etc
● 8K H.265 IP camera testing, DH and Hik testing tool for brand camera testing
● TVI 5.0 support audio testing
● 8MP TVI CVI AHD camera test
● Support UCC menu control mode A-TYPE, B-TYPE select.New
● Support 4K 60FPS HDMI input, 4K 30 FPS HDMI output
● 2K 60FPS VGA input
● Improvement cable tester, UTP cable etc continuity test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● Digital Cable tracer, search BNC cable, network cable and telephone cable from the messy cables. Cable search and UTP cable test in the same interface
● TesterPlay: Support Internet remote control and voice intercom function
● Wifi Analyzer, Support 2.4G frequency band, wifi connection, wifi list, wifi information, wifi signal strength detection
● DC12V 3A, DC5V 2A, 48V PoE power output
● Network tool PRO: IP address conflict and switch port detection
New Features
● 5.4 inch retina touch screen, 1920*1152 resolution
● 1310/1550 Dual wavelength, max test range150KM
● Automatic analysis of various linkers/fusion points, easy analyze of various events
● Save and view the testing curves, support zoom and move curves, view details.
● Supportsaving curves number ≥30000pcs
● Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. Report saved as EXCEL, PDF, or screenshots format etc
● Loss test, detect the optical or optical components loss value
● Optical power meter and Visual fault locator
● Stable laser source, support CW/270/330/1000/2000Hz
Camera test:
● 8K H.265 video display via mainstream, analog camera tester
● 8MP TVI test,3840 x 2160P 15 fps,4xzoom, video record &playback, coax PTZ control & call OSD menu
● 8MP AHD test, 3840 x 2160P 12.5F/15fps, 4xzoom, video record & playback, coaxPTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxPTZ & call OSD menu
● Support4K 60FPS HDMI input, 4K 30 FPS HDMI output
● 2K 60FPS VGA input
● IPC TEST PRO app, camera test often need to open multiple apps,"IPC TEST PRO" app
● Rapid ONVIF, auto log in and display image, create testing report
● Chrome browser, test and set Axis camera
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● IPC TEST (Non-ONVIF test)
● DC12V/3A power output,camera can be powered from DC 12 Voltage
● 48V PoE power ouput
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc sequence andcontinuitytest, save testing report.Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● RJ45 cable TDR test,test cable pair status, length, attenuation, reflectivity, impedance, skew etc, max test 180M
● Cable tracer,search BNC cable, network cable and telephone cable from the mess cables
● Larger Lithium Ion Polymer Battery, 2.5 hours faster charging, working time lasts 11 hours
