4inch Handheld CCTV Tester IPC 9310 8MP CVI TVI 5MP AHD Video Monitor Built-in Wifi CVBS IP Camera Tester UTP Test Tool
IPC9310S CCTV tester monitor
The instrument adopts a smart operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring equipments, the instrument adopts a 4-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. It is built in a variety of network tools including PING, IP address scan, and standard PoE power output, DC12V/3A power output, it is an essential tool for security monitoring projects and integrated wiring projects.
New update:4.5inch display : 4.5 inch 960*540 HD IPS touch screen display .
ADD HDMI-out: HDMI output .
ADD USB port : DC12V 2A Output.
9310S support : 5MP AHD +8MP TVI +8MP CVI +CVBS+ IP +cable tracker (optional)
Product Model :IPC9310 HD Video Monitor Tester .
Touch Screen :4 inch capacitive touch screen .
LCD Screen:4 inch resolution 800 × 480 IPS HD full view .
Ethernet Port :10/100/1000M adaptive .
WIFI :Built-in wireless WIFI, speed 150M .
H.265 Mainstream test : Support H.265 mainstream display camera video, resolution up to 4K .
Dahua test tool : Dahua camera batch activation, batch IP modification, cross network segment IP modification, modify username and password .
Coax HD Camera test:
Support HD TVI 8MP resolution 3840 X 2156 15P .
Support HD CVI 8MP resolution 3840 X 2156 15P .
Support HD AHD 5MP resolution 2560 X 1920 15P .
PoE Power Output : 48V standard PoE output, max 25.5W .
Photo, Video and Playback : Support all camera videos photo taking, video recording and stored as H264 format .
PSE Voltage test: Display PoE power supply device voltage and circuit conditions .
UTP Cable test : Test any 2 cable core connection sequence and on-off status .
PTZ Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols .
DC12V Power Output : DC12V power output, max current 3A, provide temporary power for cameras .
IP Camera test :ONVIF (support PTZ operation), major camera brand IPC tool customization, display video by private protocols, almost support all brand cameras in the market .
CVBS Analog Camera test: 1 channel CVBS analog signal input, support PAL/NTSC format adaptation .
Lens Simulation: Simulate '2.8/3.6/4/6/8/12/16/25mm' lens image display area .
Focus Information test : Camera focus information and image quality test .
IP Discovery : Full network segment IP scan to discover camera IP addresses .
HIKVISION SADP tool: HIKVISION camera batch activation, batch IP modification, be able to modify username and password.
RS485 Serial Port tool : Send or receive any data and hex data .
Power Charger: DC 12V/2A input, 3-4 hours to fully charge the battery .
Battery: Built-in 7.4V polymer lithium battery, capacity 3200mAh, can work continually for 8-10 hours .
Language : Chinese Simplified, Chinese Traditional, English, Russian, etc. more than 10 languages .
Internal SD Storage : 8G .
Working Temperature: -10℃--+50℃ .
Working Humidity : 30%--90% .
1.2 Features
4.3-inch full view IPS HD screen resolution of 800 ×480, PPI up to 216
display backlight brightness is adjustable up to 500cd, display contrast 800: 1
using G + G structure capacitive touch screen , hard wear-resistant , corrosion-resistant, high transmittance
NTSC / PAL analog CVBS video image display , zoom , video recording , photo.
10 / 100M Ethernet interface , built-in 150M WIFI wireless capabilities
support H264 / MPEG4 / MJPEG format network camera test , maximum resolution to 1080P
high definition hardware decoder for displaying cameras high-definition images in real time smoothly.
support display ONVIF network camera image and modify parameters
Support network cameras privite protocols test of multiple manufacturers such as Hikvision, DAHUA , ACTI, NCR , can be customized to add
Support PELCO-P, PELCO-D, SAMSUNG etc 30 kinds of PTZ control protocol

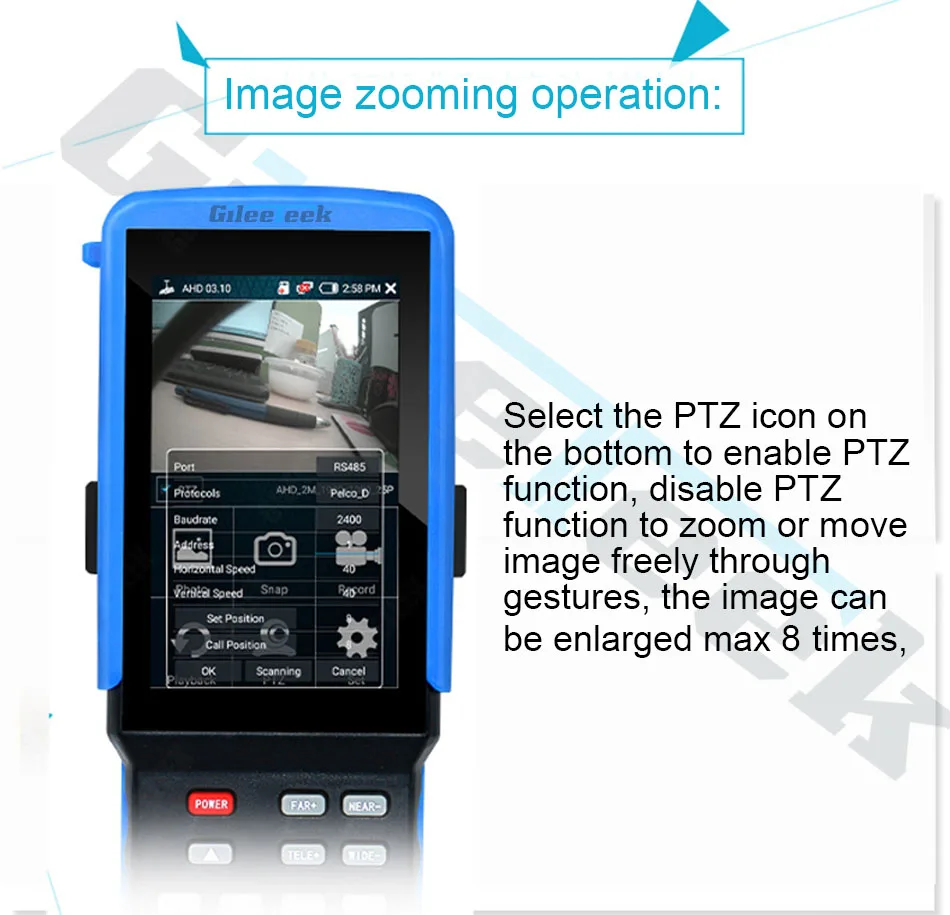

support high-definition video images in real time zoom , maximum zoom 5x
Internal SDCARD 4G storage space , removable external MicroSD card
Built CVBS color bar output function, can be used to test and debug the monitor
IP address scan function , you can quickly search the web camera IP address
PING function, to test the network connection status of the target IP address.
PoE voltage test , test PoE switch power supply status
DC12V / 3A power output , self-recovery short-circuit protection , provide power for a variety of cameras including PTZ
bright white LED, easy to use in dark area
HDMI high-definition image output , support 1080P 60fps
7.4V 3000 mAh high-capacity polymer lithium battery , once charge 5 hours, can use continuously for 12 hours.
1.3 Introduction to functions
1.3.1 Smart desktop system

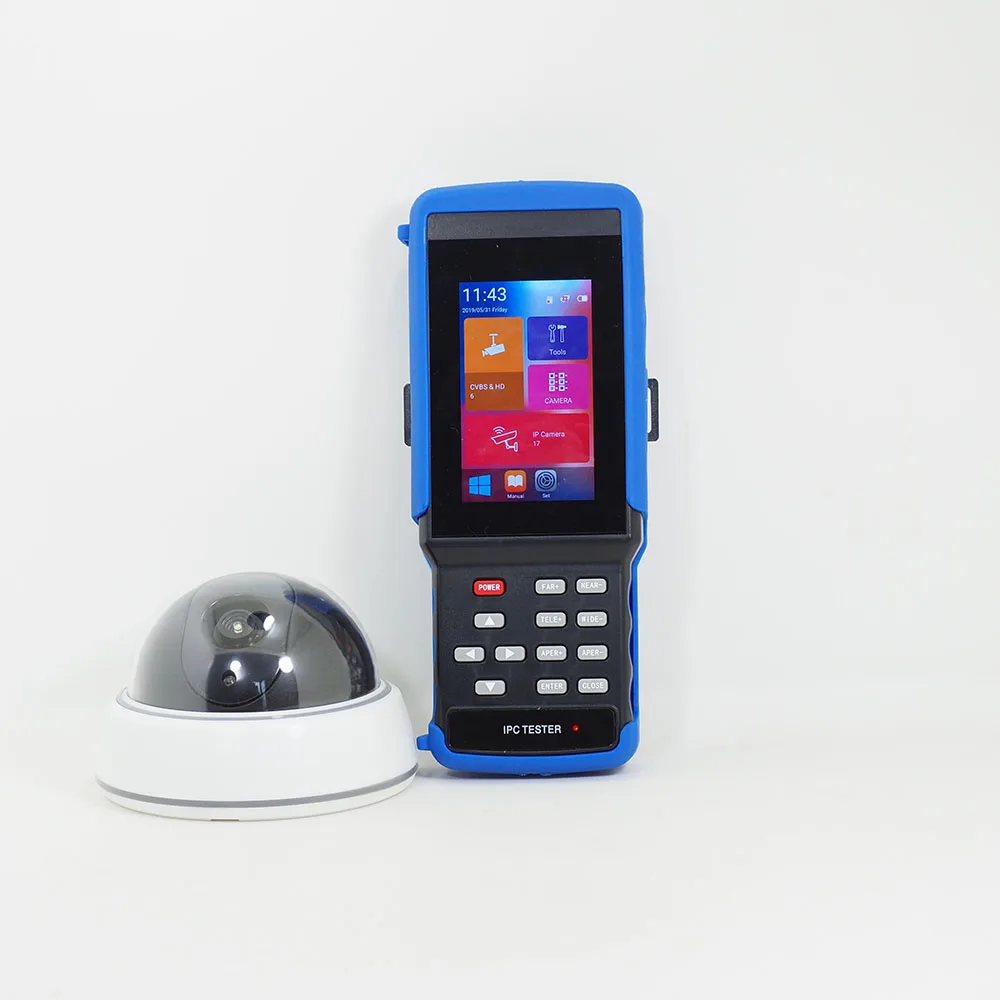

The instrument uses capacitive touch and touch slide operation , easy to operate. you can touch directly to enter the desired function . Users can also custom desktop icons , and color style according to their own needs and habits . It can display battery level, charging status , network connection status , external SD card status etc.
1.3.2 Power management
The Instrument core module uses TI industrial-grade power management chip , with the features of high stability and reliability. The instrument uses 7.4V 3000mAh polymer lithium battery. Its External input power supply is 12V / 3A.
The instrument can provide temporary power for external camera , can provide 12V / 2A power output for the ordinary camera, also can provide 48V / 24W standard PoE power supply for network camera that supprots PoE power supply ,which greatly facilitate the installation and maintenance of engineering staff
1.3.3 Video Test
Video Test module consists of the following modules:
CVBS analog monitor test AHD4.0 TVI4.0 CVI4.0 8MP 5MP 4MP 1080p 720p 960p
Speed ONVIF Test

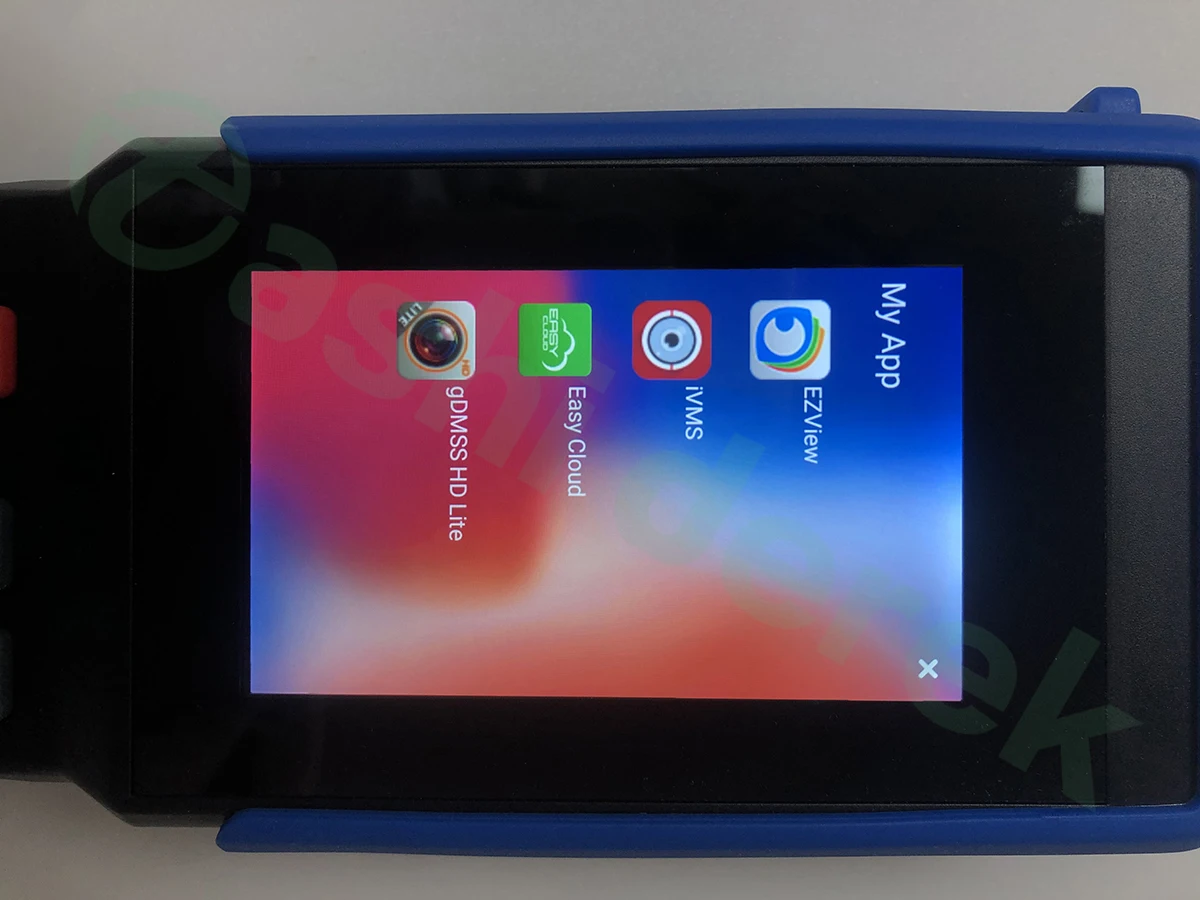

IPC VIEW official mobile client
1.3.4 Network Tools
IP address scan function network
PING function
DHCP function
port blink function
1.3.5 Test Tools
PoE voltage test
1.3.6 Media Applications
browser
Picture Viewer
Video Player
HDMI output
1.3.7 Practical Tools
Serial ports Tools
flashlight
Calculator
office software
notes notepad
1.3.8 System function
document management services
10 / 100M adaptive Ethernet
150M WIFI Internet access module
set or automatically update the date and time
dormant standby time
backlight brightness adjustable
regular shutdown
language settings
Instrument Version Information
