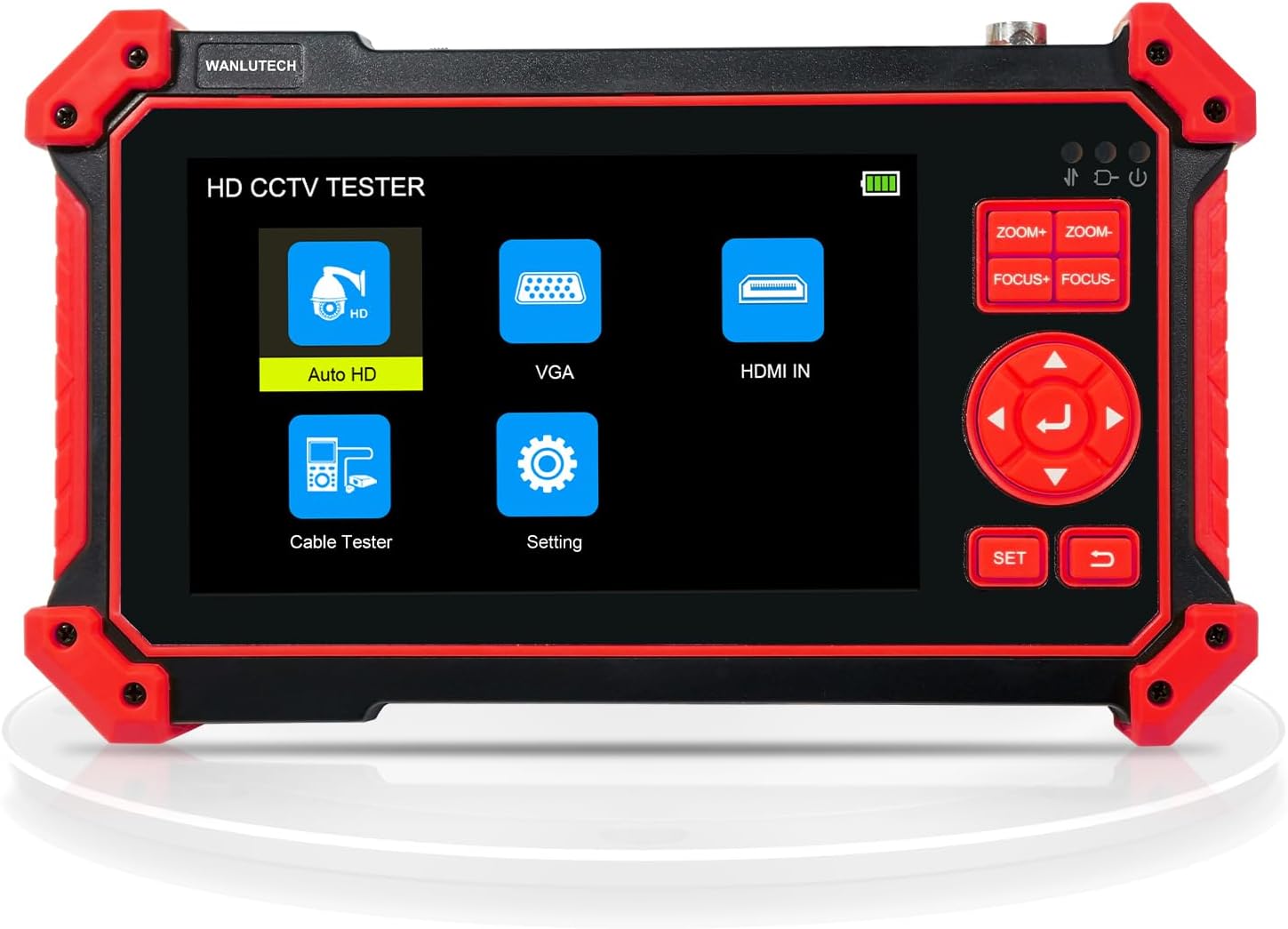

HD-2950 CCTV Camera Tester 8MP TVI CVI AHD CVBS Analog Camera Tester 5inch HDMI&VGA in PTZ Control Audio Test 12V Power Output
Prezzo standard
$85.00
Prezzo standard
Vendita
$159.99
Prezzo di vendita
$85.00
Impossibile caricare la disponibilità per il ritiro
Use this text to encourage communication or promote sharing on social networks.
Model：HD-2950 (This model does not support test IP network camera)
Screen/Resolution：5 inch TFT-LCD screen / 800*480 resolution
CVBS：1 channel BNC input, NTSC/PAL (Auto adapt), PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic, etc

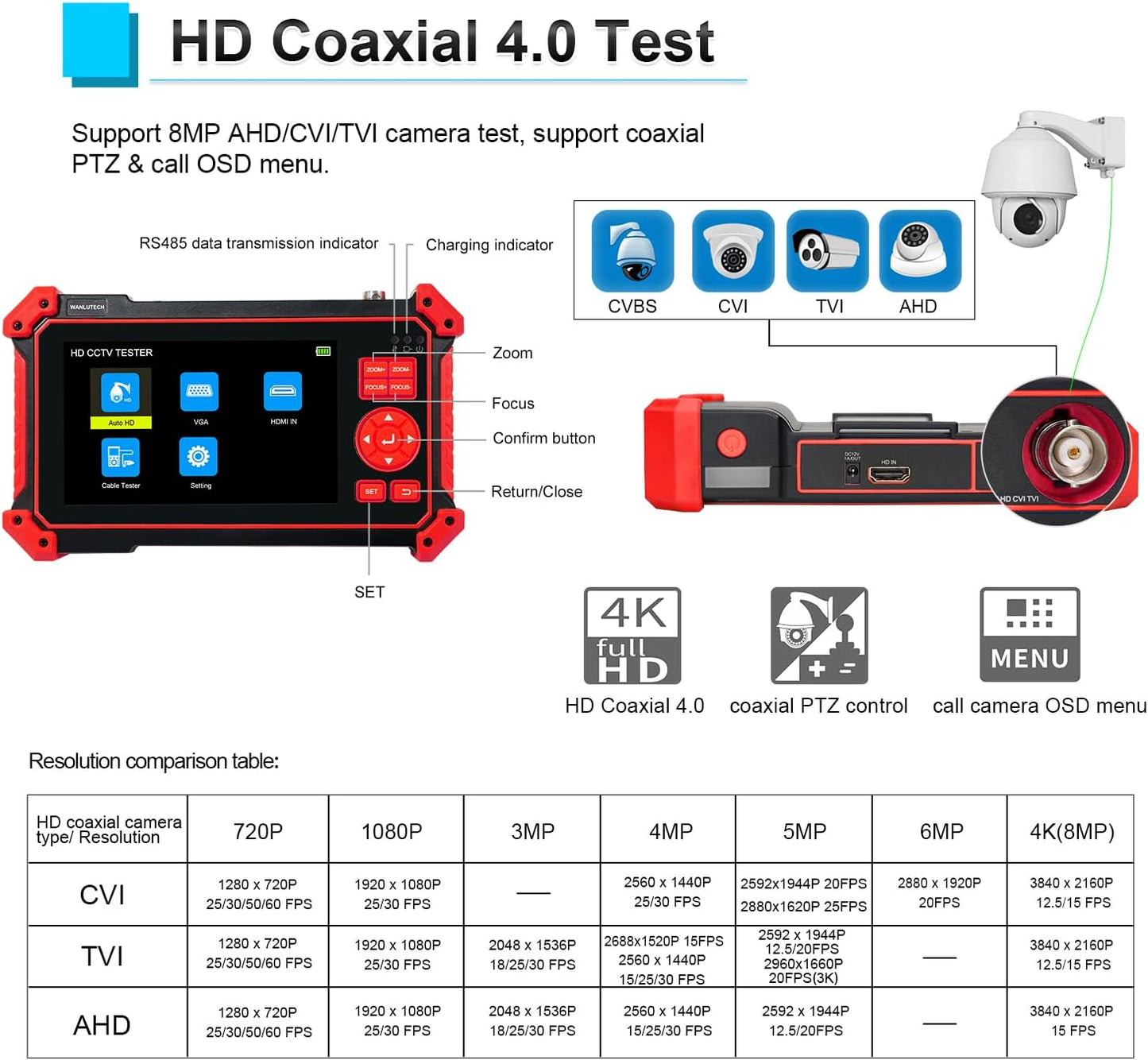

AHD CVI TVI camera test:
MAX 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS,
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,
8MP AHD test, 3840 x 2160P 15FPS,
support UTC control and call OSD menu.
Auto HD app:Connect camera to “AHD/CVI/TVI” port, enter “HD” app. The tester can auto recognize AHD/CVI/TVI signal and display the image, as well as display the camera type and frame

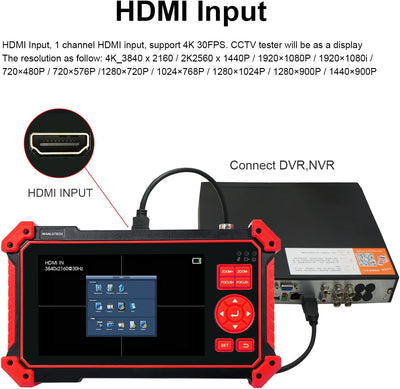

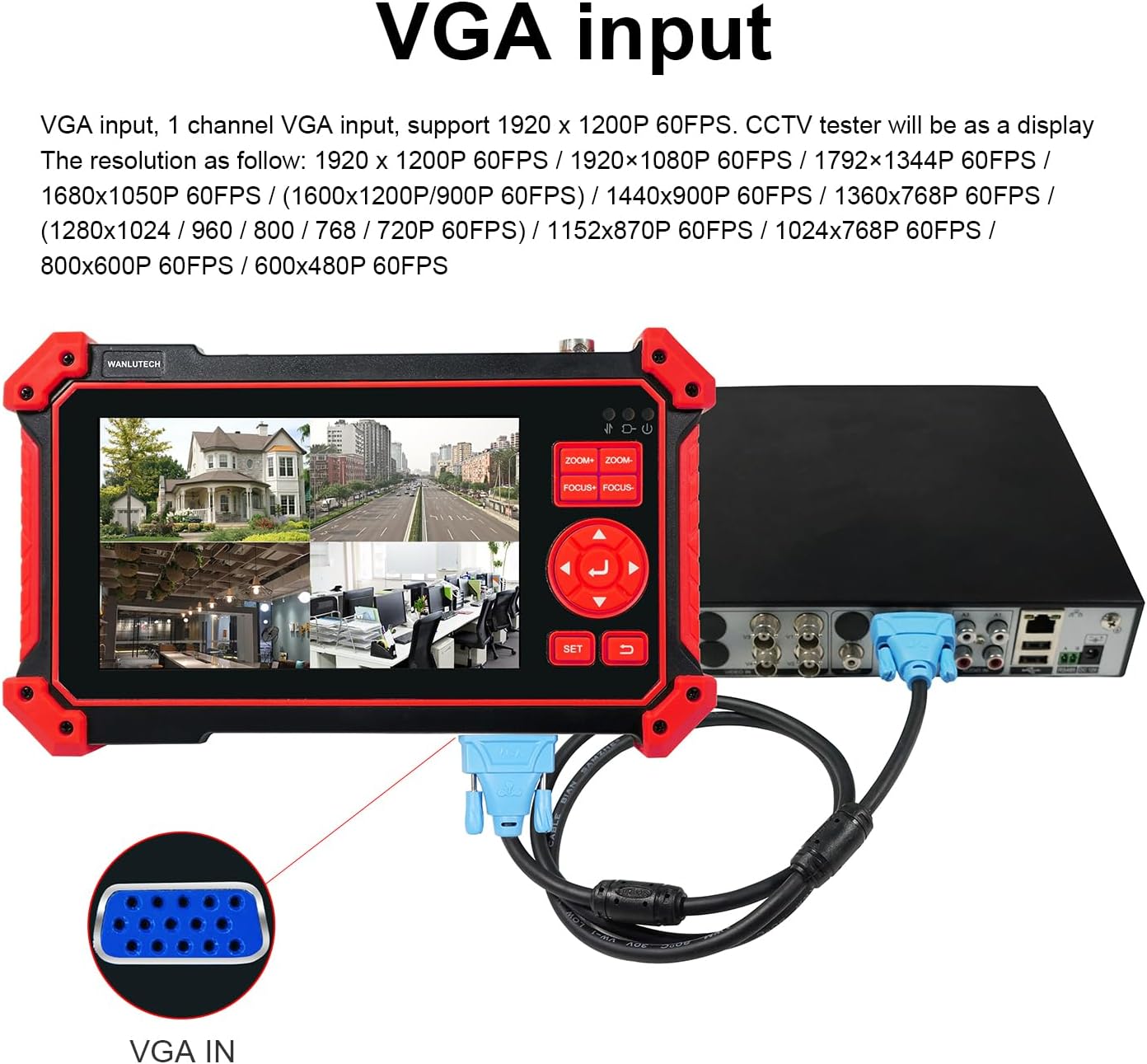

HDMI in / VGA in:1 channel HDMI input, support 4K 30FPS, 1 channel VGA input, support 1920 x 1200P 60FPS
Power output: DC12V/1A, supply temporarily power for the camera.
Power input: DC5V/2A

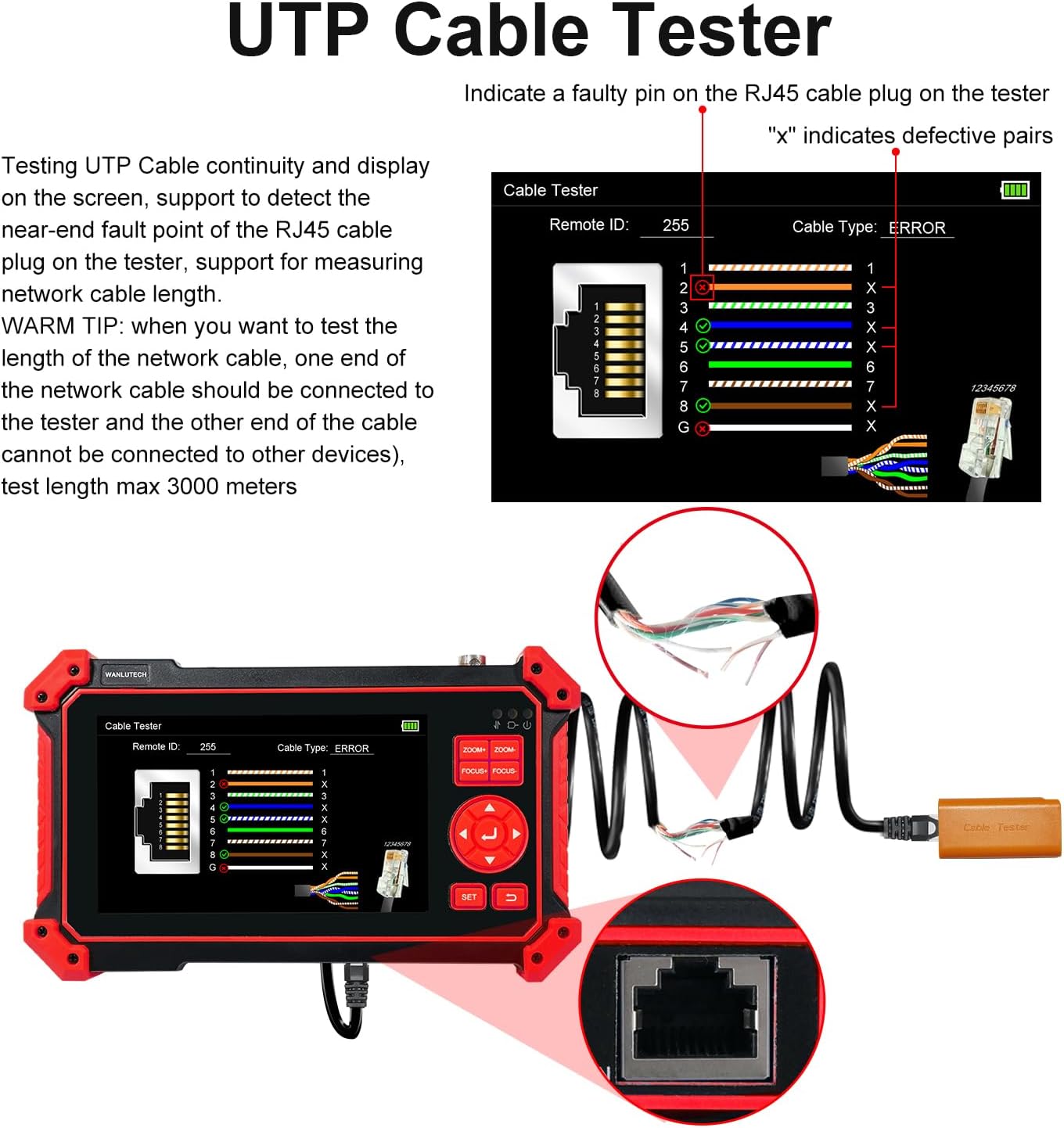

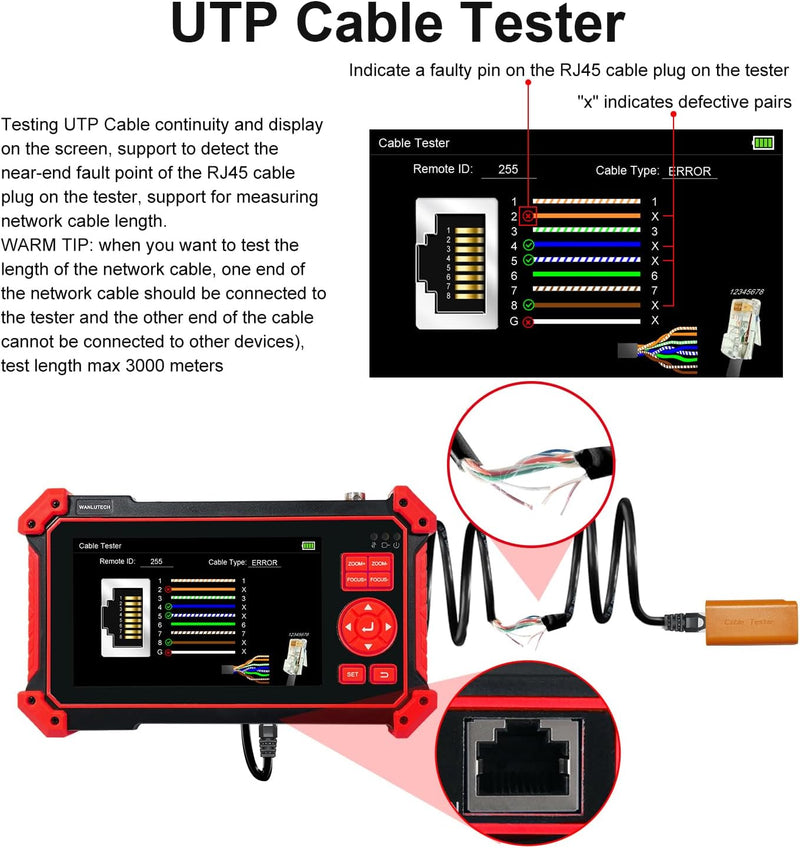

UTP cable test:UTP cable continuity test, support to detect the faulty pin point of the RJ45 cable plug on the tester, support for measuring network cable length
Other Functions:The CCTV camera tester has LED lighting for working in the dark
Battery:Built-in 3.7V Li-ion battery, 4000mAh
Audio test:1 channel audio signal input, test the audio whether is normal
Packing List
Screen/Resolution：5 inch TFT-LCD screen / 800*480 resolution
CVBS：1 channel BNC input, NTSC/PAL (Auto adapt), PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic, etc
AHD CVI TVI camera test:
MAX 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS,
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,
8MP AHD test, 3840 x 2160P 15FPS,
support UTC control and call OSD menu.
Auto HD app:Connect camera to “AHD/CVI/TVI” port, enter “HD” app. The tester can auto recognize AHD/CVI/TVI signal and display the image, as well as display the camera type and frame
HDMI in / VGA in:1 channel HDMI input, support 4K 30FPS, 1 channel VGA input, support 1920 x 1200P 60FPS
Power output: DC12V/1A, supply temporarily power for the camera.
Power input: DC5V/2A
UTP cable test:UTP cable continuity test, support to detect the faulty pin point of the RJ45 cable plug on the tester, support for measuring network cable length
Other Functions:The CCTV camera tester has LED lighting for working in the dark
Battery:Built-in 3.7V Li-ion battery, 4000mAh
Audio test:1 channel audio signal input, test the audio whether is normal
Packing List
1*CCTV tester HD-2950
1*Packing box
1*RS485 cable
1*BNC cable
1*Wrist belt
1*Audio test cable
1*DC12V Power output cable
1* 5V 2A USB charging cable
