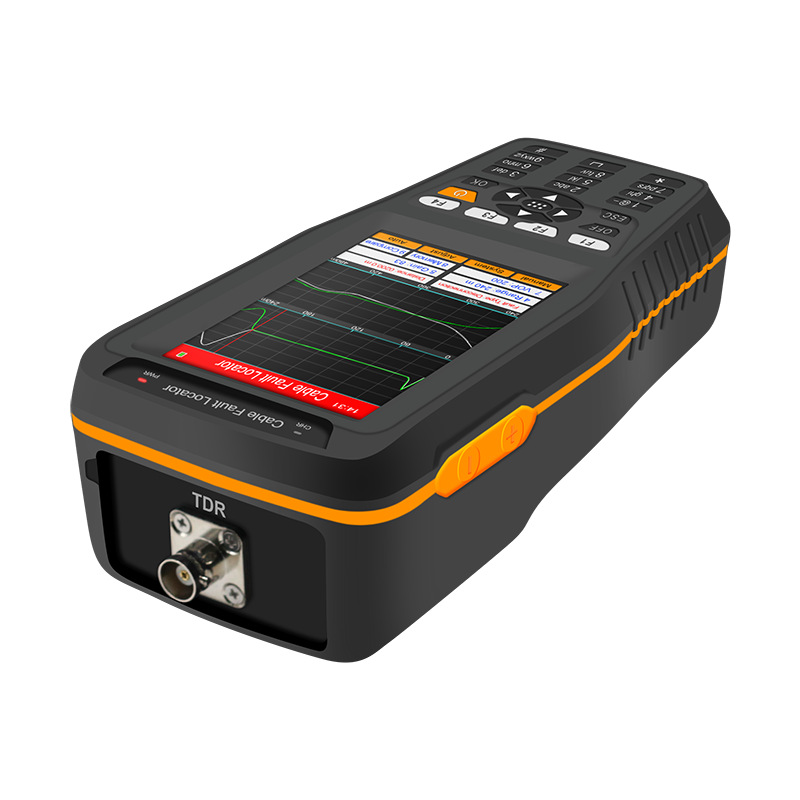

TDR TL280 1/2/4/8km Cable Fault Tester TDR Cooper TDR Locator Coaxial Communication Wire Locater
Product Introduction
TL280 cable Fault Locator is used for automatically testing the precise location of the coaxial cable and communication cable's broken wires, mixed wires, ground gas and related cable fault.
Product Feature
1) DAGC (Digital Gain Automatic Control) system: The gain can be modified digitally. Eliminate the waveform distortion caused by the potntiometer knob. It can also do pure linear adjustment, which is convenient for manual testing.
2) Digital waveform automatic recognition technology: automatically recognize the waveform that are difficult for human to determine.
3)Using ARM CPU with FPGA technology, can quickly perform various complex operations and determine fault waveform accurately.
4) Waveform comparison function, it is convenient to compare the test waveform of the fault cable and the normal cable, and clearly find the fault point location.
5) Large-screen LCD color display, humanization design of the interface menu, fast digital press button, easy for users to operate.
6) High-power lithium battery, which can be used for up to ten hours (with specialized power charger).
Technical Specifications
1) Max measurement range ( Manual): 8KM
2) Max measurement range (Auto): 4KM
3) Pulse width: 30ns ～ 50us
4) Pulse amplitude: 0 ～ 30V
5) Max resolution: 0.5m
6) Dead zone: 0m
7) LCD: 480 * 800 color screen
8) Battery: 4400mAH lithium-ion battery
9) Power Consumption: 1W
10) Weight:0.4kg
11) Dimensions: 190*84*52mm
12) Working temperature: －15℃~＋45℃
13) Storage temperature: -20℃－＋55℃
Tips:
This handheld cable fault tester is only suitable for testing the length of the cable, the length of the broken or mixed wires (within 100 ohms of short-circuit resistance measured by a multimeter). It cannot accurately locate leakage faults, poor insulation, ground faults, etc. If you want to accurately locate the fault point, it is recommended that you purchase the T-991 cable fault tester (high anti-interference type).
