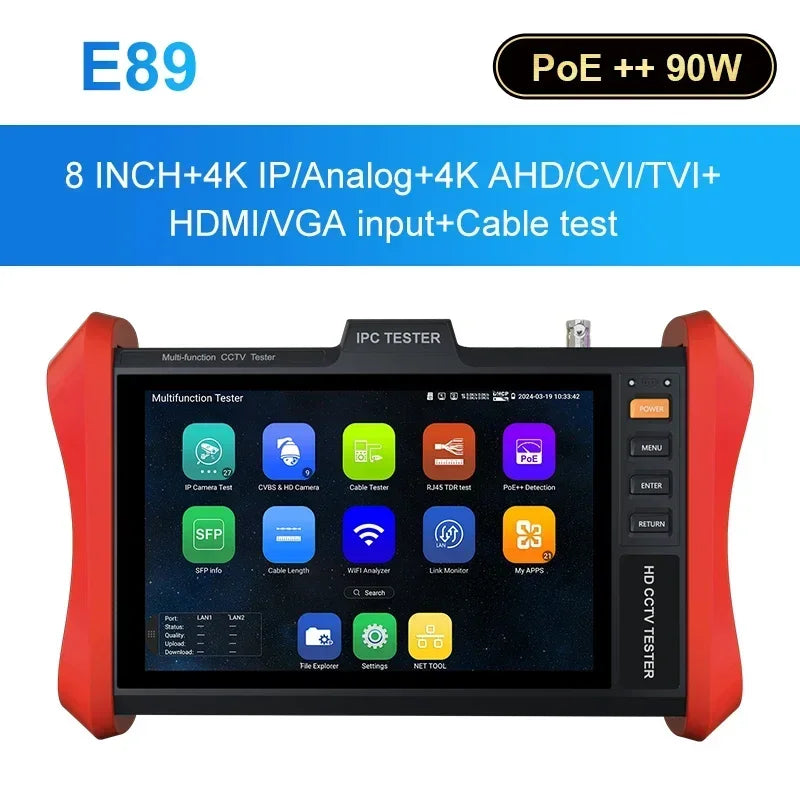

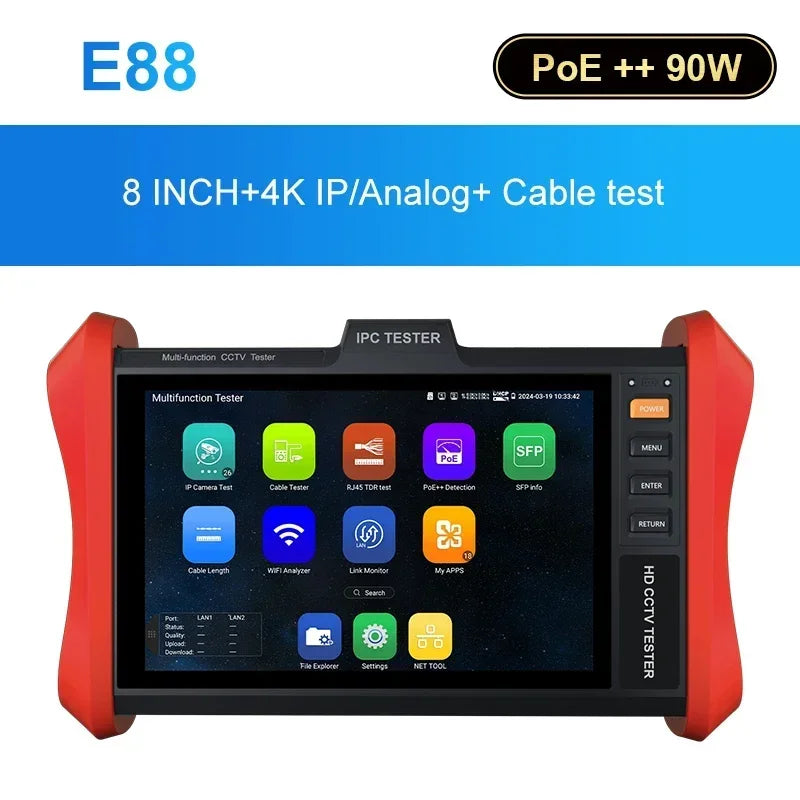

8 Inch IP Camera CCTV Tester E88/E89 POE++ 90W SFP 4K IP H.265 RJ45 Netork Cable Tester 5200mAh Battery DC24V 2A Power Output
No se pudo cargar la disponibilidad para recoger
Utilice este texto para fomentar la comunicación o promover el intercambio en las redes sociales.
8 inch POE++ 90W SFP 4K H.265 IP Camera CCTV Tester RJ45 netork cable tester
Model: E88/E89
● 8 inch IPS touch screen, 1920*1200 resolution
● 55V PoE++ power output, max power 90W
● DC12V 3A, DC24V 2A power output
● RJ45 TDR cable test/UTP cable test
● Brand new dual gigabit Ethernet ports
● WIFI analyzer, support 2.4G frequency band
● ONE Gigabit SFP optical fiber module port
Feature:
Optical fiber network test / Fiber test:
● NEW ONE Gigabit SFP port, support insert SFP optical fiber module, for optical fiber network testing
Camera test:
● 8 inch IPS touch screen, 1920*1200 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.
● Rapid ONVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions
● IPC TEST, HIK test tool, DH test tool
● PoE++90W power output, support IEEE 802.3af(PoE), IEEE 802.3at(PoE+), IEEE 802.3bt(PoE++)
● DC12V/3A, DC24V 2A power output
● DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi Analysis, support 2.4G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized,and detect near-end, mid-end and far-end fault test of RJ45 cable plug
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Other functions:
● TesterPlay, support remote control and voice intercom
● Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 11.1V/5200mAh Lithium Ion Battery, after 3.5 hours charging, working time lasts 11 hours
